Overview

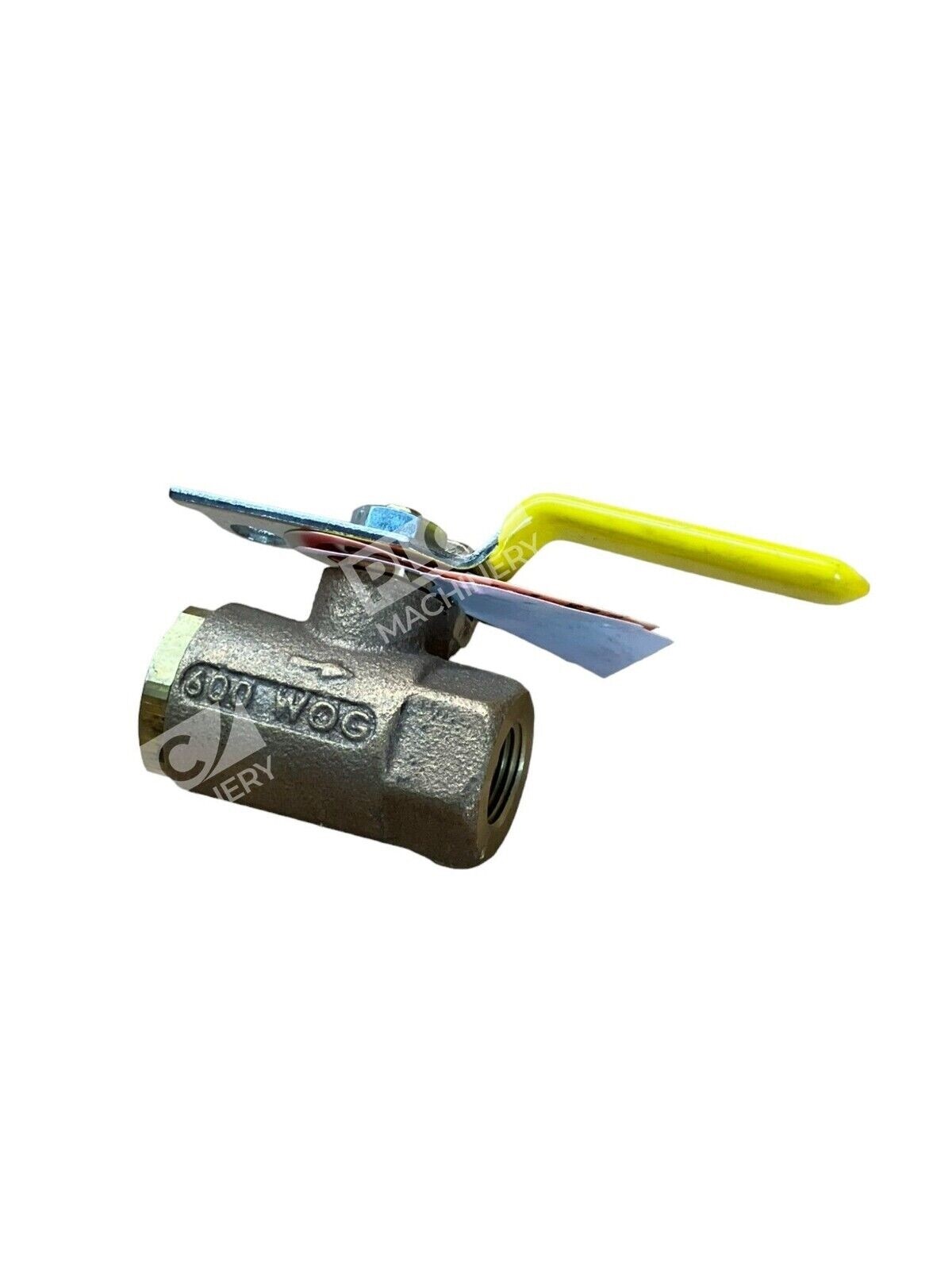

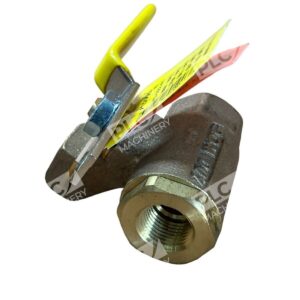

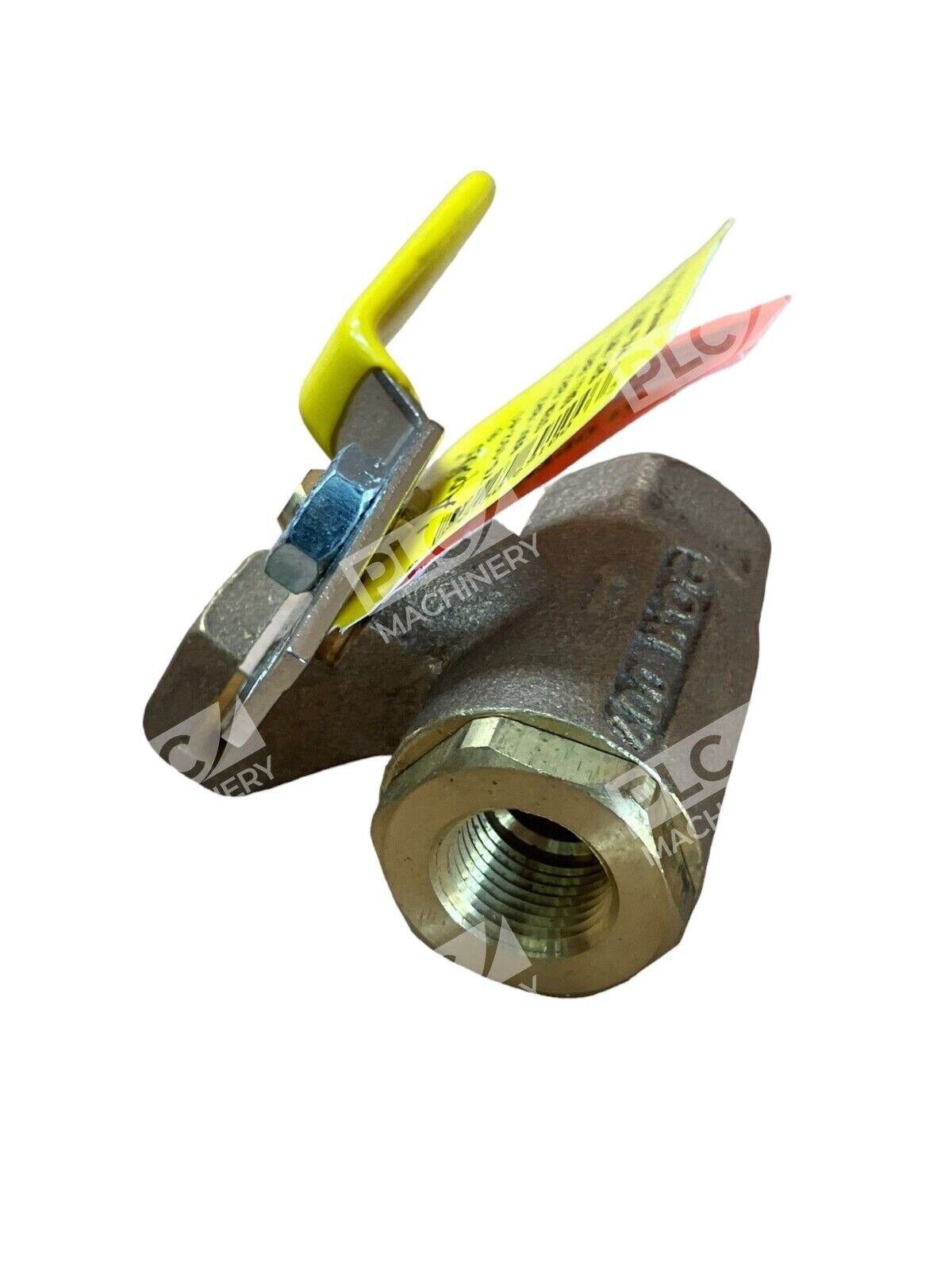

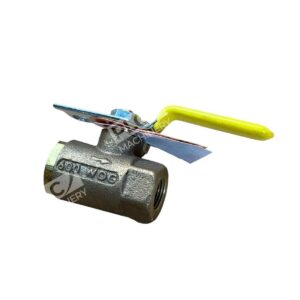

The Apollo 75-102-41 is a compact, 2-piece bronze ball valve from the Series 75-100 line, designed for pneumatic, hydraulic, and general industrial applications. With a 3/8″ female NPT (FNPT) connection and 600 PSI cold water working pressure (CWP) rating, this manual ball valve provides reliable on-off flow control in confined spaces where compact design is critical.
Key Features
- OSHA-compliant design for safe pneumatic tool maintenance and system lockout

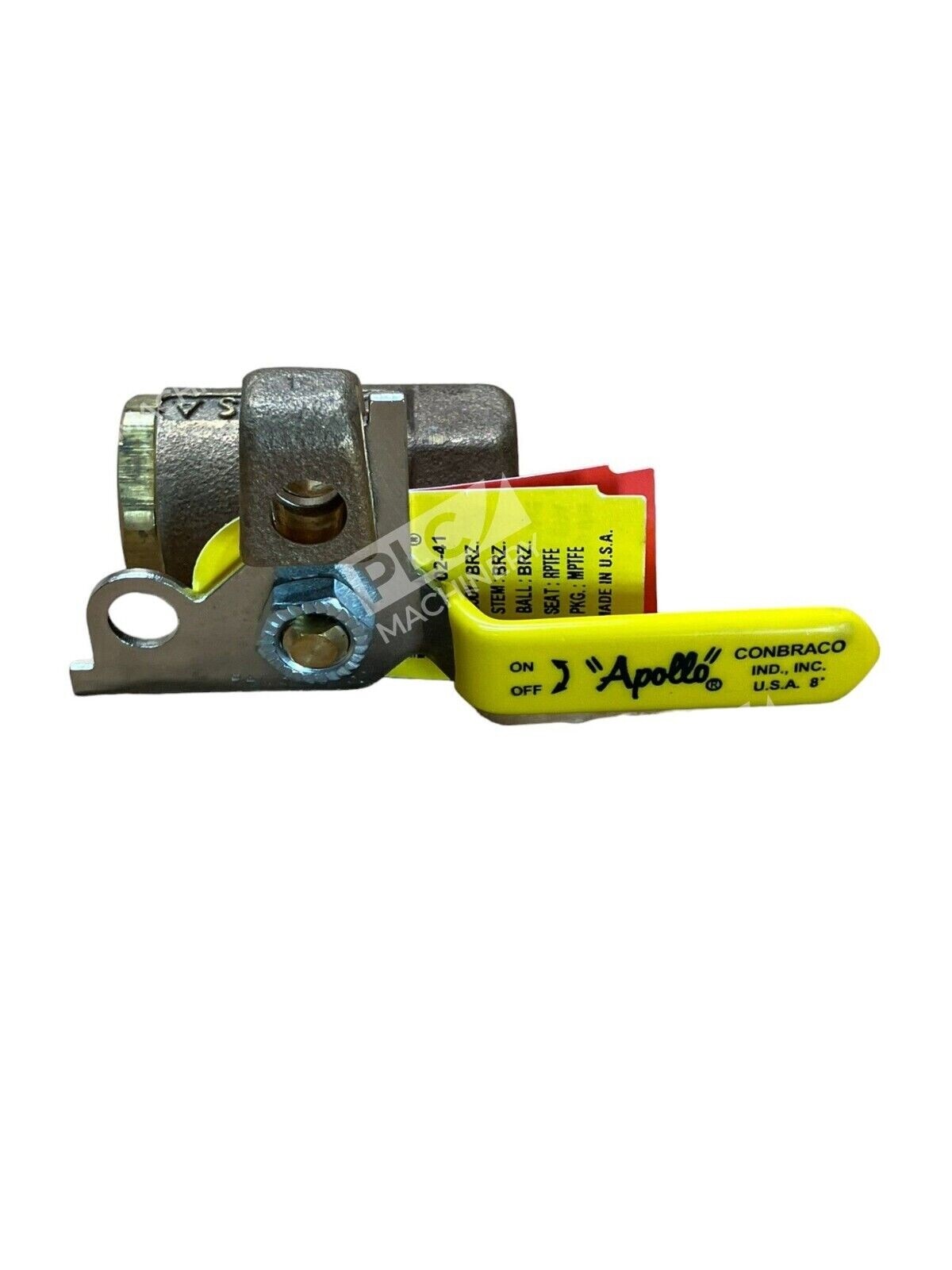

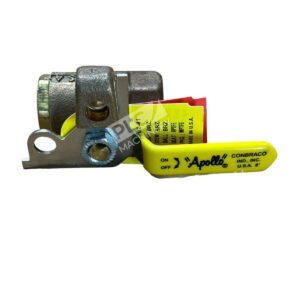

- Pad-locking capability – secure valve in open or closed position with same hardware
- Lever-operated actuator with chrome-plated brass ball for corrosion resistance
- Standard port design with 0.50″ orifice for balanced flow and pressure drop
- Bronze body construction (ASTM B584 C84400) for durability in water, gas, and oil media
- Compact footprint – 2.22″ inlet-to-outlet length, ideal for tight installations
Technical Specifications
- Series: 75-100
- Port Size: 3/8″ NPT Female (FNPT)
- Body Material: Bronze (ASTM B584-C84400)
- Ball Material: Chrome-plated brass
- Stem Material: Brass (ASTM B16)
- Seat Trim: RPTFE (reinforced PTFE)
- Handle: Steel lever with pad-lock retainer
- Port Type: Standard port (0.50″ orifice)
- Pressure Rating: 600 PSI CWP, 150 PSI SWP (steam)
- Temperature Range: 50°F to 200°F
- Inlet to Outlet Length: 2.22″
- Top to Inlet Center Height: 1.74″
- Weight: 0.77 lbs
- Flow Coefficient (Cv): 7.2
- Standards: MSS SP-110 Compliant, WW-V-35C Federal Specification
Typical Applications
- Pneumatic systems: Tool air lines, air compressor shutoff, pilot air isolation
- Hydraulic circuits: Component isolation and maintenance lockout
- Water and gas distribution: Service line isolation in plumbing and gas systems
- Industrial maintenance: Safe equipment shutdown and LOTO (Lockout/Tagout) compliance
- Compressed air tools: Pressure-drop minimization in branch lines
Compatibility & Replacements
Compatible With
- Standard 3/8″ NPT male threaded piping systems
- Industrial pneumatic control circuits (ISO 1219)
- Hydraulic power units and manifold blocks with NPT porting
- Water supply and gas distribution networks (domestic/import)
- OSHA-regulated lockout/tagout systems
Replaces / Drop-In Replacement For
- Apollo/Conbraco 75-102-01 (ball valve without pad-lock)
- Other Series 75-100 models in 3/8″ size that require standard port design
- Generic bronze ball valves of equivalent PSI/size ratings (verify connection type)
Works With
- Standard 3/8″ NPT female to male adapters and fittings
- FNPT ball valve installation in industrial and commercial piping
- Manual actuated control systems (no electric or pneumatic actuation required)
- Pad-lock hardware (padlock not included; customer-supplied)
