Overview

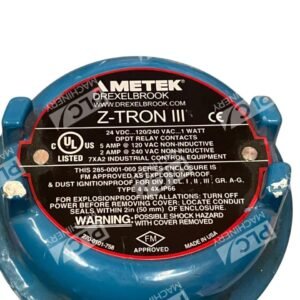

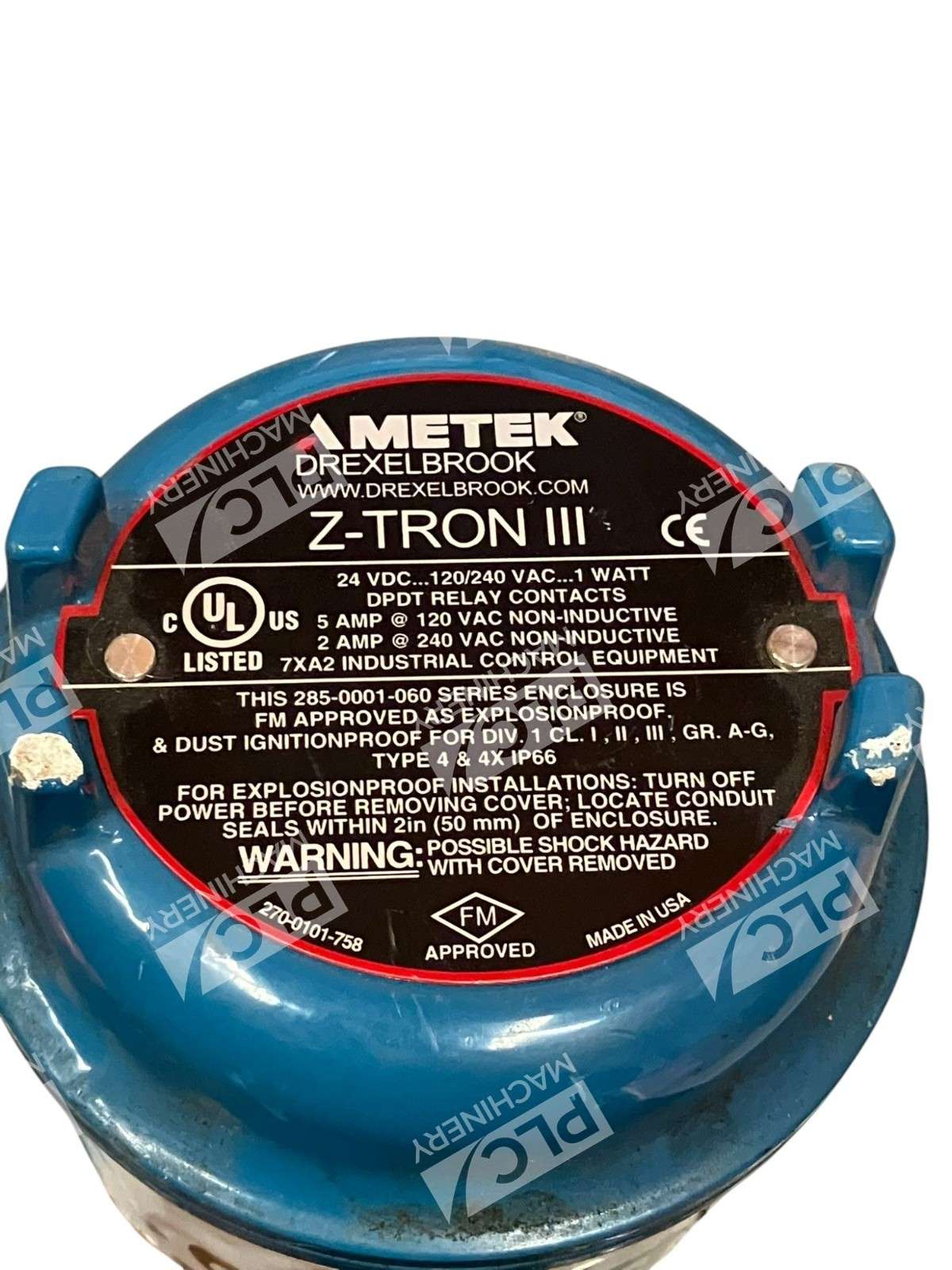

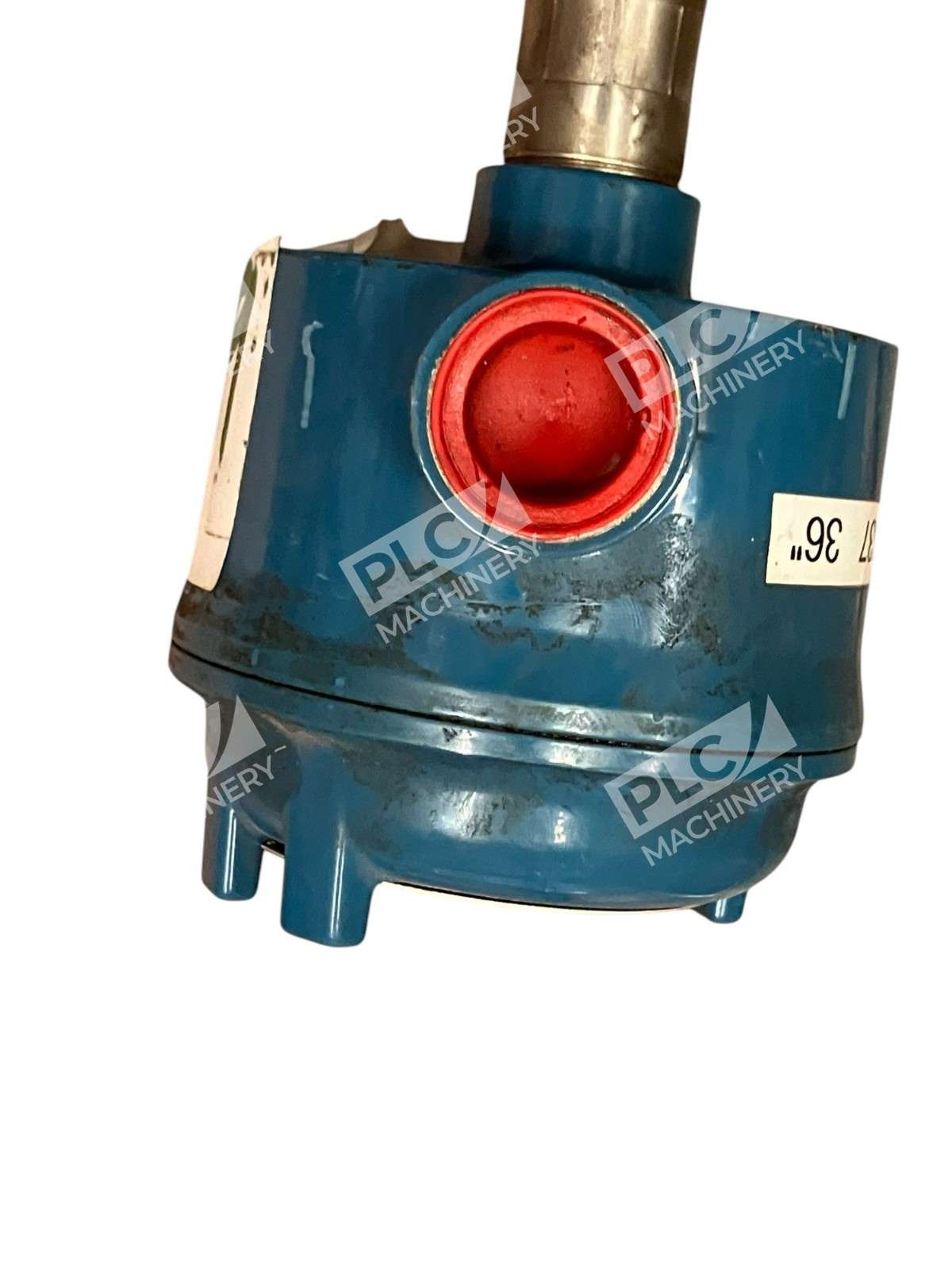

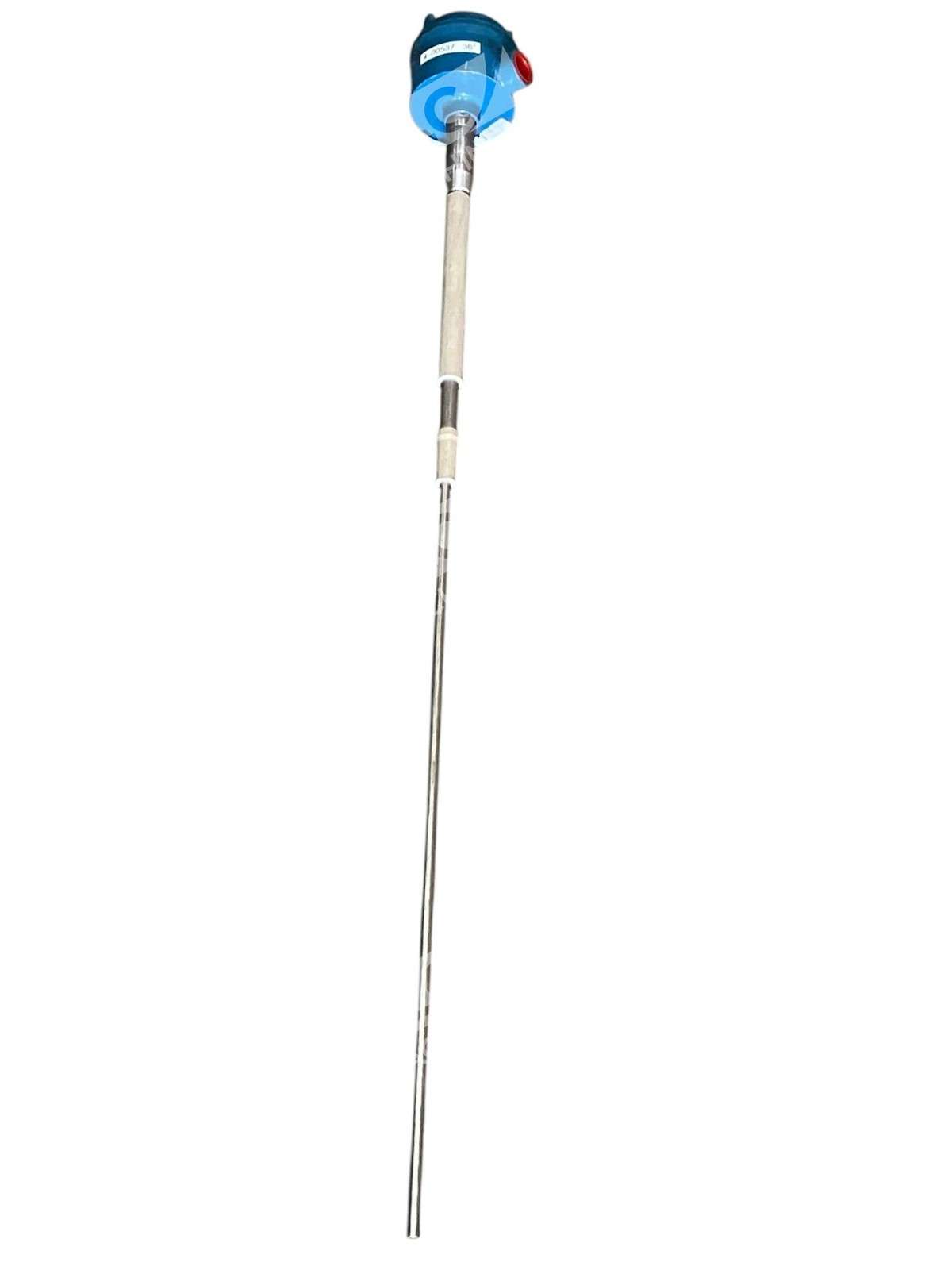

The Ametek 270-0101-758 Z-TRON III is a 24VDC general-purpose DPDT relay designed for reliable operation in control and instrumentation circuits. As part of the Z-TRON III product line, this relay is engineered for applications demanding safe, economical switching in industrial and commercial equipment. The unit features dual-pole, dual-throw contacts rated at 1W, providing flexible control logic for level sensing, vending machines, dispensing systems, and process automation.
Key Features
- DPDT Dry Contacts: Dual-pole, dual-throw configuration allows simultaneous switching of two independent circuits
- 24VDC Coil Voltage: Standard industrial DC supply voltage for compatibility with PLC and control panel designs
- 1W Contact Rating: Conservative power rating suitable for low-current logic circuits and sensor-driven applications
- Z-TRON III Technology: Proven relay design optimized for repeatability and long contact life in industrial environments
- Robust Construction: Built for food processing, beverage dispensing, water treatment, and chemical dosing systems
Technical Specifications
- Coil Voltage: 24VDC
- Contact Configuration: DPDT (Double Pole, Double Throw)
- Contact Power Rating: 1W
- Series: Z-TRON III Control Relay
- Manufacturer: Ametek / Drexelbrook
- Part Number: 270-0101-758
- Contact Type: Dry contacts
- Typical Applications: Level control, sensor switching, industrial automation
Typical Applications
The Ametek 270-0101-758 relay is ideal for:
- Level control systems in vending and ice-making machines
- Dispensing equipment and fluid metering circuits
- Water softener and dishwasher control logic
- Food, dairy, and beverage processing level detection
- Chemical dosing and brewing system automation
- General-purpose industrial control circuits requiring low-power switching
Compatibility & Replacements
Compatible With
- 24VDC industrial control panels and PLC output modules
- Drexelbrook level sensing and detection systems
- Standard relay sockets and DIN-rail mountable enclosures
- General industrial automation and process control systems
Replaces / Drop-In Replacement For
The Ametek 270-0101-758 is a direct replacement for equivalent Z-TRON III DPDT 24VDC relays in the Drexelbrook control relay family. Verify compatibility with your system integrator before ordering for application-specific replacements.
Works With
- Drexelbrook IntelliPoint and ThePoint level switches
- 24VDC industrial control networks
- Sensor-based process automation systems
- Standard relay logic control circuits
