Overview

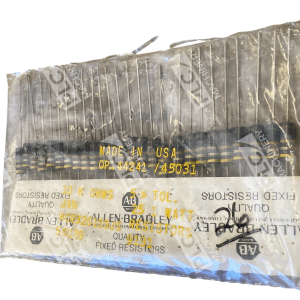

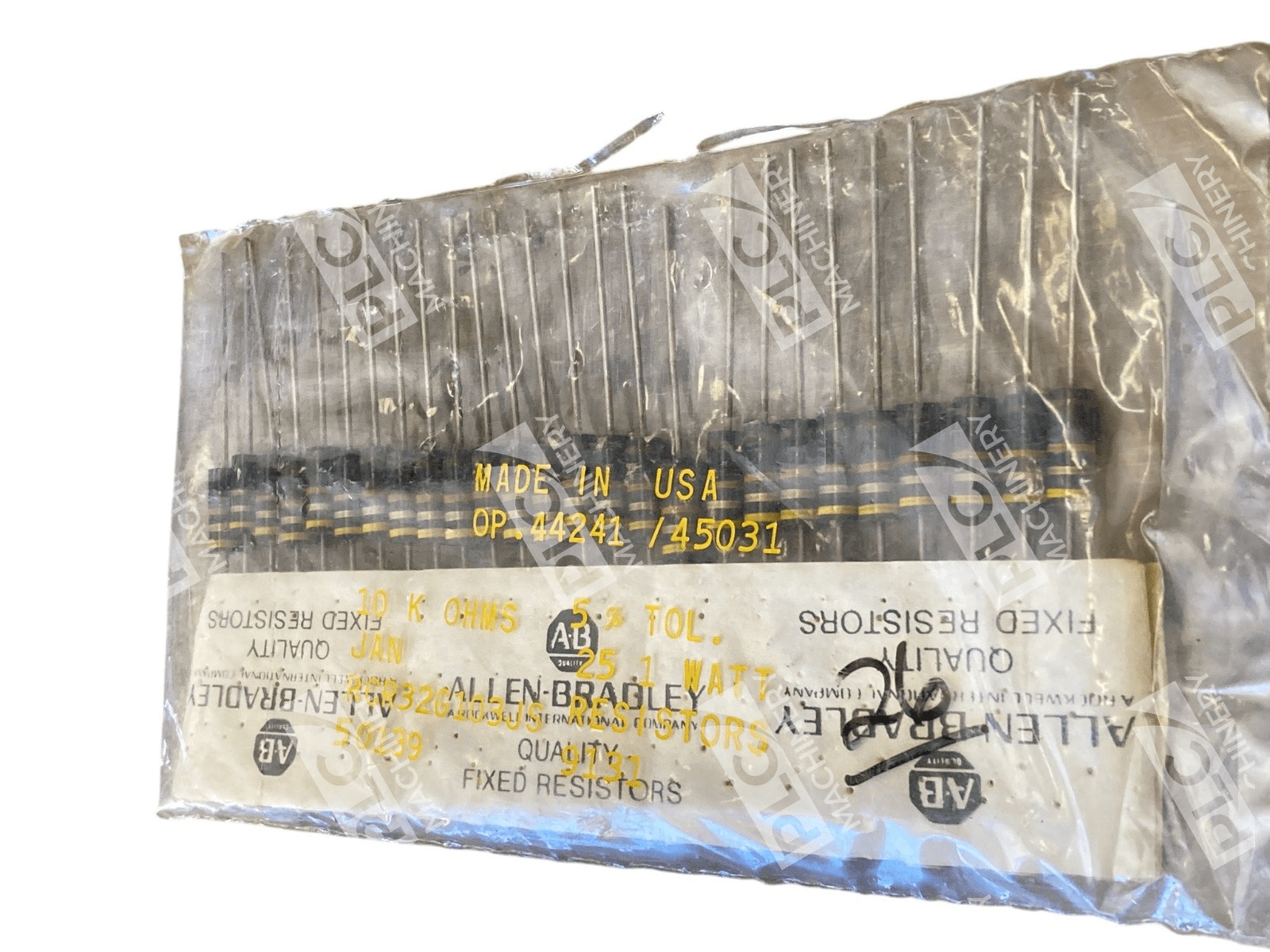

The Allen-Bradley RCR32G103JS is a carbon composition resistor designed for demanding industrial and military applications. With a resistance value of 10 ohms and a power rating of 1 watt, this component meets stringent specifications for reliability and precision in control systems. The ±5% tolerance ensures stable electrical characteristics, and the axial lead termination style simplifies installation in legacy and retrofit applications.
Key Features
- Resistance Value: 10 ohms — verified for low-impedance circuit protection and current limiting
- Power Rating: 1 watt — suitable for moderate thermal load applications
- Tolerance: ±5% — meets industrial performance standards
- Lead Style: Axial leads for board mount and point-to-point wiring
- Series: RCR32 carbon composition — proven durability and temperature stability
- Material: Hot-molded carbon composition core with oxygen-free copper leads
Technical Specifications
Carbon composition resistors like the RCR32G103JS offer superior noise performance and transient suppression compared to thin-film alternatives, making them ideal for sensitive analog circuits and legacy PLC applications. The design supports operating temperatures up to 70°C continuous operation.
Typical Applications
- Industrial control panel retrofit and maintenance
- Legacy PLC and automation equipment repairs
- Signal conditioning and bias networks
- Current limiting and load balancing circuits
- Military and aerospace equipment compliance replacements
Compatibility & Replacements
The RCR32G103JS is part of the Allen-Bradley RCR carbon composition resistor family, which follows MIL-R-39008 specifications. While direct OEM equivalents are limited, carbon composition resistors in the same resistance and power rating from manufacturers including Vishay, IRC, and Stackpole may serve as functional alternatives for non-critical military applications. Always verify electrical characteristics and derating curves before substitution. For legacy control system applications, original Allen-Bradley parts ensure compatibility with warranty and certification requirements.
