Overview

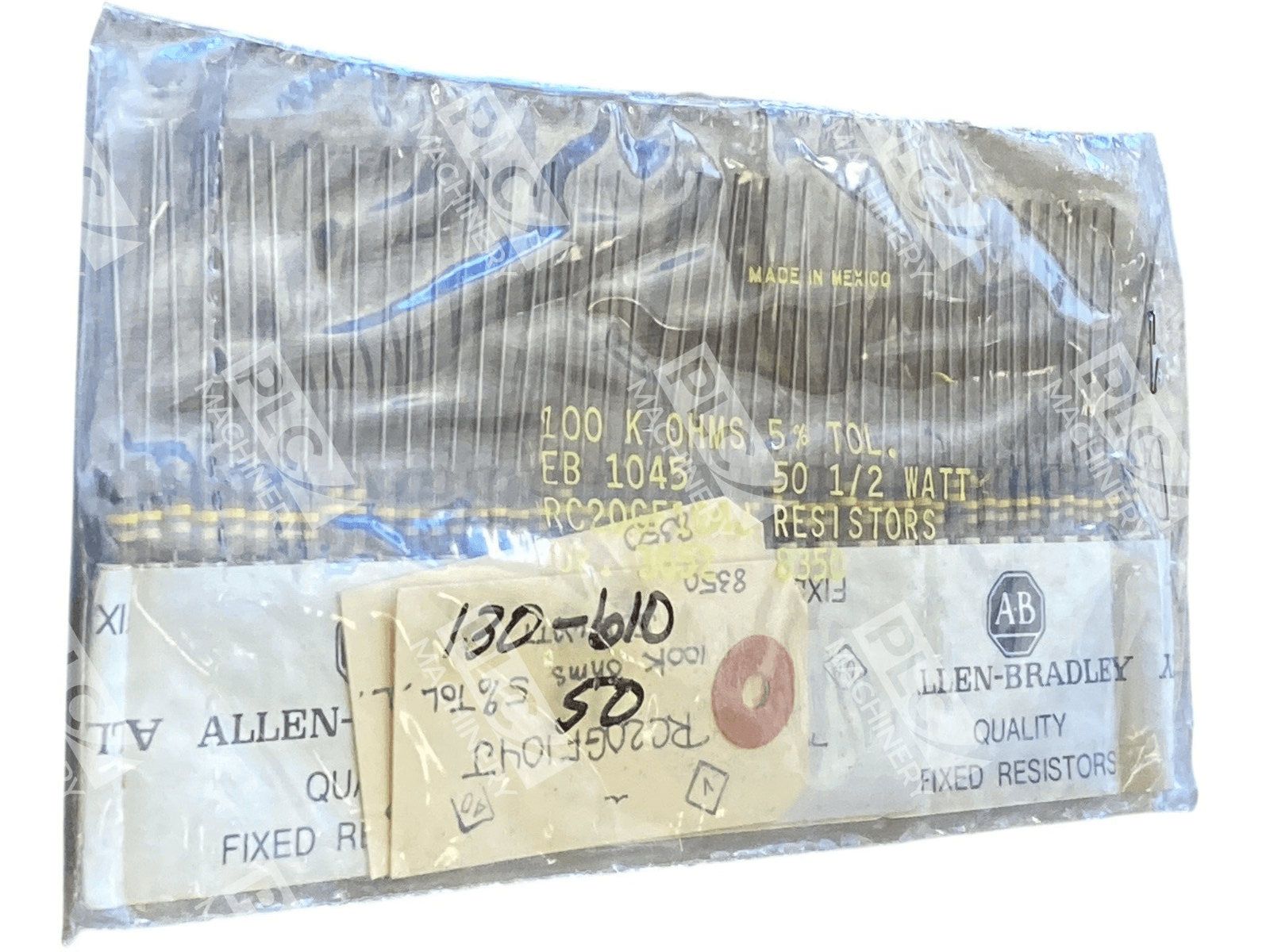

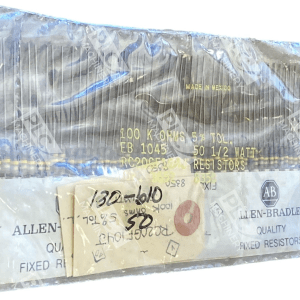

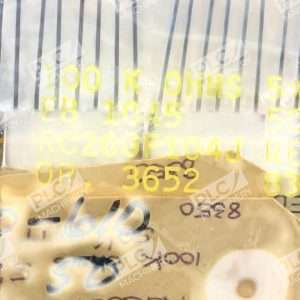

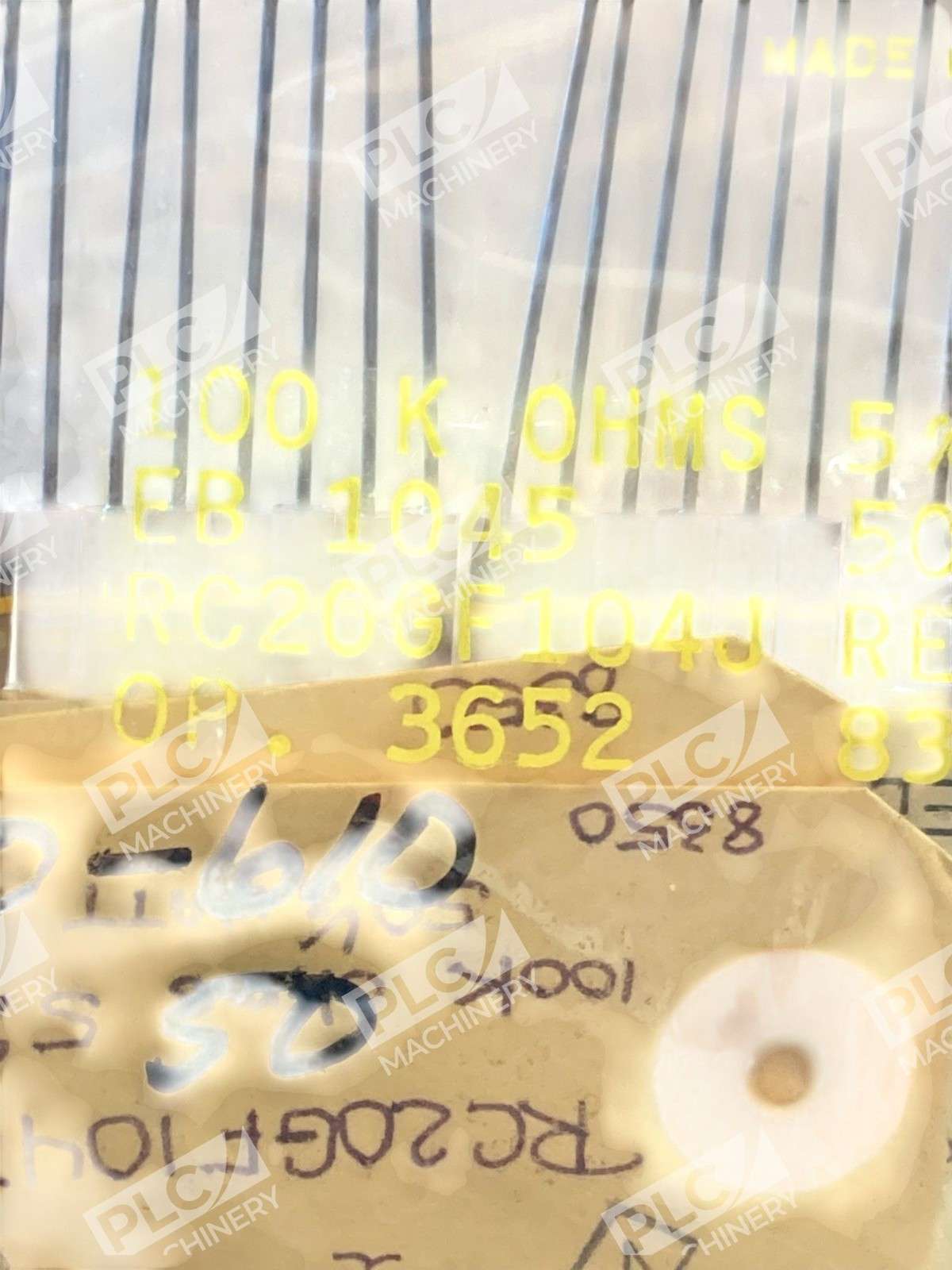

The Allen-Bradley RC20GF104J is a military-specification carbon composition resistor offering 100kΩ nominal resistance with 0.5W power dissipation and ±5% tolerance. Manufactured using hot-molded carbon construction, this component is renowned for its rugged design, low noise characteristics, and exceptional reliability in demanding environments. The RC20GF series represents decades of industrial engineering excellence, with axial leads for standard PCB and through-hole applications.
Key Features
- 100kΩ nominal resistance with ±5% tolerance rating
- 0.5W (500mW) power dissipation capacity
- Hot-molded carbon composition construction—inherently rugged and non-inductive
- Axial lead termination for standard PCB mounting
- MIL-SPEC reliability with outstanding pulse withstanding capability
- Low noise characteristics ideal for audio and precision circuits
- Wide operating temperature range: –55°C to +70°C
Technical Specifications
The Allen-Bradley RC20GF104J meets or exceeds the following electrical and physical parameters:
- Resistance Value: 100 kΩ (104 in 3-digit code = 10 × 10⁴)
- Tolerance: ±5% (J grade)
- Power Rating: 0.5W (500mW)
- Construction: Hot-molded carbon composition
- Lead Material: Oxygen-free copper
- Termination Style: Axial (wire leads)
- Operating Temperature Range: –55°C to +70°C
- Temperature Coefficient: Typical ±750 ppm/°C (stable across rated range)
- MIL Specification: MIL-R-39008 (or equivalent)
Typical Applications
The Allen-Bradley RC20GF104J is widely used in:
- Audio Equipment: Microphone preamps, tube amplifiers, and mixing consoles—valued for low-noise performance and harmonic response
- Industrial Control Circuits: PLCs, signal conditioning, and legacy automation systems requiring proven reliability
- Precision Measurement Instrumentation: Test equipment and data acquisition circuits demanding stable, predictable behavior
- Defense & Aerospace Applications: Military-grade systems benefiting from MIL-SPEC construction and pulse withstand ratings
- Guitar Amplifiers & Musical Equipment: Vintage and custom builds leveraging the component’s natural tone and durability
Compatibility & Replacements
RC20GF Equivalents: The RC20 series designation indicates 0.5W rating. The GF104J nomenclature breaks down as follows: GF (military industrial type) and 104 (100kΩ). Military-grade alternatives include RCR20G104K (10% tolerance version) and RCR20G104J (5% Grade-S, tighter specs). Both are pin-compatible drop-in substitutes where tolerance and MIL requirement differences are acceptable.
Modern Alternatives: For new designs, metal-film resistors (Vishay CCF/MRS series or Xicon MF) offer tighter tolerances and temperature coefficients. However, the RC20GF104J remains preferred for vintage restoration, audio circuits, and systems where the original specification or carbon composition characteristics are critical to performance or compliance.
