Overview

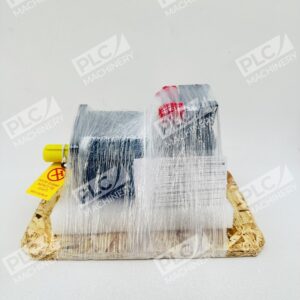

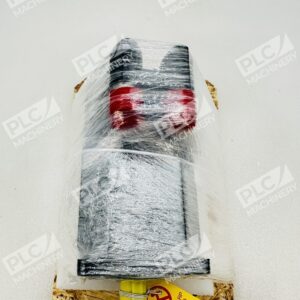

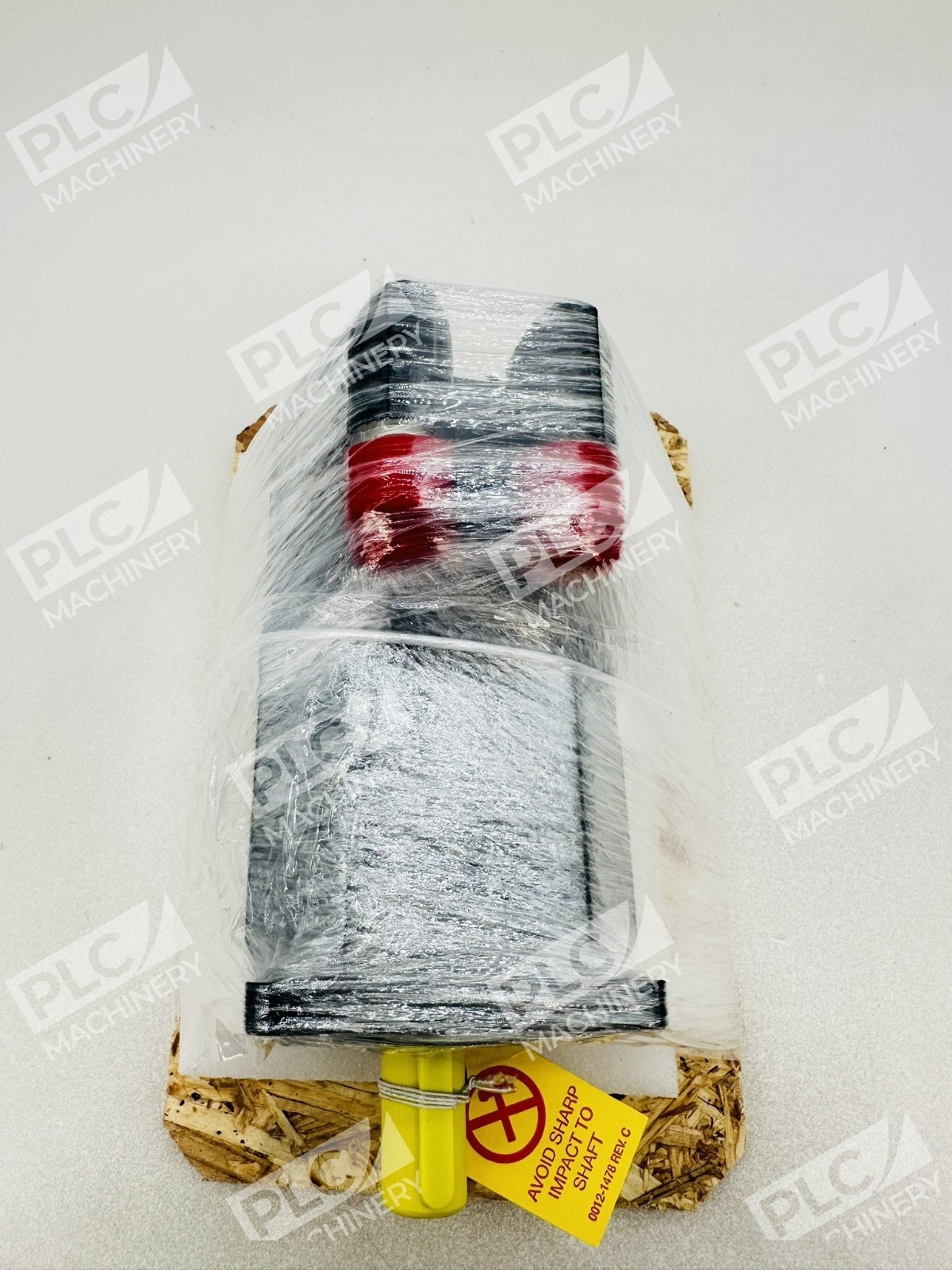

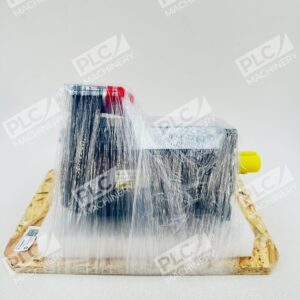

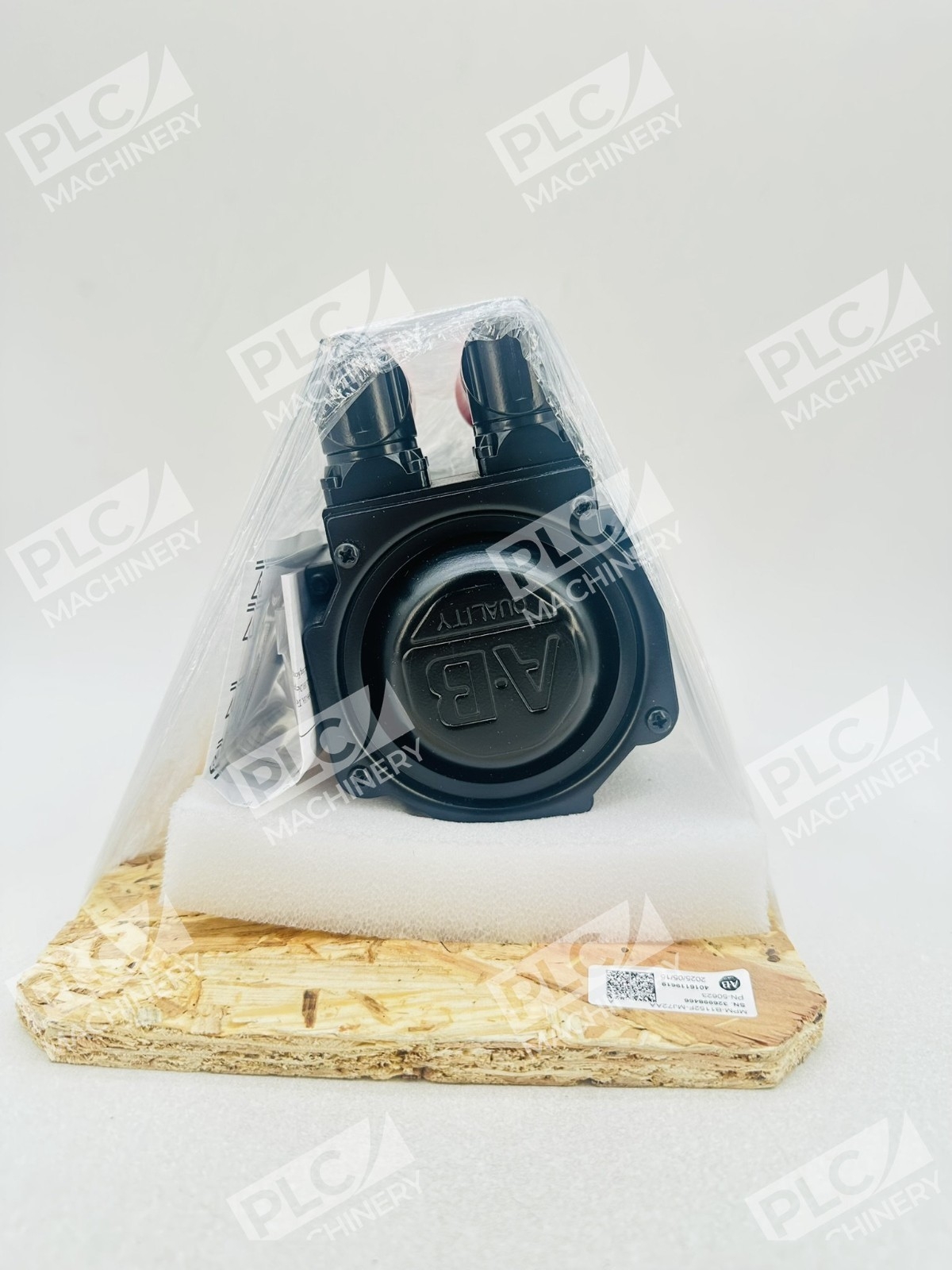

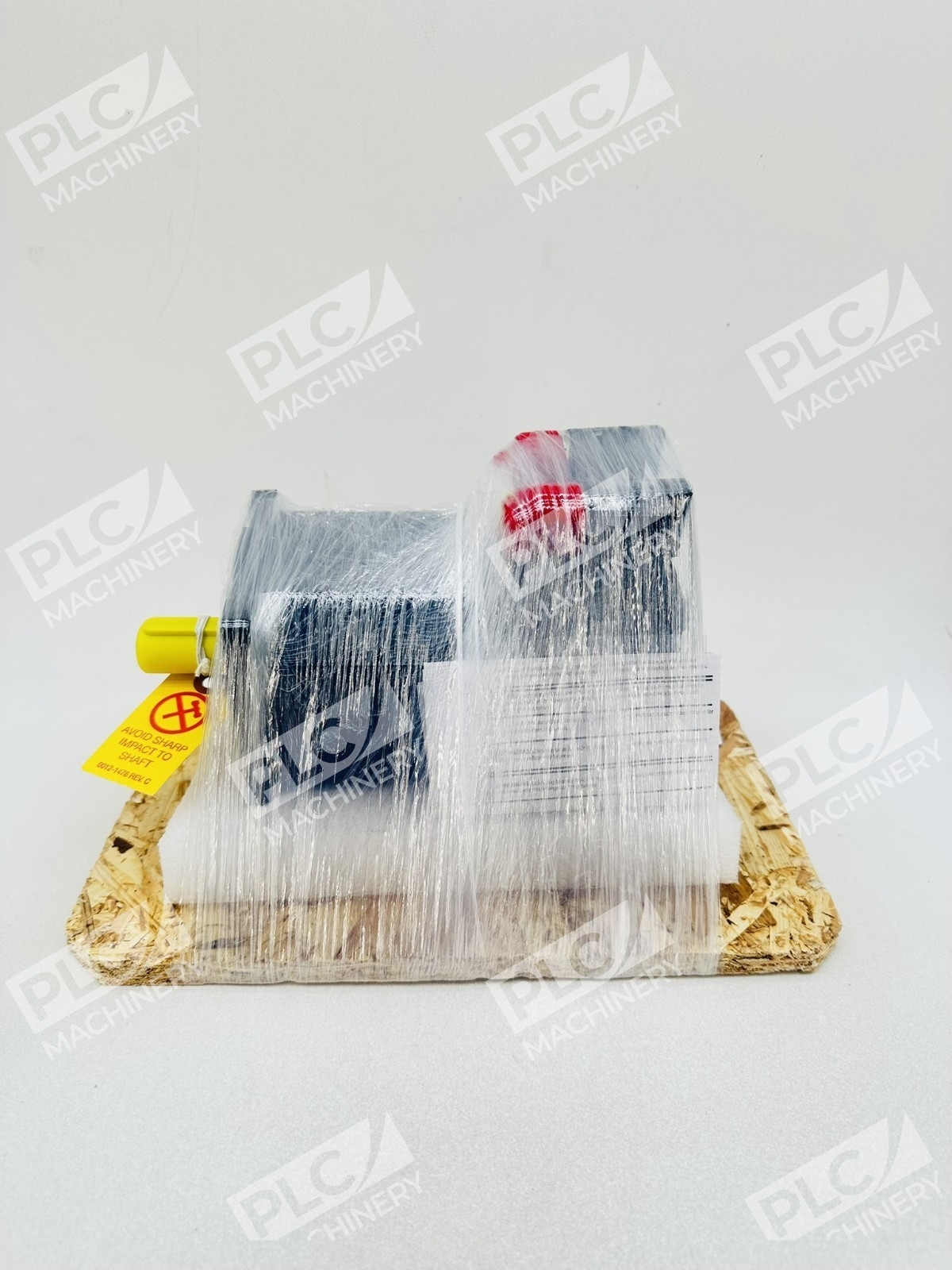

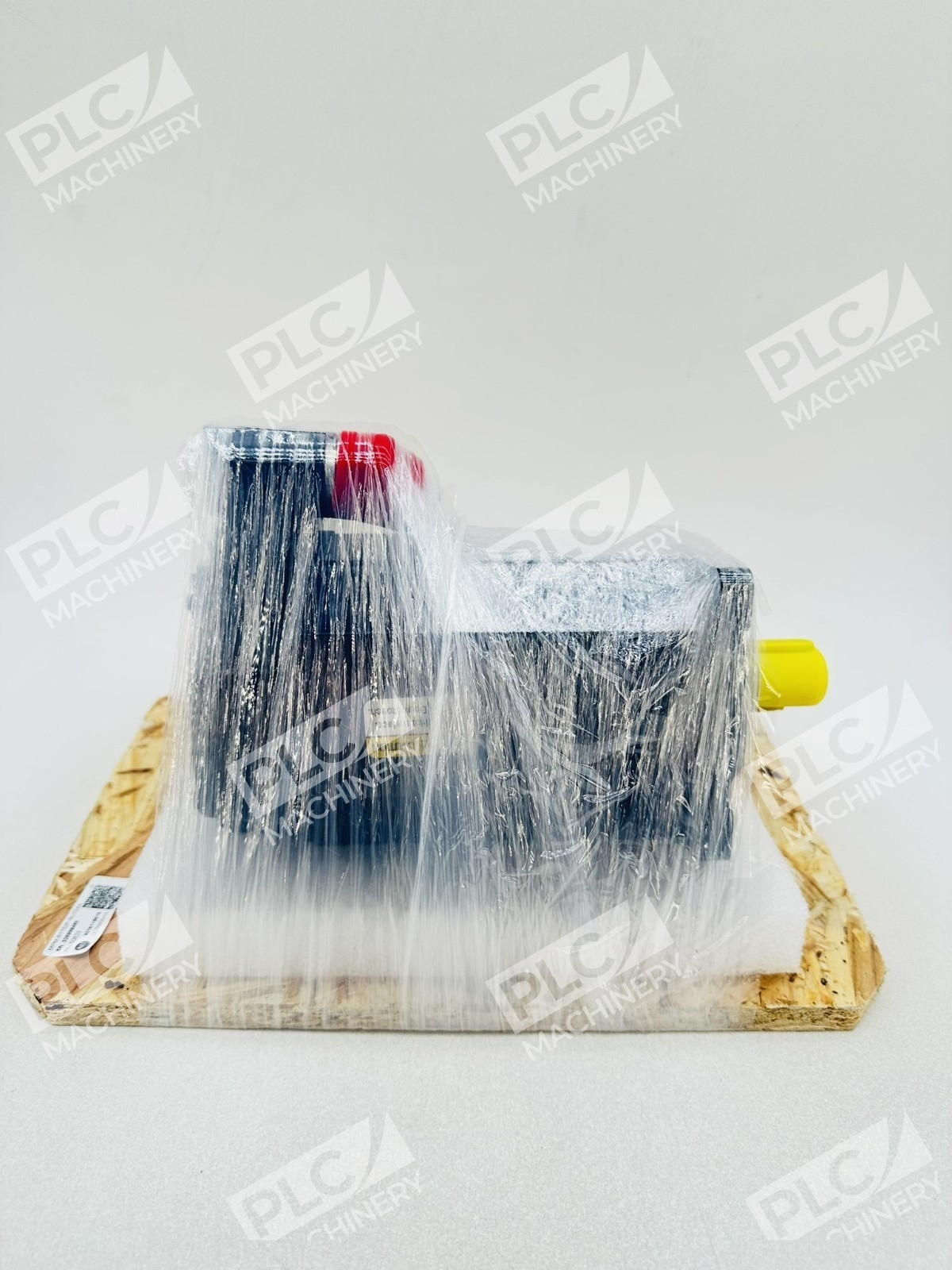

The Allen-Bradley MPM-B1152F-MJ72AA is a Bulletin MPM medium-inertia servo motor engineered for precise motion control in industrial automation. Operating at 460V AC with a 3000 RPM base speed, this motor delivers reliable brushless synchronous performance across diverse motion applications. Built with a 115 mm frame size and designed for efficient power delivery, the MPM-B1152F-MJ72AA integrates easily into Kinetix servo drive systems and legacy motion platforms.
Key Features
- 460V AC rated for three-phase industrial power distribution
- 2 magnet stack permanent magnet design for consistent torque delivery
- Multi-turn high-resolution absolute encoder provides precise feedback over multiple revolutions
- SpeedTEC DIN connector with rotatable orientation up to 180° for flexible cable routing
- No brake configuration for applications requiring simple mounting and minimal footprint
- IP65/IP67 enclosure protection against dust and moisture ingress
Technical Specifications
- Input Voltage: 460V AC, three-phase
- Base Speed: 3000 RPM
- Frame Size: 115 mm (4.53 inches)
- Magnet Stacks: 2
- Feedback: Multi-turn high-resolution absolute encoder
- Connector: SpeedTEC DIN with 180° rotation capability
- Brake: None
- Enclosure Rating: IP65/IP67

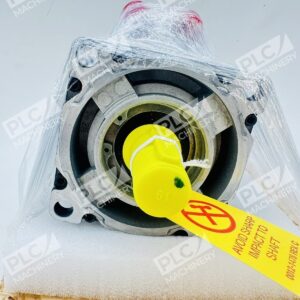

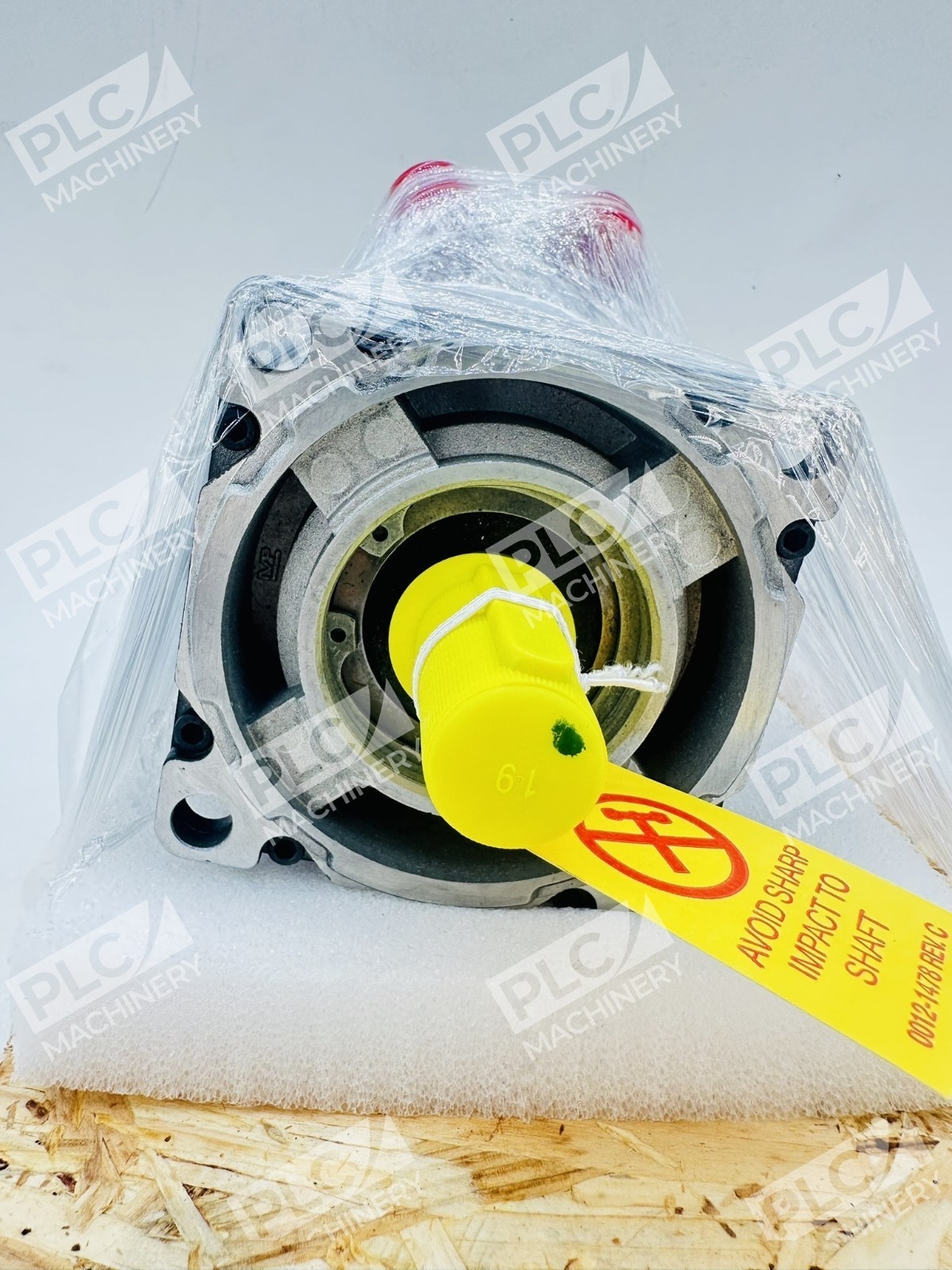

- Shaft Type: Keyed shaft extension
- Weight: 5.36 lbs
Typical Applications
The MPM-B1152F-MJ72AA servo motor is commonly deployed in:
- Printing and web handling machinery requiring consistent speed regulation
- Converting and packaging equipment with medium load inertia demands
- Automotive assembly line positioning and indexing
- Material handling conveyors and transfer systems
- Textile machinery and winding applications
- Robotics and multi-axis coordinate systems
Compatibility & Replacements
Compatible With
- Kinetix 5500, 5700, 6500, 6000, 6200, 300, 350, 7000, and 2000 servo drives
- CompactLogix and ControlLogix controllers with motion modules
- EtherNet/IP communication networks
- Studio 5000 motion programming environment
- Legacy Allen-Bradley motion control platforms
Replaces / Drop-In Replacement For
Verify with your system integrator or Rockwell Automation technical support for specific model interchangeability. The MPM-B1152F-MJ72AA may replace other MPM 115 mm frame motors with identical voltage and encoder configuration, but cross-compatibility requires validation of inertia match and firmware compatibility.
Works With
- Studio 5000 motion instruction library
- Kinetix virtual servo drives and simulation
- EtherNet/IP protocol for real-time communication
- Multi-axis coordinated motion programming
- Field-mounted encoders for external feedback loops
