Overview

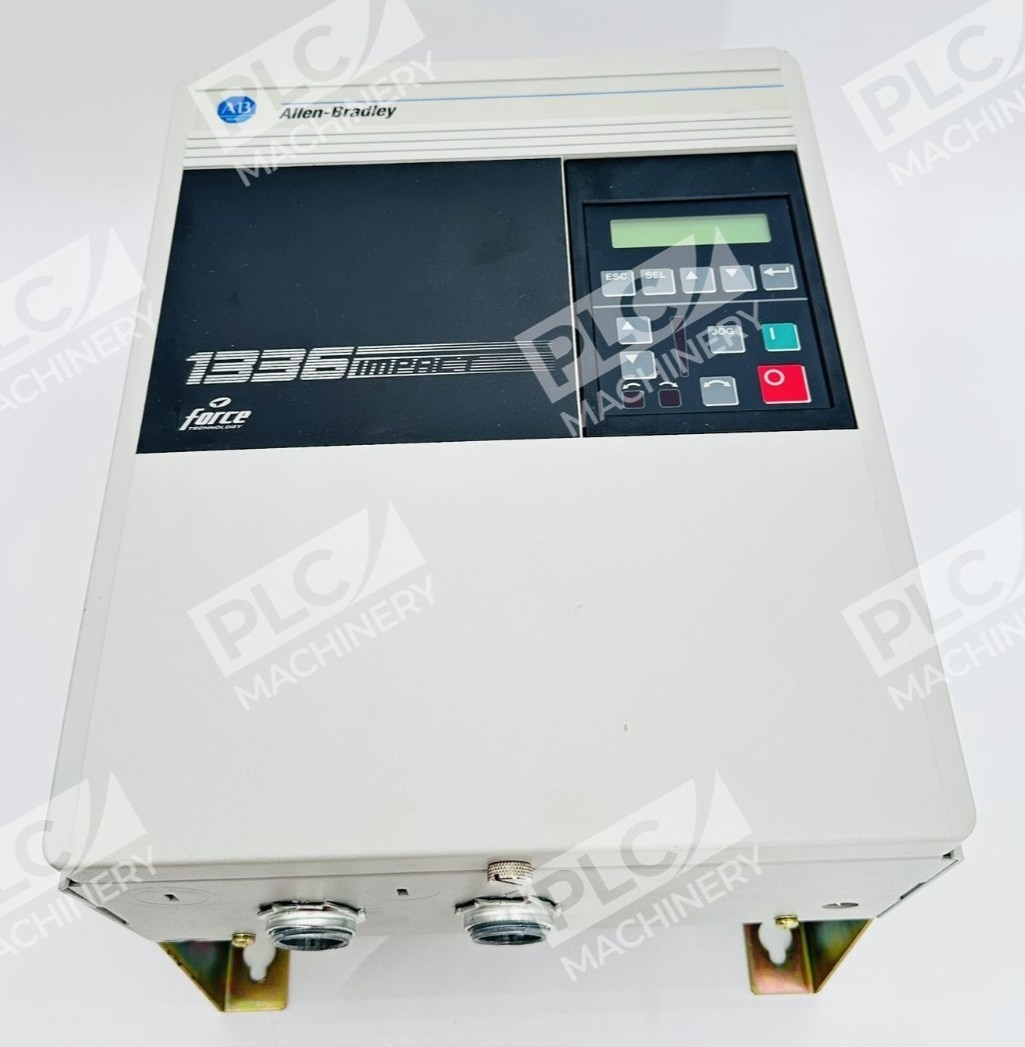

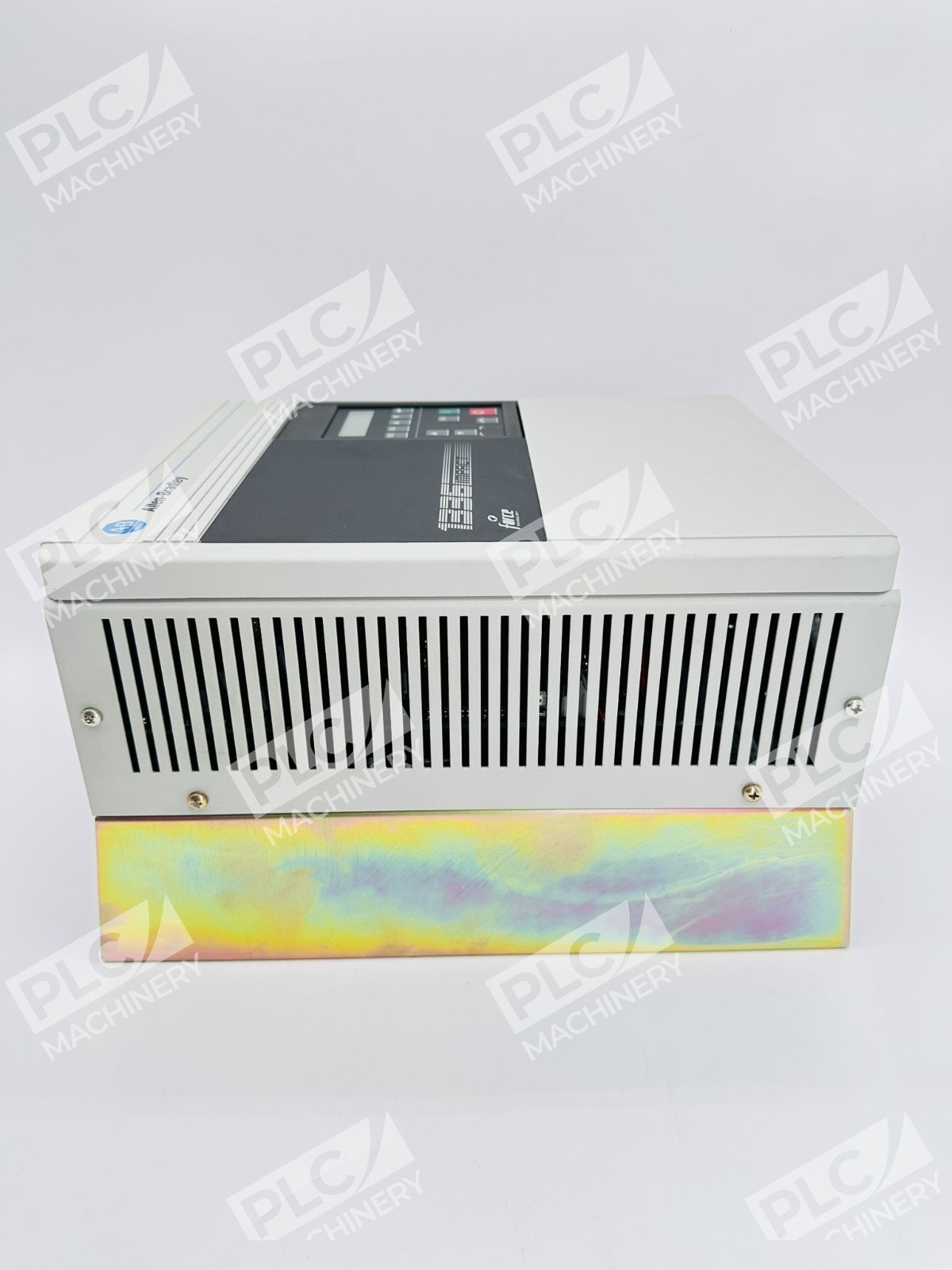

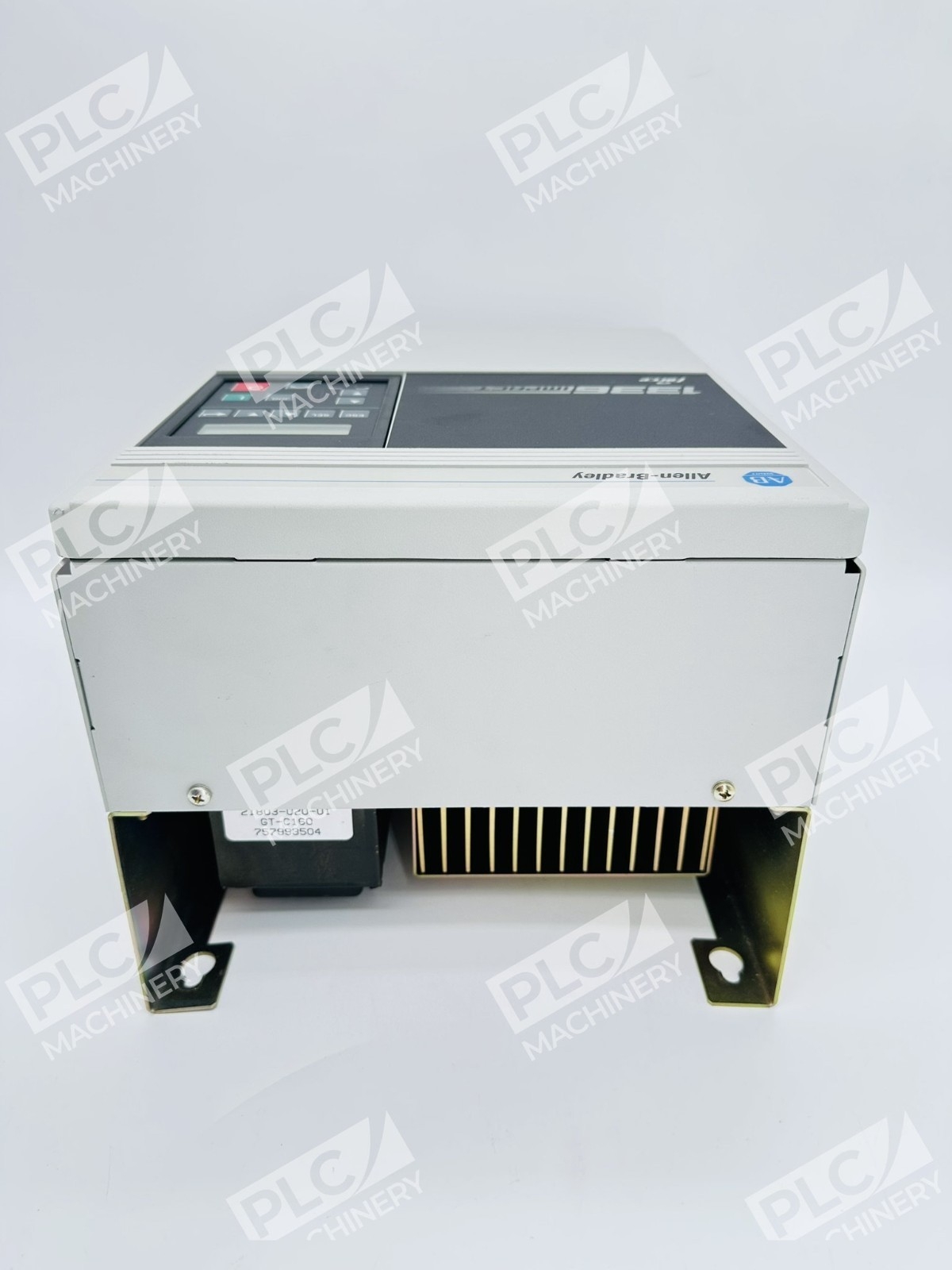

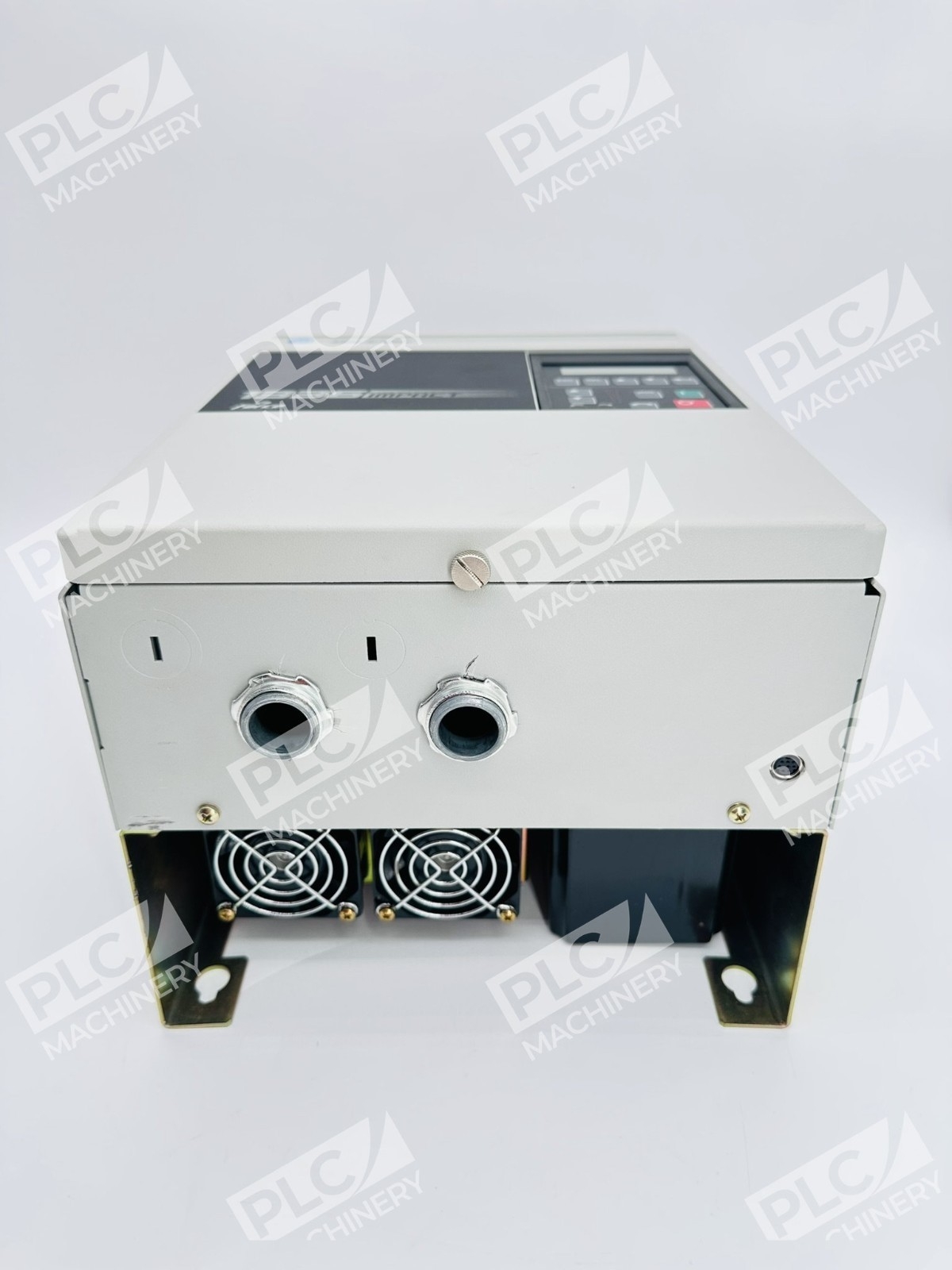

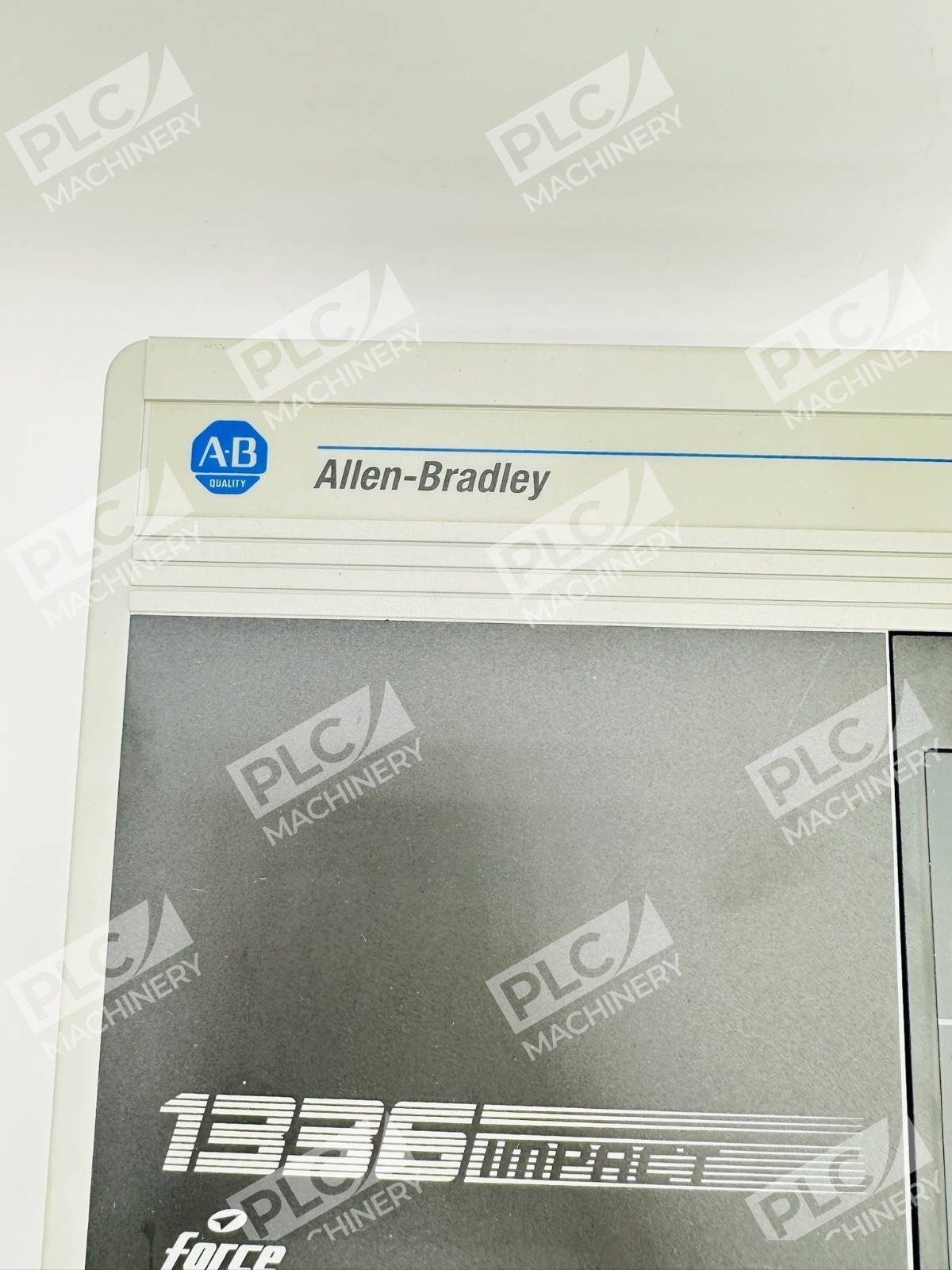

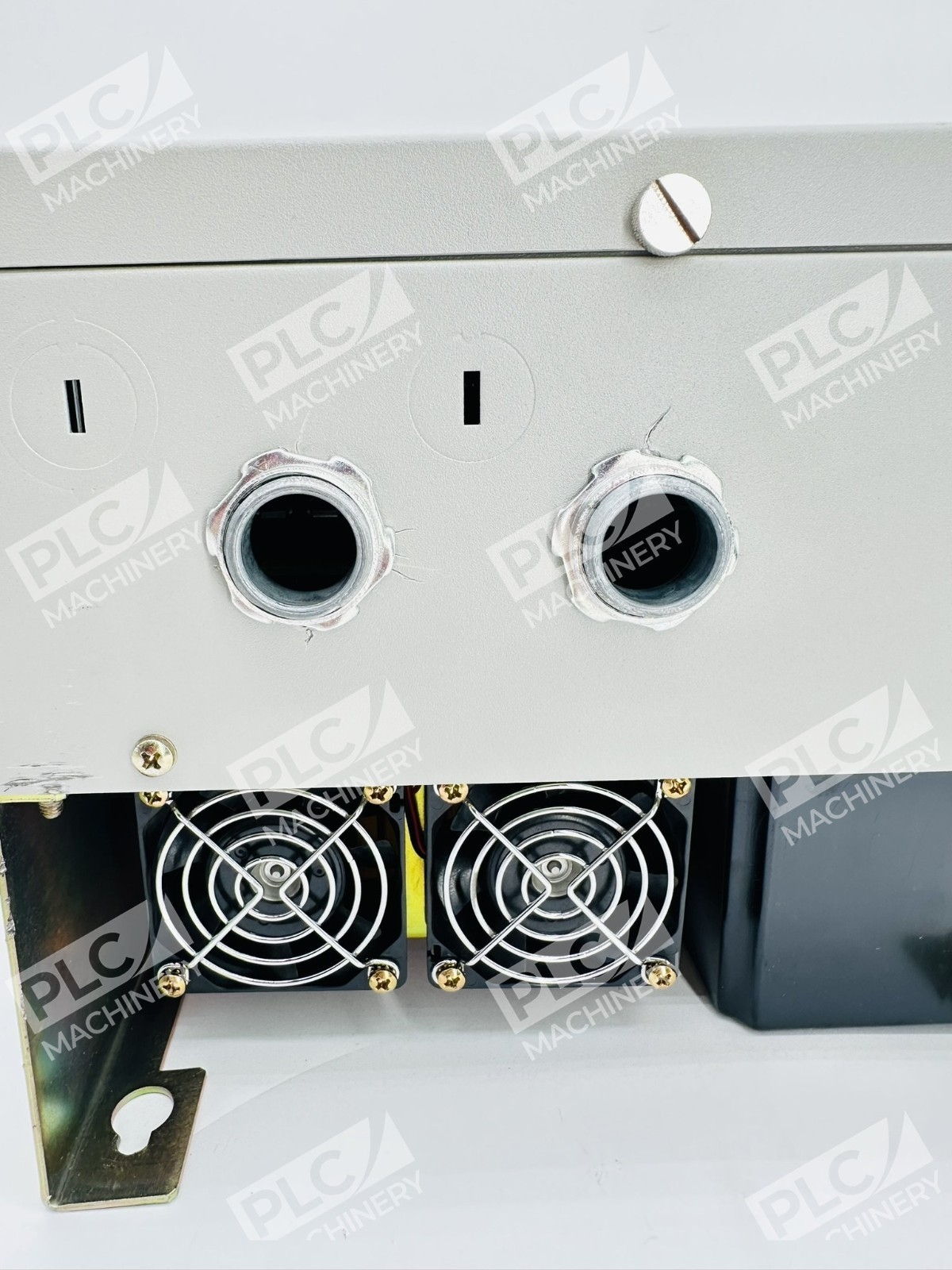

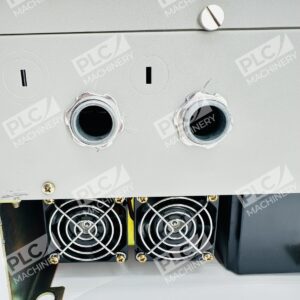

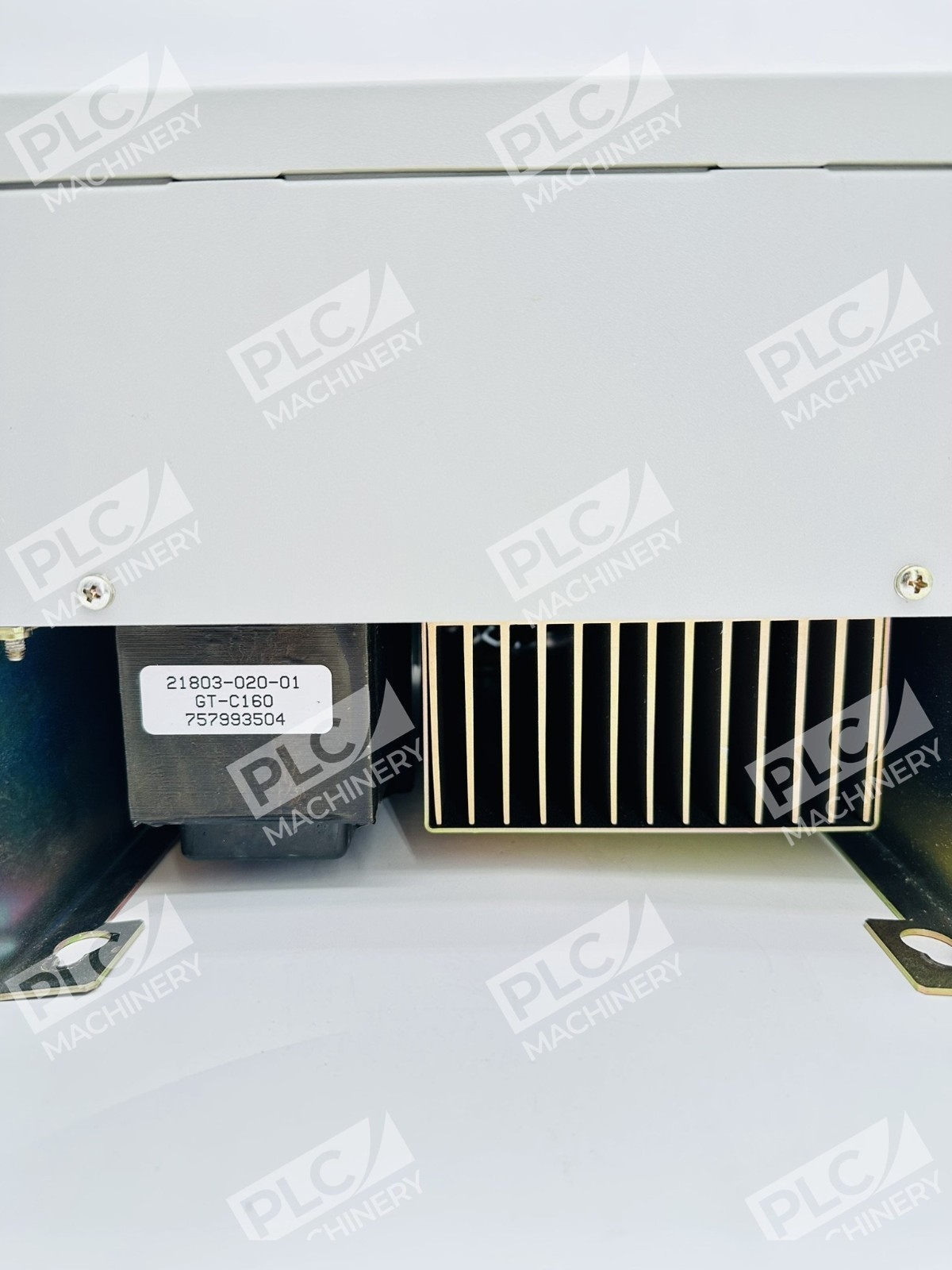

The Allen-Bradley 1336E-BRF100-AA-EN-HA2-L6 is a 10 horsepower, 7.5 kilowatt adjustable frequency drive (AFD) from the 1336 Impact Force series. This microprocessor-based AC drive is engineered for reliable motor control in demanding industrial automation, material handling, and process control applications. The drive operates on 380–480 volts AC three-phase or 513–620 volts DC input, with integrated digital control and operator interface rated at 115 volts AC.
Key Features
- 10 HP / 7.5 kW output – supports mid-range motor applications
- Multi-voltage input – 380 to 480 Volts AC, 28.46 kVA, and 25 Amps input rating
- NEMA Type 1 / IP20 enclosure – IP 20 environmental protection rating that protects users from electric shock and the drive from small quantities of dust and debris

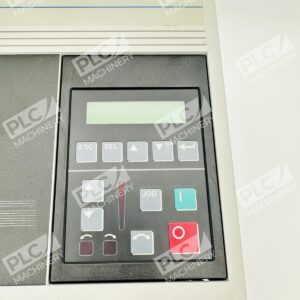

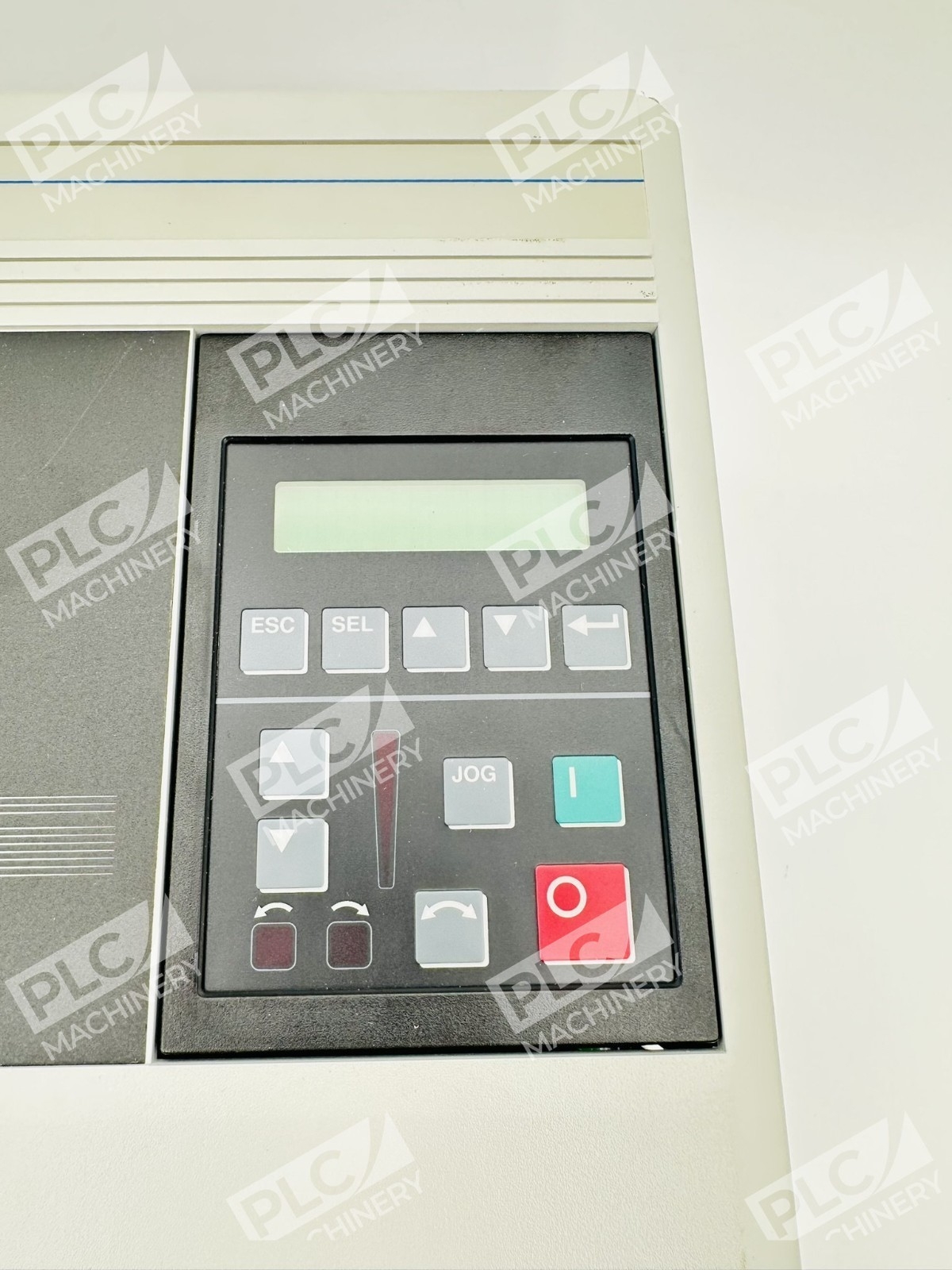

- English language module – factory-configured for English-language programming and operation
- Frame size A4 – compact vertical-mount design for retrofit installations
- Output frequency range – 0 to 250 Hertz output frequency with input frequency ranging from 50 to 60 Hertz

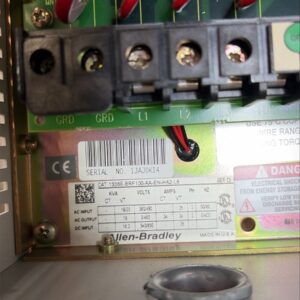

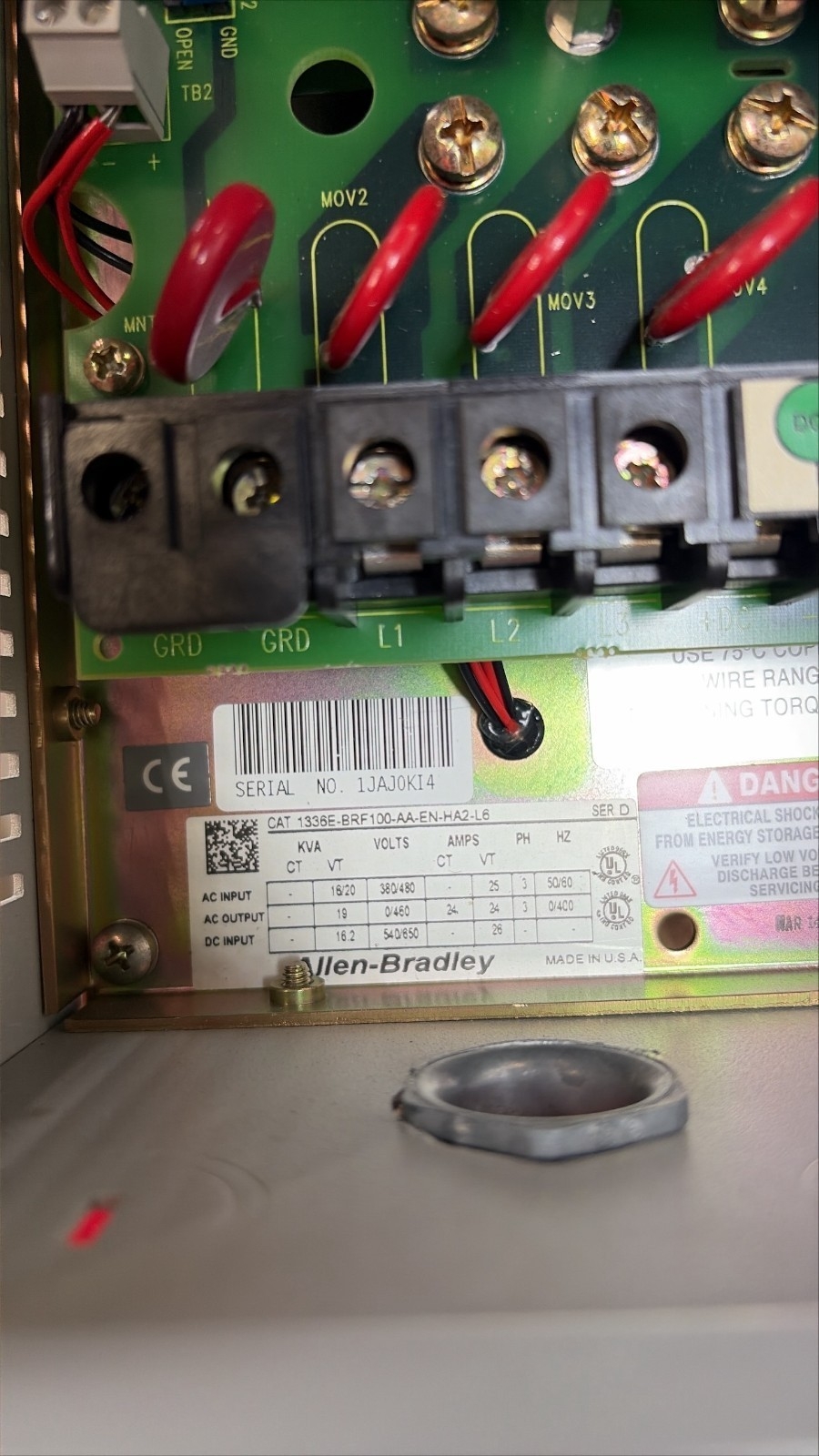

Technical Specifications
- Output Power / Current: 10 Horsepower (7.5 kilowatts) and 24 Amps
- Input Voltage Range: 380 to 480 Volts AC or 513 to +/-620 Volts DC
- Input Current: 25 Amps
- Input Power: 28.46 kVA
- Control Interface Voltage: 115 Volts AC
- Enclosure Rating: NEMA Type 1 enclosure with an IP20 rating
- Mounting: Vertical orientation only
- Dimensions: 350.0 x 260.0 x 212.0 millimeters
- Weight: 35 pounds
- Operating Temperature Range: 0 to 40 degrees Celsius ambient
- Heat Dissipation: Total heat dissipation rating of 420 Watts
- Series: 1336 IMPACT series
Typical Applications
The 1336E-BRF100-AA-EN-HA2-L6 is suited for production machinery, conveyor systems, pump and fan drives, and other industrial motor control tasks requiring smooth speed regulation and soft-start functionality. The drive supports both Volts/Hertz and vector control methods, making it adaptable to various load profiles.
Compatibility & Replacements
Compatible With
- Allen-Bradley PowerFlex and CompactLogix control systems
- EtherNet/IP industrial Ethernet networks
- Rockwell Automation Studio 5000 and RSLogix environments
- 3-phase AC motors rated 7.5 kW (10 HP) or lower
- Standard 380–480 VAC three-phase power distribution
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 1336E series includes multiple frame sizes and configurations; the Allen Bradley 1336E-BRF100-AA-EN-HA2-L6 has been discontinued by the manufacturer. Similar in-production alternatives include 1336F PLUS II series models.
Works With
- Rockwell Automation Studio 5000 / RSLogix 5000
- Allen-Bradley PanelView HMI platforms
- EtherNet/IP and other industrial protocols
- Analog and digital I/O control modules
