Overview

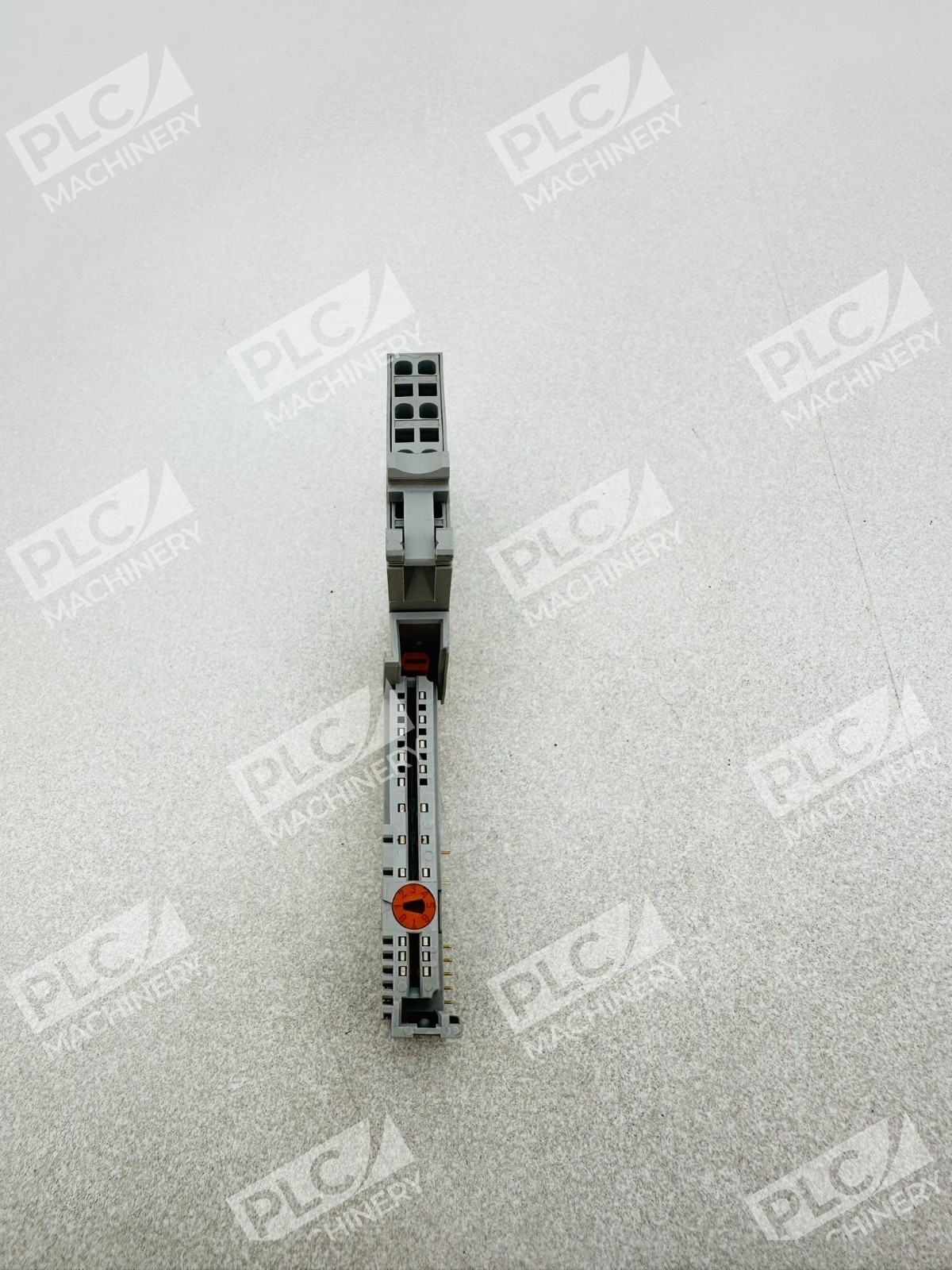

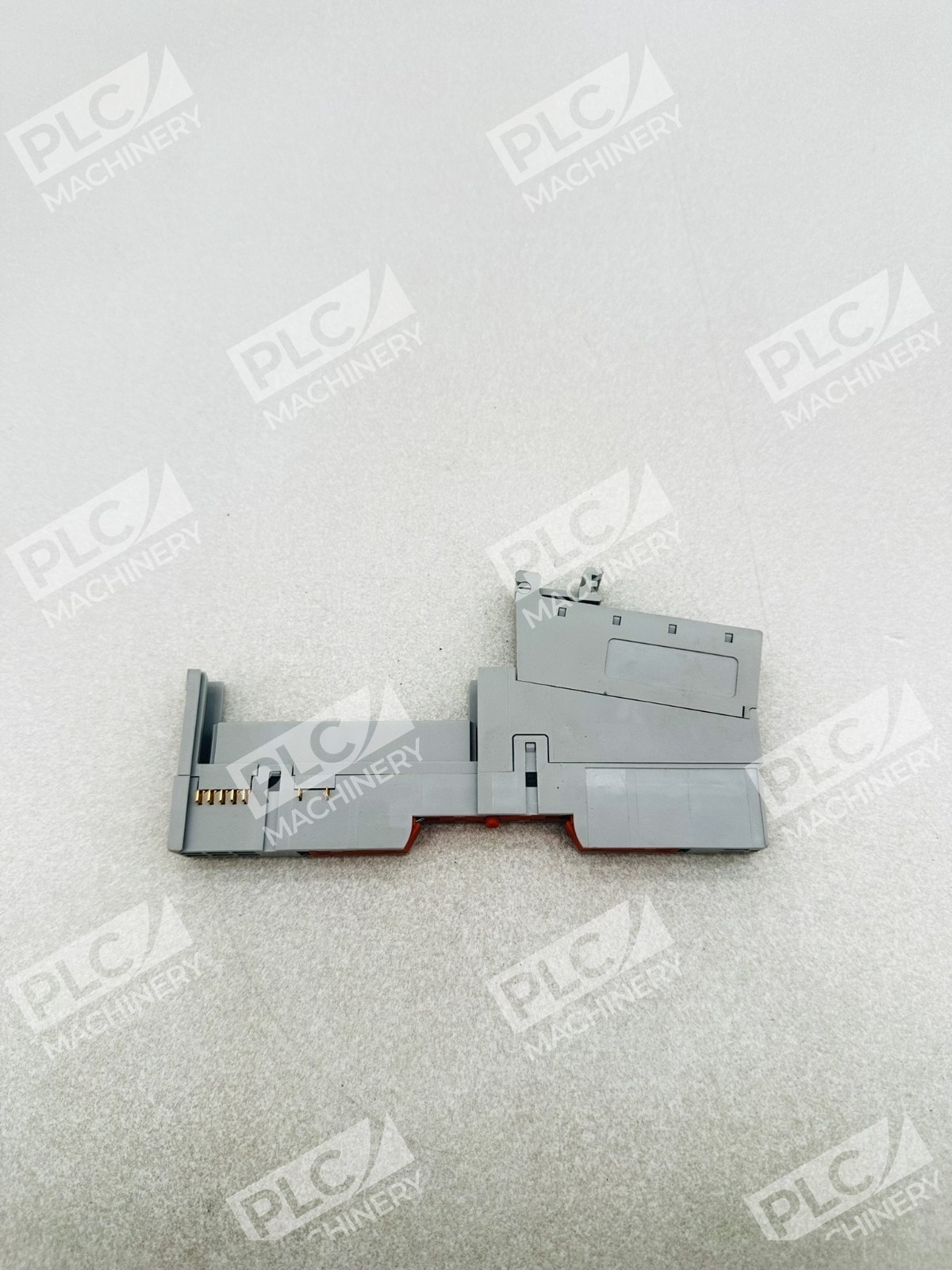

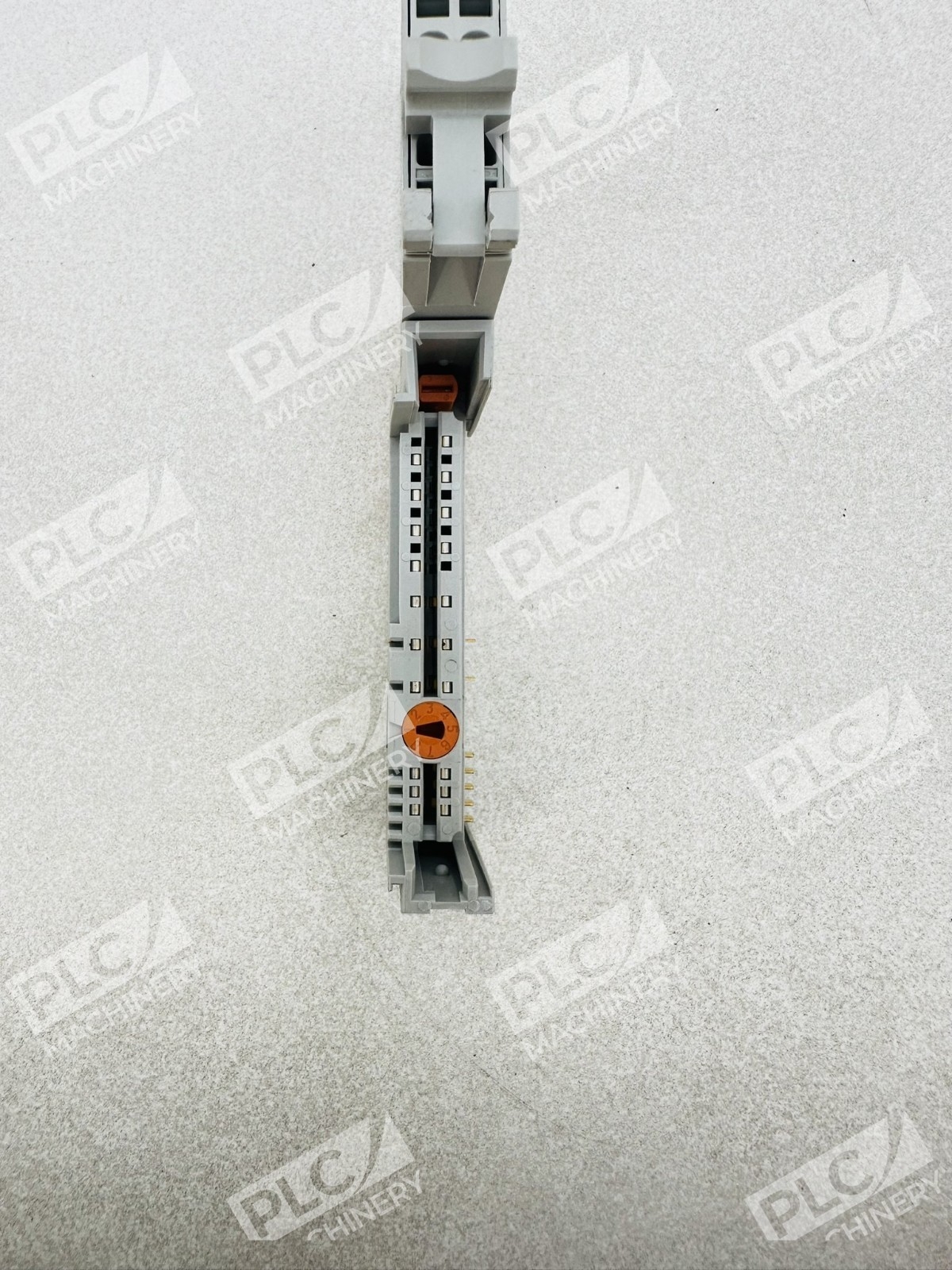

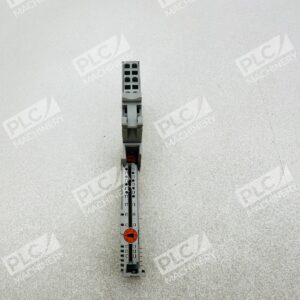

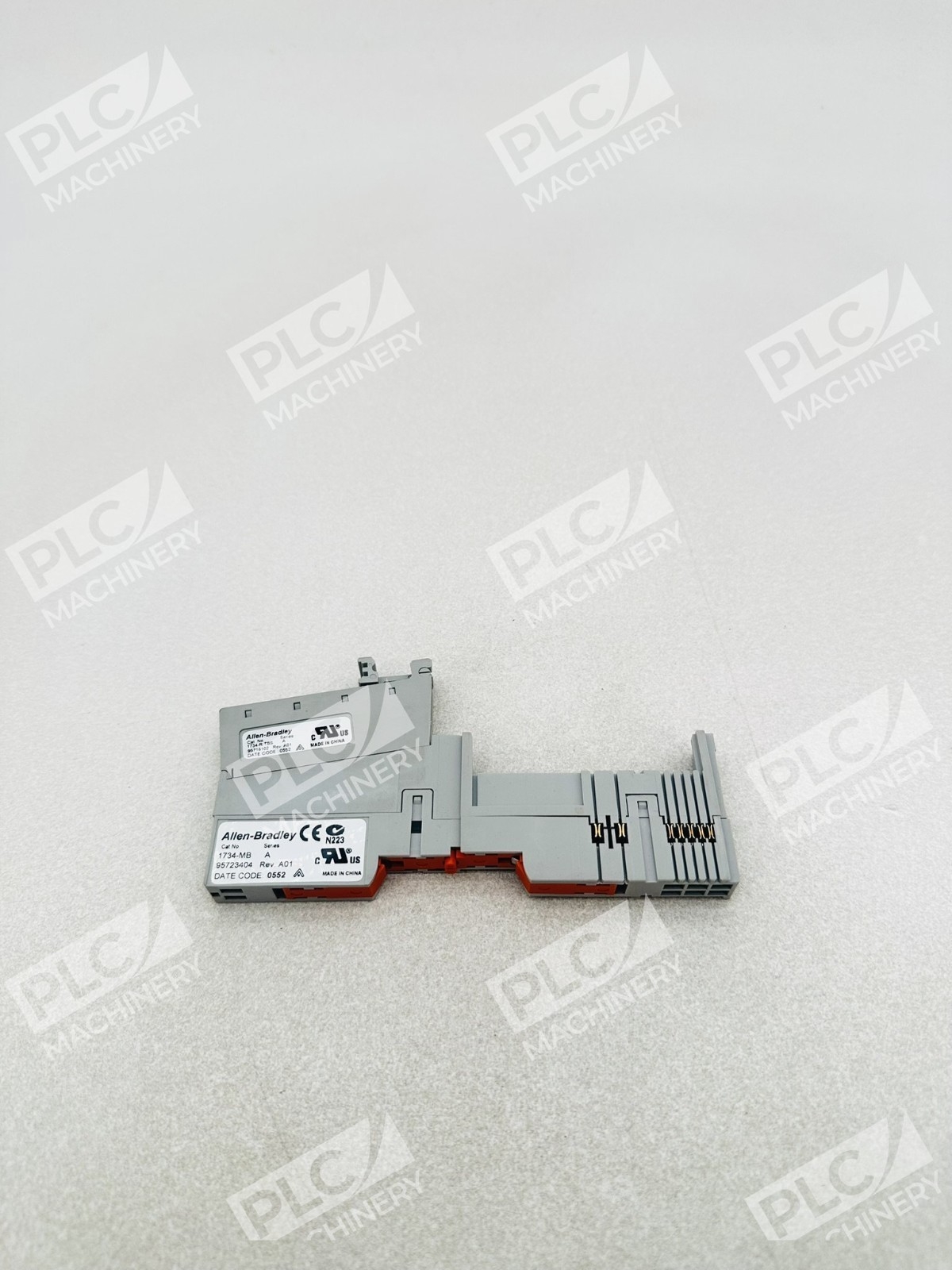

The Allen-Bradley 1734-TBS is a POINT I/O terminal base designed to provide wiring connections and signal termination for Point I/O distributed I/O modules in factory automation systems. This terminal base features a robust two-piece assembly with eight IEC spring-clamp terminals, enabling fast and secure cable connections without soldering. The open-style enclosure allows accessibility for wiring and troubleshooting while maintaining electrical integrity across the POINT bus.
Key Features

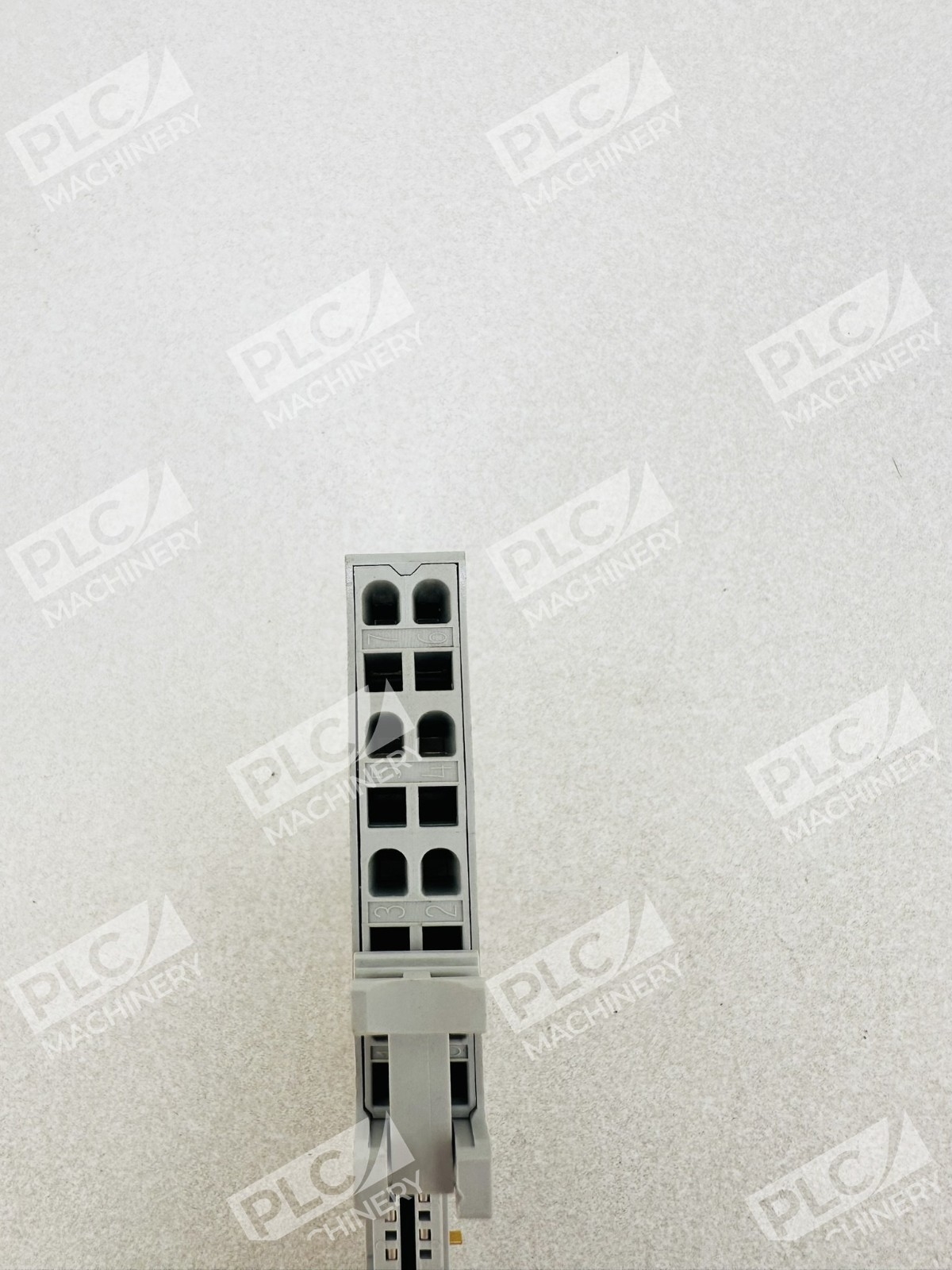

- Eight Spring-Clamp Terminals: Fast, vibration-resistant IEC spring-clamp connections accommodate both solid and stranded conductors
- Removable Terminal Block (RTB): Two-piece design simplifies maintenance and module replacement without breaking external wiring
- Removal and Insertion Under Power (RIUP): Hot-swap capability allows module replacement while the system remains operational, minimizing downtime
- DIN Rail Mounting: Quick snap-on installation to standard 15 mm DIN rails for rapid panel integration

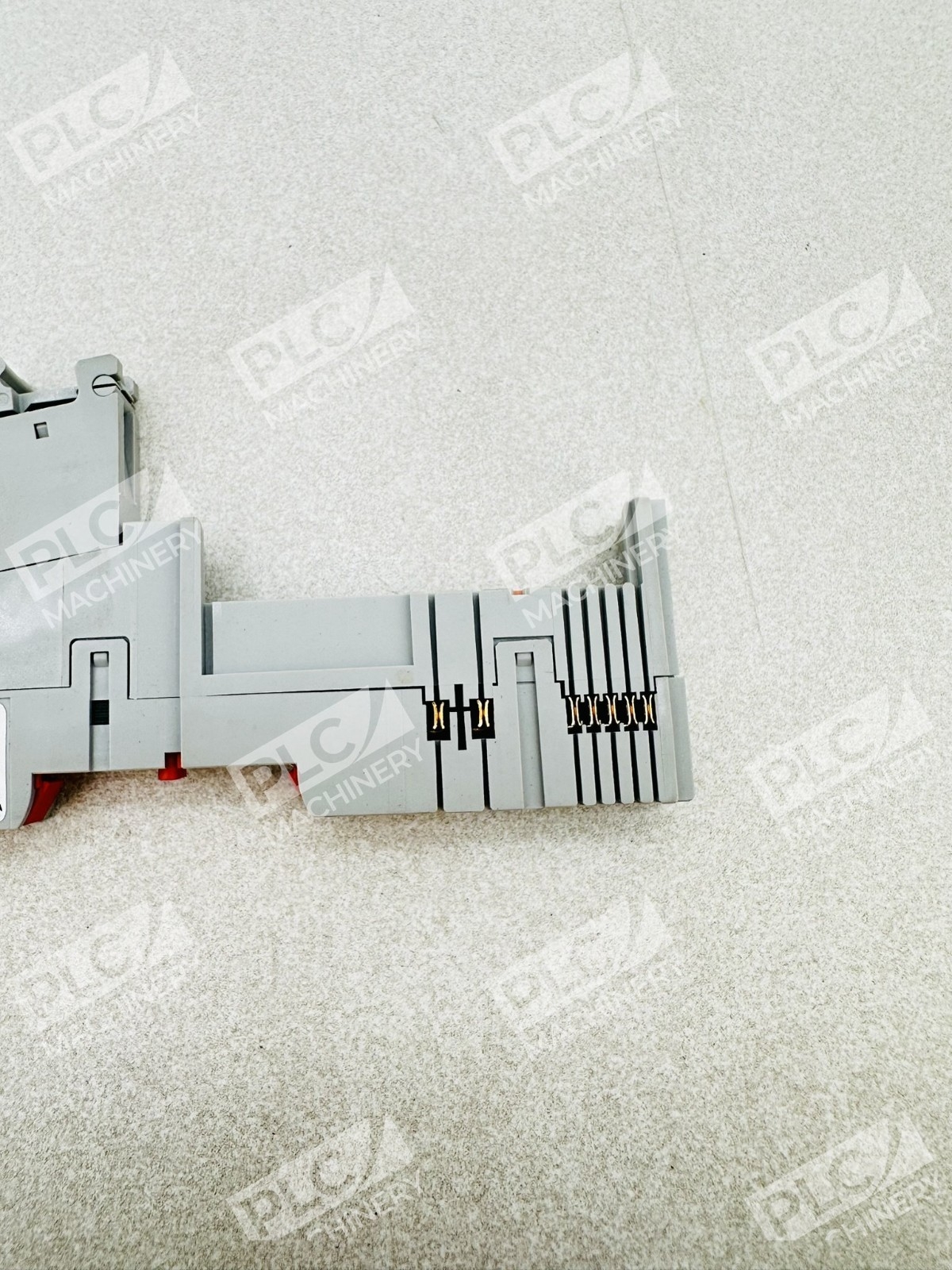

- Interlocking Design: Supports modular stacking of multiple I/O modules to build distributed I/O assemblies
Technical Specifications

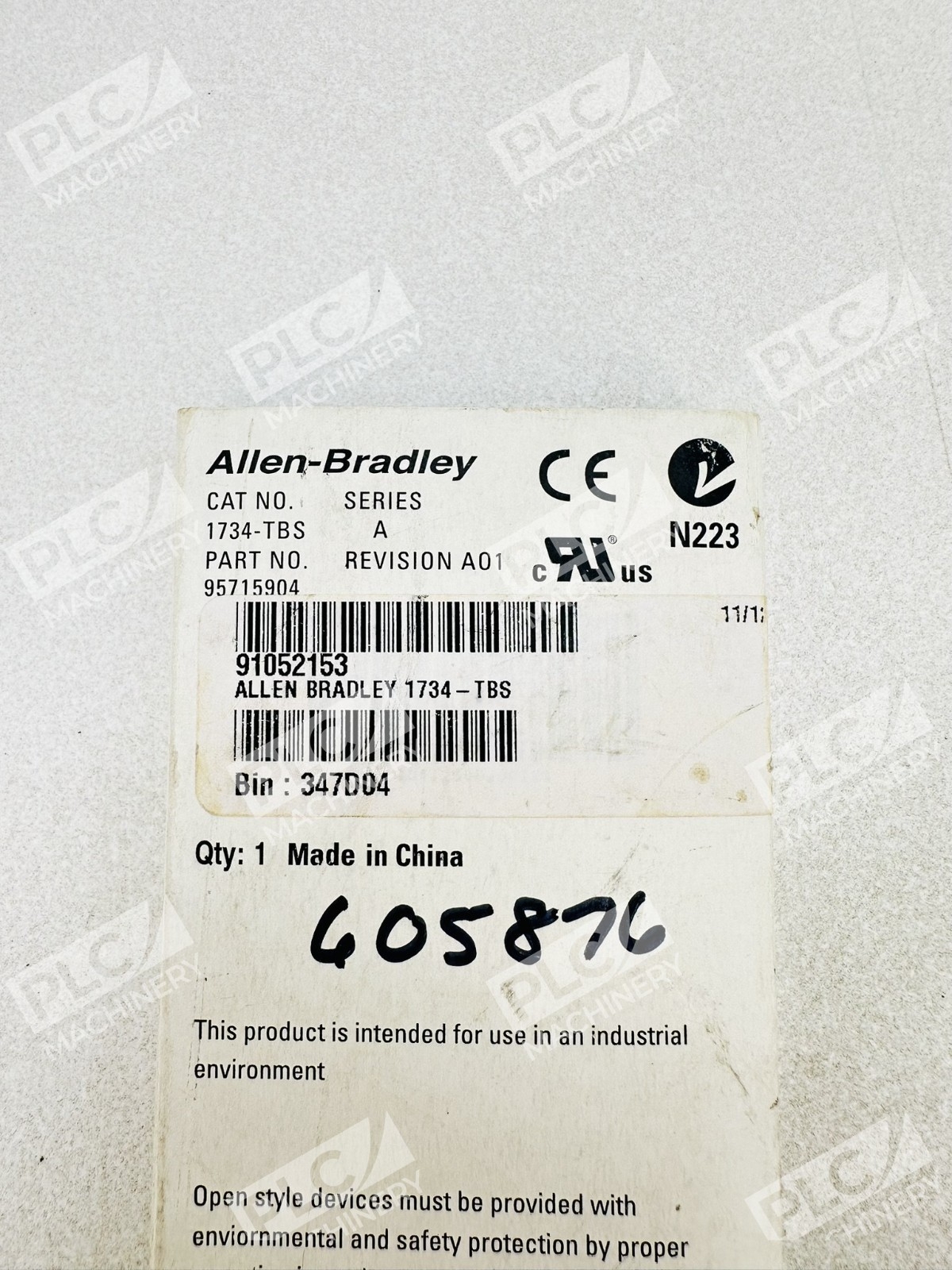

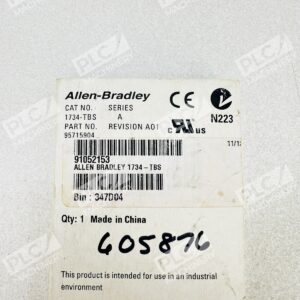

- Part Number: 1734-TBS
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Product Line: Point I/Oâ„¢
- Terminal Type: IEC Spring-Clamp (8 terminals)

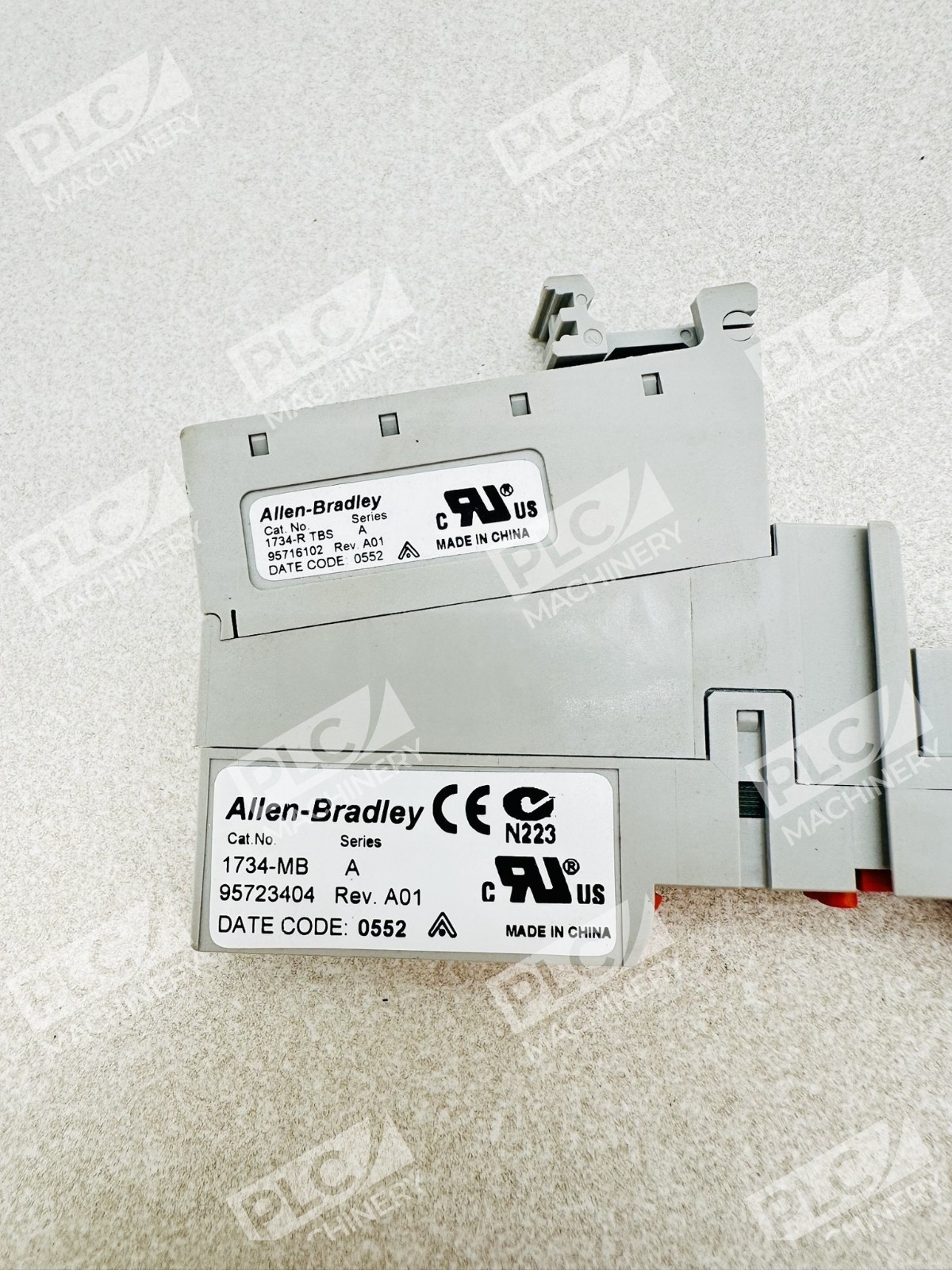

- Assembly Type: Two-piece with removable terminal block
- Enclosure Style: Open-style
- Mounting Method: 15 mm DIN Rail (snap-on)
- Amperage Rating: 10 Amp
- Voltage Rating: 240 Volt
- Operating Temperature: −20°C to +55°C (−4°F to +131°F)
- Weight: 0.19 lb (86 g)
