Overview

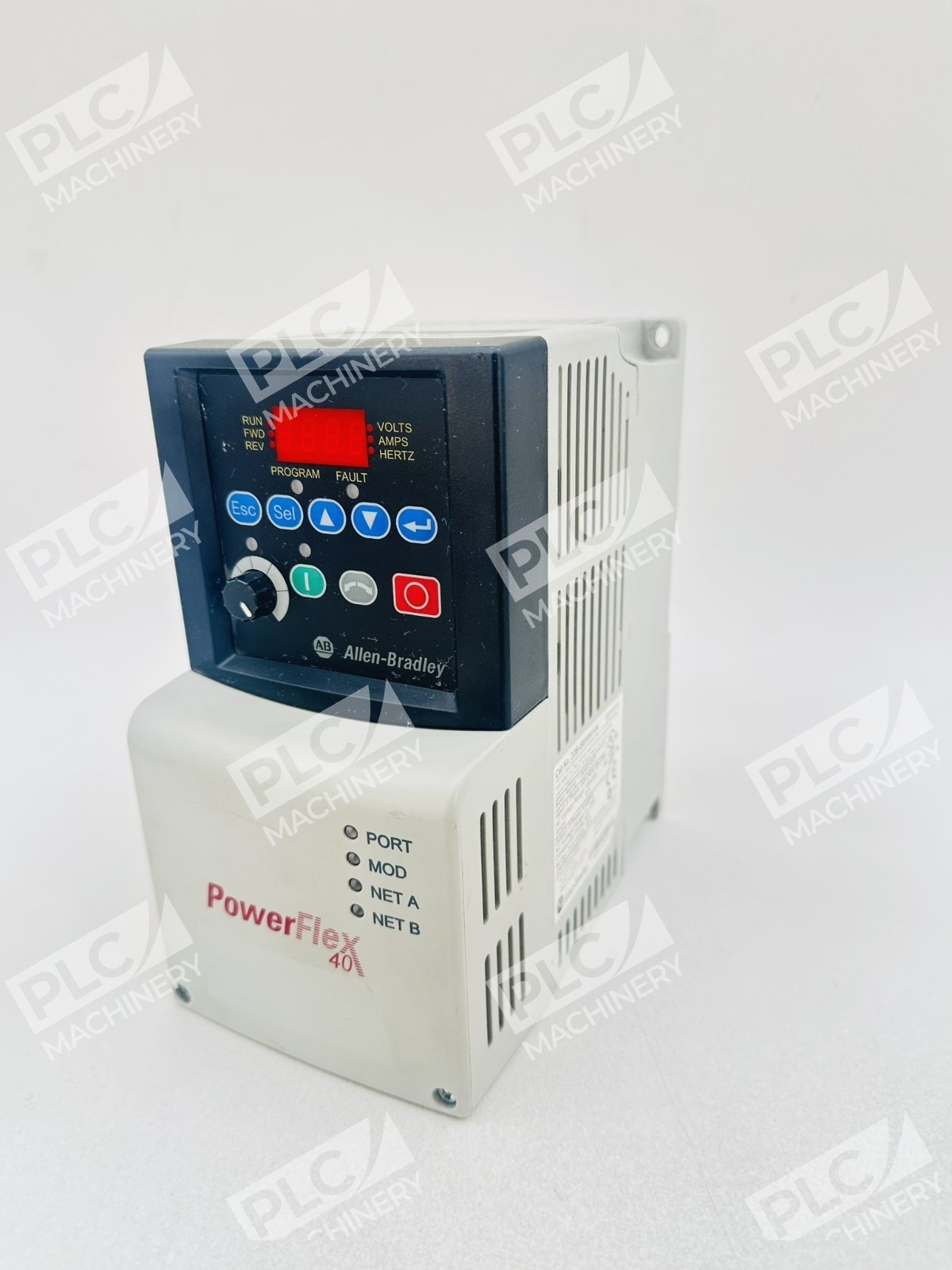

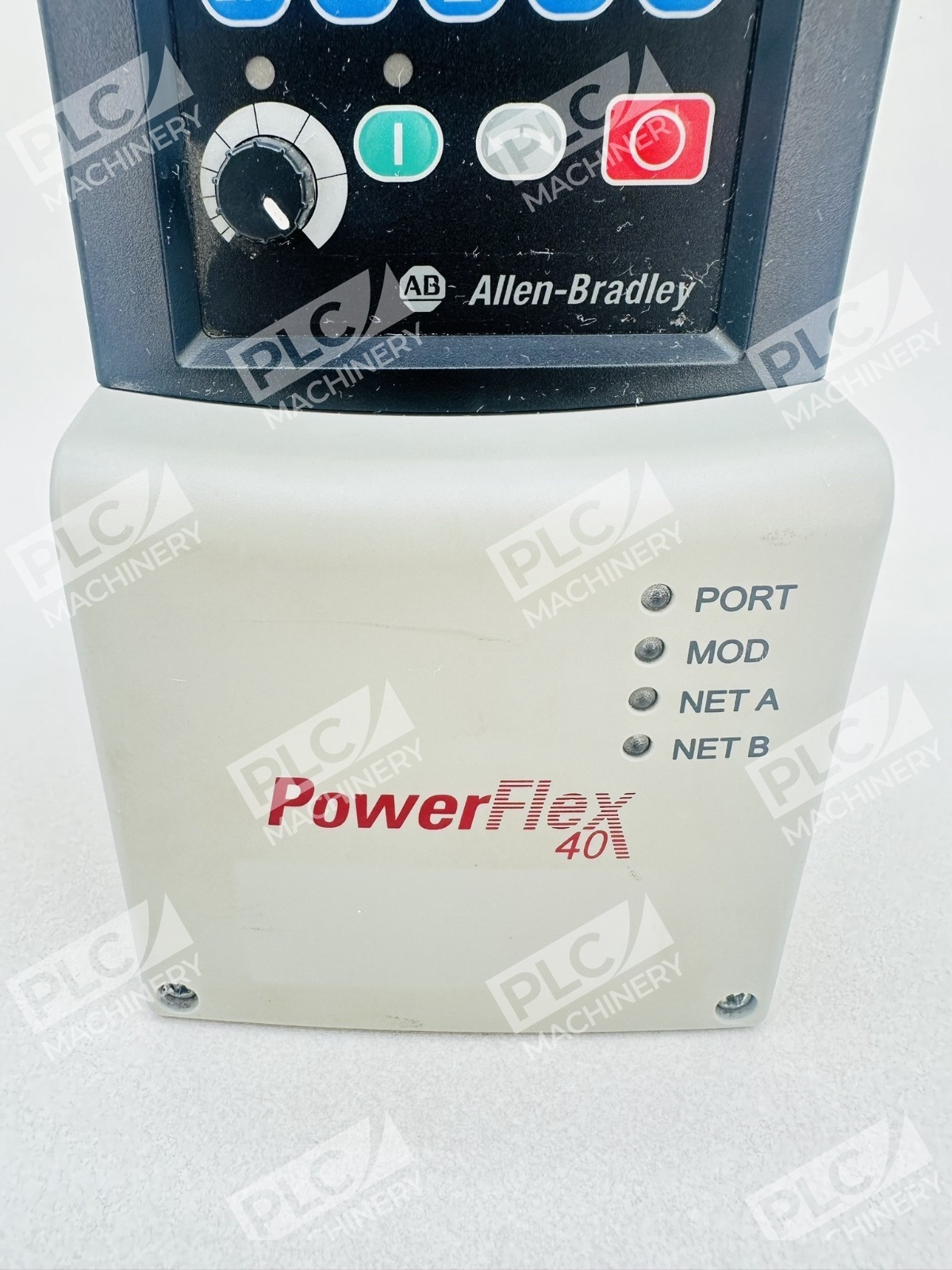

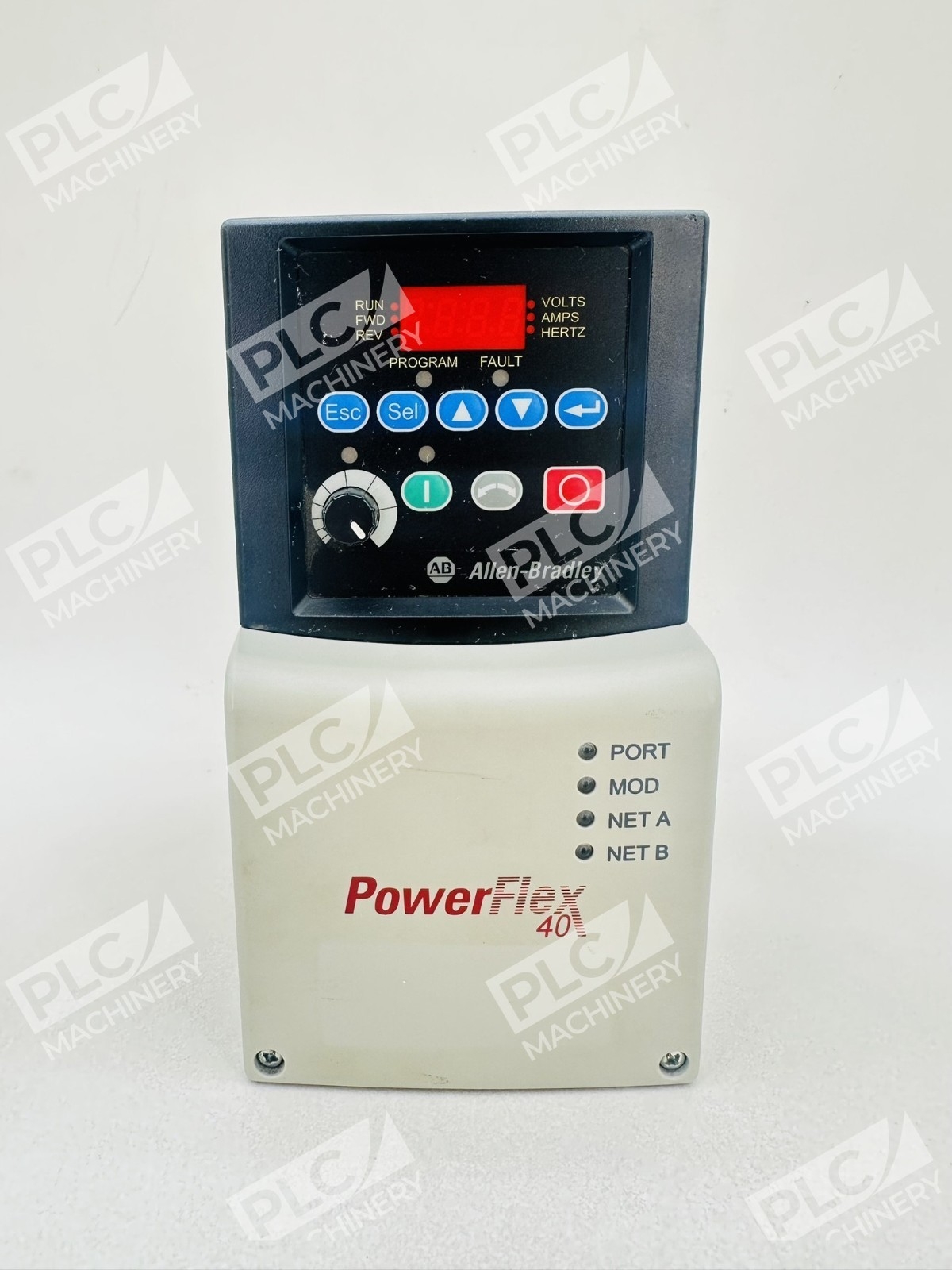

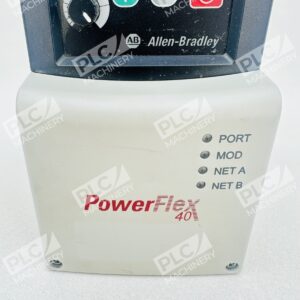

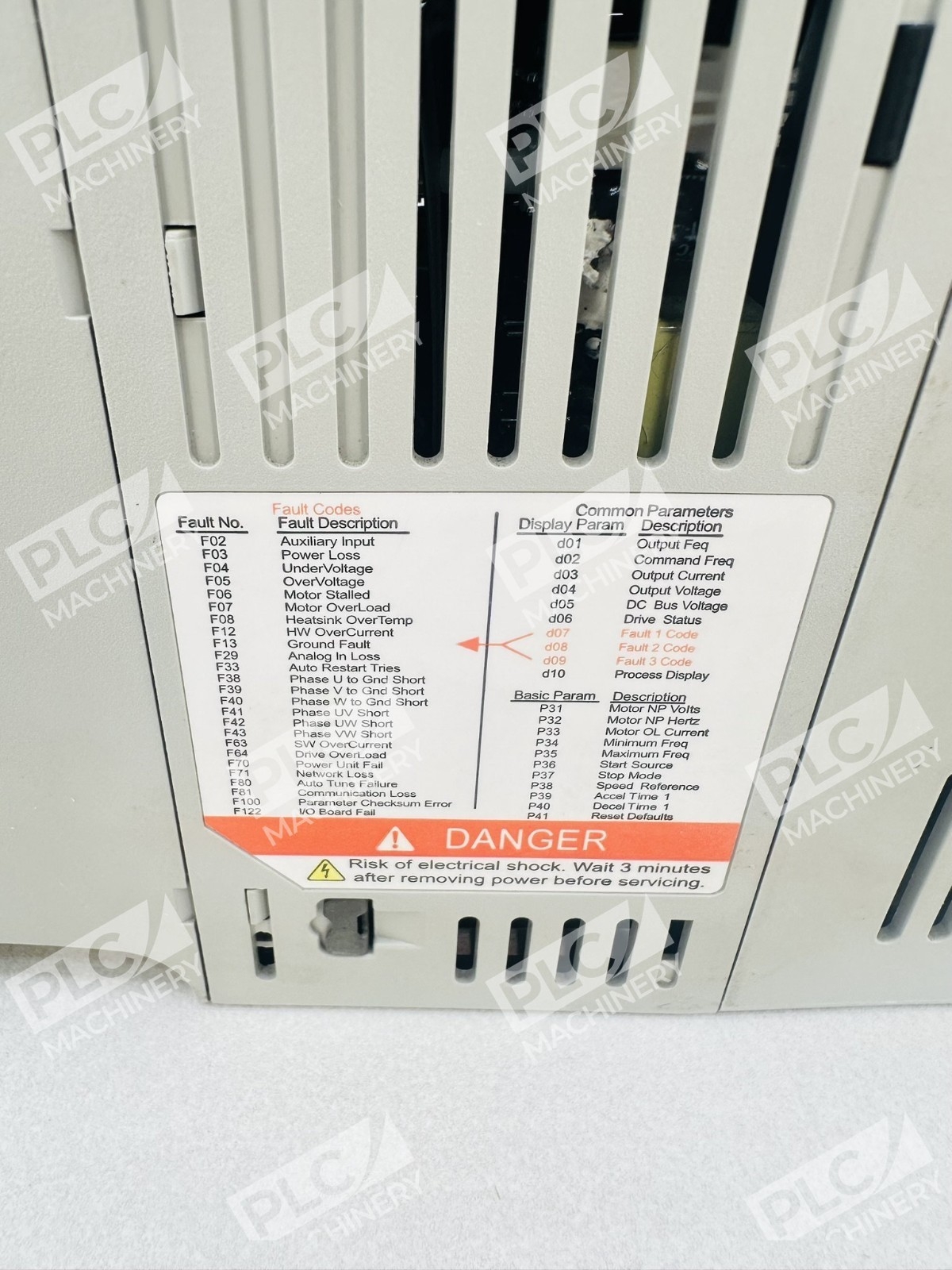

The Allen-Bradley 22B-B8P0N104 PowerFlex 40 is a compact, cost-effective variable frequency drive (VFD) engineered for flexible motor speed control in industrial and OEM applications. The PowerFlex 40 series combines powerful motor acceleration with a small footprint, making it ideal for machine tools, conveyors, pumps, fans, and material handling systems.
Key Features
- Sensorless Vector Control (SVC) & V/Hz Control: Dual control modes enable precise speed and torque management across a broad operating range.
- Integral PID Function: Stand-alone controller capability allows the drive to function as a process controller without external logic.
- Comprehensive I/O: Four fully programmable discrete inputs, four fully programmable discrete outputs, dual analog inputs (0–10V or 4–20 mA unipolar), and relay/optocoupler outputs.
- RS485 Communication: Enables networked operation with EtherNet/IP, MODBUS, PROFIBUS, and DeviceNet support for seamless industrial integration.
- Compact Panel-Mount Design: IP20 open-type enclosure optimizes panel real estate without sacrificing control capability.
- Reliable Operation: Fixed keypad interface with LED status display and integral IGBT brake for dependable motor control.

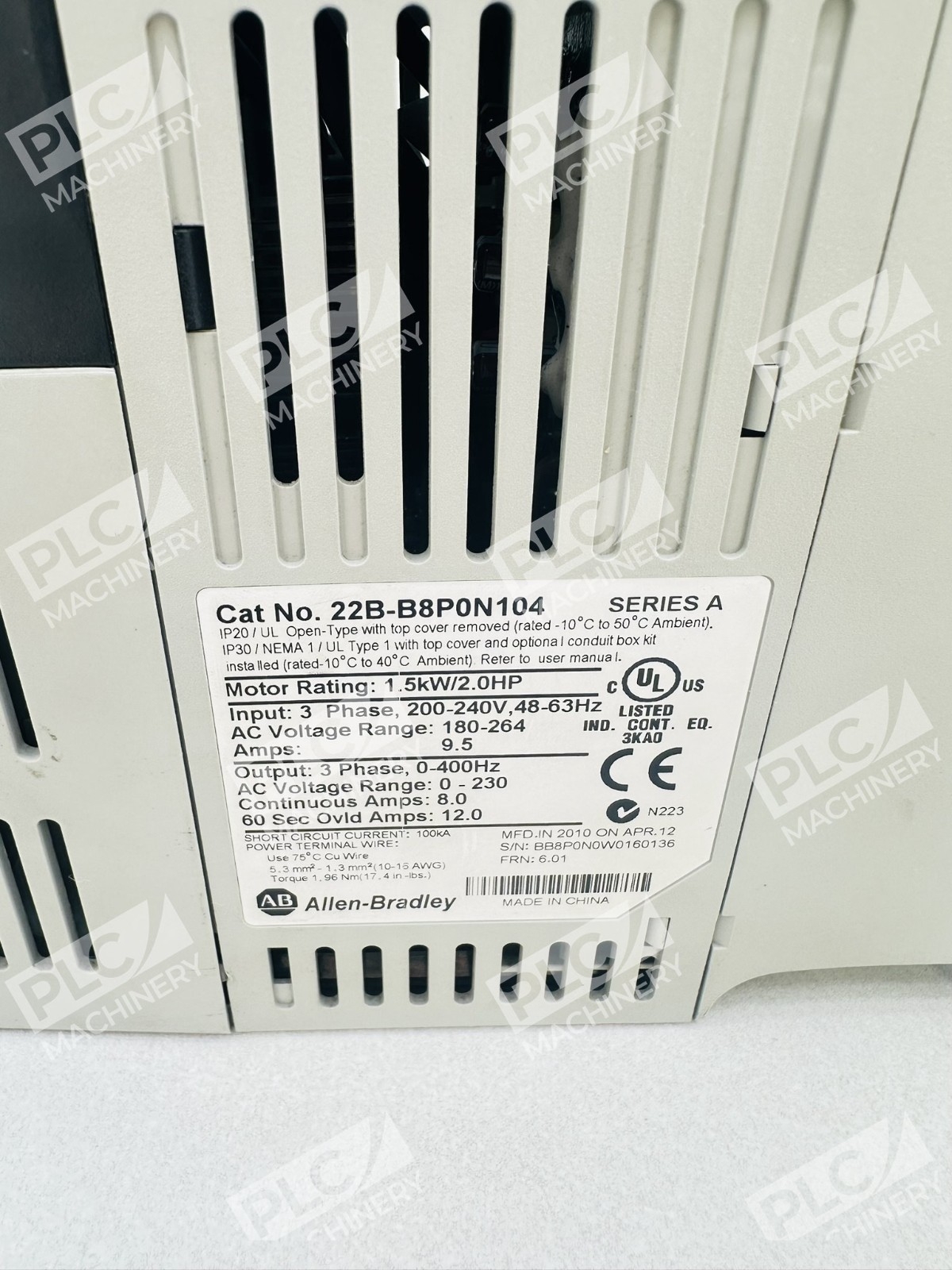

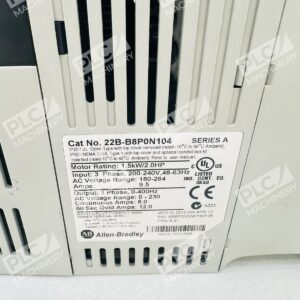

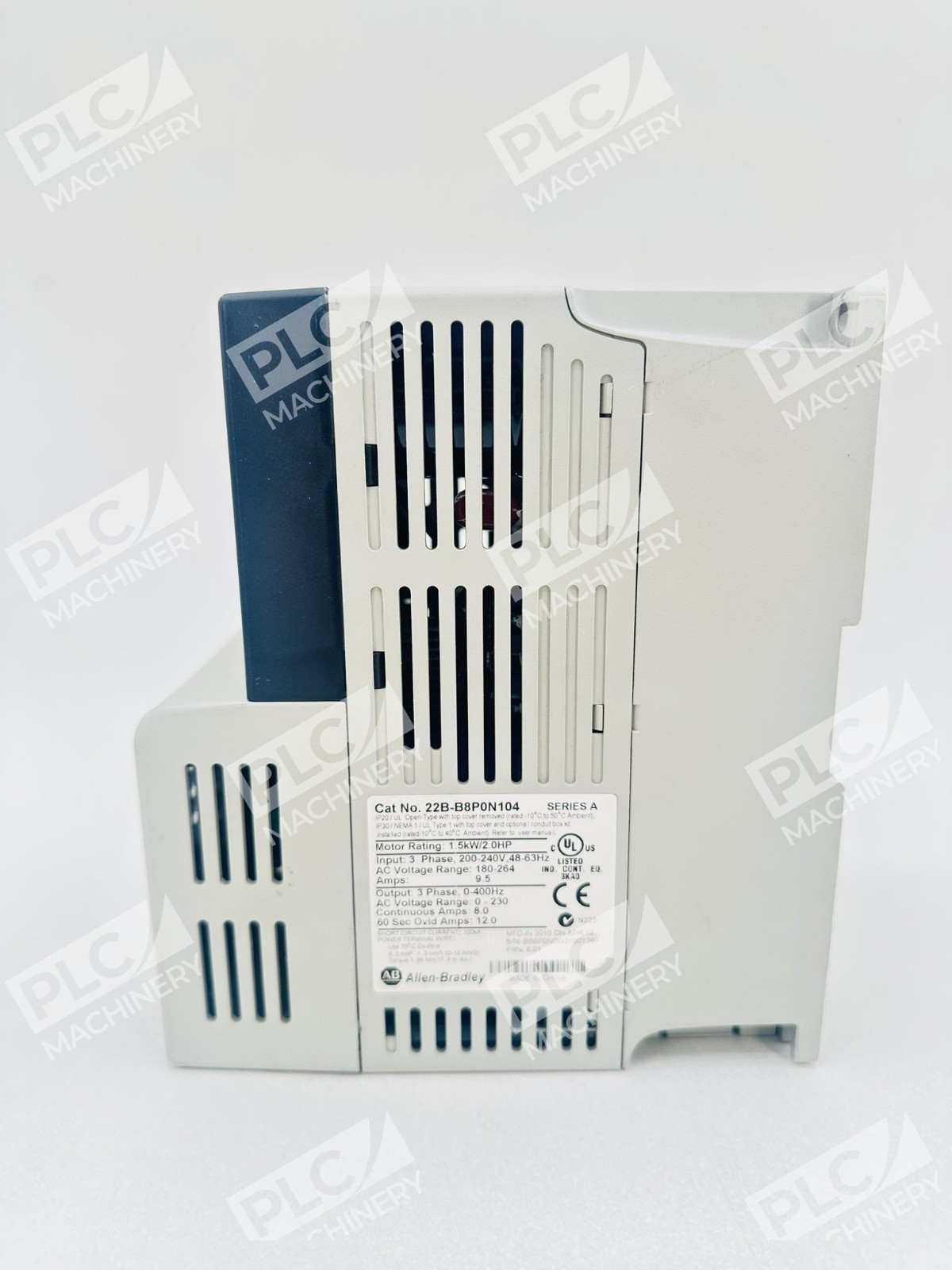

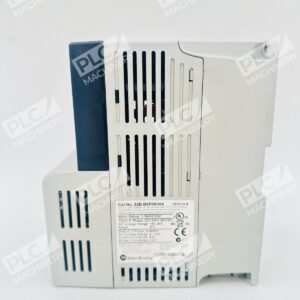

Technical Specifications
- Input Voltage: 240V AC (208–240V range), 3-phase, 50/60 Hz
- Output Voltage: 0–240V AC, 3-phase
- Power Rating: 1.5 kW (2 HP)
- Output Current: 8.0 A
- Control Methods: Sensorless Vector Control (SVC), V/Hz control, and integral PID loop
- Communication: RS485 serial port; supports EtherNet/IP, MODBUS, PROFIBUS, DeviceNet

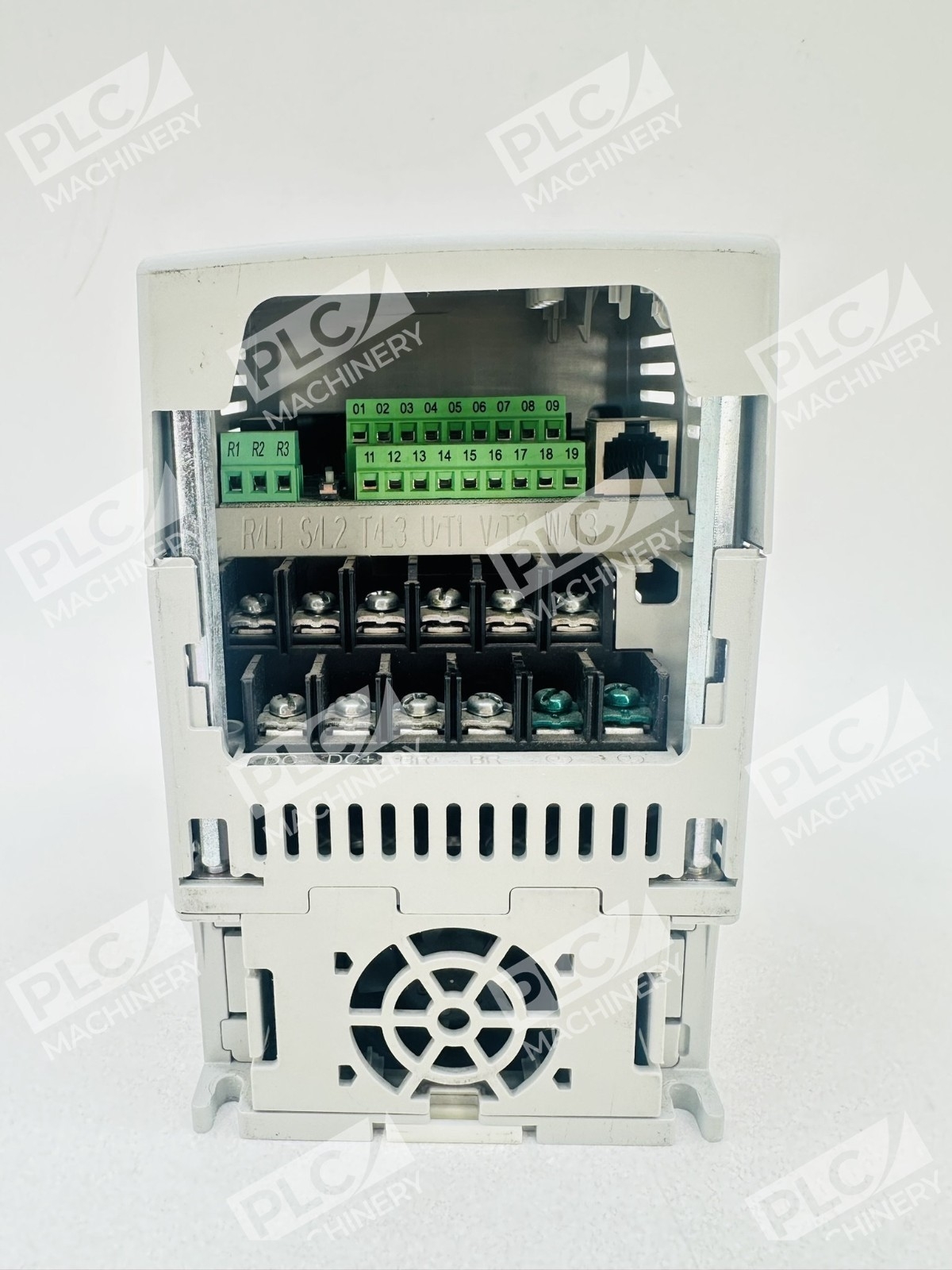

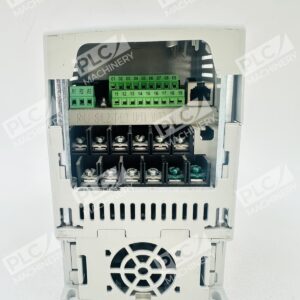

- Discrete I/O: 3 fixed (START/STOP/REV) + 4 fully programmable inputs; 4 fully programmable discrete outputs
- Analog I/O: 2 unipolar analog inputs (0–10V or 4–20 mA configurable); 1 form C relay output; 2 optocoupler outputs
- Enclosure Rating: IP20, NEMA/UL Type Open, panel-mount
- Operating Temperature: 0–60°C (32–140°F)
- Storage Temperature: −40–85°C (−40–185°F)
- Humidity: 5–95% non-condensing
- Weight: 2.22 kg (4.9 lbs)
- EMC Compliance: EN 50081-2 Emission, EN 50082-2 Immunity (industrial environment)
- Shock Rating: Operating 30g (11 ms); non-operating 50g (11 ms)
- Filter: No CE-compliant EMC filter included
Typical Applications
The PowerFlex 40 excels in general-purpose automation where cost, space, and simplicity are priorities:
- Machine tool spindle and feed drives
- Centrifugal pump and fan speed control
- Conveyor belt variable-speed control
- Material handling and lifting systems
- Production line flow optimization
- OEM embedded motor control with network integration
Compatibility & Replacements
Compatible With
- Logix control platforms and Studio 5000 programming environment
- EtherNet/IP industrial networks
- PROFIBUS serial communication networks
- MODBUS RTU/ASCII serial protocols
- DeviceNet industrial fieldbus systems
- Standard three-phase AC induction motors (1.5 kW rated or below)

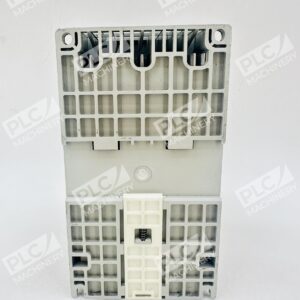

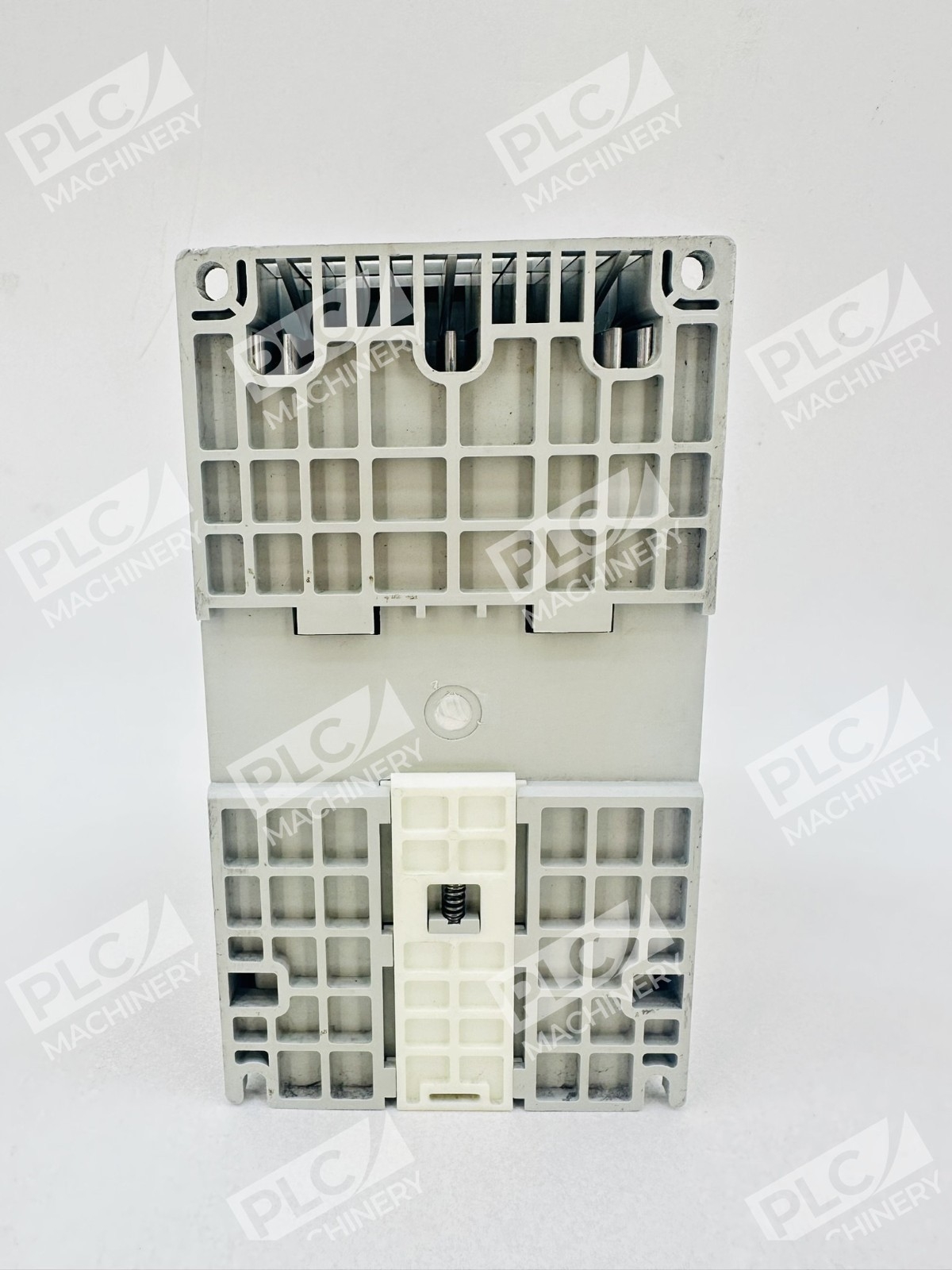

- Panel-mount DIN rail systems (flange mount and terminal block configurations)
Replaces / Drop-In Replacement For
The 22B-B8P0N104 is a member of the PowerFlex 40 family. When replacing previous generation drives, verify the voltage class, power rating, and communication protocol requirements with your application. Consult manufacturer technical data for direct cross-reference with earlier AC drive models. Confirm compatibility with your system integrator before ordering replacement units.
Works With
- Rockwell Automation Studio 5000: Native integration for drive parameter configuration and monitoring.

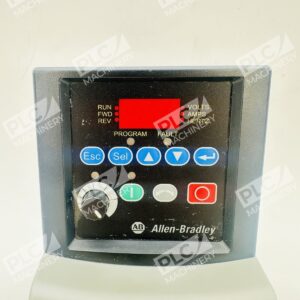

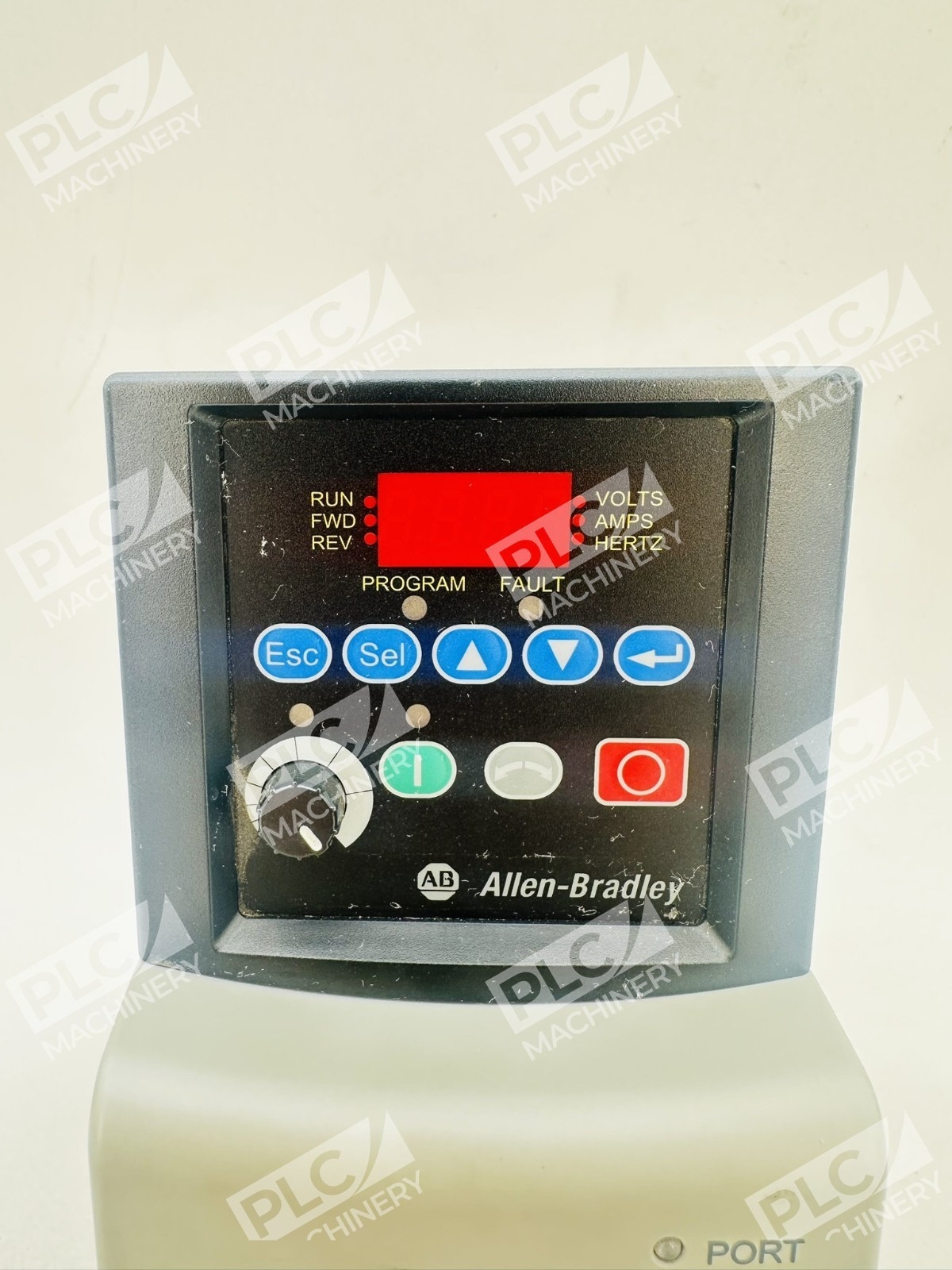

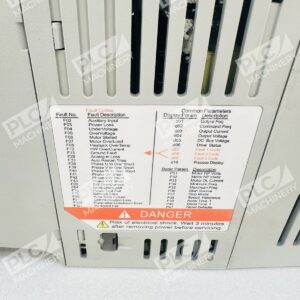

- Human Interface Module (HIM): Fixed keypad with 4-digit LED display for local control and troubleshooting.
- Open Network Architecture: Supports multiple industrial communication topologies including point-to-point serial, multi-device networking, and Logix-based supervisory control.
- PID Closed-Loop Control: Integral PID function enables process variable feedback and automatic speed/pressure regulation without external controllers.
