Overview

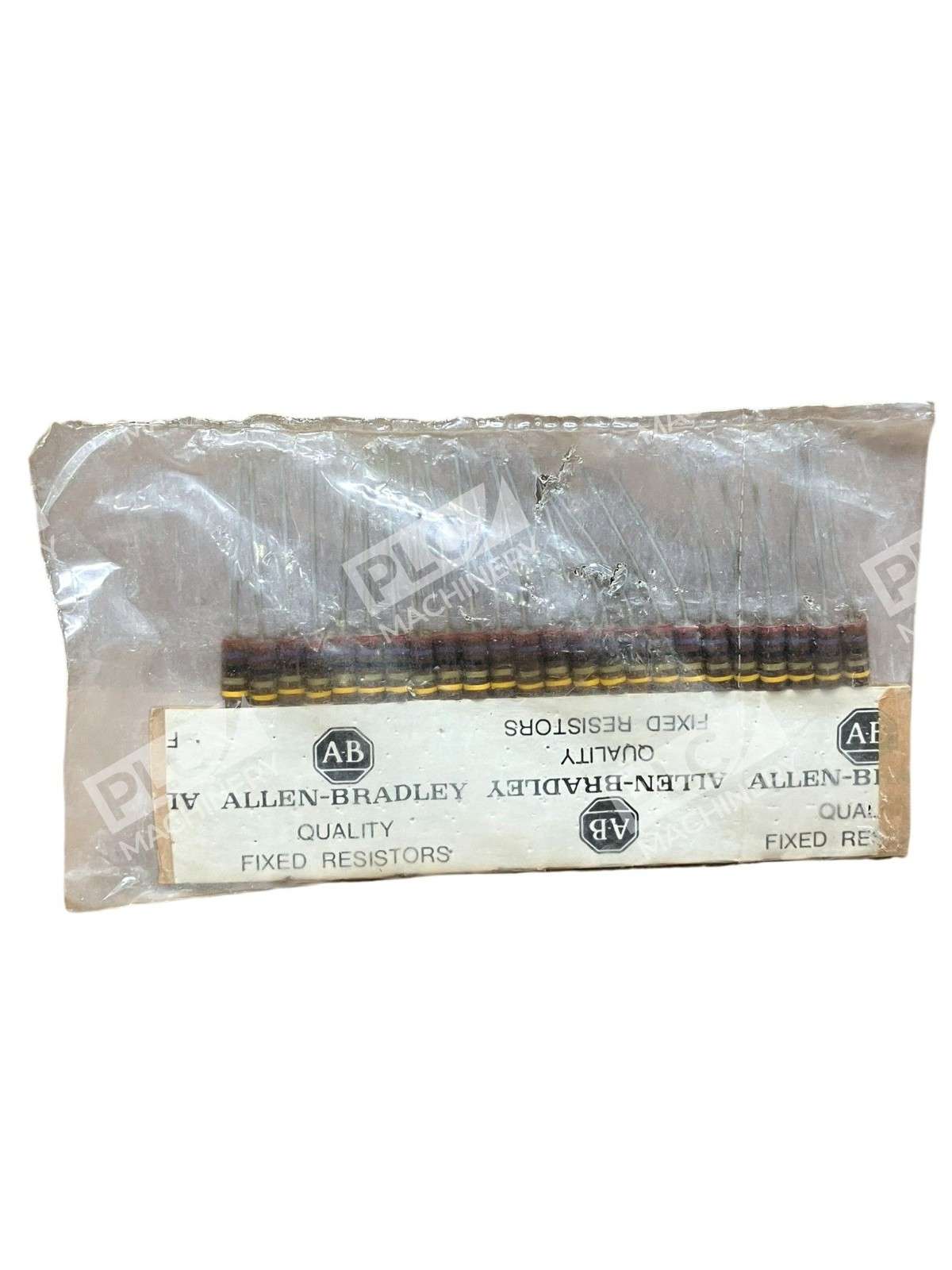

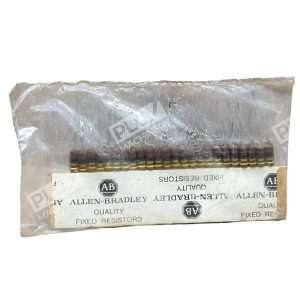

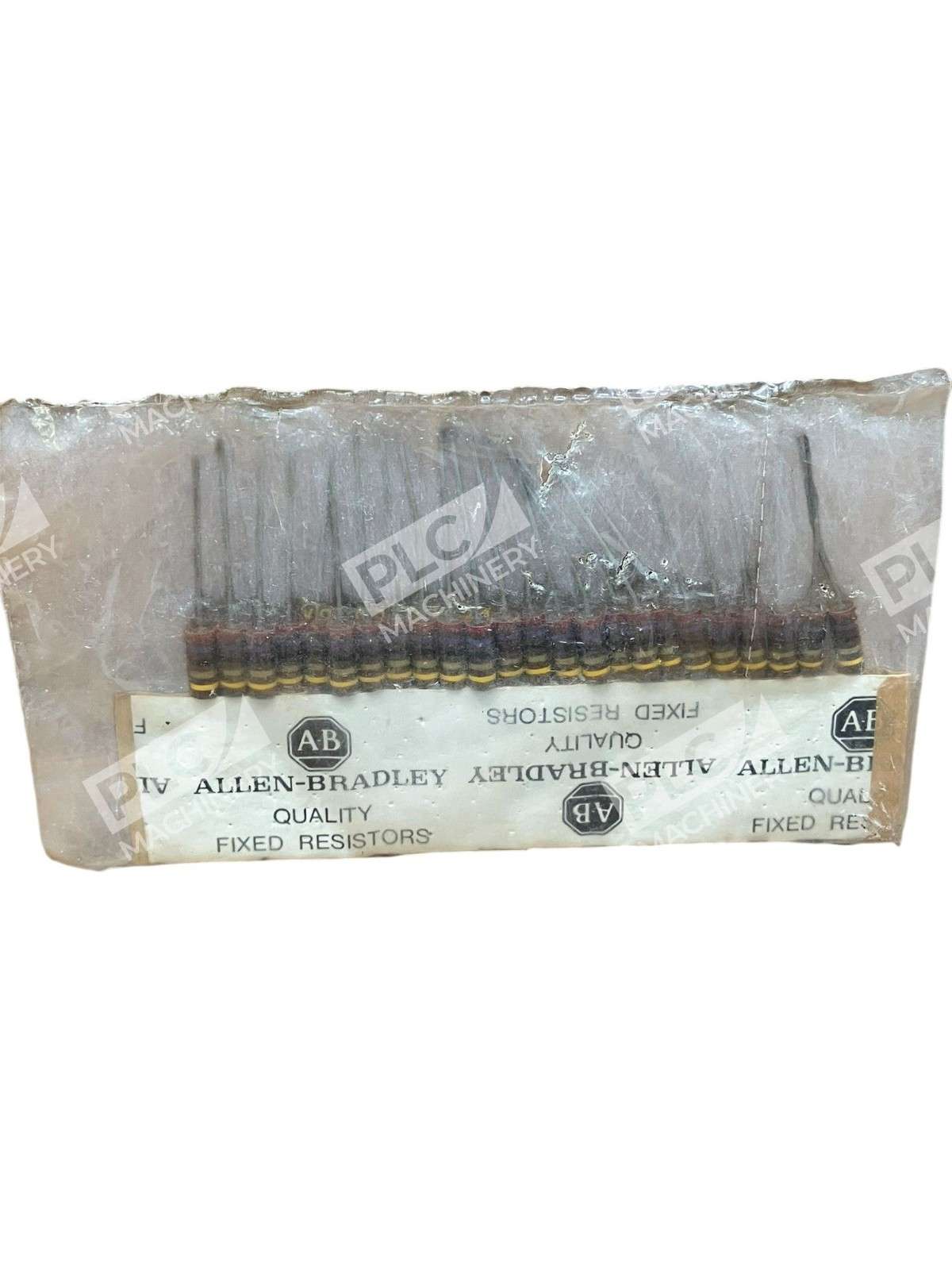

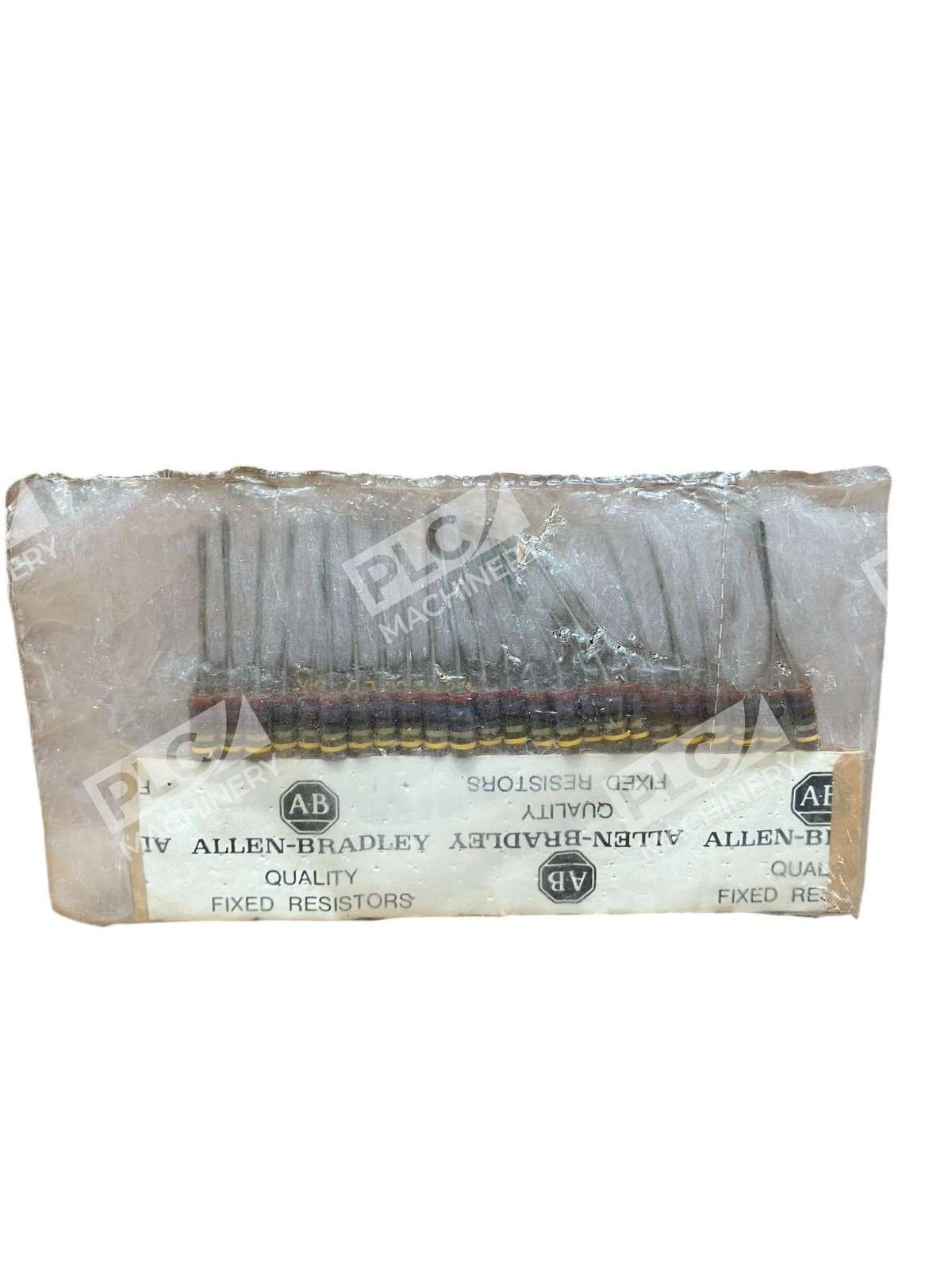

The Allen-Bradley A2-2-245 carbon composition resistor is a fixed resistor component designed for use in industrial control systems, electronic circuits, and equipment requiring dependable resistance stability. Allen-Bradley resistors are highly recognized for their outstanding MIL-SPEC reliability, pulse withstanding, power dissipation, high frequency stability, low inductance, rugged construction and dependable performance.
Key Features
- Extremely rugged due to the hot molding process
- Solid cylindrical carbon resistive element with leads embedded at each end, making them incredibly rugged and highly reliable, together with their non-magnetic and non-inductive characteristics
- Suitable for a wide range of resistance values across industrial applications
- New condition, factory stock component
Technical Specifications
- Type: Carbon Composition Fixed Resistor
- Condition: New in Box
- Manufacturer: Allen-Bradley
- Component Category: Fixed Resistor
- Mounting: Axial leads
- Resistance Range: Per E-series standard values
Typical Applications
The A2-2-245 carbon composition resistor is commonly used in:
- Industrial automation and control circuits
- Equipment power supplies and conditioning
- Signal conditioning and filtering networks
- Load resistors and termination networks
Compatibility & Replacements
The Allen-Bradley A2-2-245 is a fixed component from the company’s established line of carbon composition resistors. When replacement is required, verify the exact resistance value, tolerance, and power rating from the original part specifications before substitution. Alternative suppliers of equivalent carbon composition resistors include standard MIL-R-39008 and MIL-R-11B specification components.
