Overview

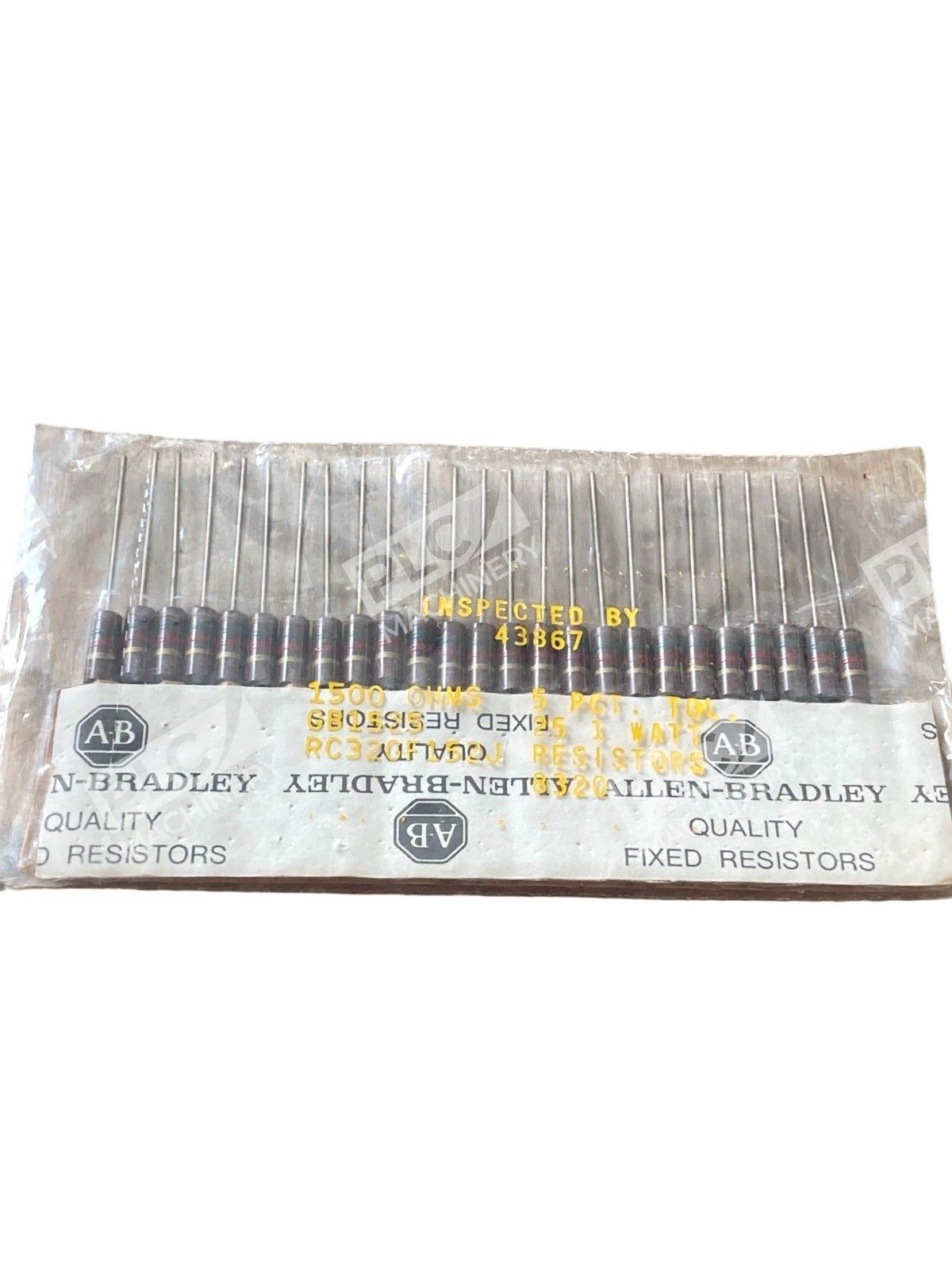

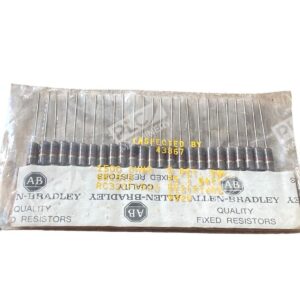

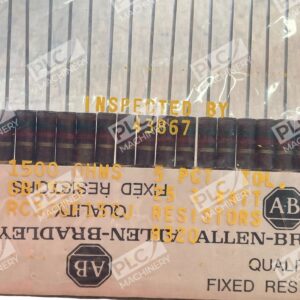

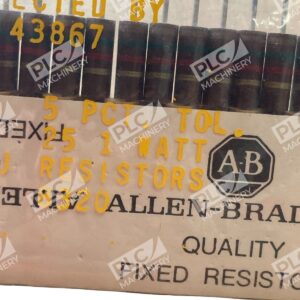

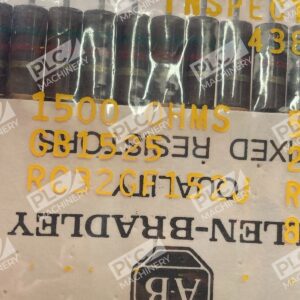

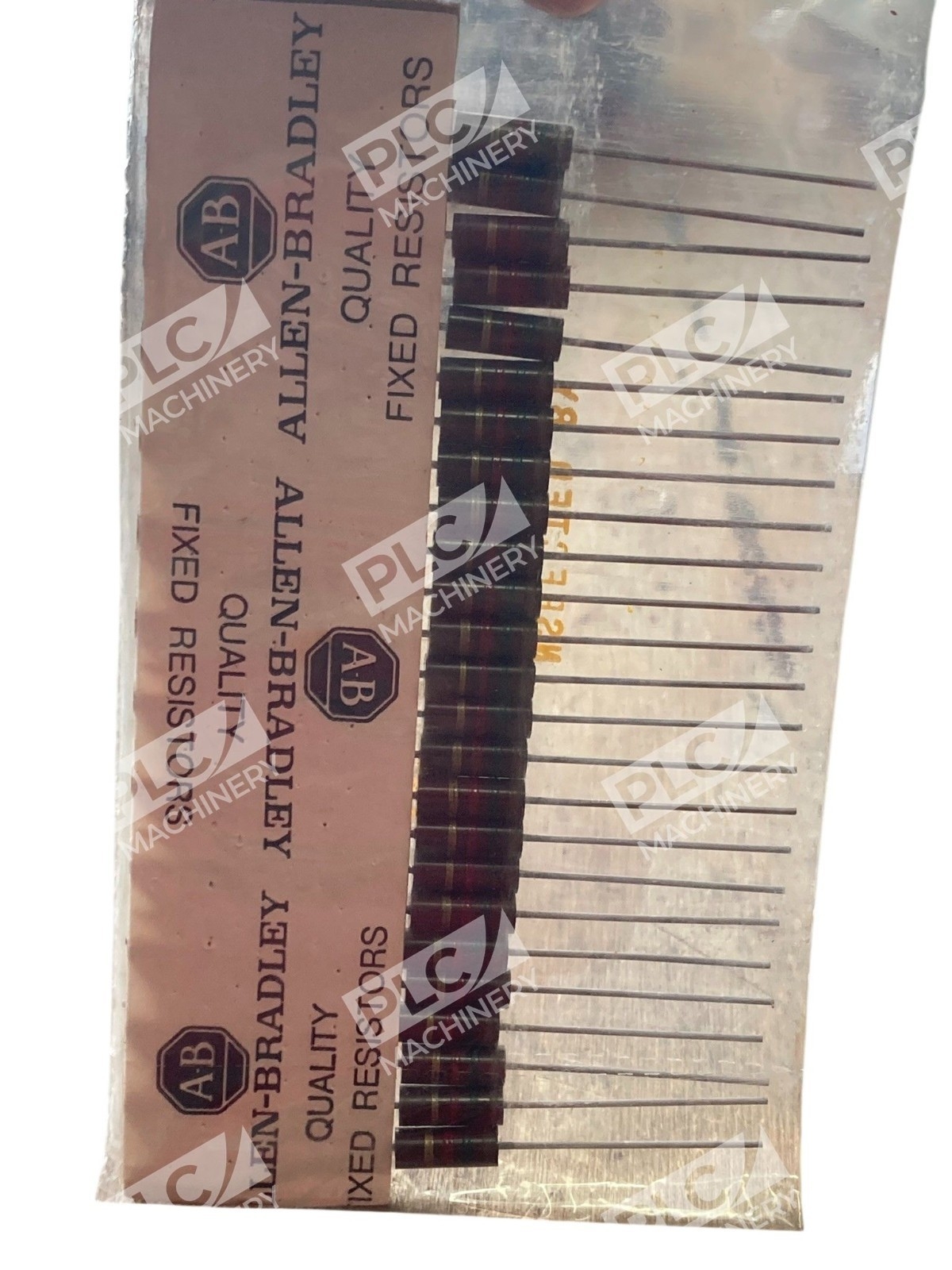

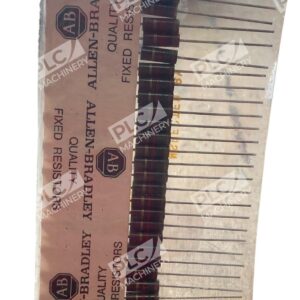

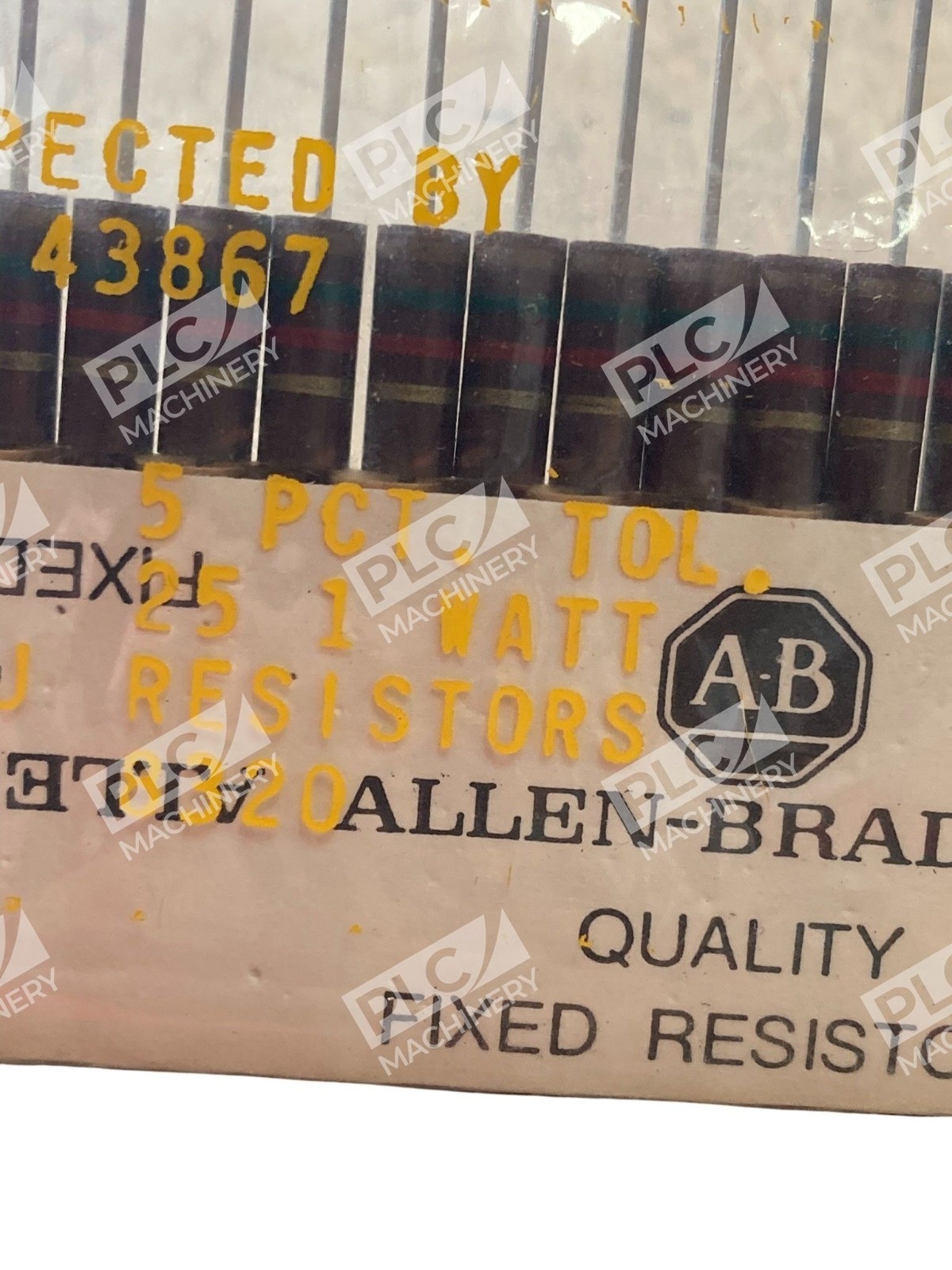

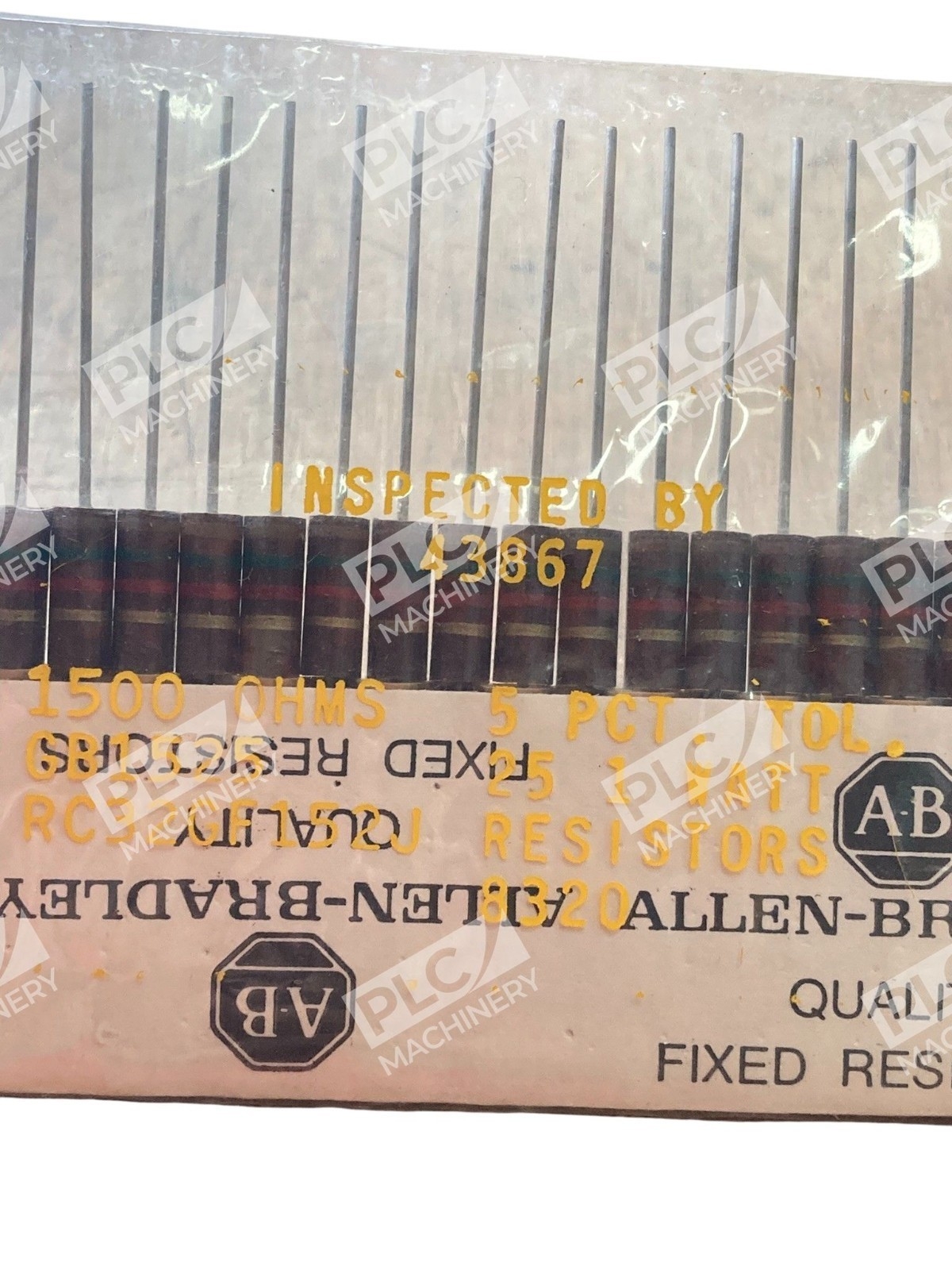

The Allen-Bradley RC32GF152J is a carbon composition fixed resistor rated at 1500 ohms with 1 watt power handling capability. This industrial-grade component features axial leads and ±5% tolerance, making it suitable for precision applications in controls, test equipment, and electronic assemblies. Supplied new in box as a bag of 25 units for bulk ordering and inventory management.
Key Features
- Resistance value: 1500 ohms (1.5 kΩ)
- Power rating: 1 watt
- Tolerance: ±5%
- Type: Carbon composition (hot-molded)
- Termination: Axial leads with oxygen-free copper
- Industrial-grade reliability and ruggedness
- Non-inductive, non-magnetic construction
- Quantity: 25 resistors per bag
Technical Specifications
- Resistance Rating: 1500 Ω (1.5 kΩ)
- Power Rating: 1 W
- Tolerance: ±5%
- Temperature Range: Up to 70°C ambient
- Lead Material: Oxygen-free copper
- Package Type: Bulk bag of 25 units
- Condition: New in box
- Part Number: RC32GF152J
Typical Applications
- Industrial control circuits and automation equipment
- Power supply circuits requiring stable resistance values
- Precision current limiting in PLC and controller modules
- Test equipment and measurement instruments
- Audio and RF applications benefiting from carbon composition characteristics
- Legacy equipment retrofit and repair
- Voltage dividers and biasing networks
Compatibility & Replacements
Compatible With
- Allen-Bradley programmable logic controllers (PLCs)
- Industrial control panels and enclosures
- Automation and I/O modules requiring fixed resistor values
- Any standard 1/4-inch or breadboard-compatible assembly
- General-purpose electronic circuits and test setups
Replaces / Drop-In Replacement For
- Other 1500 ohm 1W ±5% carbon composition resistors
- Legacy Allen-Bradley RC32 series resistors
- MIL-R-11 and MIL-R-39008 equivalent 1.5kΩ 1W units
Works With
- Any circuit design requiring a 1500 ohm fixed resistor
- Standard analog input/output conditioning circuits
- Industrial power distribution and control systems
- Legacy and modern automation equipment
