Overview

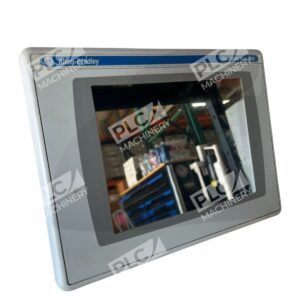

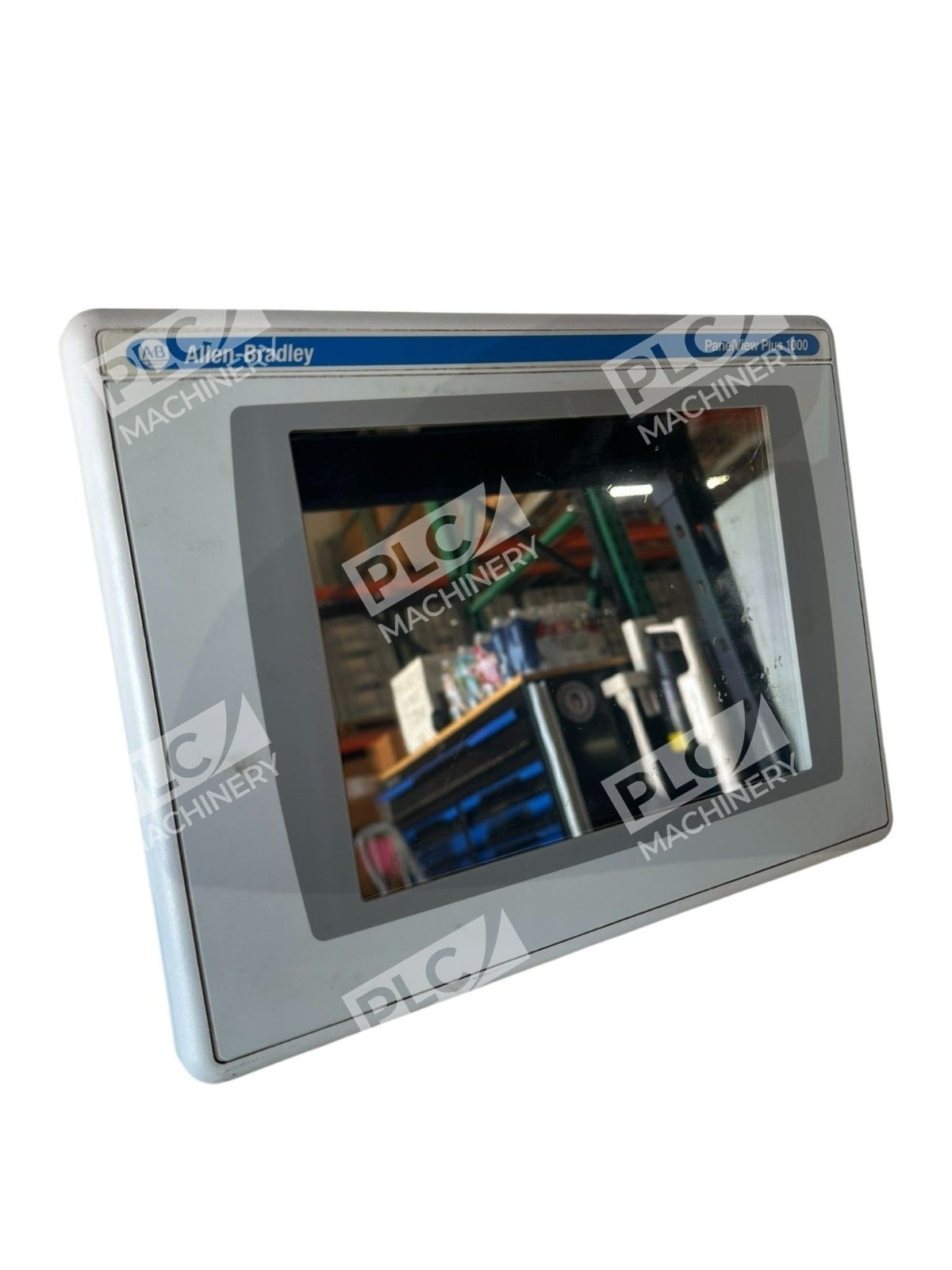

The Allen-Bradley 2711P-RDT10C is a PanelView Plus 1000 display module engineered for demanding industrial HMI applications. This color touch panel combines a responsive 10.4-inch TFT display with a durable resistive touchscreen interface, delivering crisp operator visualization and reliable input control in active factory environments. The module integrates seamlessly with PanelView Plus logic modules and supports both Ethernet/IP and serial communication protocols, making it a versatile solution for process monitoring, machine control, and real-time data acquisition.
Key Features
- 10.4-inch full-color TFT active-matrix display with 640×480 VGA resolution
- Resistive touchscreen allows operation with industrial gloves and wet hands
- Ethernet/IP and serial communication for PLC integration
- Operates 0°C to 55°C; stores -25°C to 70°C for robust industrial reliability
- Rugged housing rated for 15 G operating shock (11 ms) and 30 G non-operating shock
- Functions up to 2000 meters altitude for diverse geographic deployments
Technical Specifications
- Display Type: Color TFT (active-matrix)
- Screen Size: 10.4 inches diagonal
- Resolution: 640 × 480 pixels (VGA)
- Color Depth: 256 colors
- Input Method: Resistive touch screen
- Communication: Ethernet/IP, Serial (RS-232/RS-422)
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -25°C to 70°C
- Operating Shock: 15 G for 11 ms
- Non-Operating Shock: 30 G for 11 ms
- Max. Altitude: 2000 meters (operating)
- Weight: Approximately 4 lbs (1.8 kg)
- Assembly Type: Display Module Only
- Certifications: C-TICK, CCC
Typical Applications
- Manufacturing machine control and operator dashboards
- Process monitoring and data visualization in chemical and food/beverage plants
- Water treatment and utilities operator interface systems
- Industrial assembly line supervision and real-time diagnostics
- Packaging machinery and conveyor system control panels
- Equipment retrofits requiring reliable mid-sized color HMI displays
Compatibility & Replacements
Compatible With
- PanelView Plus 1000 and PanelView Plus 6 logic modules and communication modules
- Allen-Bradley Compact/ControlLogix PLCs via Ethernet/IP
- MicroLogix and SLC 500 systems via serial communication
- Rockwell Automation RSLinx and Studio 5000 software environments
- Standard 12, 13, and 4X industrial enclosures (IP54/IP65 rated)
Replaces / Drop-In Replacement For
- 2711P-RDT10C/B (Series B variant)
- 2711P-RDT10CX and 2711P-RDT10CXA (alternative revisions)
- 2711PRDT10CA, 2711PRDT10CB (equivalent display assemblies)
Works With
- Rockwell Automation Studio 5000 (RSLogix 5000)
- FactoryTalk View HMI development software
- EtherNet/IP industrial protocol networks
- Windows CE-based PanelView Plus operating environment
- Serial (RS-232/RS-422) legacy Allen-Bradley control systems
