Overview
The Allen-Bradley 1492-J3-BL is a 2.5 square mm standard terminal block engineered for secure wire termination in industrial automation and control systems. Part of the proven Bulletin 1492 family of IEC terminal blocks, the 1492-J3-BL offers proven reliability for power distribution, signal conditioning, and equipment interconnection on standard 35 mm DIN rail. This box of 100 units delivers productivity and cost efficiency for integration, panel rebuilds, and field replacements.
Key Features
- Feed-through screw connection design—single pole, one-position per block
- Black insulating housing for color-coded circuit identification and traceability
- Wide operating temperature: -50 to 120°C for harsh industrial environments
- Multiple certifications: UL, CSA, CUL, CCC, CE, KC standards

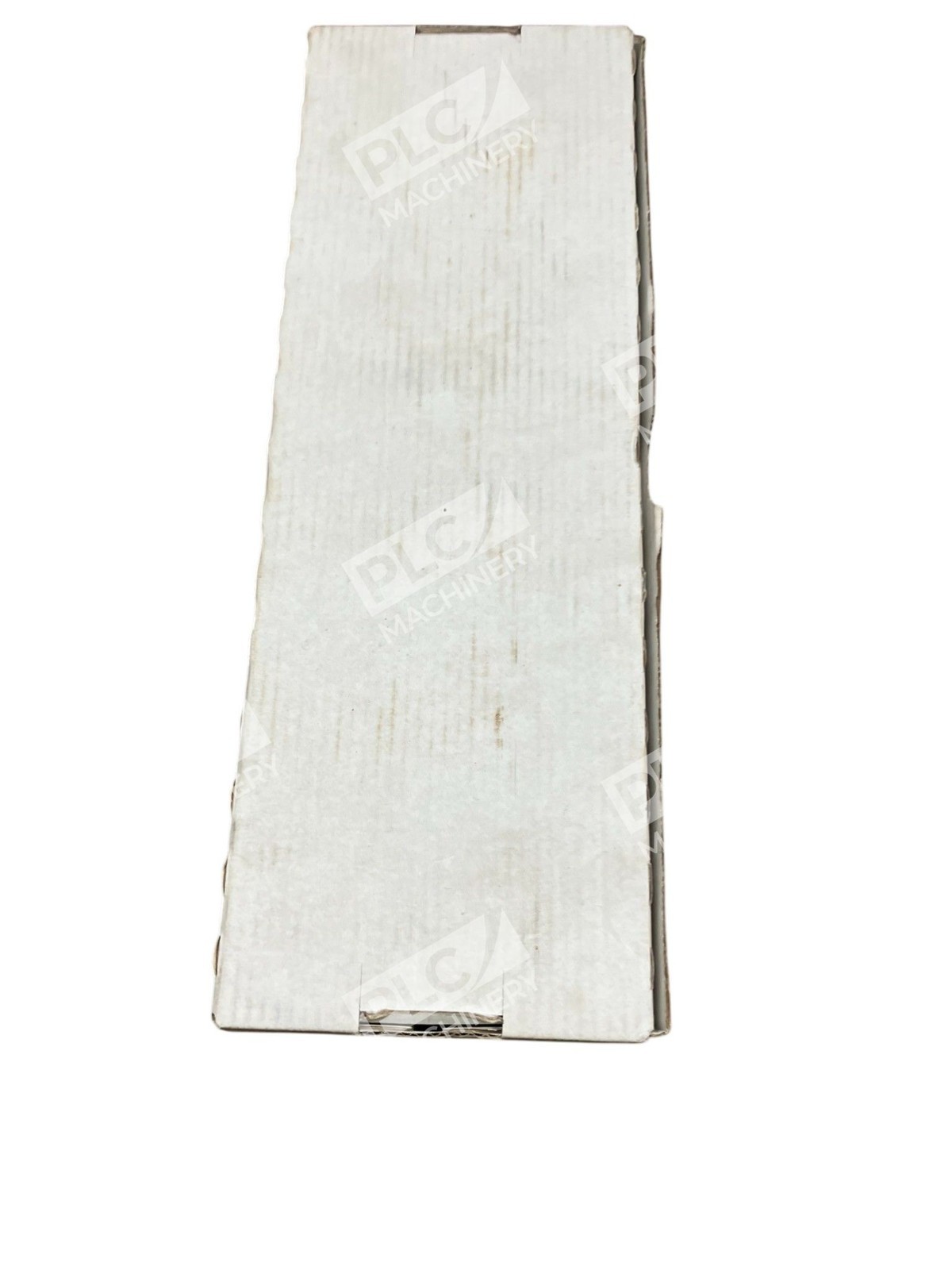

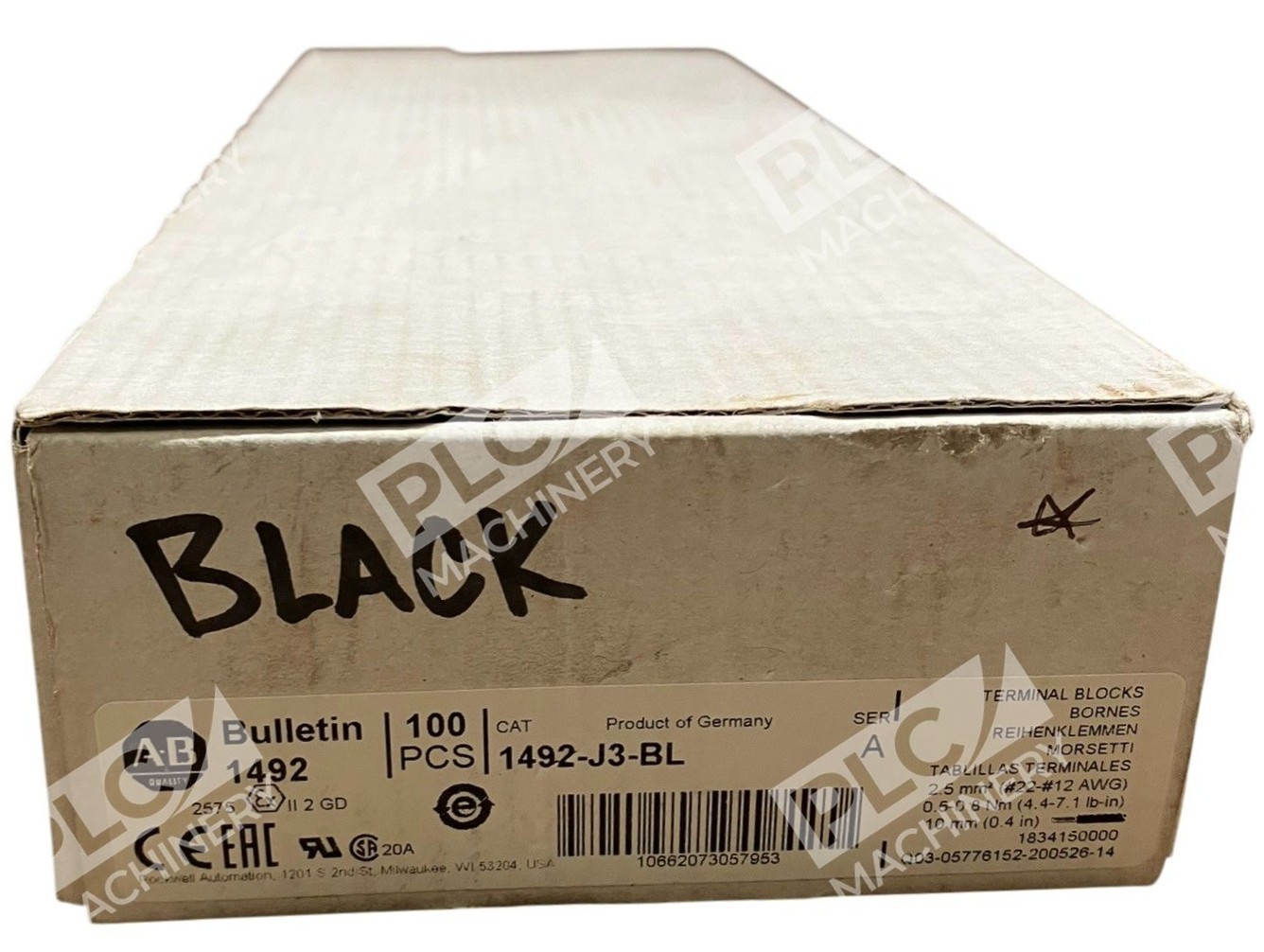

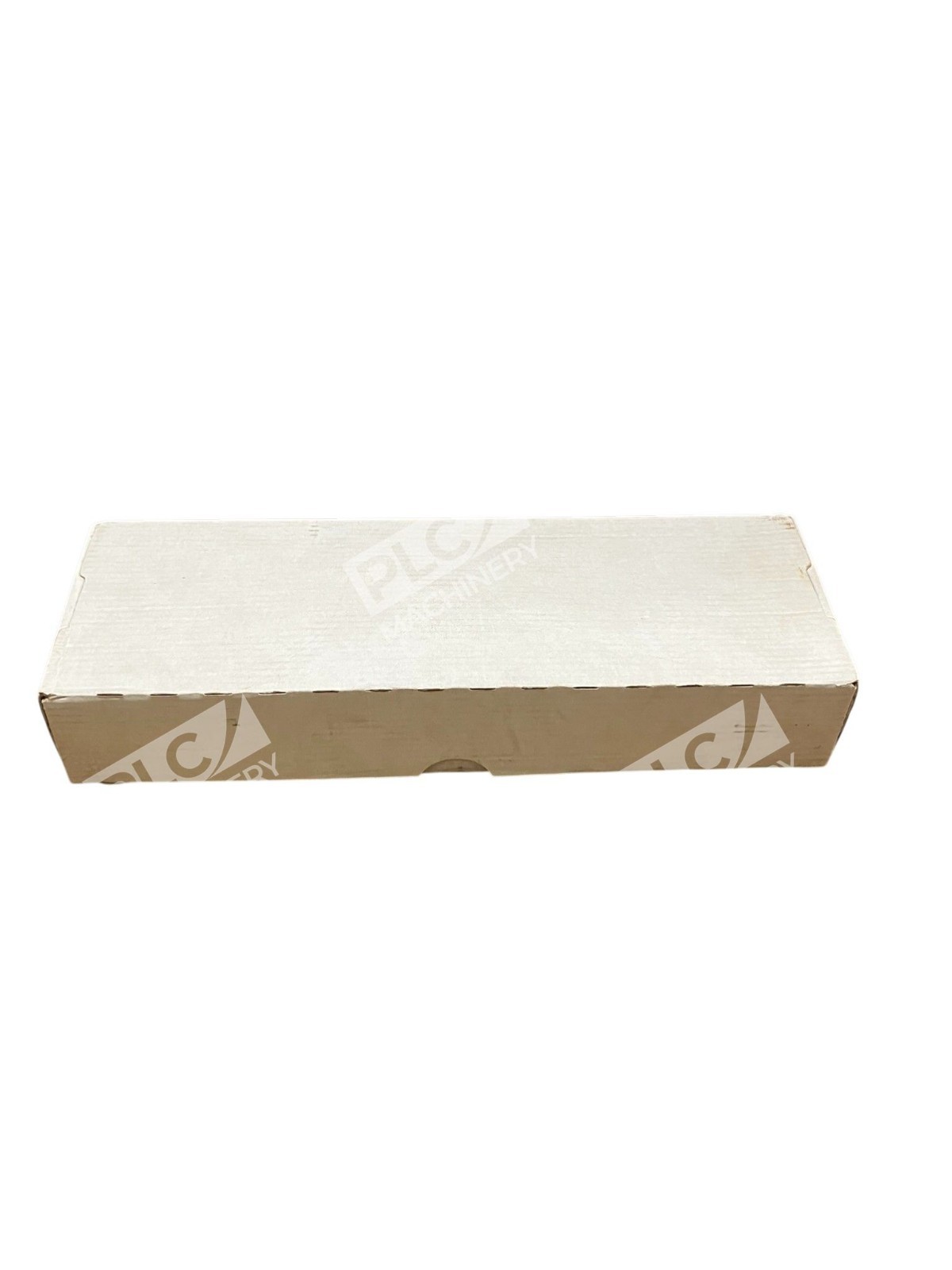

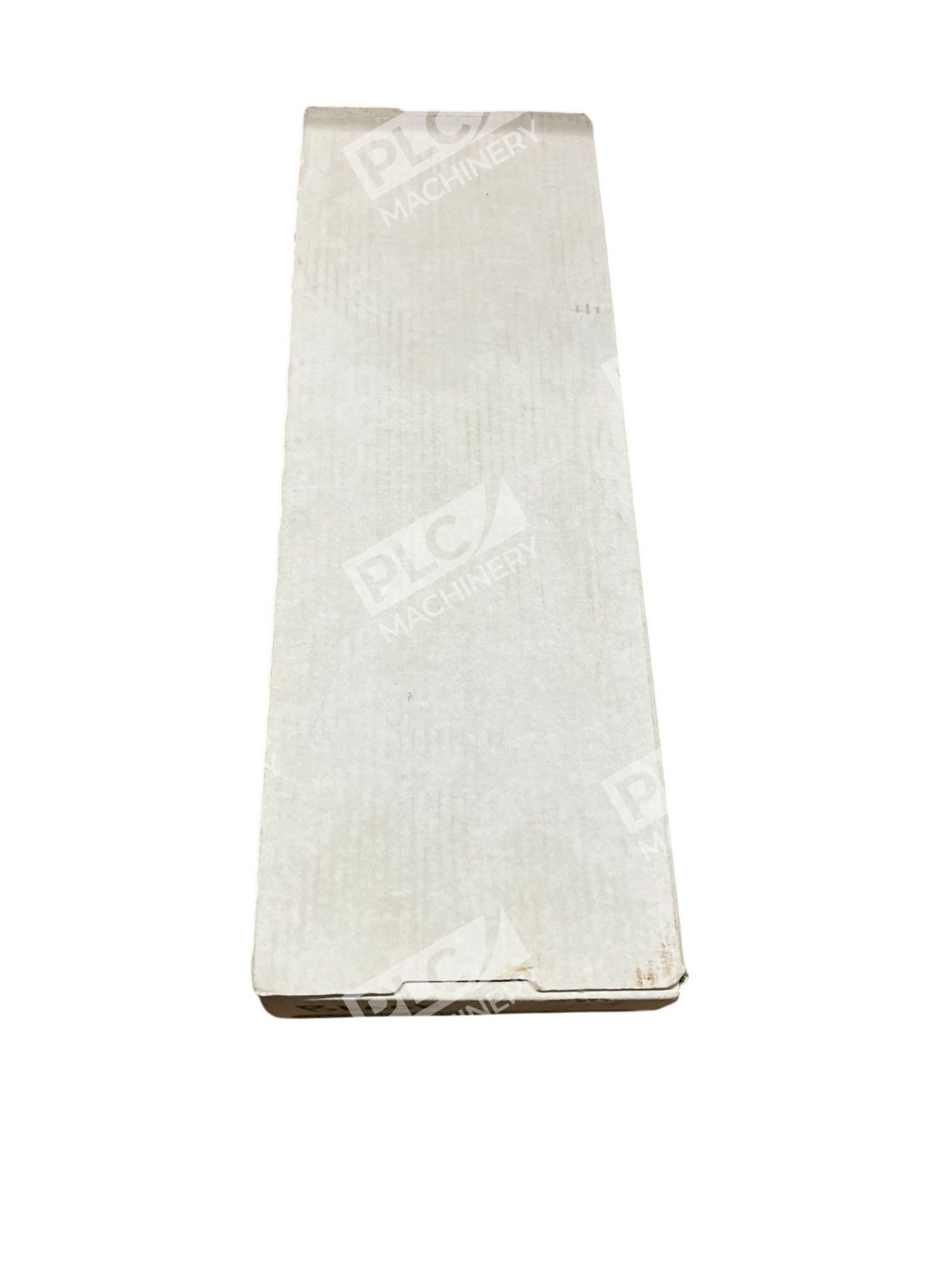

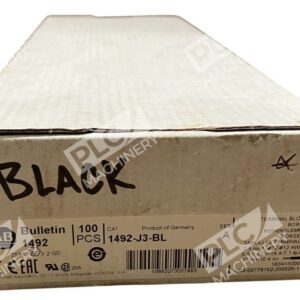

- Shipped in standard packaging of 100 units per box—ready for warehouse or production use
Technical Specifications
- Conductor Size: 24–12 AWG (0.2–2.5 mm²)
- Voltage Rating (UR): 600V AC/DC
- Voltage Rating (CSA): 600V AC/DC
- Voltage Rating (IEC): 800V AC/DC
- Current Rating (UR): 25A
- Current Rating (CSA): 20A
- Connection Type: Screw terminal
- Block Type: Feed-through (one pole)
- Mounting: 35 mm DIN Rail (symmetrical)
- Operating Temperature: -50 to 120°C
- Dimensions: 5.1 × 60 × 39.5 mm (0.20 × 2.36 × 1.56 in)
- Color: Black
- Package Quantity: 100 units per box
Typical Applications
- Power distribution terminals in control cabinets and electrical enclosures
- Wire termination for sensor inputs and output circuits
- Field wiring in machine tool controls and factory automation
- Panel integration and retrofit projects requiring color-coded identification
- Industrial equipment with DIN rail–mounted terminal infrastructure
Compatibility & Replacements
Compatible With
- 35 mm symmetrical DIN rail (steel or aluminum)
- Rockwell Automation control panels and enclosures
- Standard IEC 60715 DIN rail systems
- Industrial automation cabinets with DIN rail infrastructure
Replaces / Drop-In Replacement For
The 1492-J3-BL directly replaces earlier-generation 1492-J3 terminal blocks in grey. All 1492-J3 color variants (1492-J3, 1492-J3-RE, 1492-J3-B, 1492-J3-G, 1492-J3-Y, 1492-J3-OR, 1492-J3-BR, 1492-J3-W, 1492-J3-V) maintain identical mechanical and electrical specifications and mounting dimensions, allowing straightforward substitution for circuit identification or stock replenishment.
Works With
- DIN rail mounting systems and accessories (199-DR1, 1492-DR5)
- Rockwell Automation cabinet design standards and safety protocols
- IEC 60999-1 terminal block standards for screw-type connections
- Industrial control systems using modular terminal block architecture
