Overview

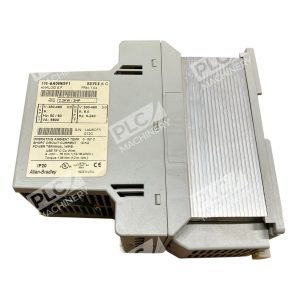

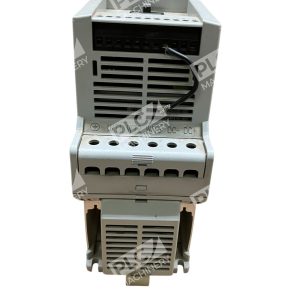

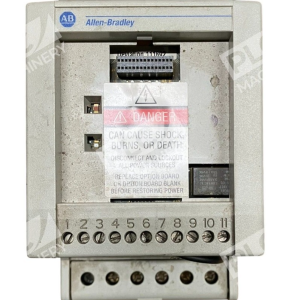

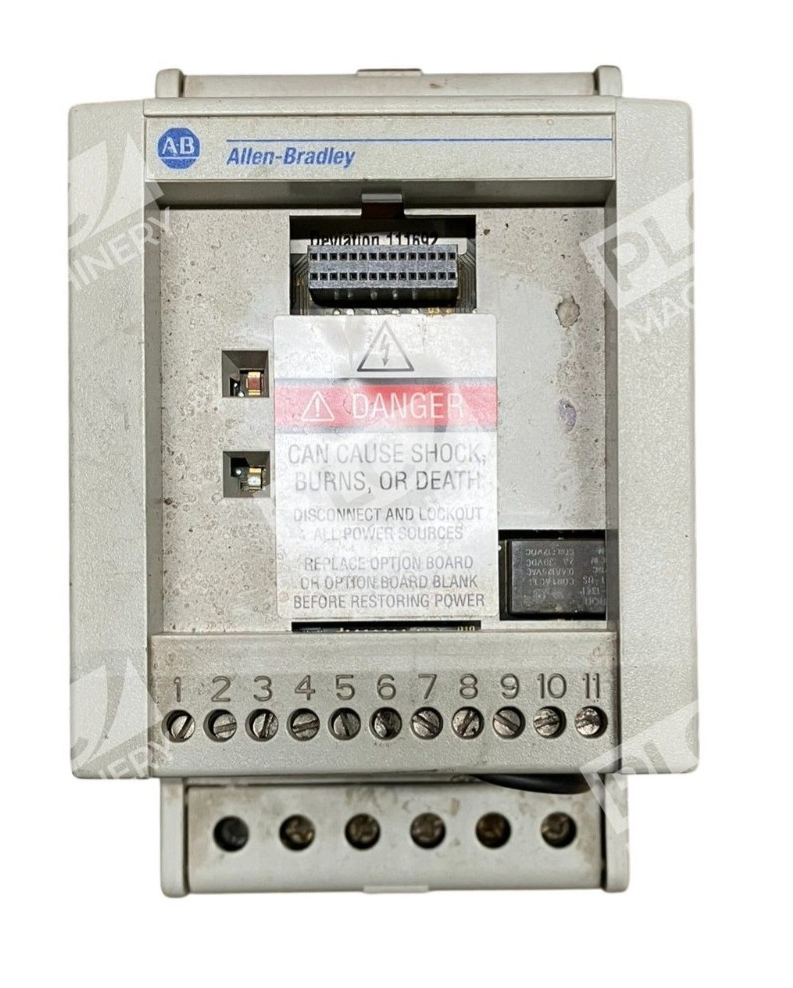

The Allen-Bradley 160-BA06NSF1 is a compact variable speed drive from the Bulletin 160 Series Smart Speed Controller (SSC) line, engineered for controlling small-capacity AC induction motors in industrial automation applications. This microprocessor-based drive uses an analog speed follower where an external analog signal is used as the speed reference. Though discontinued by the manufacturer, surplus units remain available and are widely specified as drop-in replacements in existing installations.
Key Features
- Part of the Bulletin 160 Series Smart Speed Controller
- High efficiency rating of 97.5%, minimizing heat dissipation and power loss
- Analog Signal Follower model type with external control input capability
- IP20 open enclosure with integrated cooling fan
- Supports optional installation of programming keypads—handheld or remote-mounted variants
- Compatible with external communication adapters including DeviceNet, RS232, ProfiBus, and Interbus

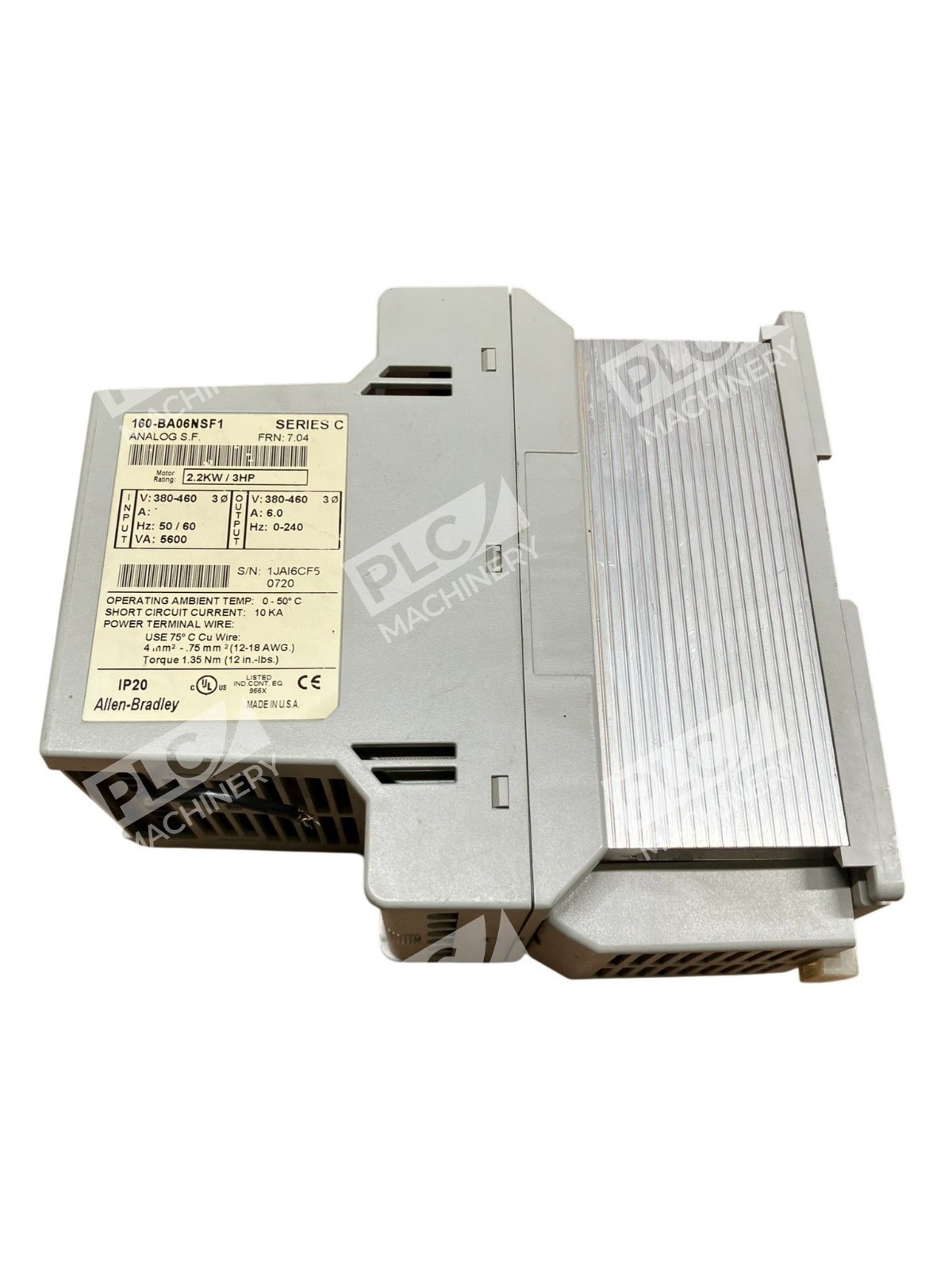

Technical Specifications
- Output Power Rating: 2.2 kW / 3.0 HP
- Input Voltage: 380–460 VAC, 3-phase
- Input Current: 7.0 amperes
- Output Voltage/Frequency: 380–460 VAC 3-phase, 0–240 Hz output frequency
- Output Current: 6.0 amperes
- Enclosure Type: IP20 open enclosure
- Operating Temperature Range: 0 to +50°C
- Dimensions: 7.58 × 3.62 × 7.6 inches (L×W×H)
- Weight: 2.49 lbs (1.10 kg)
- Heat Dissipation: 25 Watts
- Series: Bulletin 160 SSC (Smart Speed Controller)
- Efficiency: 97.5%
Typical Applications
This drive is used for small-capacity motor control and features a compact, scalable hardware design. Common applications include:
- Conveyor systems and material handling automation
- Pump and fan speed control in HVAC and process systems
- Textile and packaging machinery variable speed requirements
- OEM motor control integrations requiring analog input reference signals
- Legacy system maintenance and replacement in manufacturing facilities
Compatibility & Replacements
Compatible With
- AC induction motors rated 2.2 kW (3.0 HP) or smaller
- Systems requiring 380–460V 3-phase 50/60 Hz input power
- Analog control signal inputs (0–10V, 4–20mA, or similar external control)
- Optional DeviceNet, RS232, ProfiBus, and Interbus communication interfaces

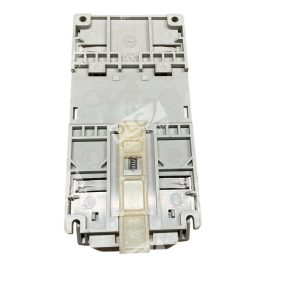

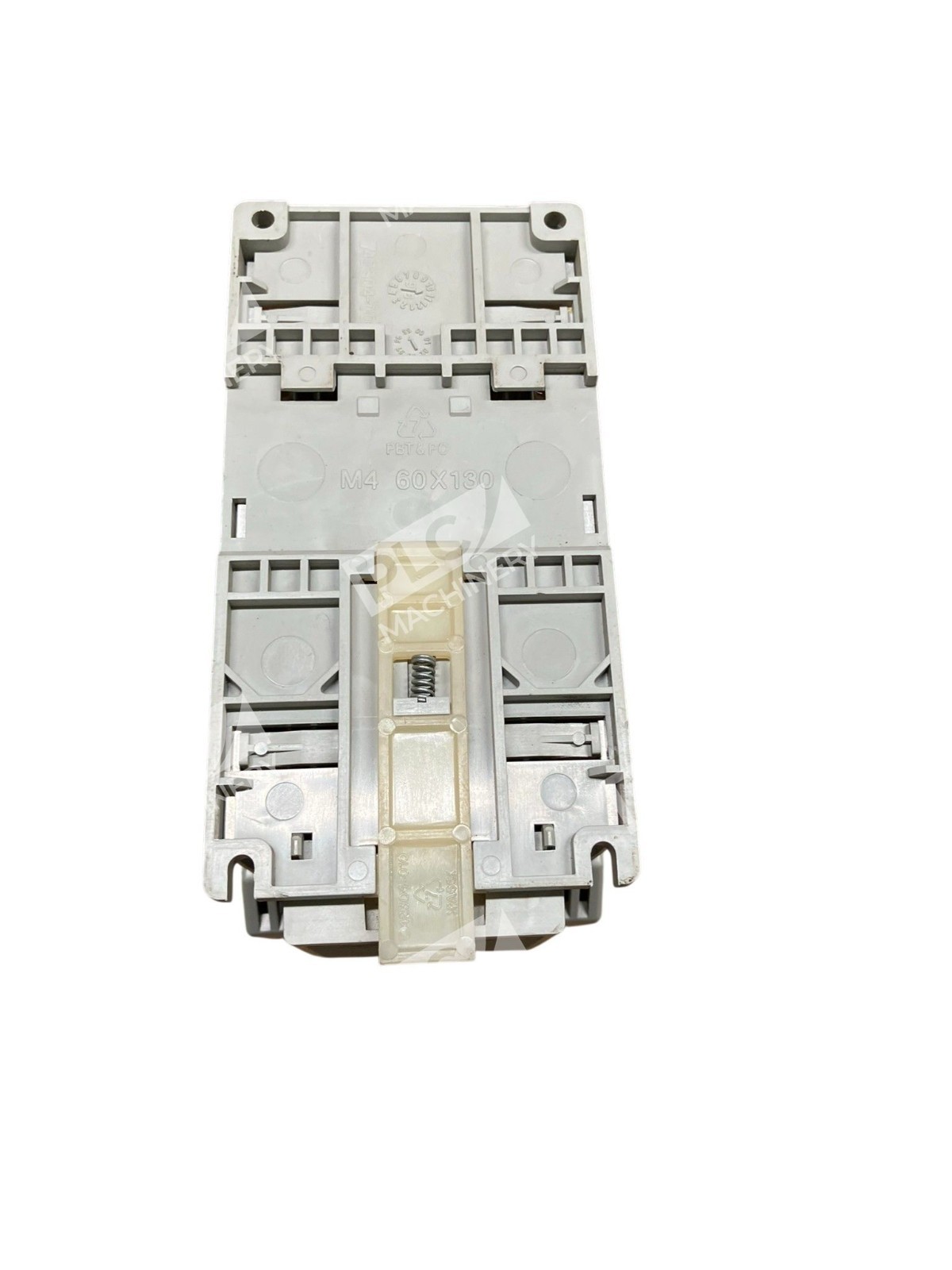

- DIN rail or panel-mount installations with IP20 open enclosure environments
Replaces / Drop-In Replacement For
When equipped with a programmer module, the base 160-BA06NSF1 becomes model 160-BA06NSF1P1. Other 160 SSC series models in the compact analog follower range (160-BA04NSF1, 160-BA10NSF1) use the same form factor and control paradigm. Verify compatibility with your system integrator before ordering.
Works With
- Analog signal control architectures (external 0–10V or current-loop signals)
- Optional programmer keypads (handheld and remote-mounted)
- Line filter modules and line reactor modules for EMI/RFI suppression
- Dynamic braking and noise suppression accessories
- Rockwell Automation DeviceNet modules (160-DN1, sold separately)
- Legacy automation systems and retrofit applications
