Overview

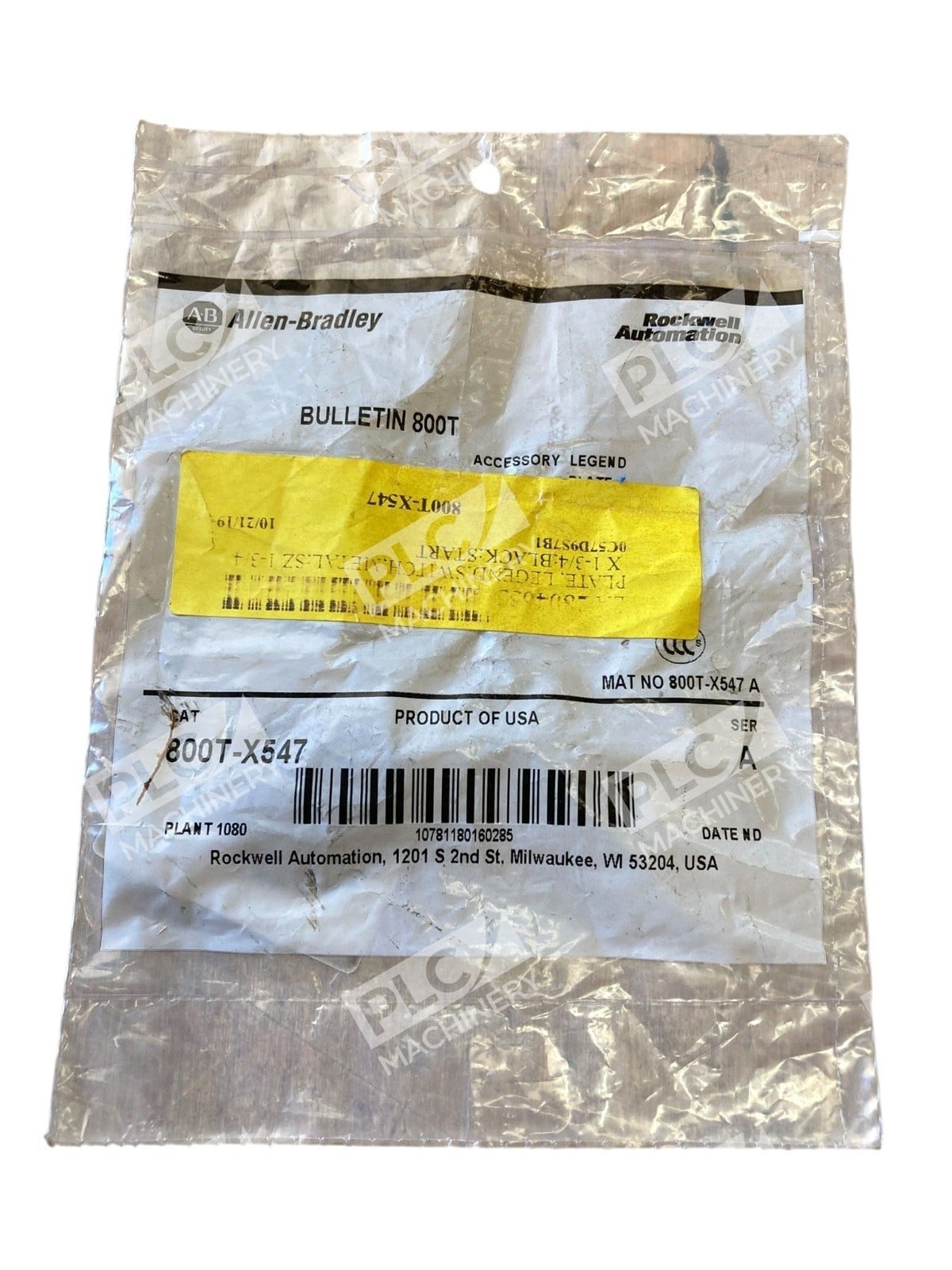

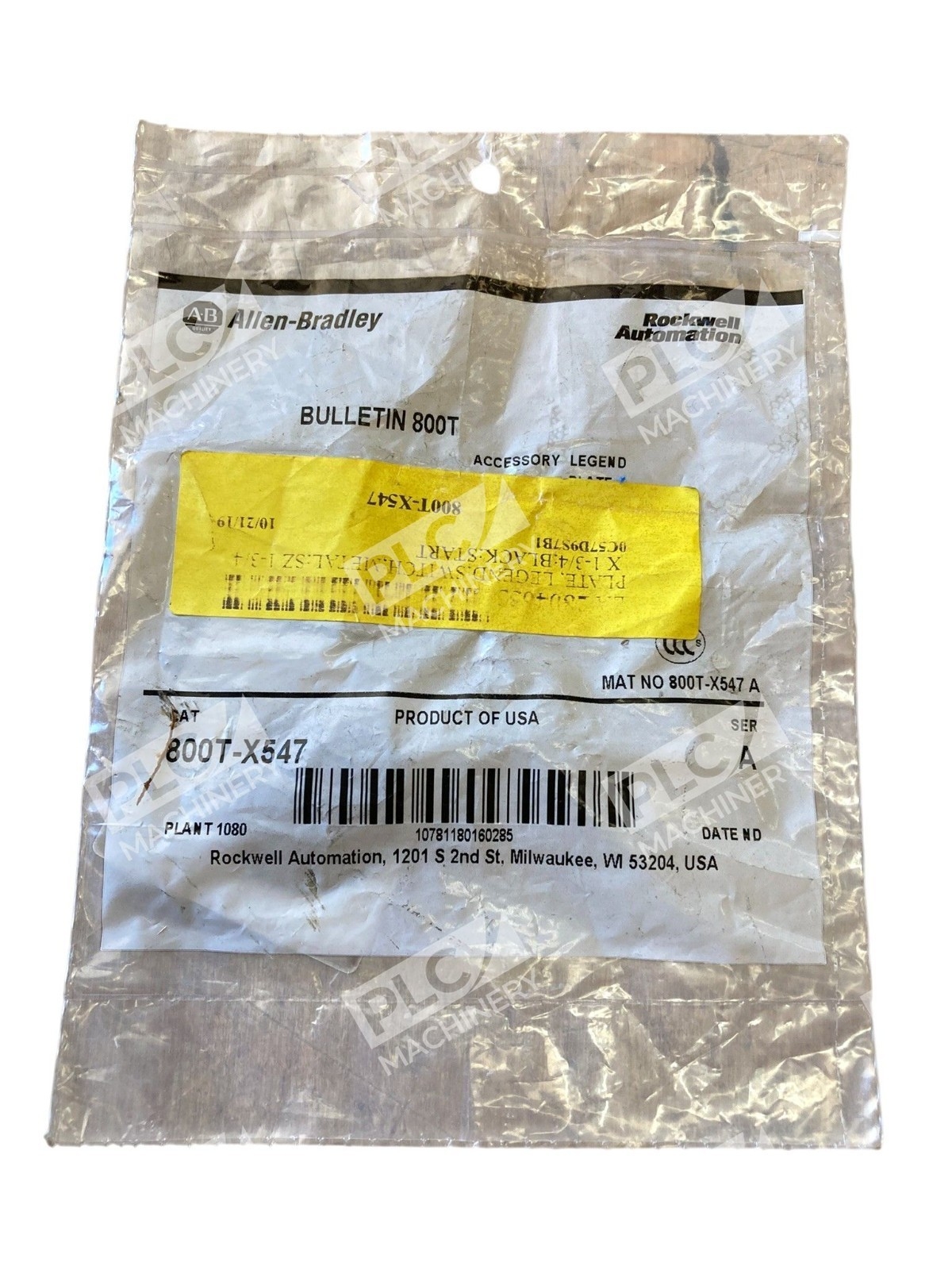

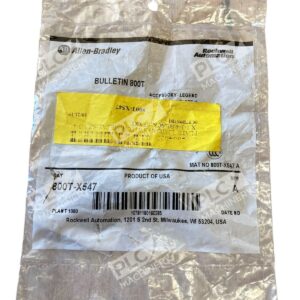

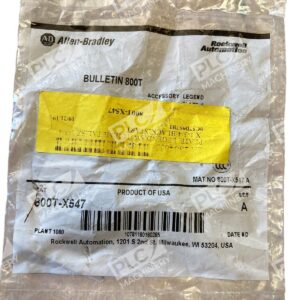

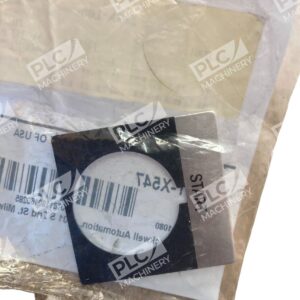

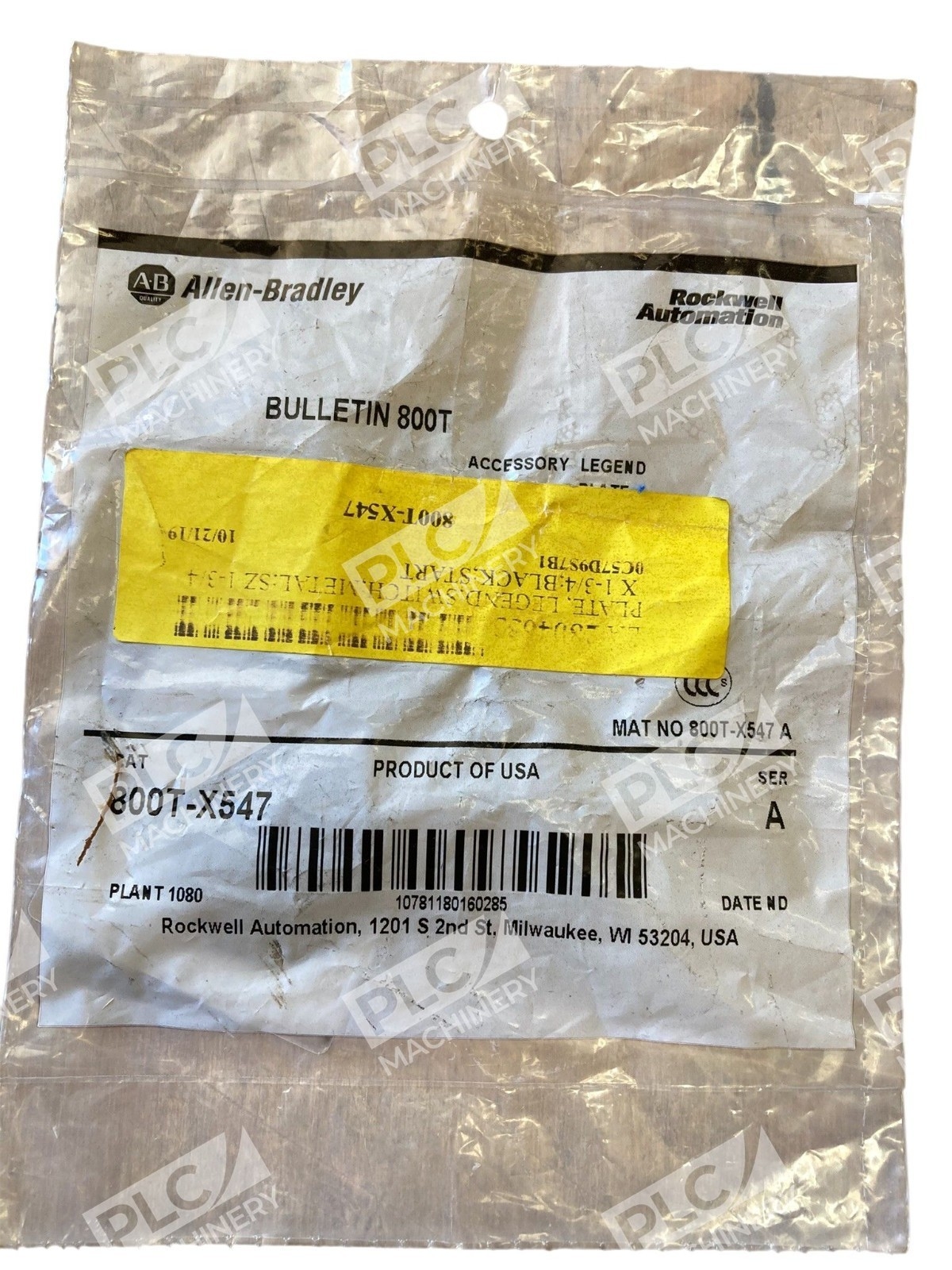

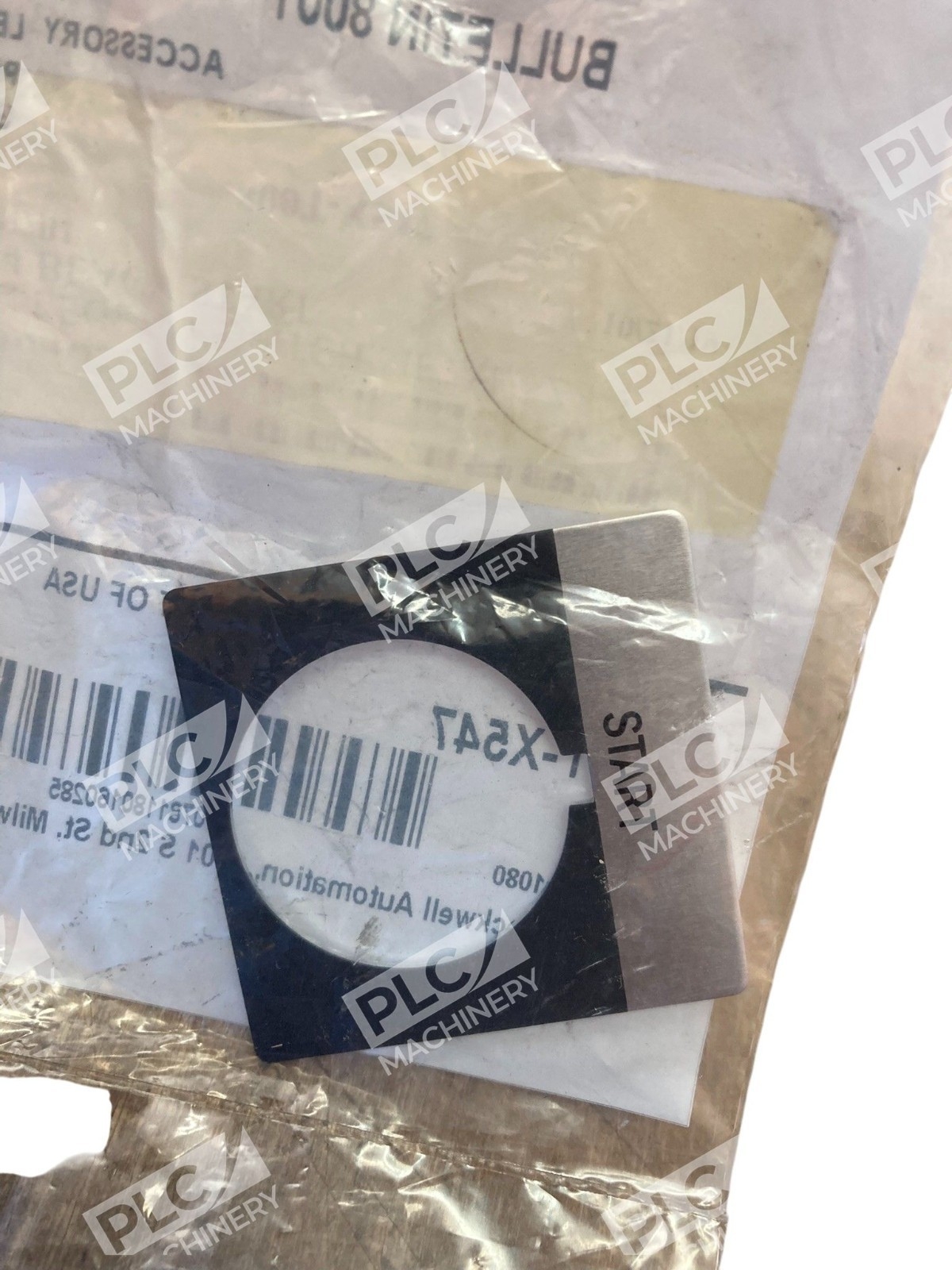

The Allen-Bradley 800T-X547 is a standard 30mm legend plate designed for the 800T series of compact pushbuttons. This aluminum accessory plate features gray background with gray text reading “START”, providing clear operational identification in industrial control panels. Built to NEMA 4 and Type 13 enclosure standards, it offers durability and visibility in harsh manufacturing and process control environments.
Key Features
- 30mm standard size fits 800T series pushbutton operators
- Aluminum construction with black and gray color scheme
- “START” legend text in gray on gray background
- NEMA 4/Type 13 rated for wet and corrosive environments
- Factory-manufactured legend ensures consistent quality
- Drop-in replacement accessory — no wiring required
Technical Specifications
- Size/Style: 30mm Standard Legend Plate
- Material: Aluminum
- Legend Text: START
- Color: Gray plate with gray text (black/gray finish)
- Height: 1.83 inches (46.4 mm)
- Width: 1.78 inches (45.2 mm)
- Weight: 0.01 lb
- Enclosure Rating: NEMA 4, Type 13
- Standard: KC (manufacturer compliance)
- UPC: 781180160288
- Manufacturer: Rockwell Automation / Allen-Bradley
Typical Applications
Legend plates are essential identification accessories in industrial automation systems. The 800T-X547 is used in machine control panels, process automation enclosures, and production line operator stations to clearly mark start button functions. Common applications include:
- Pump and compressor motor control panels
- Conveyor and material handling systems
- Manufacturing assembly line stations
- HVAC and building automation systems
- Industrial mixing, blending, and packaging equipment
Compatibility & Replacements
Compatible With
- Allen-Bradley 800T series 30mm pushbutton operators
- 800T compact pushbutton control stations
- Industrial control enclosures (NEMA 4, Type 13)
- Standard DIN rail and panel-mounted switchgear
Replaces / Drop-In Replacement For
- Marathon Part #03-0152 (equivalent legend plate)
- Legacy 800T legend plate inventory
Works With
- Allen-Bradley 800T pushbutton series (all 30mm models)
- Any industrial control system using 800T compatible operator stations
- NEMA 4/Type 13 rated enclosures and installations
