Overview

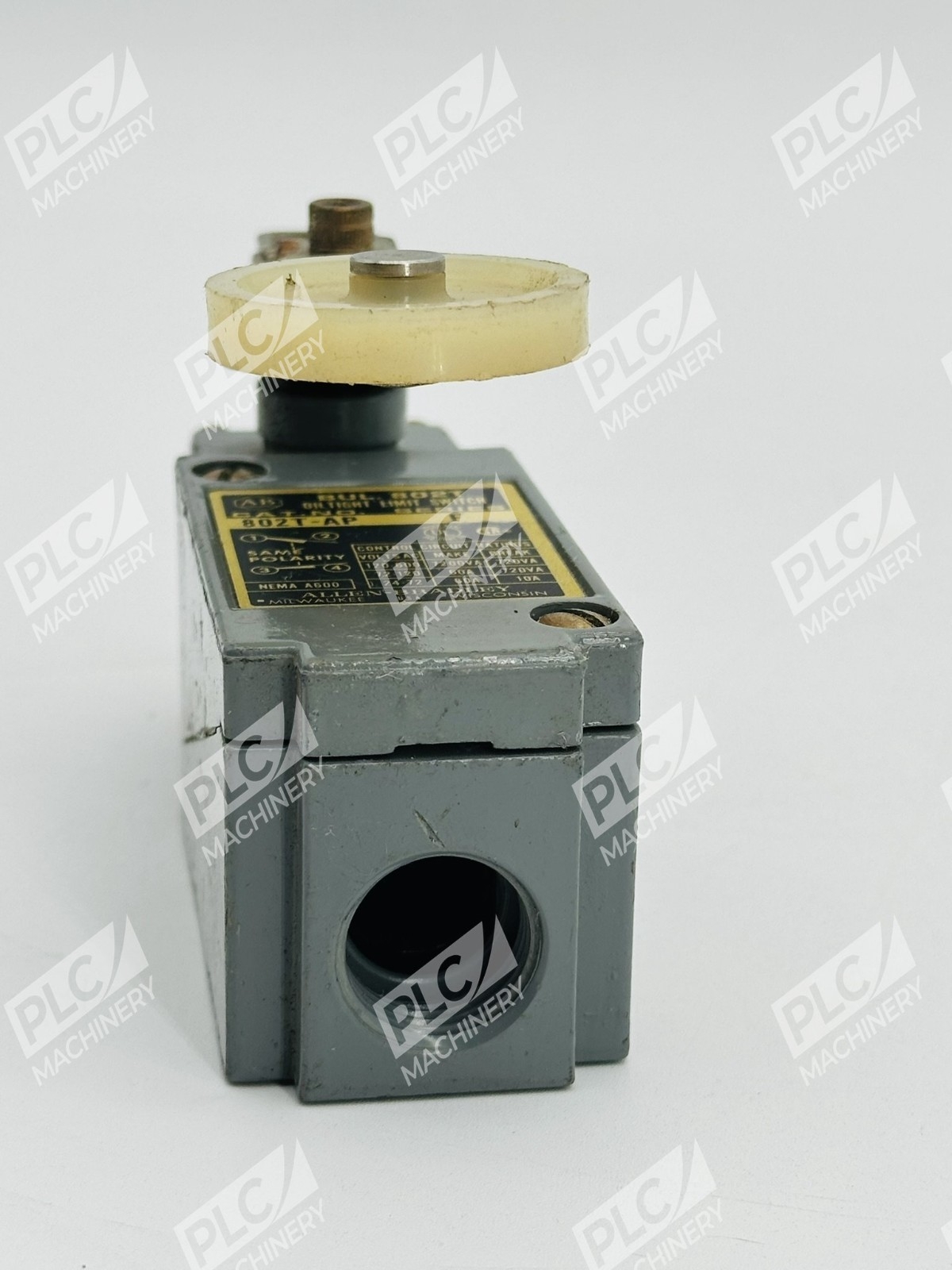

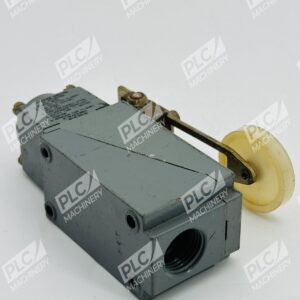

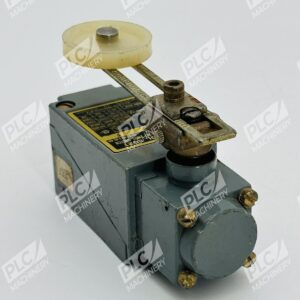

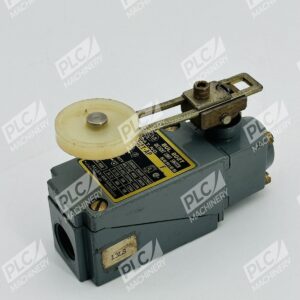

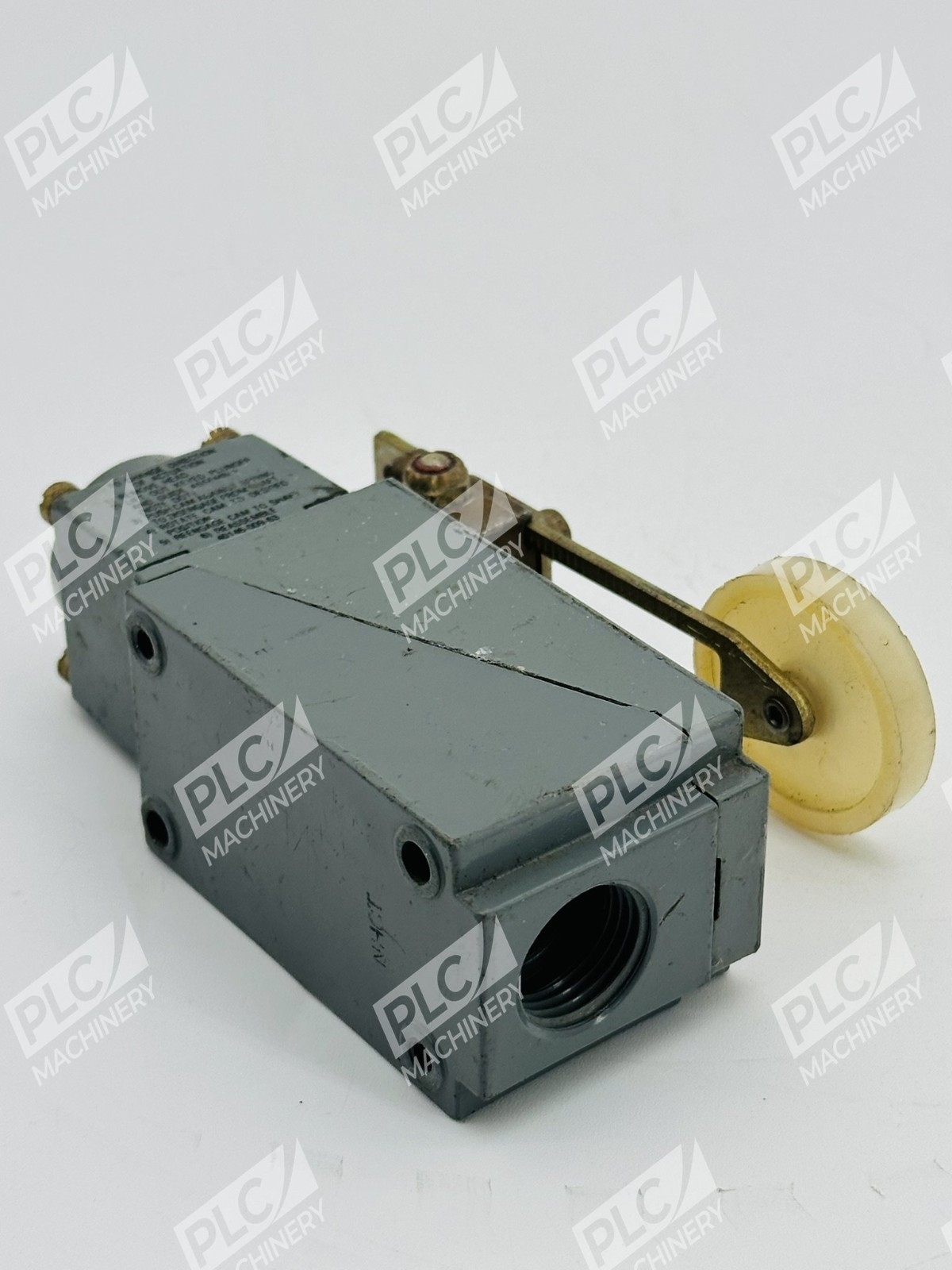

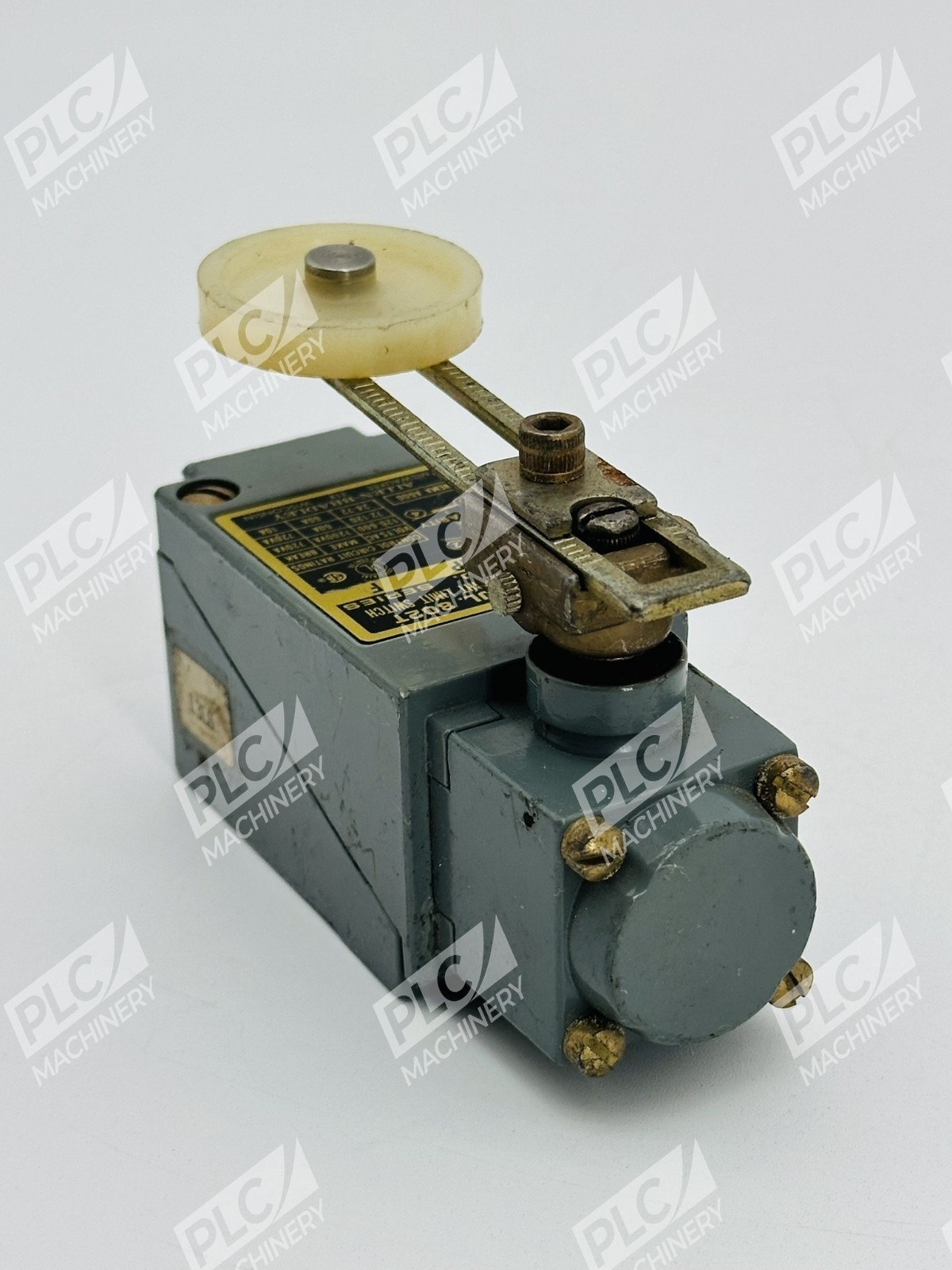

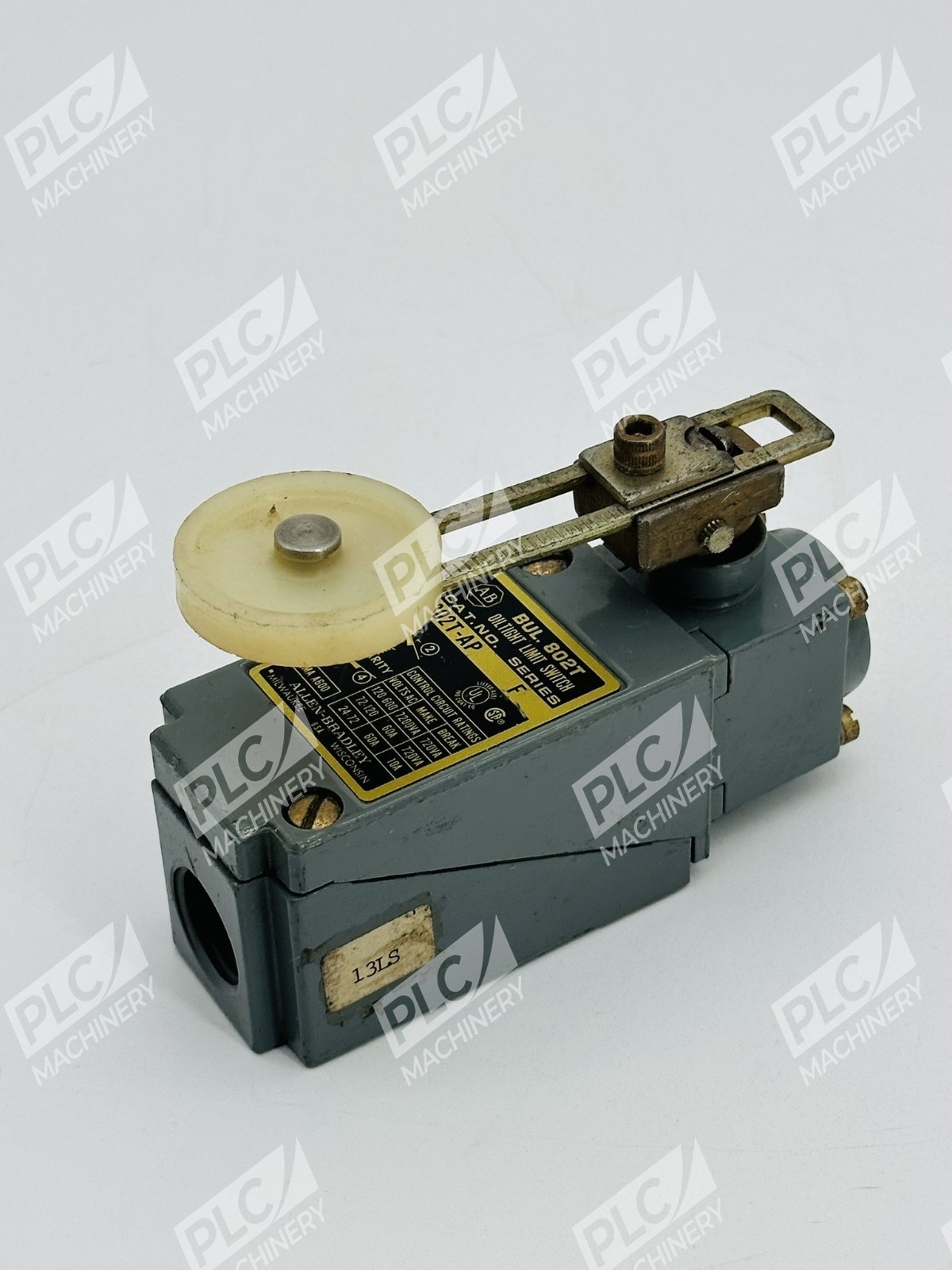

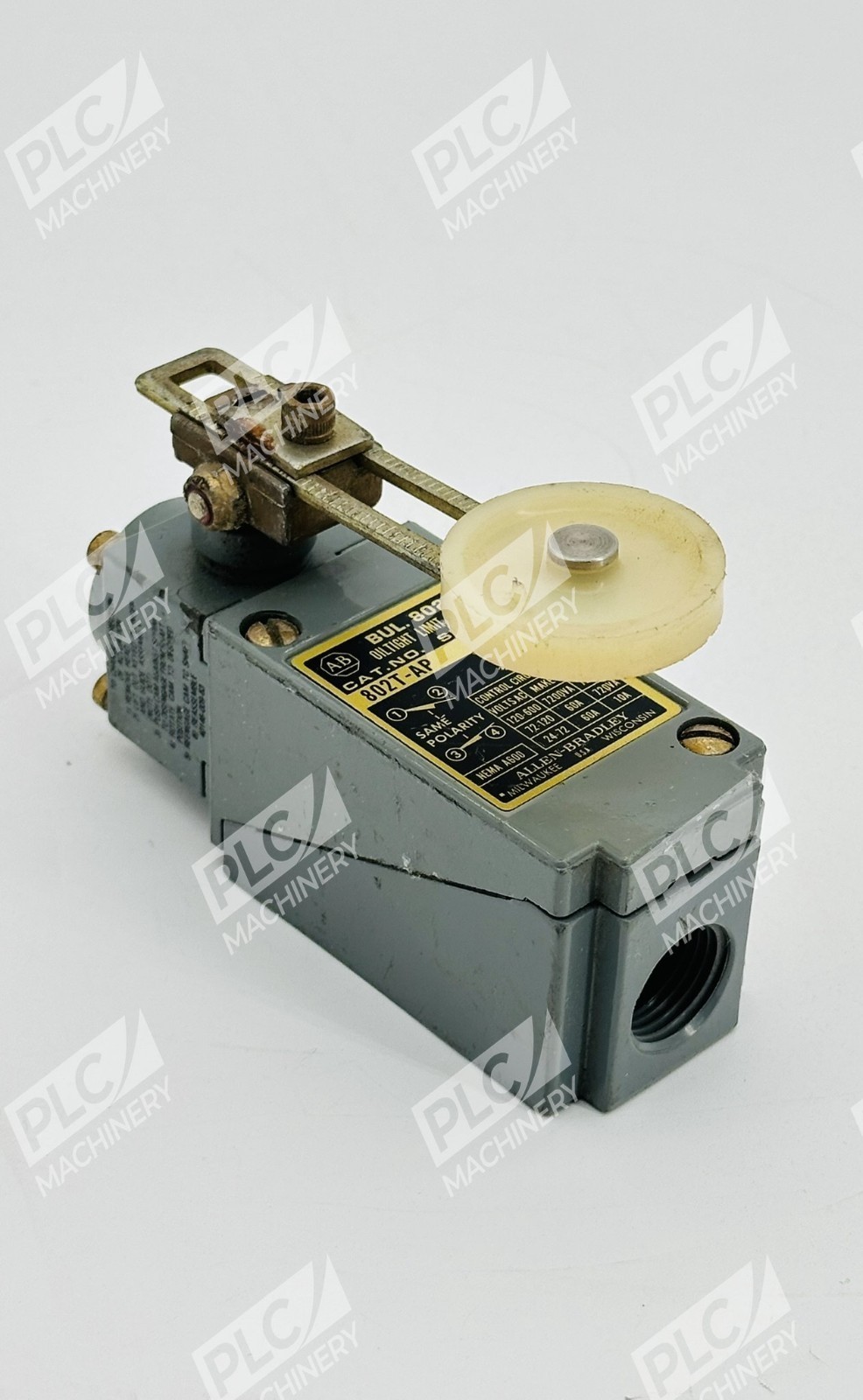

The Allen-Bradley 802T-AP oiltight limit switch combines proven heavy-duty design with a compact plug-in form factor for industrial motion control applications. NEMA Type 4 and 13 oiltight construction protects against water, oil, dust, and other contaminants, making it ideal for food processing, packaging, material handling, and transportation equipment. The 2-circuit configuration supports both clockwise and counterclockwise operation with a 90-degree maximum travel angle.
Key Features
- Plug-in design: Head and switch body can be replaced without rewiring the base, reducing commissioning and maintenance downtime
- 2-circuit operation: 1 normally open (NO) and 1 normally closed (NC) contact configuration
- Snap-acting contacts: Provides quick, decisive make/break action for reliable pilot-duty switching
- Rotary lever arm actuator: Spring return mechanism with standard operating torque; configurable for CW/CCW operation
- NEMA 6P / IP67 sealing: Protects against jets of water and fine dust ingress
- Metal enclosure: Rugged construction withstands harsh industrial environments
Technical Specifications

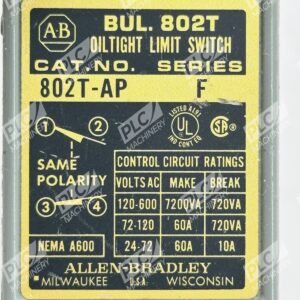

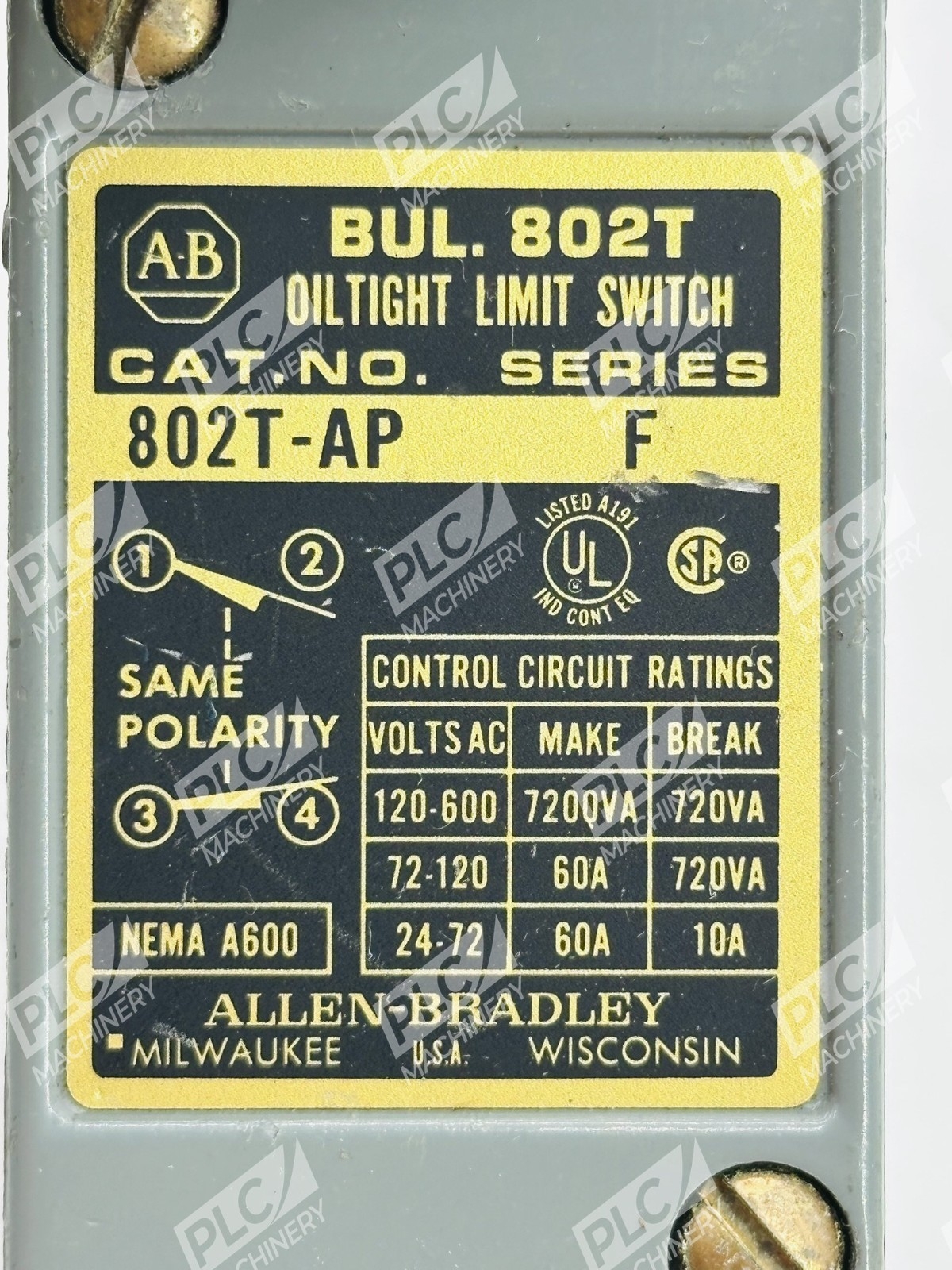

- Voltage rating: 120–600 VAC, 115–600 VDC
- Amperage: 10 A standard energy
- Contact rating: A600 (pilot duty)
- Number of circuits: 2
- Contact configuration: 1 NO, 1 NC
- Actuator type: Rotary lever arm, spring return
- Action: Snap acting, standard contacts
- Operation: CW and CCW (configurable)
- Travel angle: 90 degrees maximum
- Connection: Plug-in style with 1/2″ NPT thread conduit entry
- Operating temperature: –18°C to 110°C
- Mounting: NEMA style standard, front-mount compatible
- Enclosure type: Metal, oiltight (NEMA 4 and 13)
- Weight: 1.2 lb
- Certifications: UL, CSA, CE, CCC
Typical Applications
The 802T-AP is widely used in industrial automation for:
- Machinery position sensing and motion control
- Automated conveyor and material handling systems
- Packaging and filling equipment
- Food processing machinery
- Transportation equipment and rail applications
- Wet and oily environments where NEMA 13 protection is required
Compatibility & Replacements
Compatible With
- Allen-Bradley industrial control systems and PLCs
- Motor control centers (MCCs) and control panels
- Standard 24 VDC and 120 VAC pilot circuits
- Direct connection to PLC inputs via terminal base
- Manifold-style mounting on machine bases and raceway systems
Replaces / Drop-In Replacement For
- Other 802T series non-plug-in limit switches (with appropriate mounting adapter)
- Standard industrial lever-arm limit switches in similar pilot-duty applications
- Verify compatibility with your existing control circuit before ordering
Works With
- Allen-Bradley CompactLogix and ControlLogix controllers
- Standard industrial relay logic and contactor-based control schemes
- Discrete DC/AC input modules in industrial automation systems
- NEMA-rated terminal bases and control enclosures
