Overview

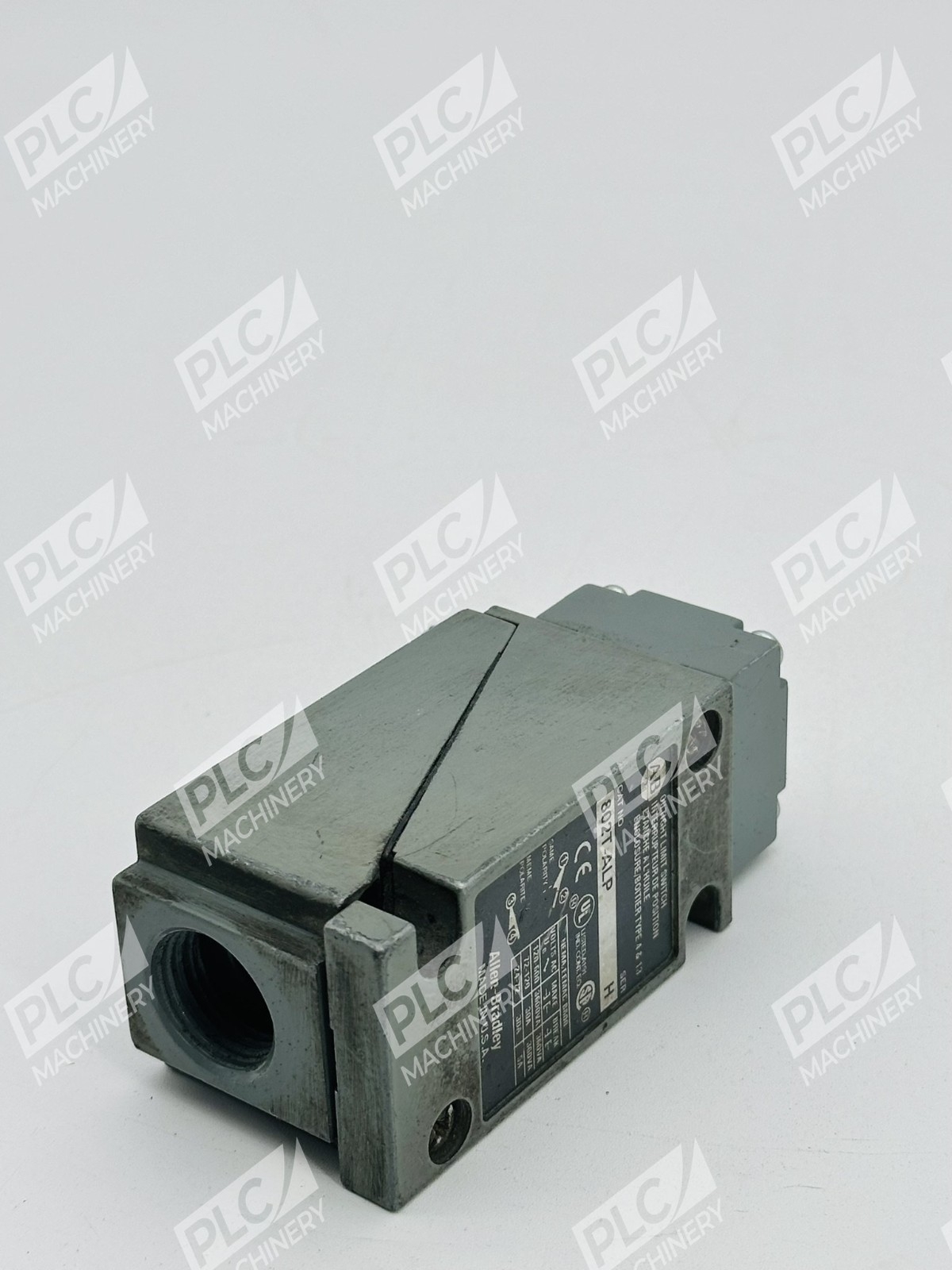

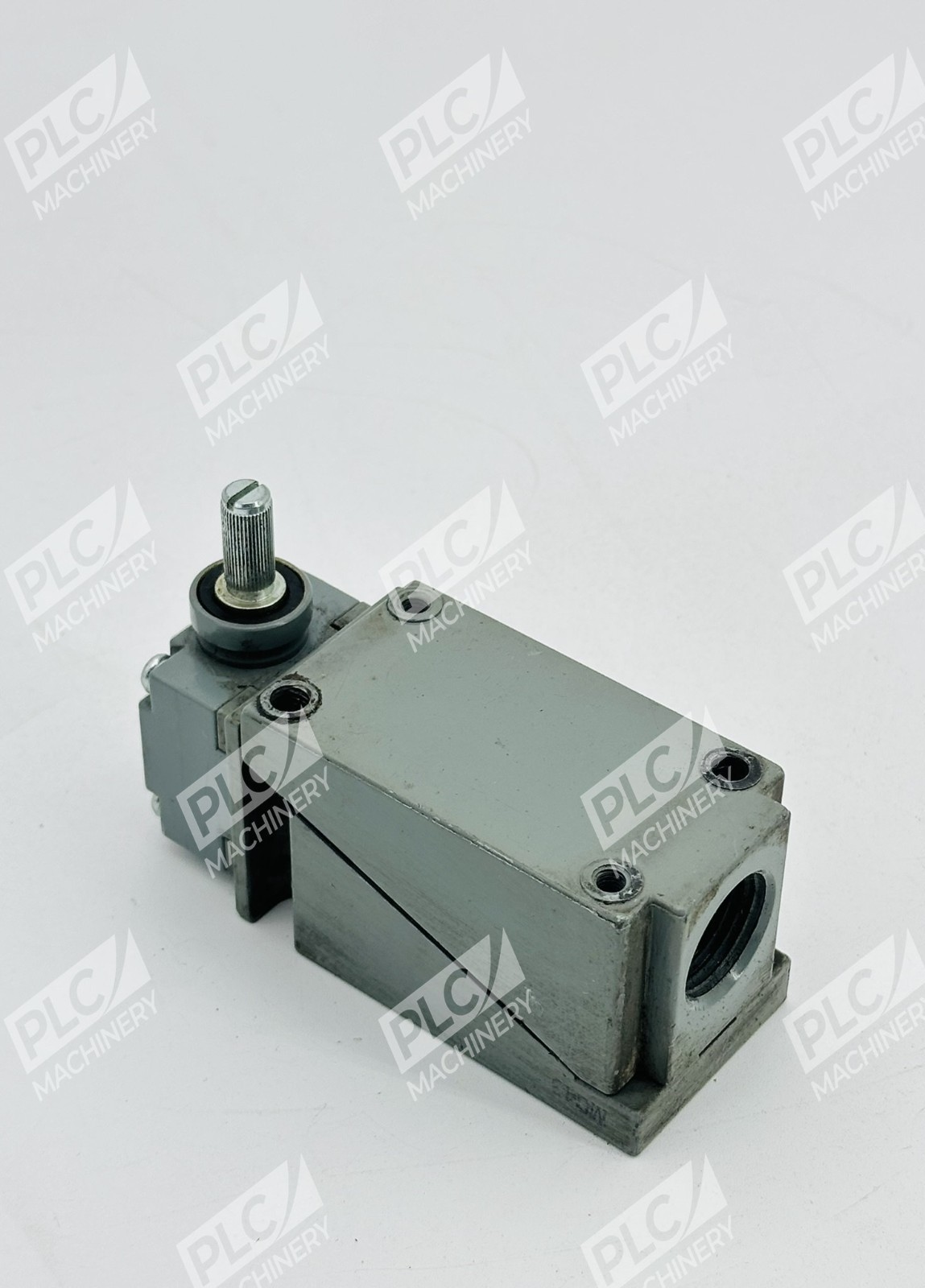

The Allen-Bradley 802T-ALP oiltight limit switch combines rugged industrial construction with plug-in convenience. This bulletin 802T switch provides heavy-duty pilot ratings, small size, a high degree of versatility, and NEMA Type 13 oiltight construction, making it suitable for harsh manufacturing environments. Plug-in styles feature a head and switch body that can be replaced while leaving the wiring chamber base in place, reducing downtime by eliminating the need for rewiring upon switch replacement.
Key Features
- Plug-In Design: Head and switch body can be replaced while leaving the wiring chamber base in place
- Snap-Acting Contacts: Snap action with rotary lever arm for reliable switching
- 2-Circuit Configuration: 1 Normally Open (NO) and 1 Normally Closed (NC) contact
- Low Operating Torque: Minimal actuation force required
- Heavy-Duty Ratings: High amperage switching capacity
- NEMA Type 13 Oiltight Enclosure: Sealing against oil, water, and dust
Technical Specifications
- Switch Type: Plug-in oiltight limit switch

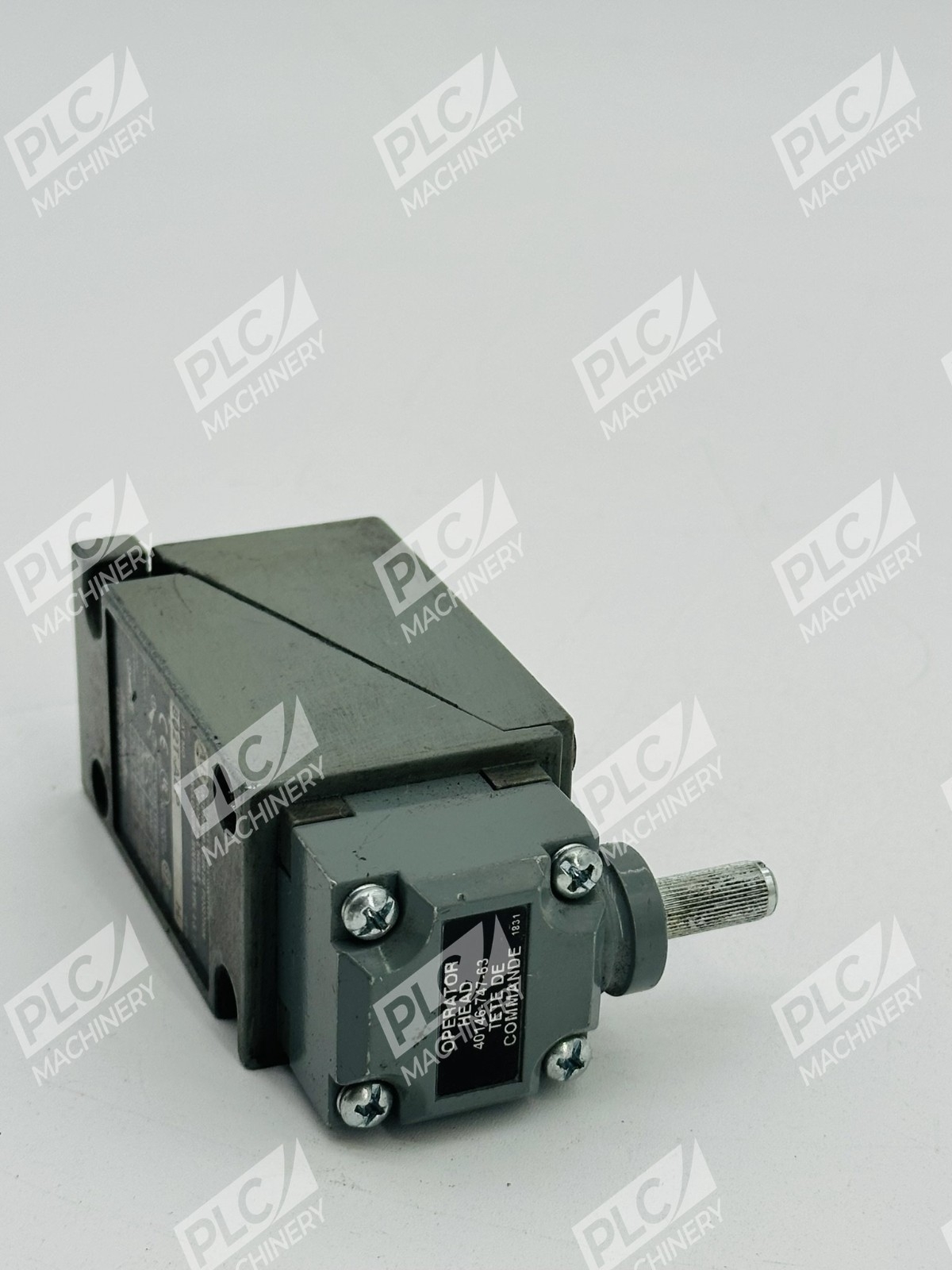

- Operator Type: Rotary lever arm
- Action: Snap-acting
- Contact Configuration: 2 Circuits (1 NO, 1 NC)

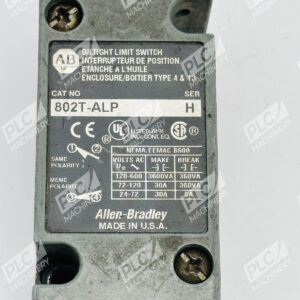

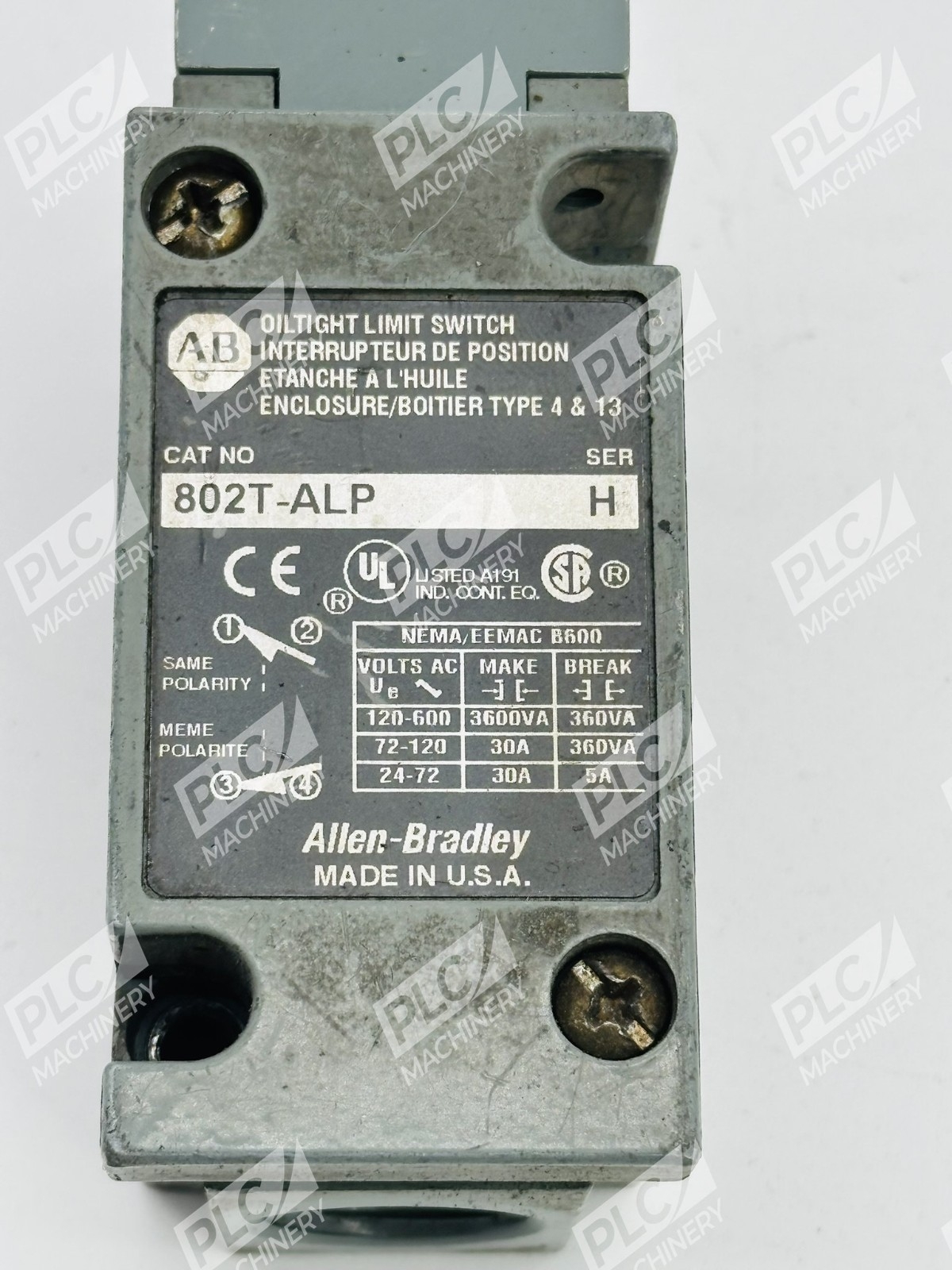

- Amperage Rating: 6 Amp at 125 VAC, 3 Amp at 230 VAC, 3 Amp at 125 VDC, 1.5 Amp at 230 VDC, 10 Amp Standard Energy
- Contact Rating: B600
- Operating Temperature Range: -18°C to 110°C
- Enclosure Material: Metal
- Mounting Type: NEMA Style Standard Mounting

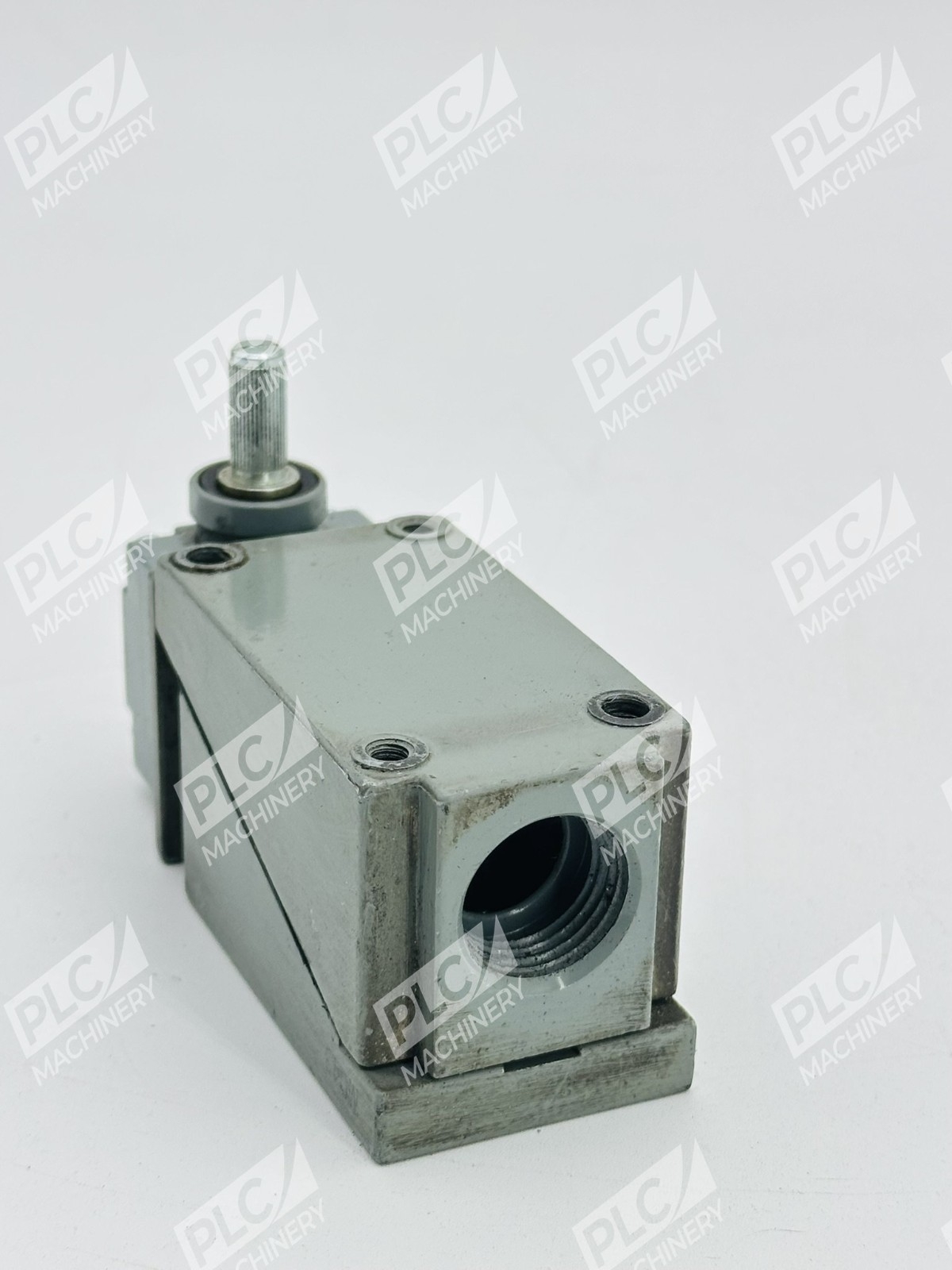

- Connection Type: Plug-In
- Certifications: UL, CSA, CE, CCC, KC
Typical Applications
These limit switches are applied extensively on conveyor systems, transfer machines, automatic turret lathes, milling and boring machines, radial drills, and many other types of modern, high-speed production equipment. The 802T-ALP is commonly used in:
- Conveyor systems and material handling equipment
- Machine tool position sensing
- Transfer machines and automated assembly lines
- Punch press and die-cutting equipment
- Packaging machinery
- Oil-immersed or washdown environments
Compatibility & Replacements
Compatible With
- Allen-Bradley control systems and PLCs
- Rockwell Automation equipment and networks
- Standard industrial 120 VAC, 240 VAC, and DC circuits
- Conveyor drives and machine tool controllers
- General-purpose pilot circuits and relay logic
Replaces / Drop-In Replacement For
- 802T-ALP (exact same model)
- Other 802T plug-in style variants with 2-circuit configuration
- Verify your existing wiring chamber base compatibility before ordering
Works With
- Hard-wired pilot relay circuits
- PLC discrete input modules
- Motor starter coils and solenoid control
- Indicator light circuits
- Standard industrial 120 VAC and 240 VAC control power
