Overview

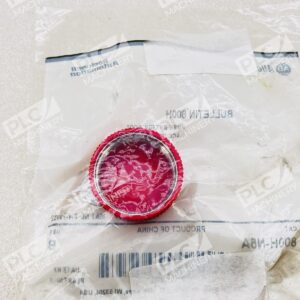

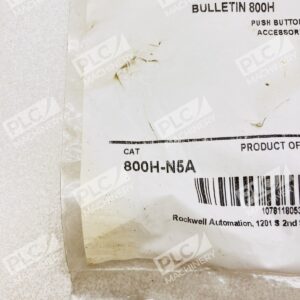

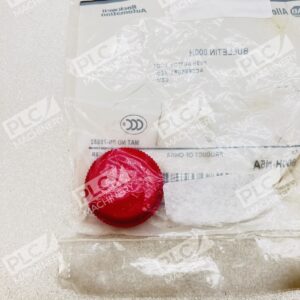

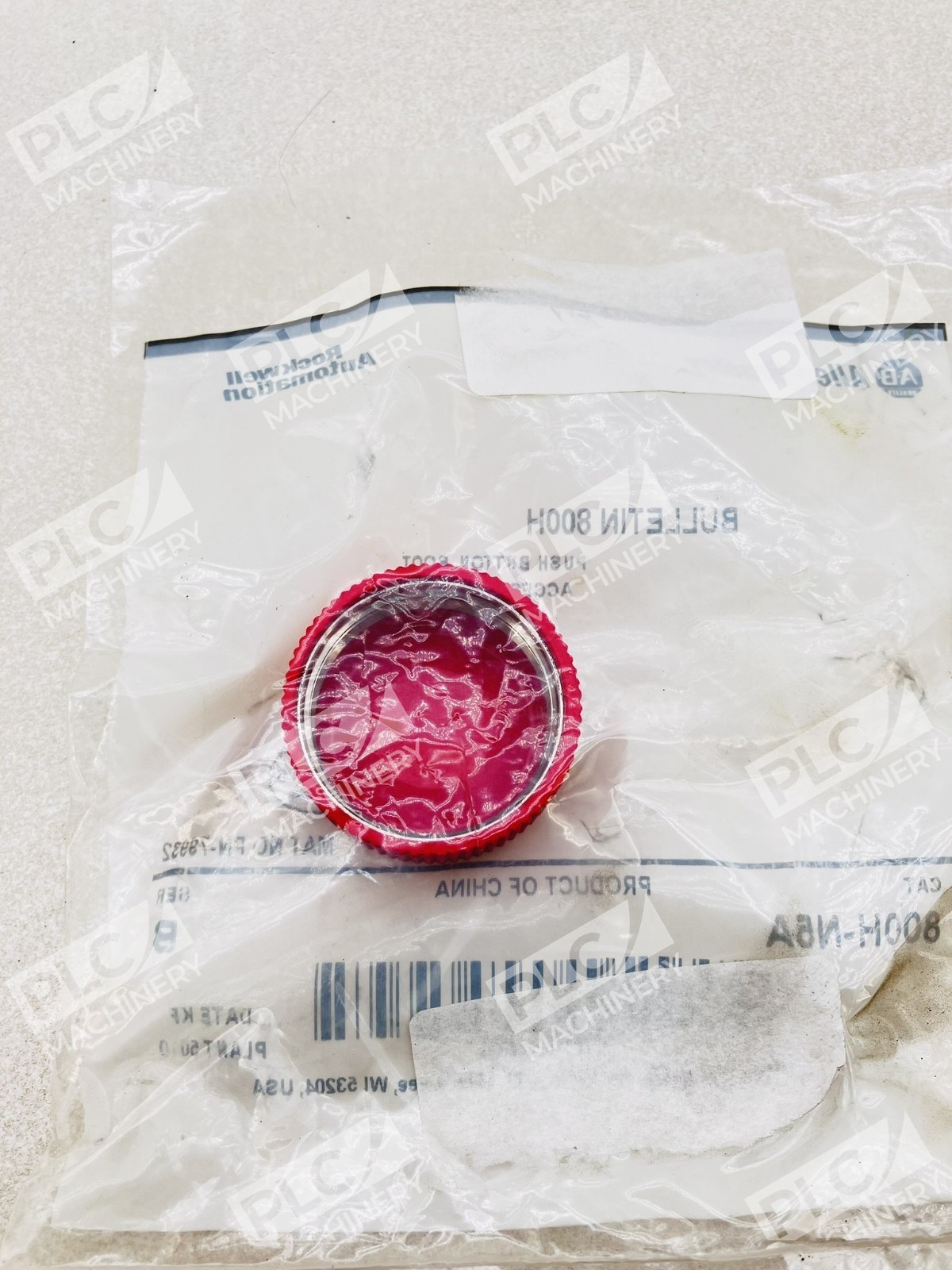

The Allen-Bradley 800H-N5A is a protective boot accessory designed for non-illuminated 30mm push buttons in the 800H series. This red-colored boot provides moisture and contaminant protection for push button switches in industrial control applications. Constructed from chlorosulfonated polyethylene (Hypalon) with a stainless steel insert, the 800H-N5A delivers reliable performance in hazardous and demanding environments.
Key Features
- Red color for easy identification and hazard awareness
- Chlorosulfonated polyethylene (Hypalon) material resists weathering, ozone, and chemicals
- Stainless steel insert for corrosion resistance
- Fits 30mm non-illuminated 800H series push buttons
- Drop-in replacement for worn or damaged push button boots
- Rated for KC standard compliance
Technical Specifications
- Part Number: 800H-N5A
- Manufacturer: Allen-Bradley / Rockwell Automation
- Color: Red
- Material: Chlorosulfonated Polyethylene (Hypalon)
- Insert Material: Stainless Steel
- Button Size: 30mm
- Type: Protective Boot for Non-Illuminated Push Buttons
- Standard: KC
- UPC: 78118053682
- Weight: 0.001 lb
Typical Applications
The 800H-N5A boot accessory is commonly used in:
- Industrial control cabinets and enclosures
- Motor starter panels and disconnect switches
- Hazardous location push button installations (non-illuminated)
- Emergency stop button protectors
- Pump and compressor control systems
- Manufacturing and processing equipment
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H Series 30mm non-illuminated push buttons
- 800H push button selector switches
- Industrial control panel enclosures (NEMA 4, 4X, 13)
- Hazardous location rated 800H control systems
Replaces / Drop-In Replacement For
- Worn or damaged 800H-N5A push button boots (Series A and B)
- OEM replacement 800H push button protective covers
- Legacy red boot accessories for 30mm Allen-Bradley push buttons
Works With
- Allen-Bradley 800H series control components
- NEMA 4, 4X, 13 industrial enclosures
- Hazardous location (Class I, II, III) control systems
- Any standard 30mm non-illuminated push button assembly
