Overview

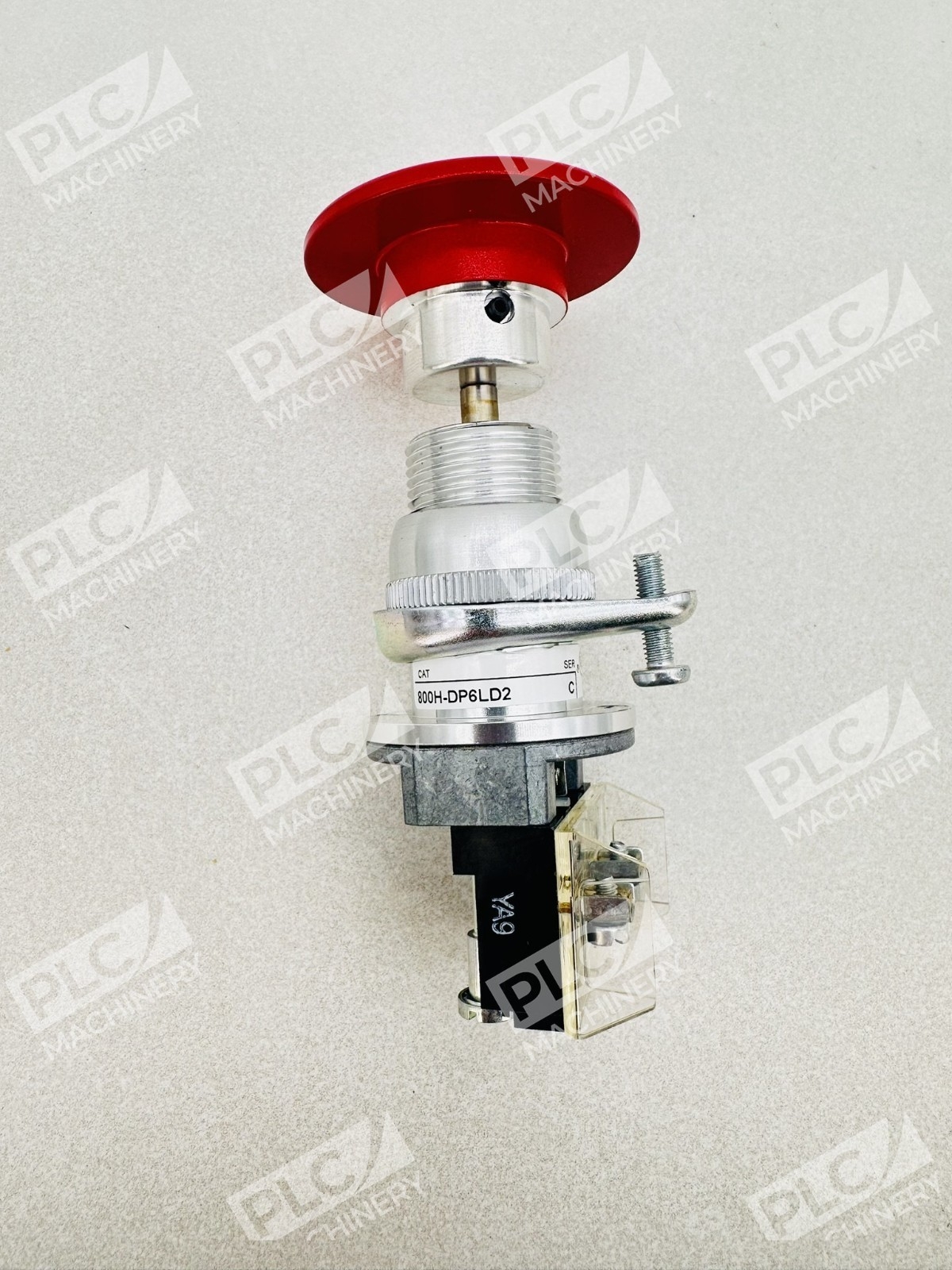

The Allen-Bradley 800H-DP6LD2 is a Series C Type 7&9 pushbutton operator designed for use in hazardous location installations. This red push button delivers reliable momentary contact switching in Class I and Class II environments, meeting stringent electrical codes for explosive gas and dust atmospheres. The unit is supplied New in Box and ready for integration into your control station.
Key Features
- Type 7&9 rated for Class I (Groups B, C, D) and Class II (Groups E, F, G) hazardous locations
- Red operator provides high visibility for emergency stop and critical control functions
- Momentary contact operation for reliable manual control
- Copper-free die-cast aluminum and stainless steel construction resists corrosion
- Compatible with standard Allen-Bradley control station platforms
- Complies with UL and CSA certification standards for hazardous location equipment
Technical Specifications
- Part Number: 800H-DP6LD2
- Series: 800H Bulletin (Type 7&9)
- Button Color: Red
- Contact Type: Momentary
- Operating Style: Mushroom Head
- Hazard Rating: Class I Div 1&2 (Groups B, C, D), Class II Div 1&2 (Groups E, F, G)
- Maximum Continuous Current (Standard Contacts): 10A AC / 2.5A DC
- Certifications: UL Listed, CSA Approved
- Construction Material: Aluminum/Stainless Steel
- Condition: New in Box
Typical Applications
The 800H-DP6LD2 is ideal for emergency stop stations, machine control stations, and process control interfaces in hazardous location facilities such as:
- Petroleum refineries and petrochemical plants
- Chemical processing facilities
- Grain handling and milling operations
- Paint spray and powder coat booths
- Gas pipeline and compression stations
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H control station platforms and enclosures
- Type 7&9 rated control station assemblies
- Standard 30mm push button mounting holes
- Class I and Class II hazardous location rated cabinets
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering, as direct replacement status requires confirmation of exact contact block configurations and seal requirements for your specific application.
Works With
- Allen-Bradley 800H contact blocks and bases
- Standard momentary control circuits
- Industrial pushbutton station assemblies
- Type 7&9 certified enclosure systems
