Overview

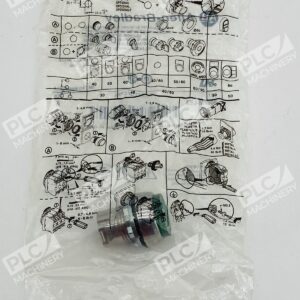

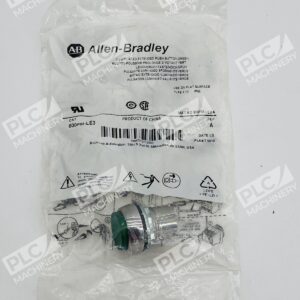

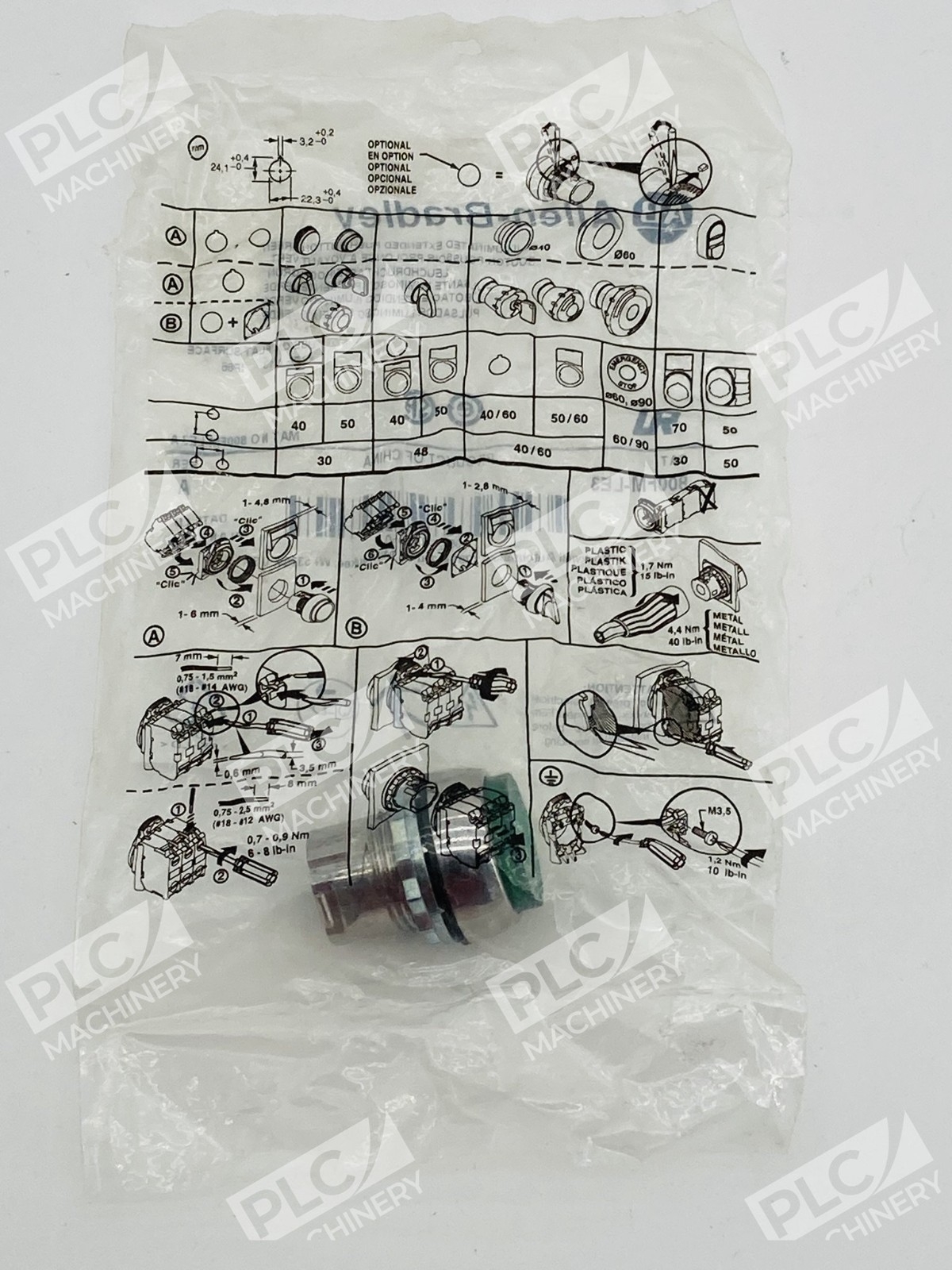

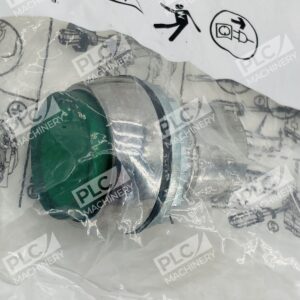

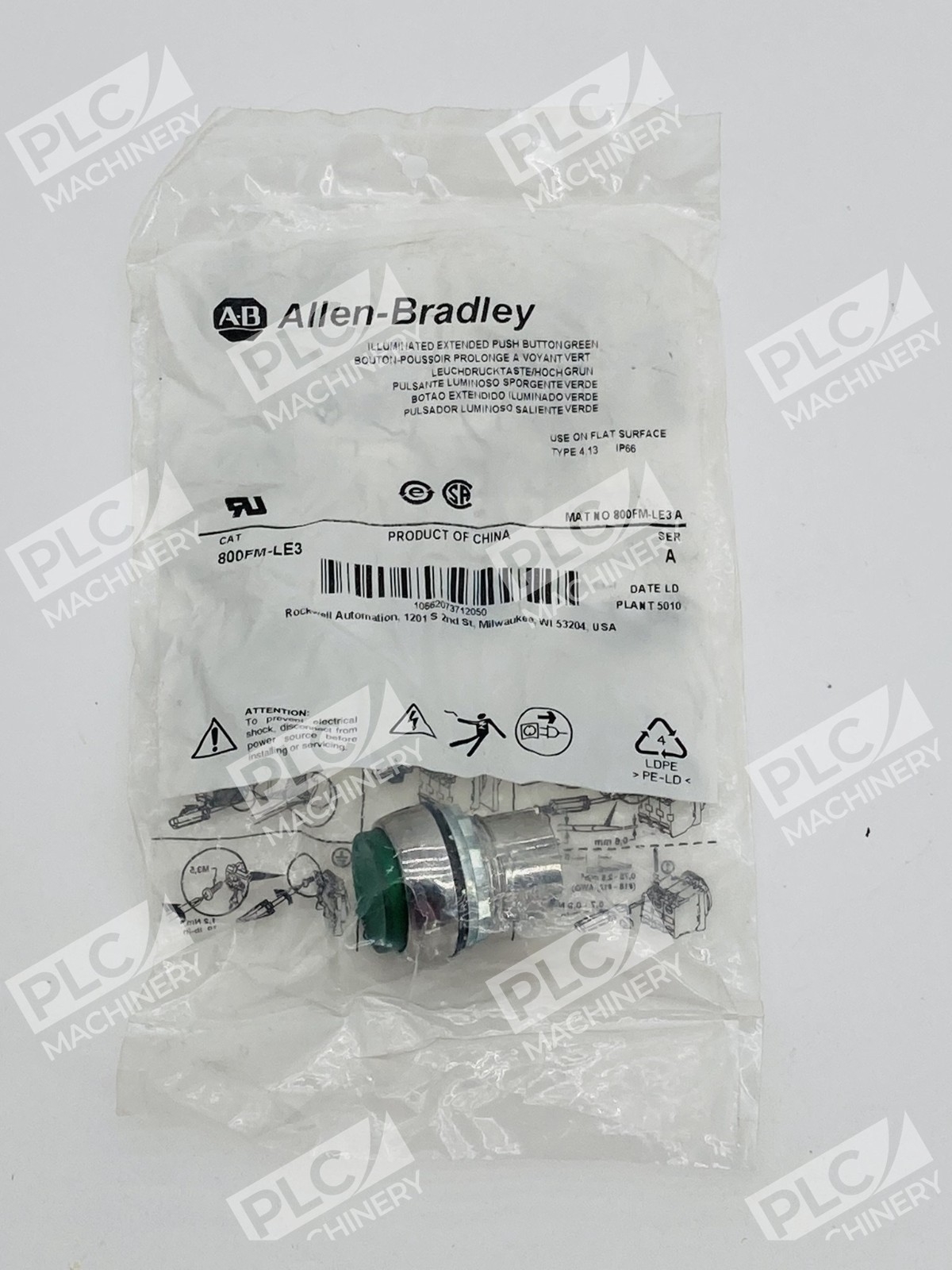

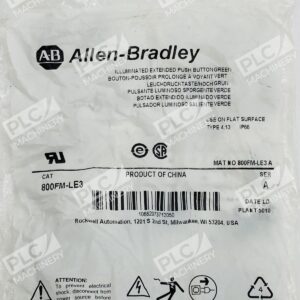

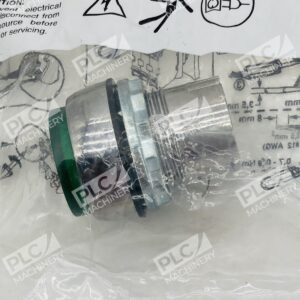

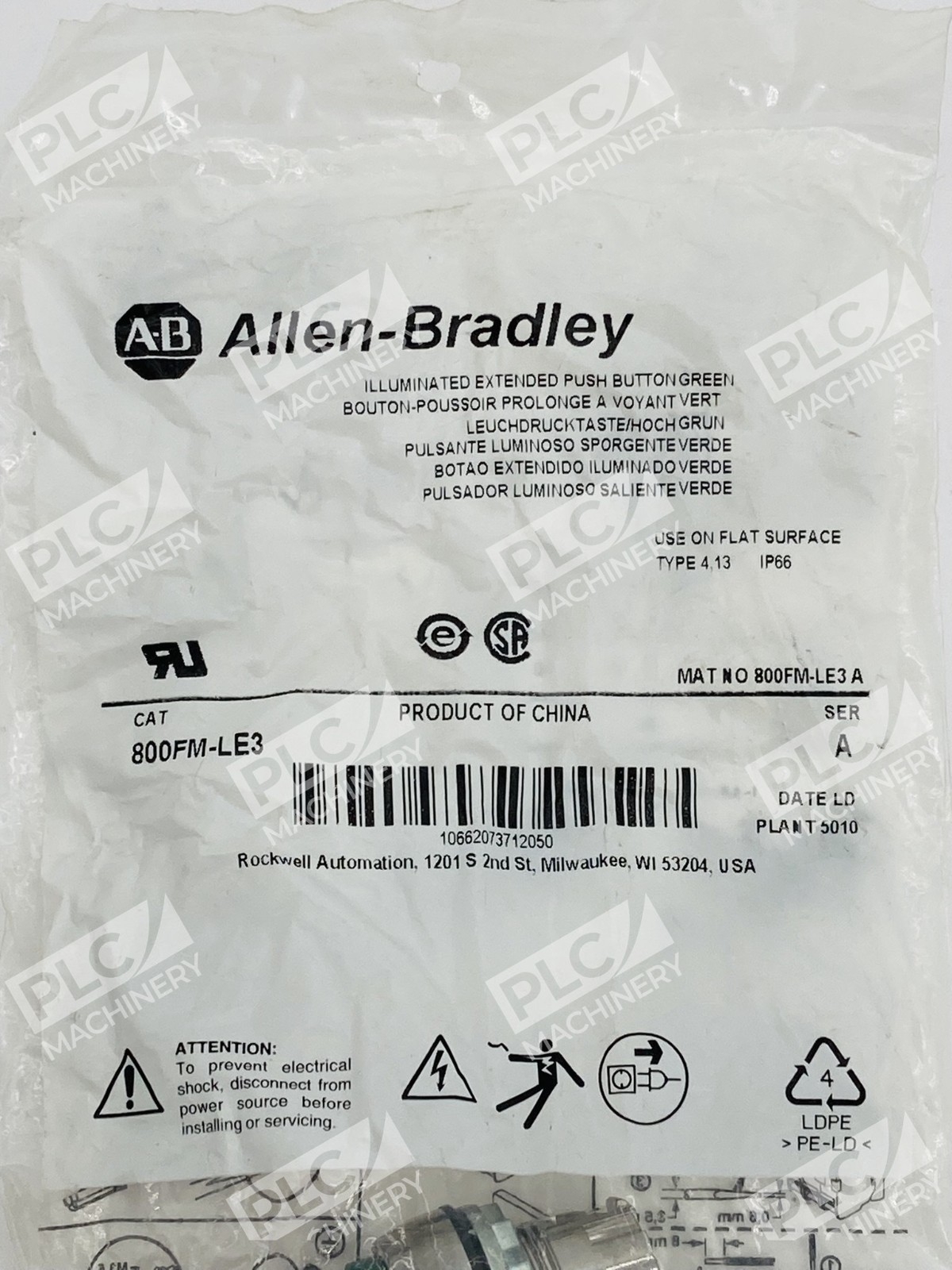

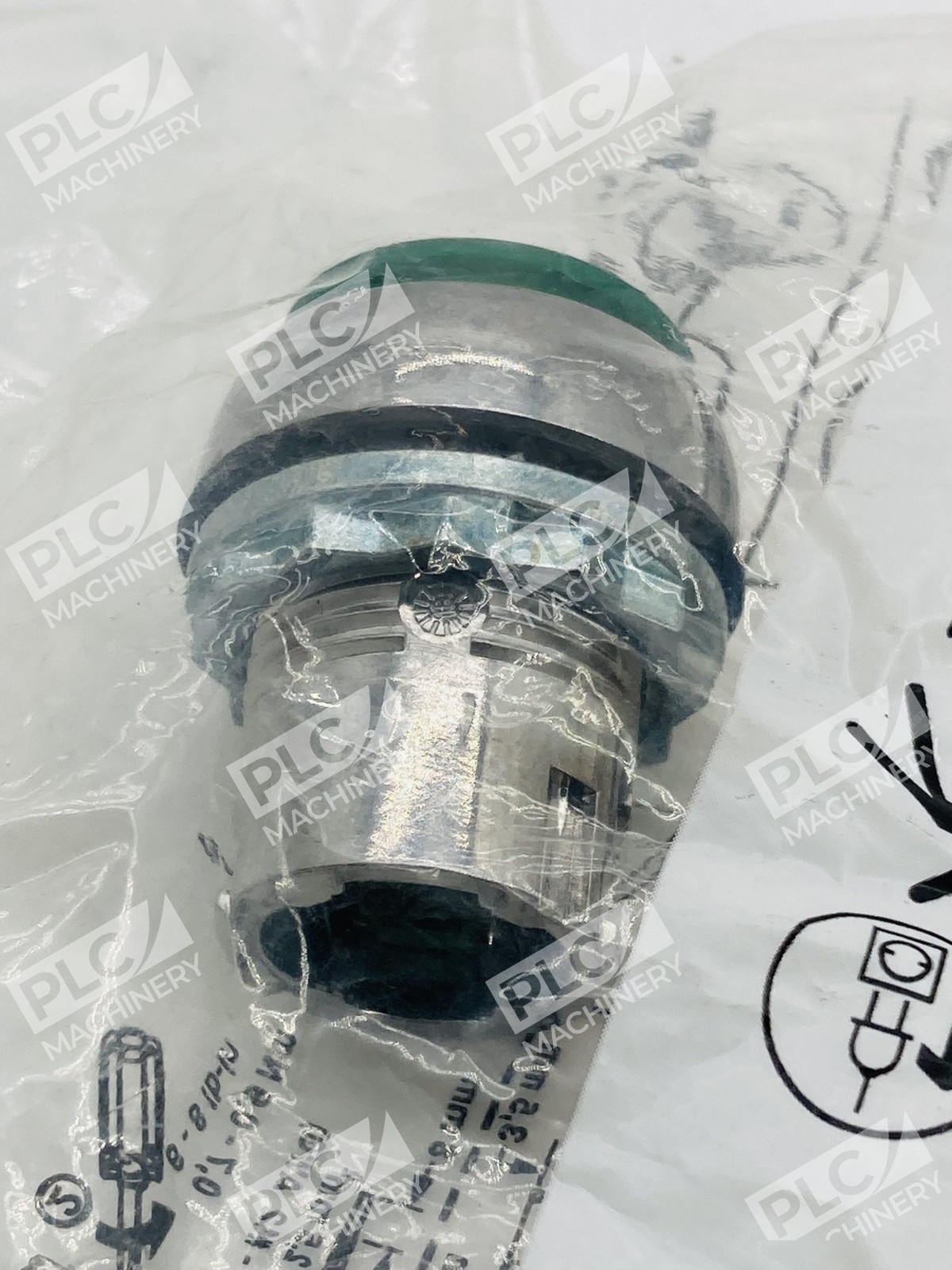

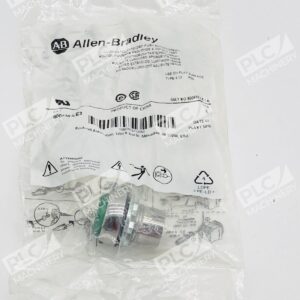

The Allen-Bradley 800FM-LE3 is an illuminated momentary push button designed for industrial control and automation applications. This 22mm push button features a green light indicator and extended metal operator, making it easy to identify and activate control functions in busy manufacturing environments. Built with die-cast zinc alloy and finished with chromate plating for corrosion resistance, the 800FM-LE3 meets demanding industrial standards.
Key Features
- 22mm momentary action with flat button actuator
- Illuminated extended metal operator with green indicator light
- Die-cast zinc alloy construction with chromate plating finish
- Round metal operator (Type 4/13) for industrial-grade reliability
- Multiple certifications: UL, CSA, CUL, CCC, KC, MARINE standards
Technical Specifications
- Button Size: 22mm
- Action Type: Momentary
- Operator Type: Extended, Illuminated
- Indicator Light: Green
- Operator Construction: Round Metal (Type 4/13)
- Material: Die-cast Zinc Alloy with Chromate Plating
- Weight: 0.04 lbs
- Certifications: UL, CSA, CUL, CCC, KC, MARINE
Typical Applications
The Allen-Bradley 800FM-LE3 is commonly used in:
- Industrial control panel operator interfaces
- Machinery start/stop and reset commands
- Process automation systems
- Manufacturing equipment with visual feedback requirements
- Emergency stop and safety circuits
Compatibility & Replacements
Compatible With
- Allen-Bradley 800F Series control enclosures
- Standard industrial electrical panels and control cabinets
- Any system requiring 22mm momentary illuminated push buttons
- Voltage and contact rating dependent on associated control module
Replaces / Drop-In Replacement For
The 800FM-LE3 is a standard configuration of the Allen-Bradley 800F momentary push button line. For exact replacement compatibility with previous systems, verify the voltage rating and contact configuration of your existing button specifications.
Works With
- Allen-Bradley ControlLogix and CompactLogix controllers
- Siemens SIMATIC control systems (when used in standard panel circuits)
- Standard industrial control relay logic
- Any PLC or automation controller with discrete 24V input circuits
