Allen Bradley 800FD-P4N3 /A Pilot Light Red

Allen-Bradley 800FD-P4N3 /A Red Pilot Light

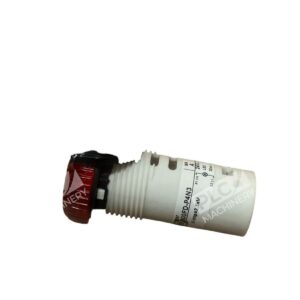

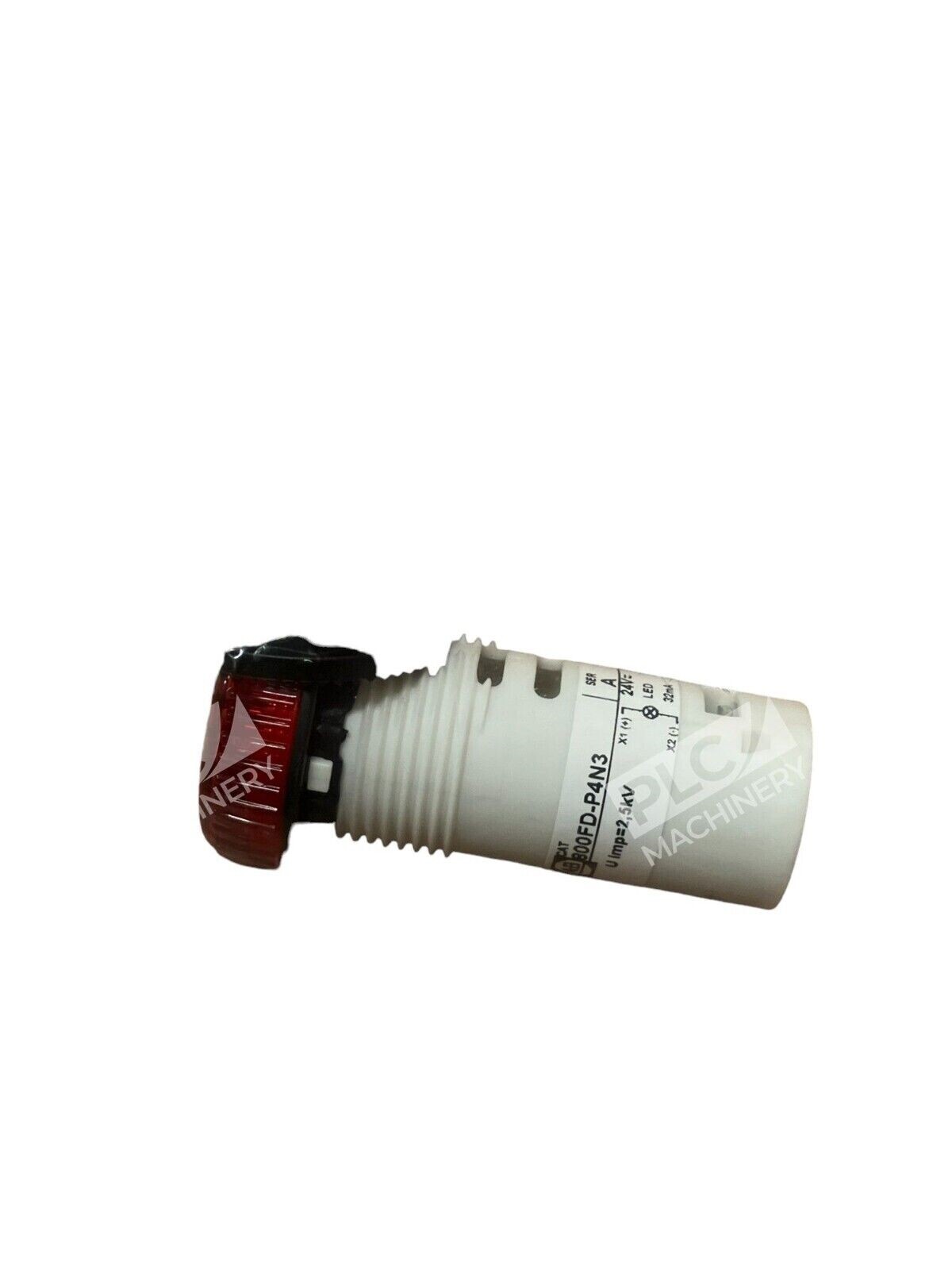

The Allen-Bradley 800FD-P4N3 /A is a 22mm red pilot light designed for industrial applications requiring reliable visual indication. This monolithic unit features a round plastic construction, ensuring durability and compliance with IP66 and NEMA Type 4/13 standards, making it suitable for harsh environments.

Key Features

• Integrated LED Module: Operates at 24V AC/DC, providing energy-efficient and long-lasting illumination.
• Lens Design: Equipped with a red, diffuse lens cap for clear and consistent signaling.
• Construction: Made from industrial-grade thermoplastic, offering superior chemical resistance and robustness.
• Termination Style: Utilizes screw terminals for secure and straightforward wiring connections.
• Mounting: Designed for a standard 22.5 mm panel hole, facilitating easy installation.

Environmental and Mechanical Specifications

• Operating Temperature: Suitable for environments ranging from -25°C to 60°C.
• Humidity Tolerance: Can operate in conditions with up to 95% relative humidity between 25°C and 60°C.
• Vibration Resistance: Withstands vibrations up to 10 G.
• Shock Resistance: Capable of enduring shocks up to 100 G.

Certifications

The 800FD-P4N3 /A pilot light meets multiple international standards, including UL, UR, CSA, CCC, and CE, ensuring compliance with global safety and performance requirements.

For detailed technical information and installation guidelines, please refer to the product’s technical data sheet.
