Overview

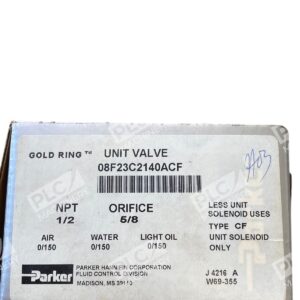

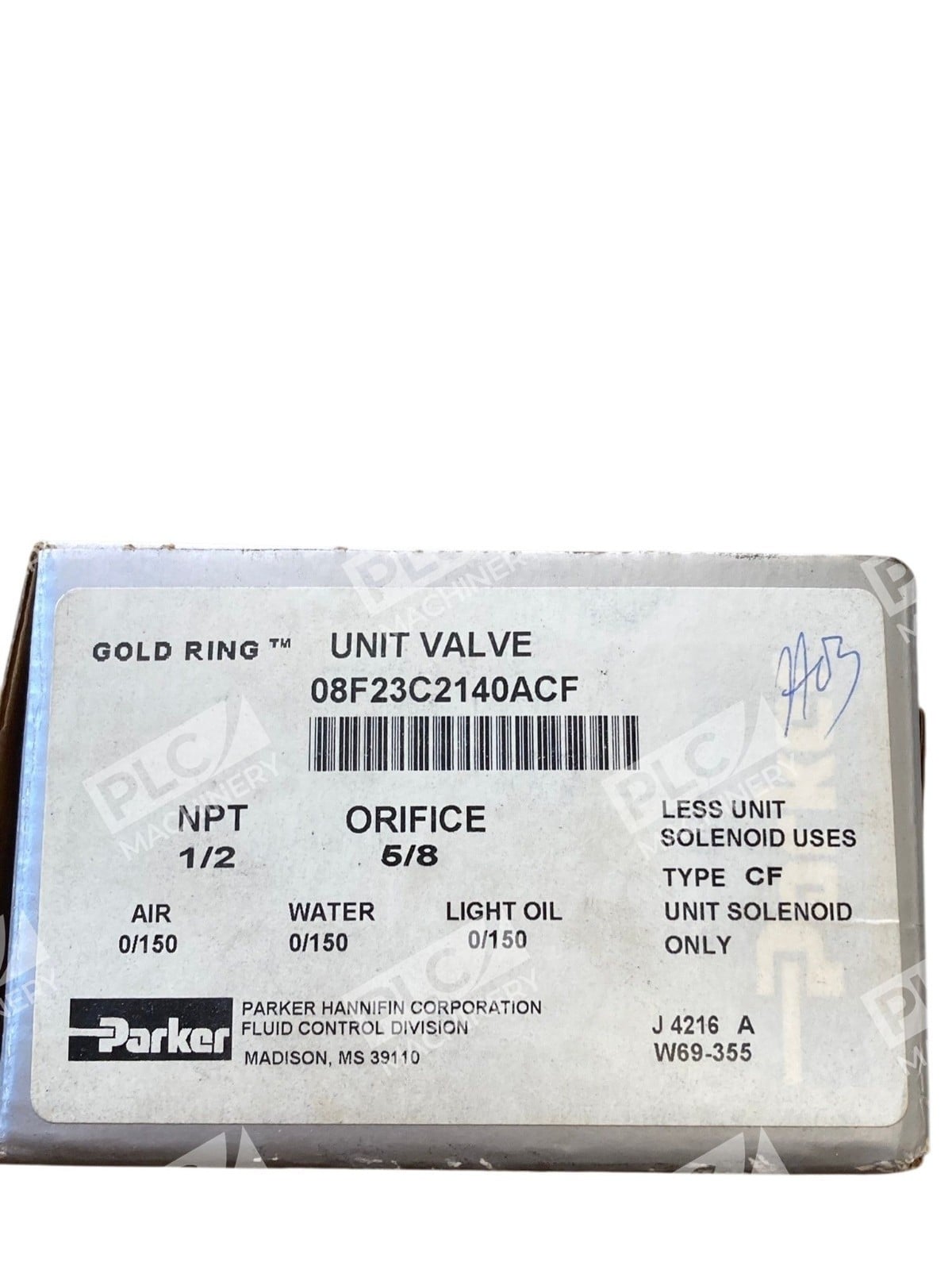

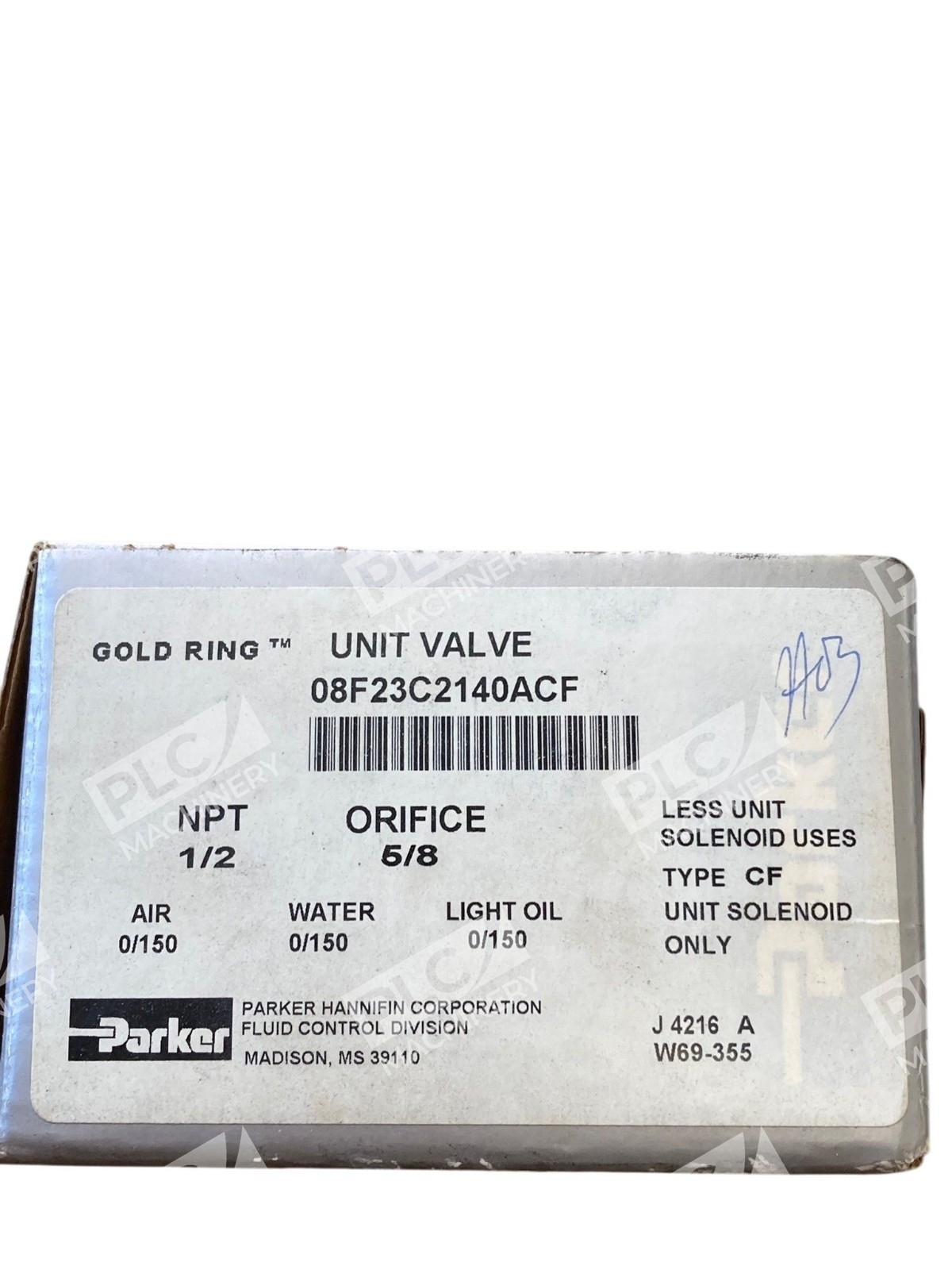

The Parker 08F23C2140ACF is a pilot-operated solenoid valve from the Gold Ring Series, engineered for medium to high-pressure flow control applications. This 2-way normally closed (NC) valve features a 1/2″ NPT brass body and is designed for direct lift and remote pilot operation, making it ideal for systems requiring higher flow rates and proportional control.
Key Features
- 2-Way Normally Closed pilot-operated design for positive shutoff
- 1/2″ NPT port configuration with 5/8″ orifice
- Brass construction rated for air, inert gas, water, and light oil
- Cv factor of 4.00 for controlled flow characteristics
- Direct lift and pilot-operated modes for flexible system integration
- Maximum operating temperature: 180°F with NBR seals
Technical Specifications
The Parker 08F23C2140ACF delivers consistent performance across a range of industrial applications with the following specifications:
- Port Size: 1/2″ NPT
- Orifice Size: 5/8″
- Flow Coefficient (Cv): 4.00
- Operating Pressure Differential (MOPD): 0–150 PSI
- Media Compatibility: Air, Inert Gas, Water, Light Oil
- Maximum Operating Temperature: 180°F
- Seal Material: NBR (Nitrile)
- Body Material: Brass
- Coil Reference: A22 (various voltage options available)
- Series: 22/23 Gold Ring
Typical Applications
The Parker 08F23C2140ACF excels in demanding industrial environments where reliable flow control is essential:
- Irrigation and water distribution systems
- Fire suppression equipment
- Cooling circuits for machine tools and injection molding equipment
- Sterilization and medical equipment
- Car wash and water treatment systems
- Air compressor and dryer control
- Food processing and automated production lines
- Hospital equipment and facility automation
Compatibility & Replacements
Compatible With
- Parker Gold Ring pilot-operated solenoid coils with A22 reference
- 1/2″ NPT female port fittings and manifold blocks
- Standard 120/60 and 110/50 VAC electrical systems
- DC coil variants for 12 VDC and 24 VDC applications
- Pressure regulators and proportional control systems
Replaces / Drop-In Replacement For
- Verify with your system integrator or Parker technical support for direct replacement applications
- Related Gold Ring series: 08F22C2140AAF (valve body only reference)
Works With
- Parker Gold Ring solenoid coil assemblies (4C05, 4C80 configurations)
- Manual override and pilot drain options for flexible system design
- Integrated flow control and pressure relief in manifold assemblies
- Industrial automation control systems and PLC-based circuit management
