Overview

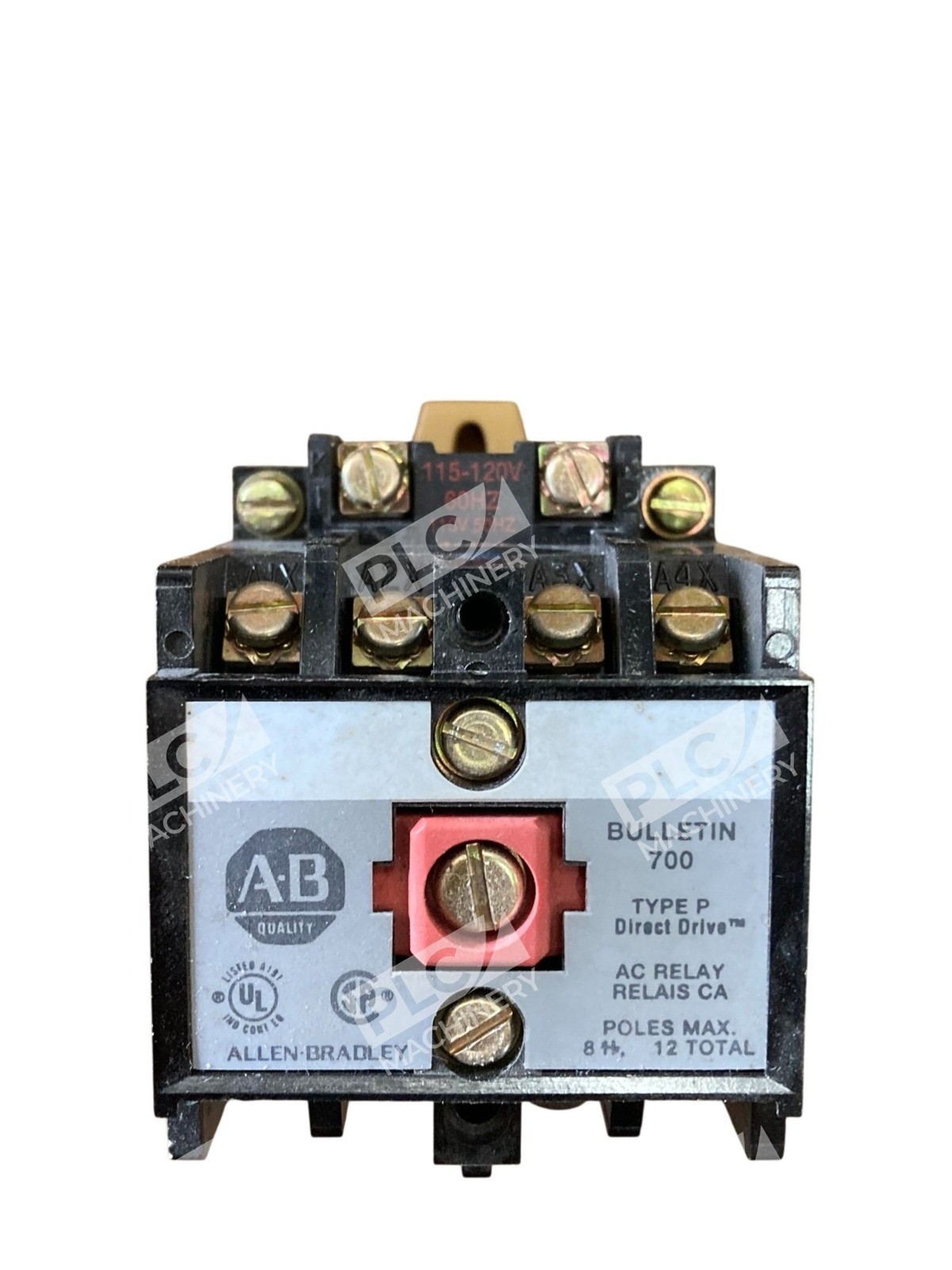

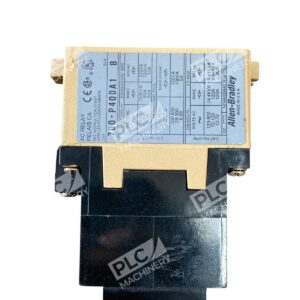

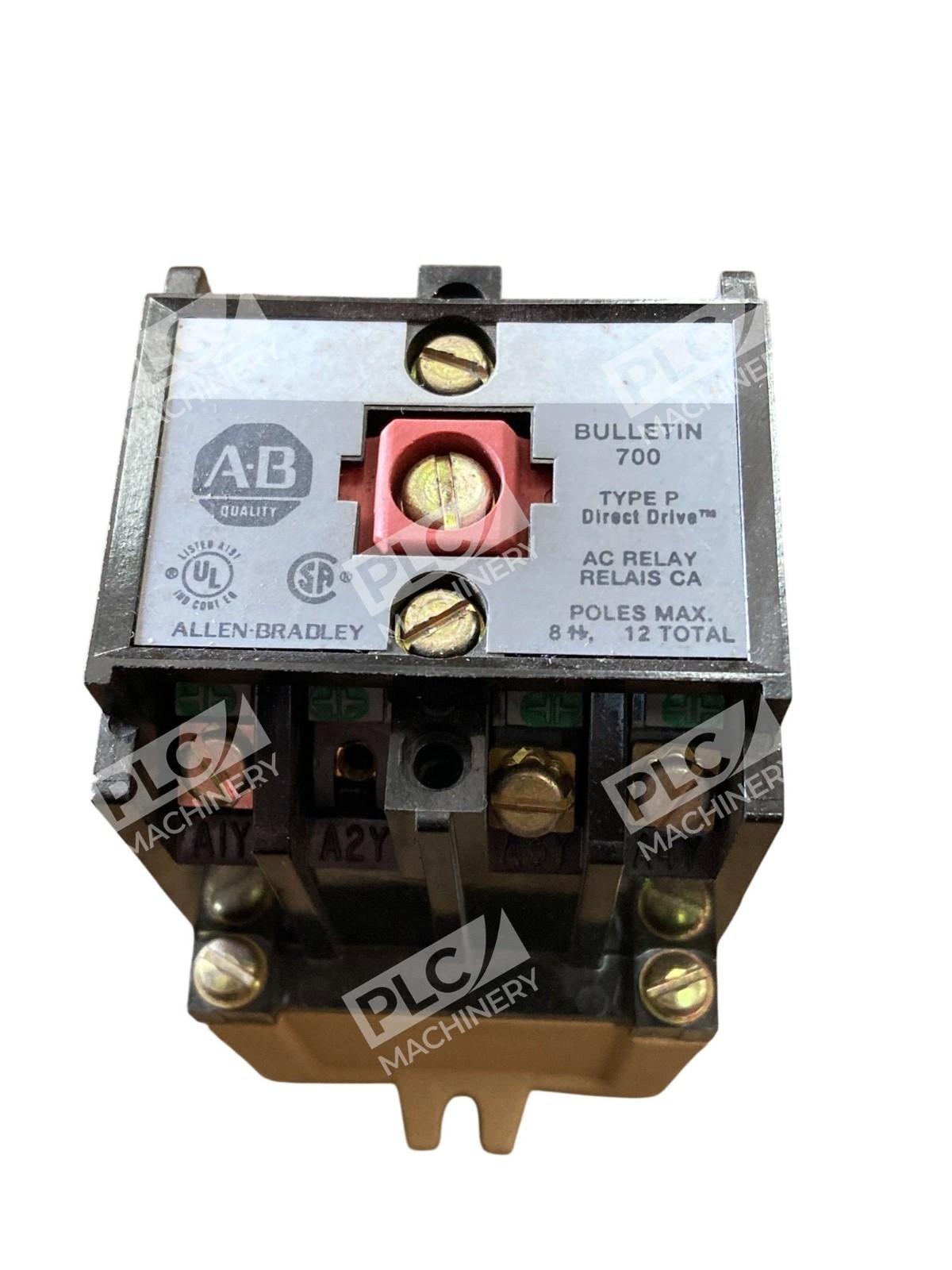

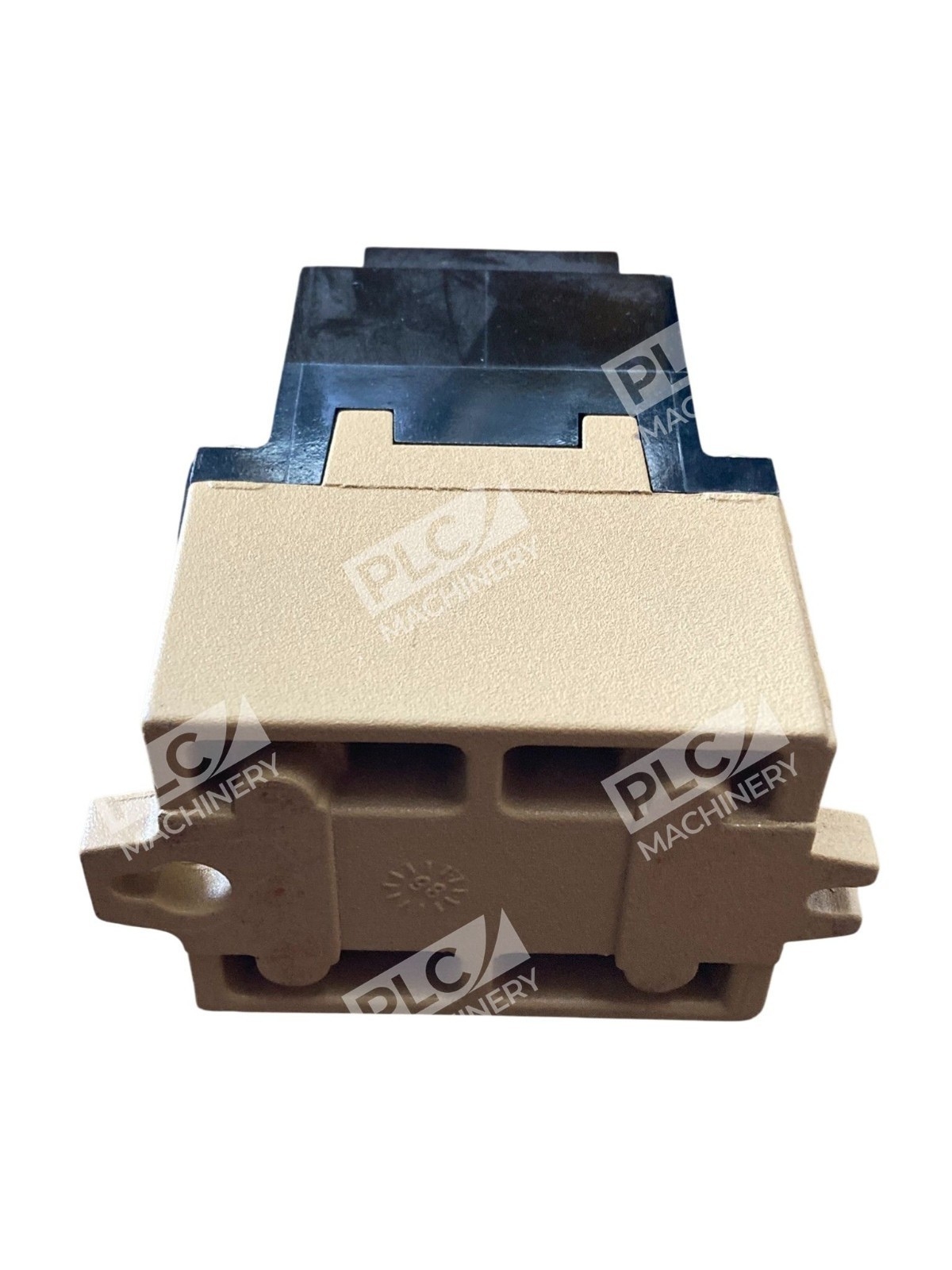

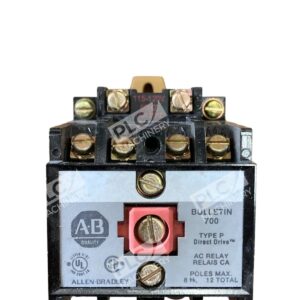

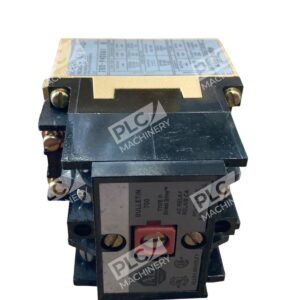

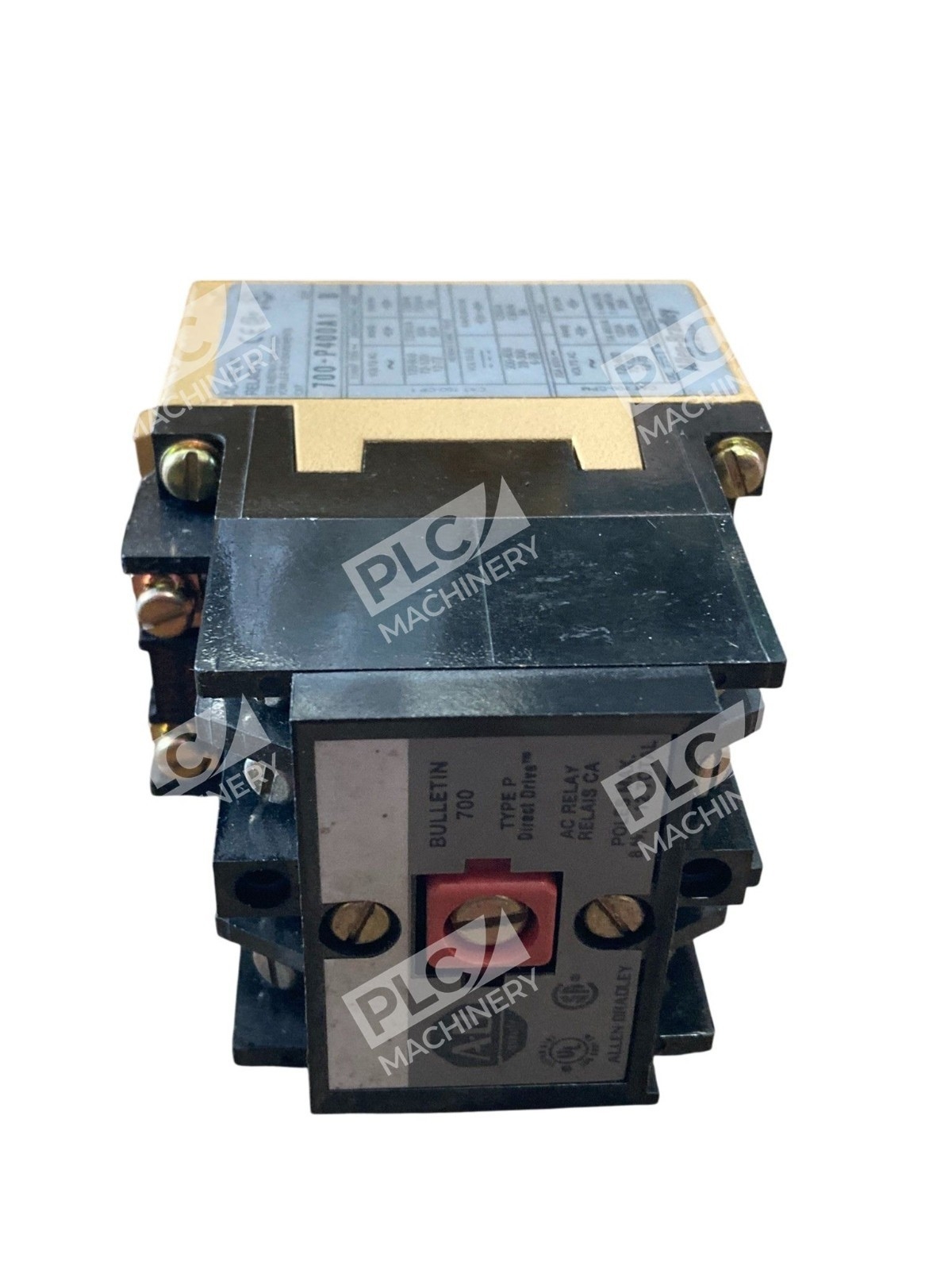

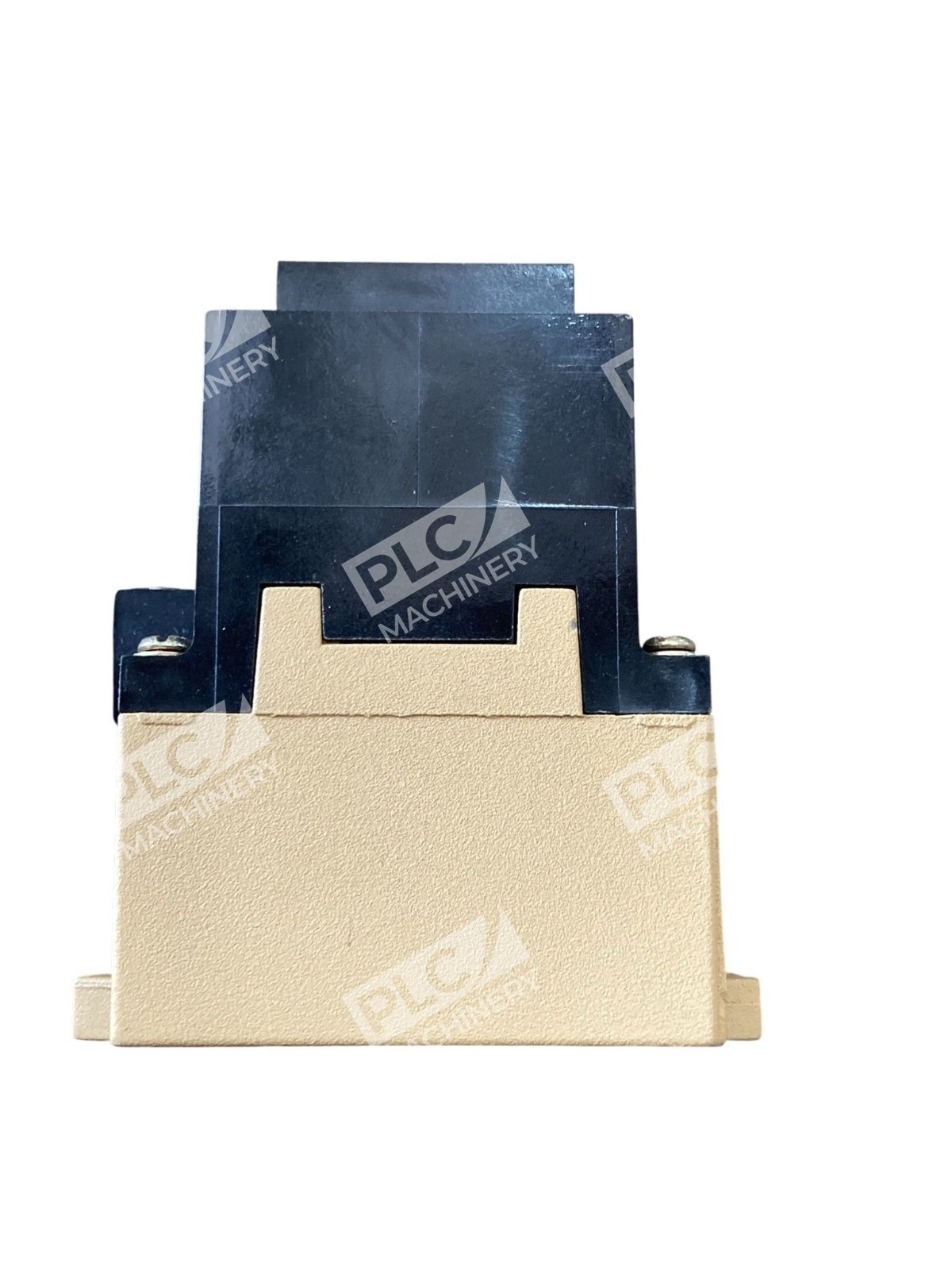

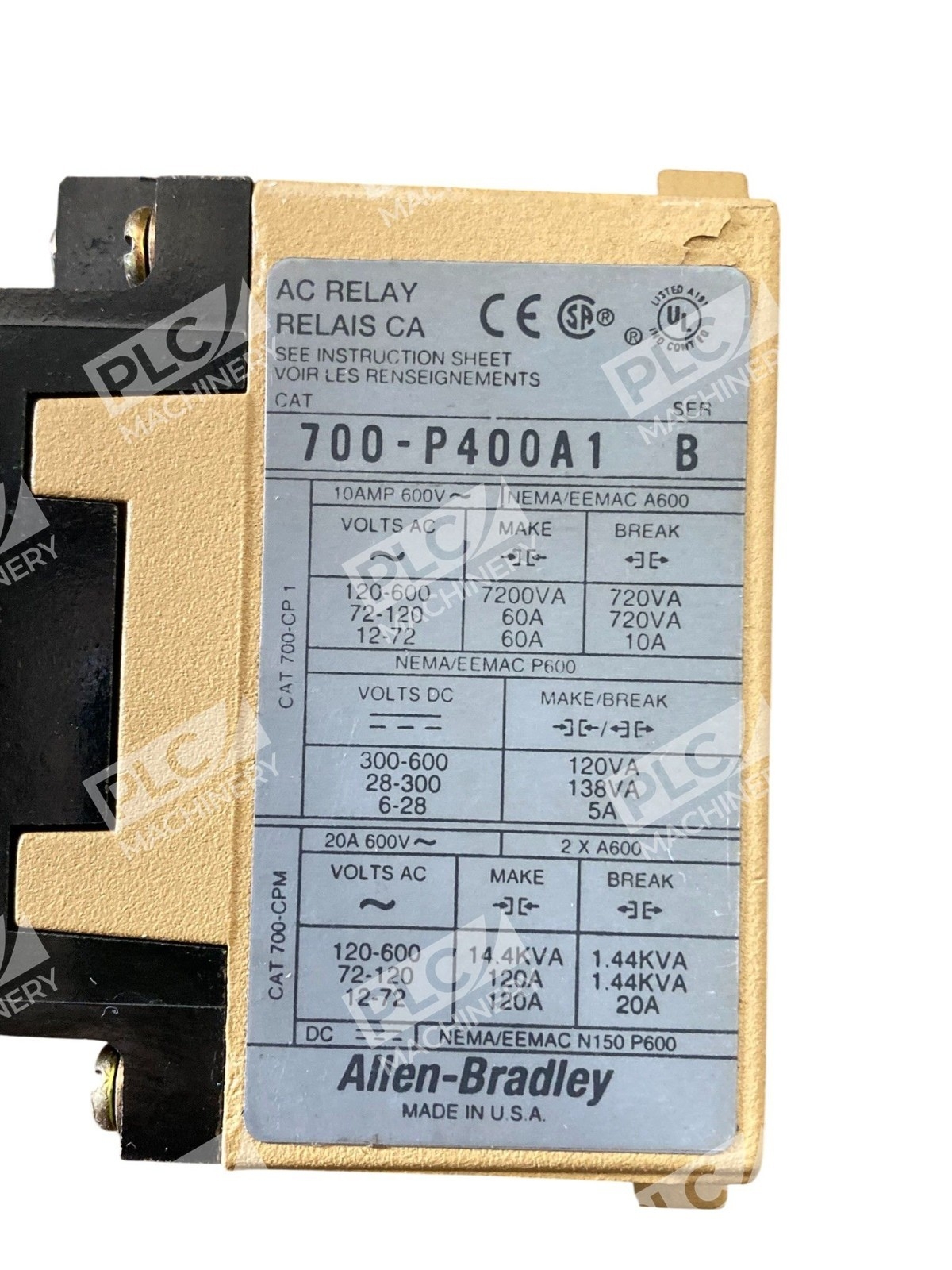

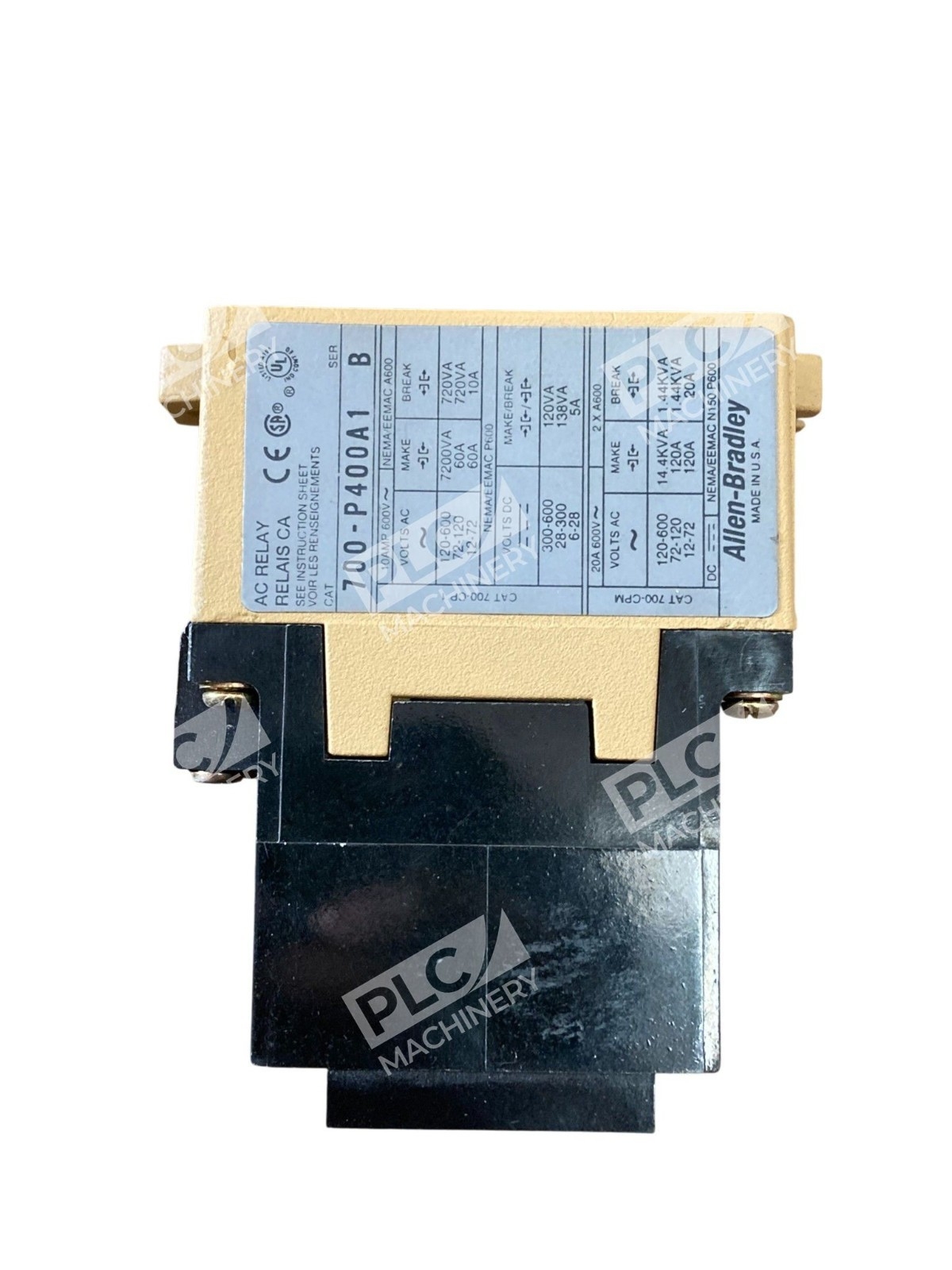

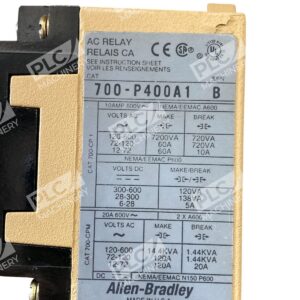

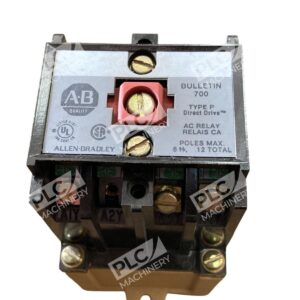

The Allen-Bradley 700-P400A1 is a 600V NEMA heavy-duty industrial relay engineered for demanding control and switchboard applications. This relay features 4 normally open (N.O.) contacts with a 10 amp AC contact rating and operates on 110V 50Hz or 115-120V 60Hz coil voltage. The open type DIN rail mounting design allows for flexible integration into standard control cabinets and panels.
Key Features
- Four normally open (4 N.O.) contacts for flexible logic and control configurations
- 10 amp AC contact rating suitable for most industrial control loads
- Finger-safe protection standard for operator safety in panel environments
- Rugged construction designed for long-term reliability in industrial settings
- DIN rail mounting for compact, modular installation
- Standard and time delay contact options available
- Meets CE, CSA, CUL, KC, MARINE, and UL certifications
Technical Specifications
Contact Configuration: 4 Normally Open (N.O.) | Coil Voltage: 110V (50Hz) / 115-120V (60Hz) | AC Contact Rating: 10 Amp | Mounting Type: Open Type DIN Rail Mount | Enclosure Type: Open | Voltage Rating: 600V AC | Weight: 1.65 lbs | Standards: CE, CSA, CUL, KC, MARINE, UL | Application: Switchboard, Electrical Hold, Control Relay
Typical Applications
- Industrial switchboard and electrical control systems
- HVAC and refrigeration control circuits
- Machine tool automation and sequencing
- Motor starter and contactor circuits
- Process automation and instrumentation applications
- Safety interlocking and hold circuits
Compatibility & Replacements
Compatible With
- Standard 24 VDC and 110/120V AC control systems
- DIN rail-mounted panel enclosures
- Industrial PLC and relay logic systems
- HVAC control panels and programmable controllers
- General industrial automation platforms
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering for specific replacement applications. The 700-P400A1 shares the same mounting footprint and electrical characteristics with other Allen-Bradley 700 series relays of similar contact configuration.
Works With
- Standard 24 VDC and 110/120V AC control circuits
- DIN rail mounting systems and accessories
- Industrial automation cabinets and control panels
- Protective relay schemes and interlocking logic
- General-purpose industrial control equipment
