Overview

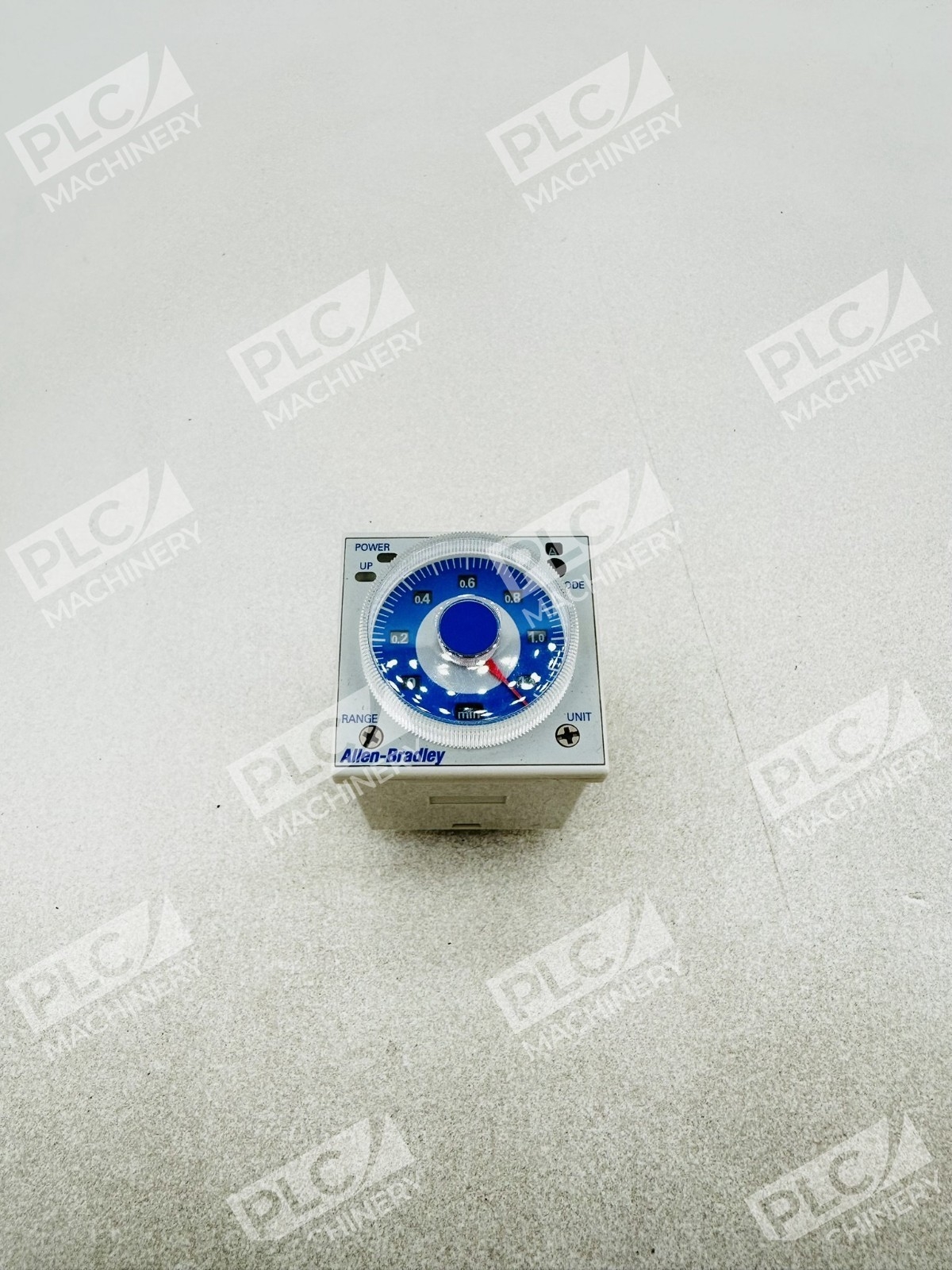

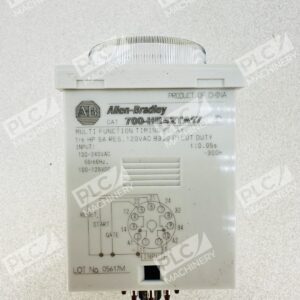

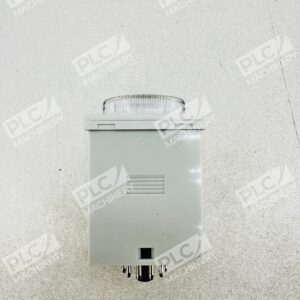

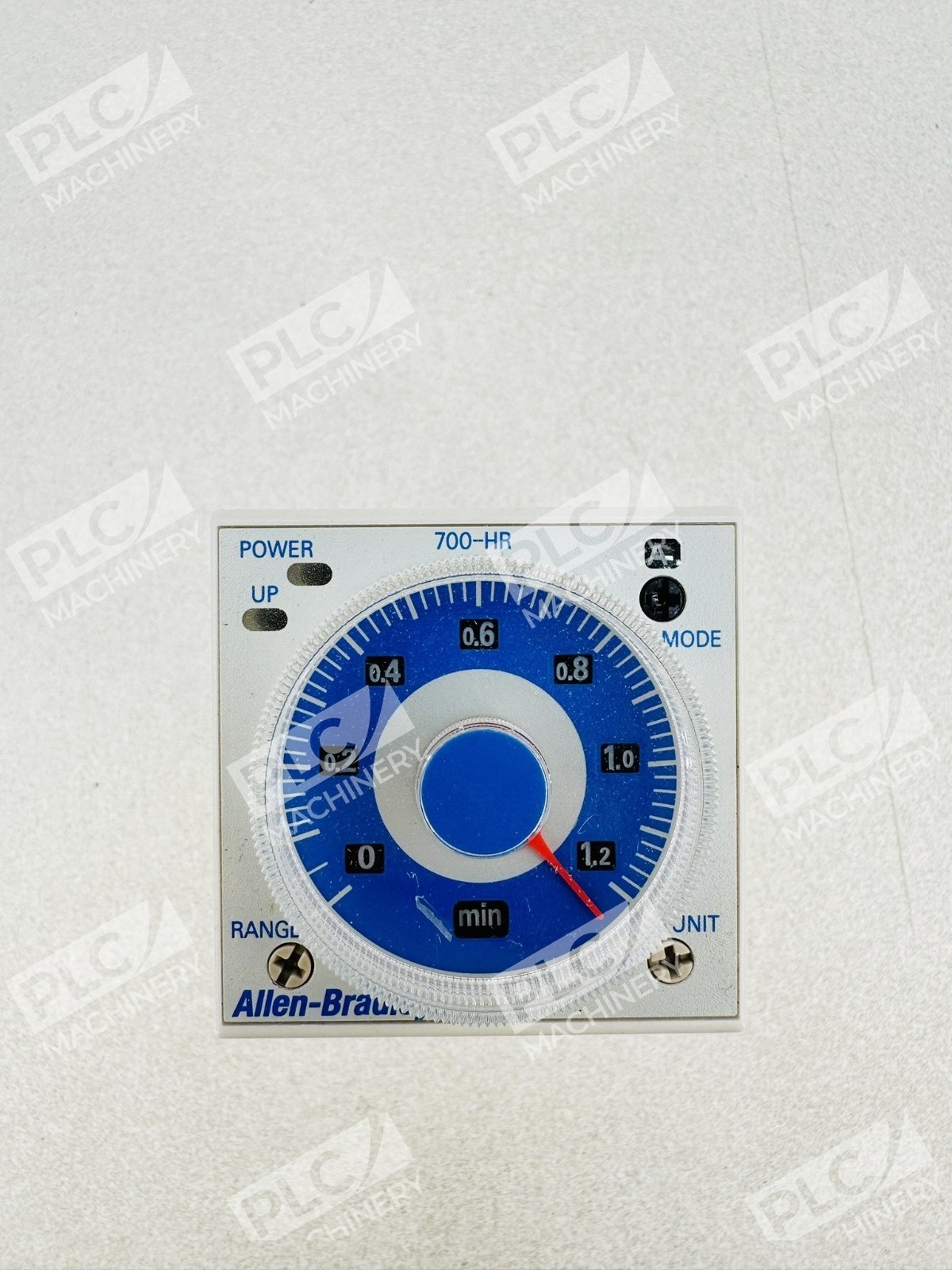

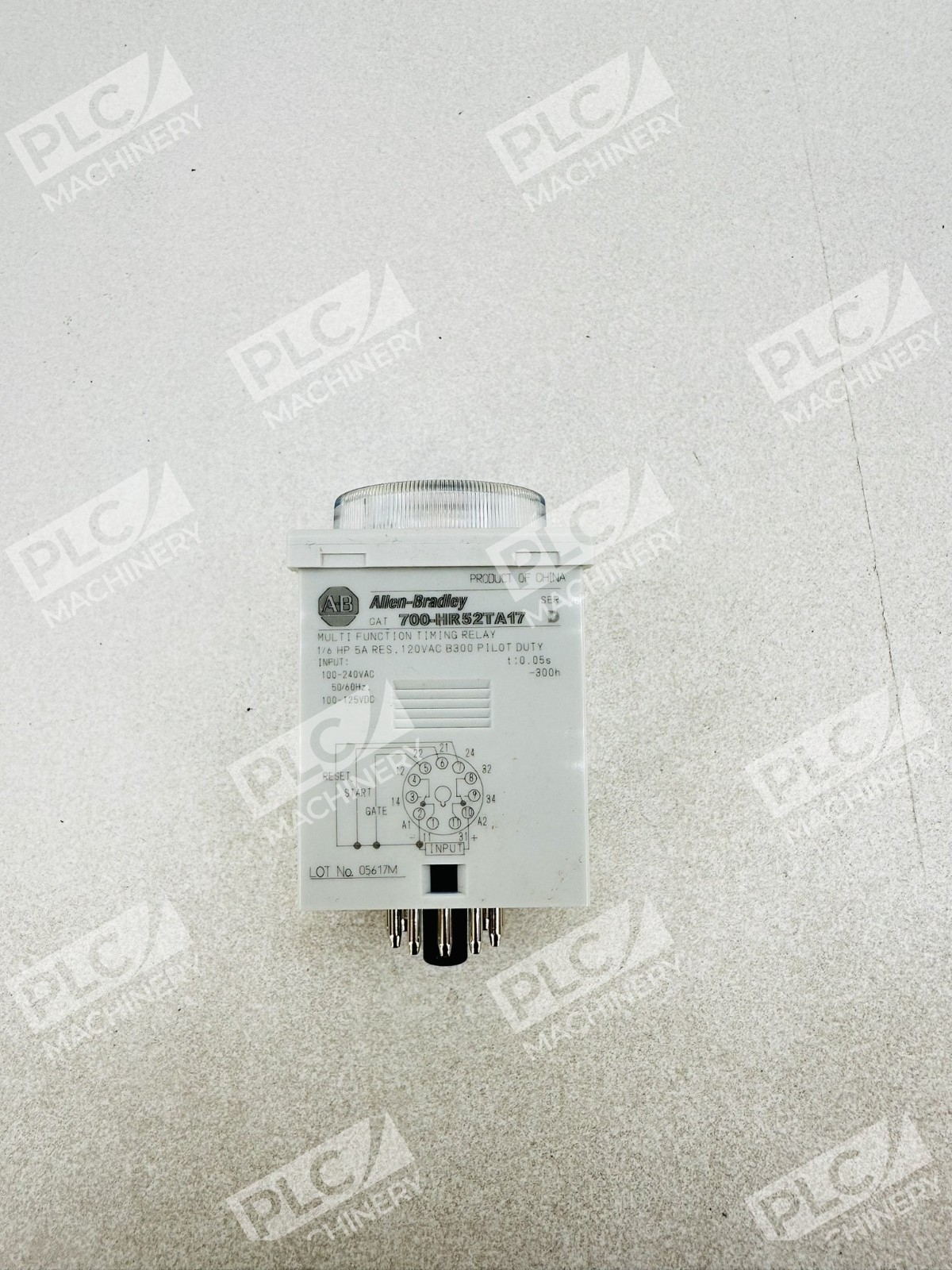

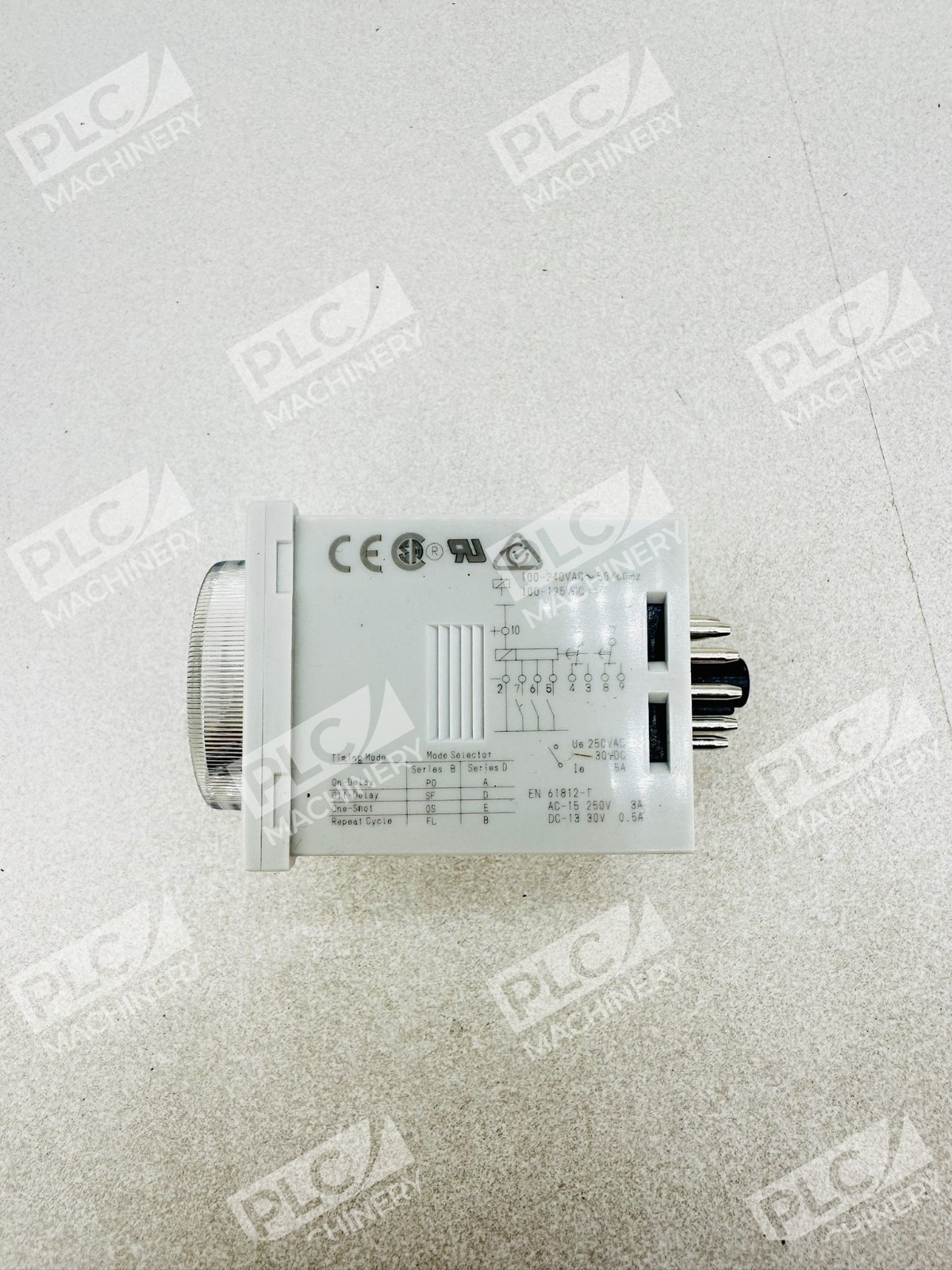

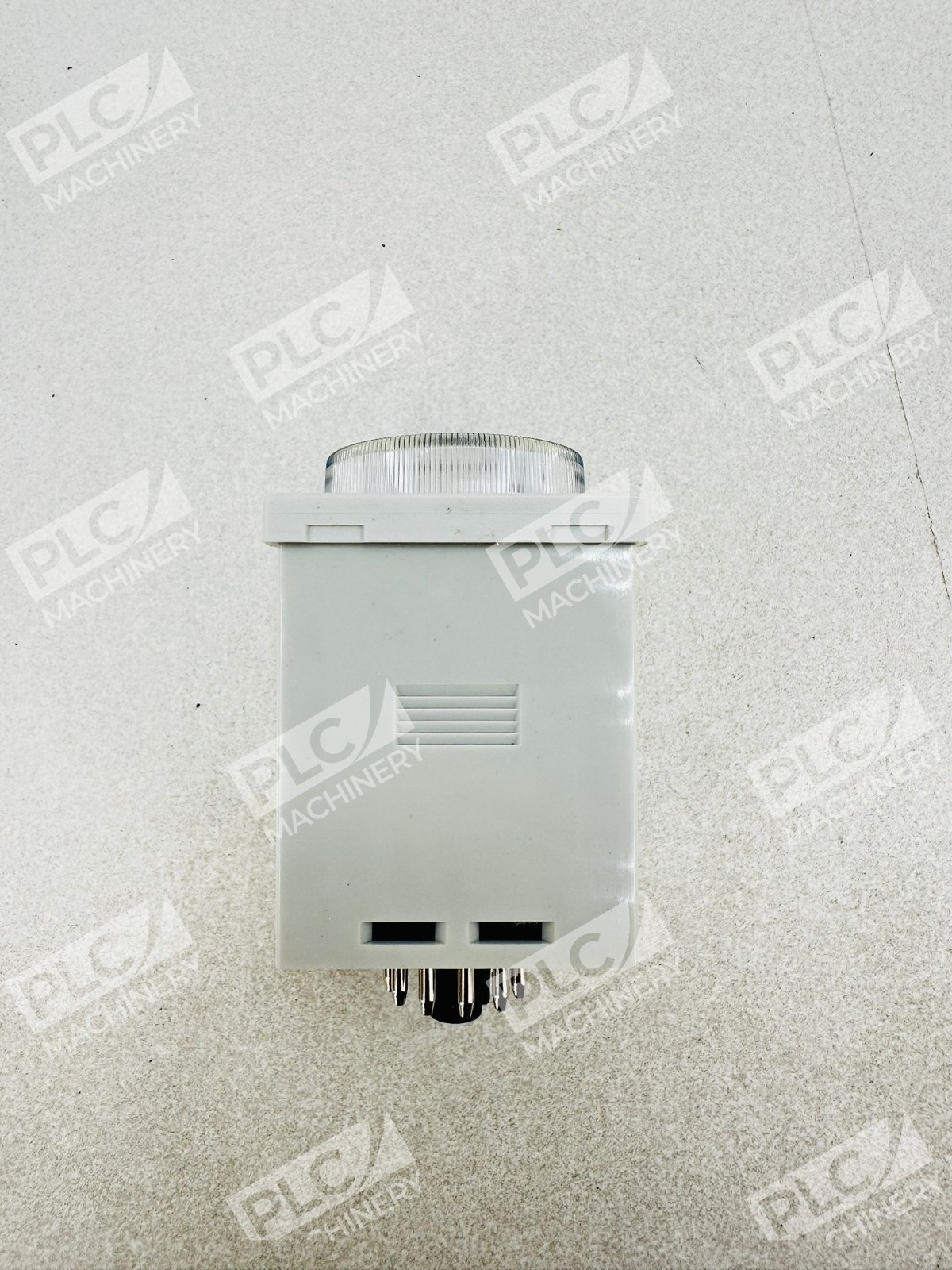

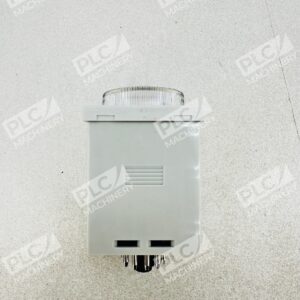

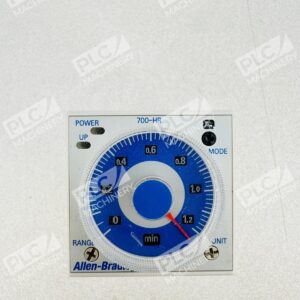

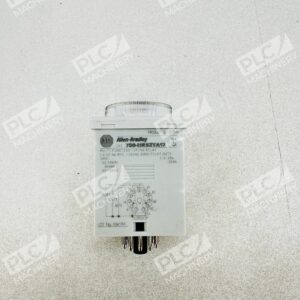

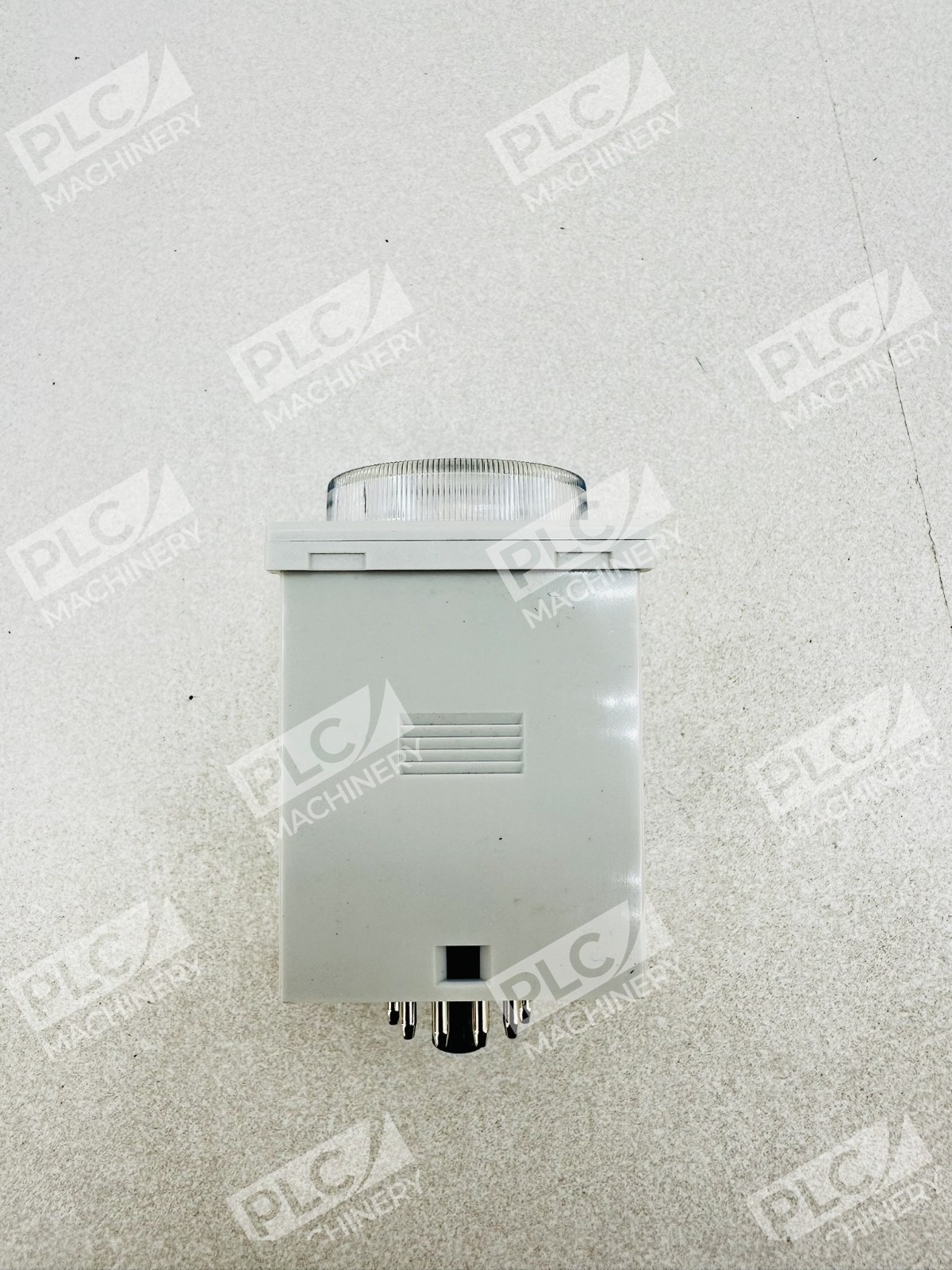

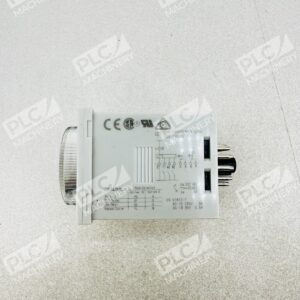

The Allen-Bradley 700-HR52TA17 is a tube base dial timing relay manufactured by Rockwell Automation for general-purpose industrial control and automation. This DPDT (Double Pole Double Throw) timing relay provides precise timing and delay functions across a wide range of industrial and process applications. The unit supports multi-function operation with six selectable timing modes and delivers timing accuracy within 0.2% of full scale.
Key Features
- Multi-Function Design: Six operating modes (A, B, B2, C, D, E, J) enable flexible timing configurations
- Dual Voltage Inputs: Compatible with 100-240V AC (50/60 Hz) or 100-125V DC power supply
- Extended Timing Range: 0.05 seconds to 300 hours for applications requiring both fast pulse control and long-duration delays
- DPDT Contact Configuration: Two independent timed contacts for simultaneous control of multiple circuits

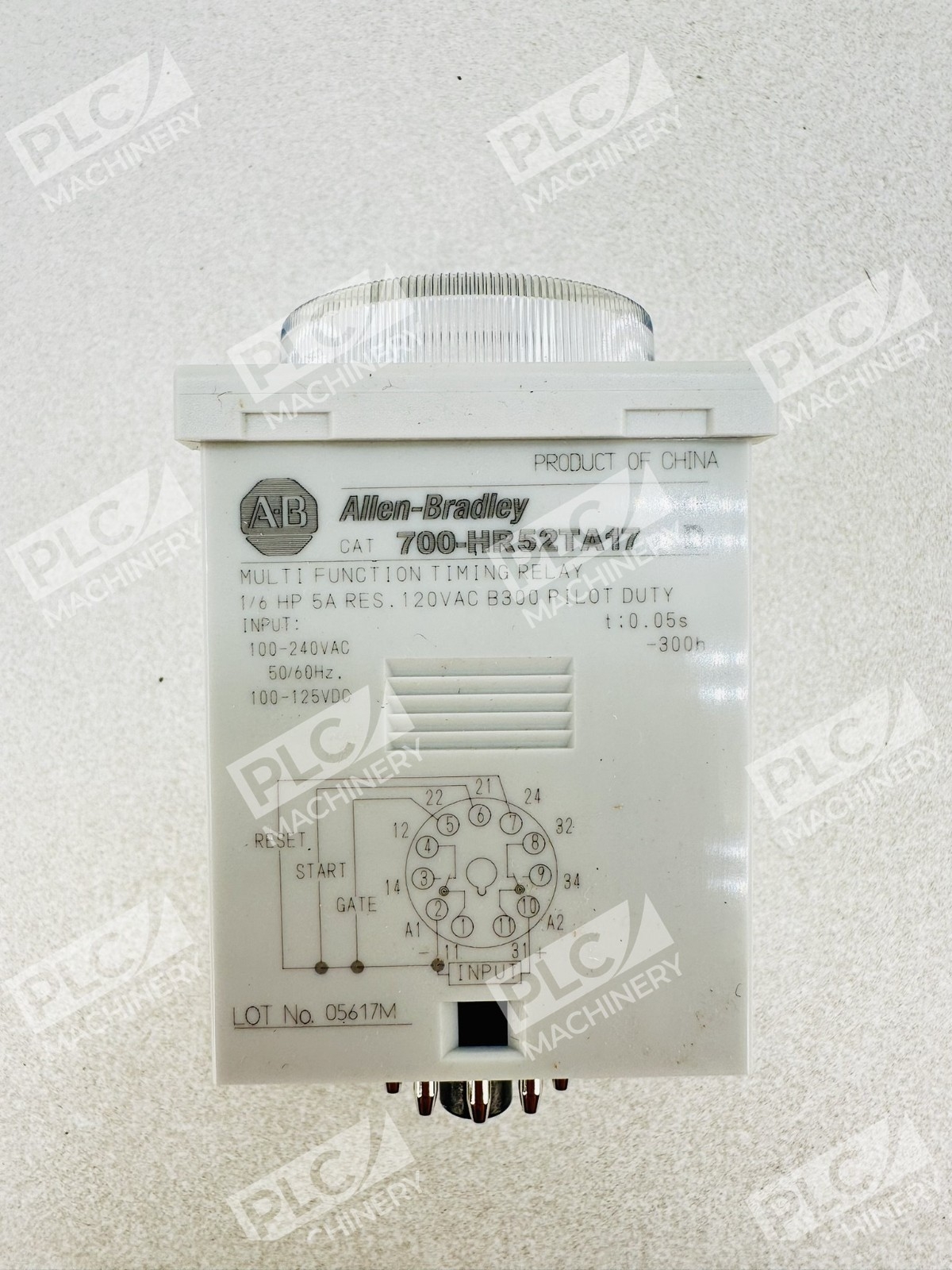

- Tube Base Construction: Pin-style terminals designed for socket mounting (compatible with 700-HN100, 700-HN125, 700-HN108)
- 5A Pilot Duty Rating: Suitable for pilot-duty control circuits per NEMA B300 specifications
Technical Specifications
- Timing Range: 0.05 seconds to 300 hours
- Timing Accuracy: 0.2% full scale maximum
- Voltage Supply: 100-240V AC 50/60 Hz or 100-125V DC
- Contact Configuration: DPDT (Double Pole Double Throw)
- Contact Rating: 5 A at 240V AC (pilot duty)
- Contact Functions: 2 timed contacts
- Operating Modes: Multi-mode (6 functions)

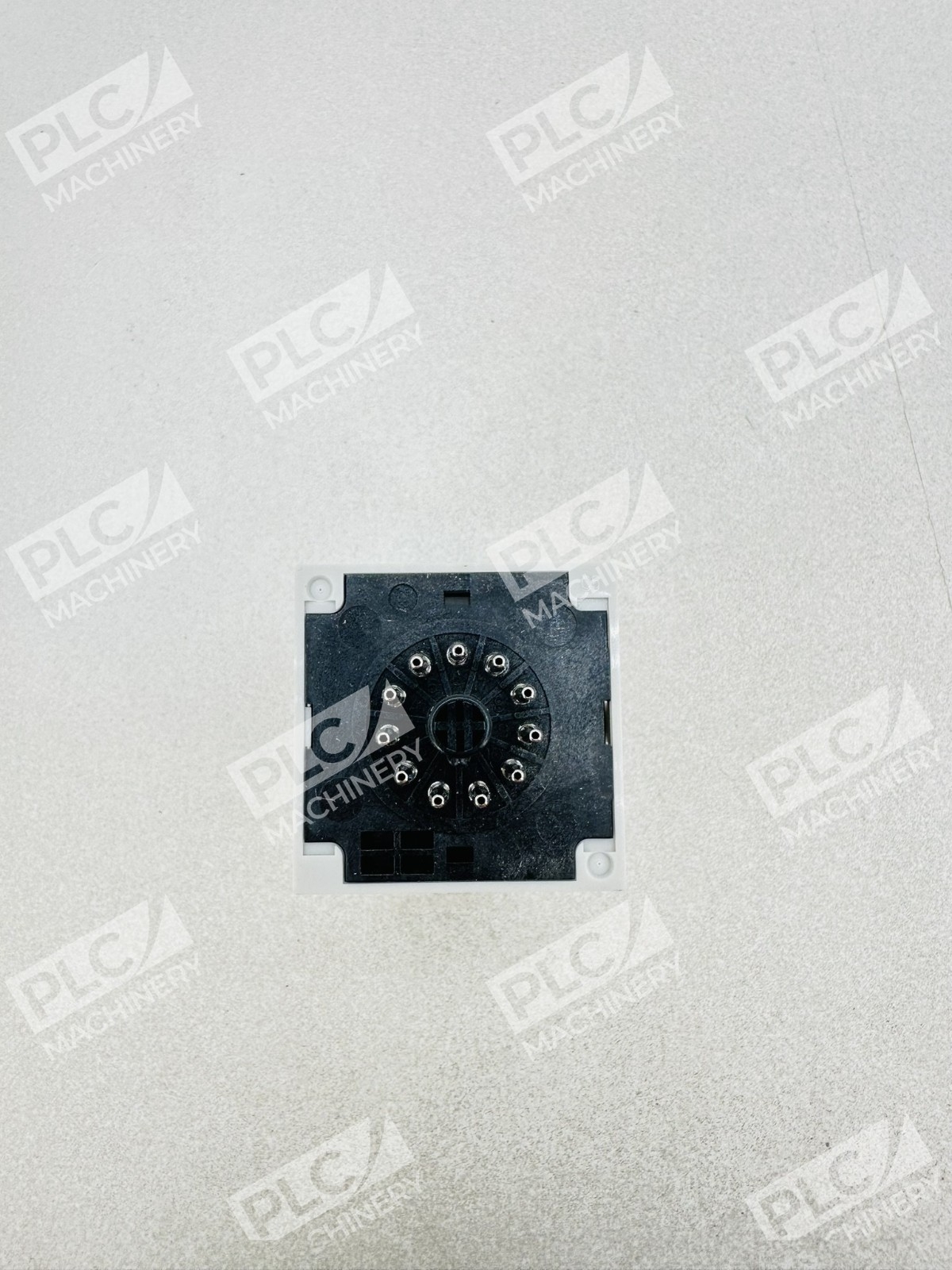

- Base Type: 8-pin tube base (requires socket)
- Dimensions: 48 mm W × 81.5 mm D × 48 mm H
- Certifications: CCC, RCM
- Reset Voltage: 10% maximum
- Reset Time (Min. Power-Opening): 0.1 seconds maximum
Typical Applications
The 700-HR52TA17 is ideal for machine automation, process control, and industrial delay circuits where:
- Precise time delays ranging from milliseconds to extended hours are required
- Multi-mode functionality enables one relay to replace multiple timing configurations
- Pilot-duty switching of 240V AC control circuits is needed
- Socket-mounted relays integrate into standard control panel layouts
- Both AC and DC power supplies must be supported in a single device
Compatibility & Replacements
Compatible With
- Allen-Bradley 700 series relay control systems
- Industrial control panels using 8-pin tube base sockets
- NEMA B300 pilot-duty control circuits
- Both 50 Hz and 60 Hz AC power systems
- DC control systems rated 100-125V DC
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 700-HR52TA17 serves as a direct replacement for identical model numbers from stock rotations or system upgrades.
Works With
- Socket bases: 700-HN100, 700-HN125, 700-HN108
- Allen-Bradley relay sockets and panel mounting hardware
- Standard 8-pin relay terminal blocks and connectors
- Industrial control networks requiring timing relay integration
