Overview

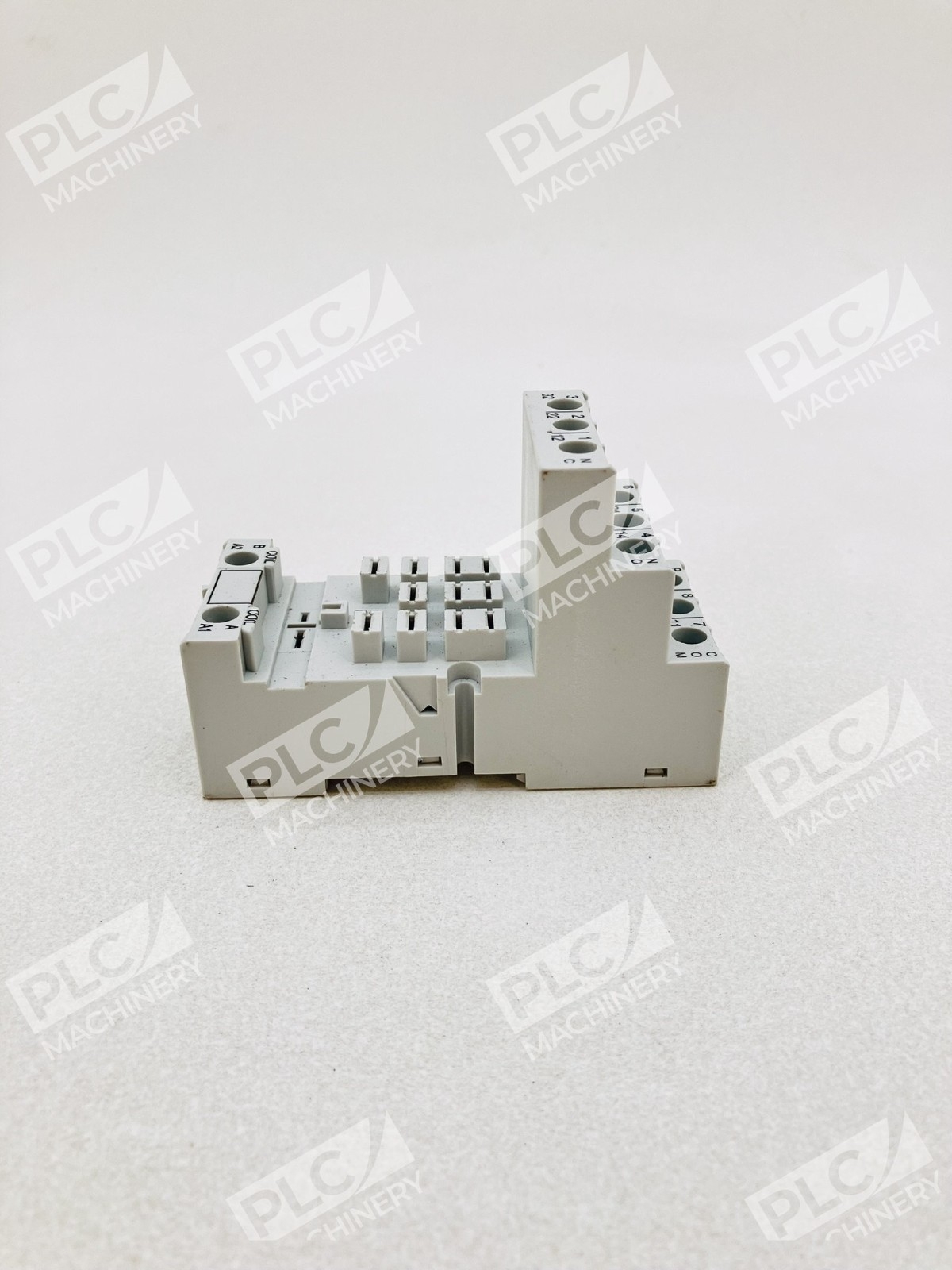

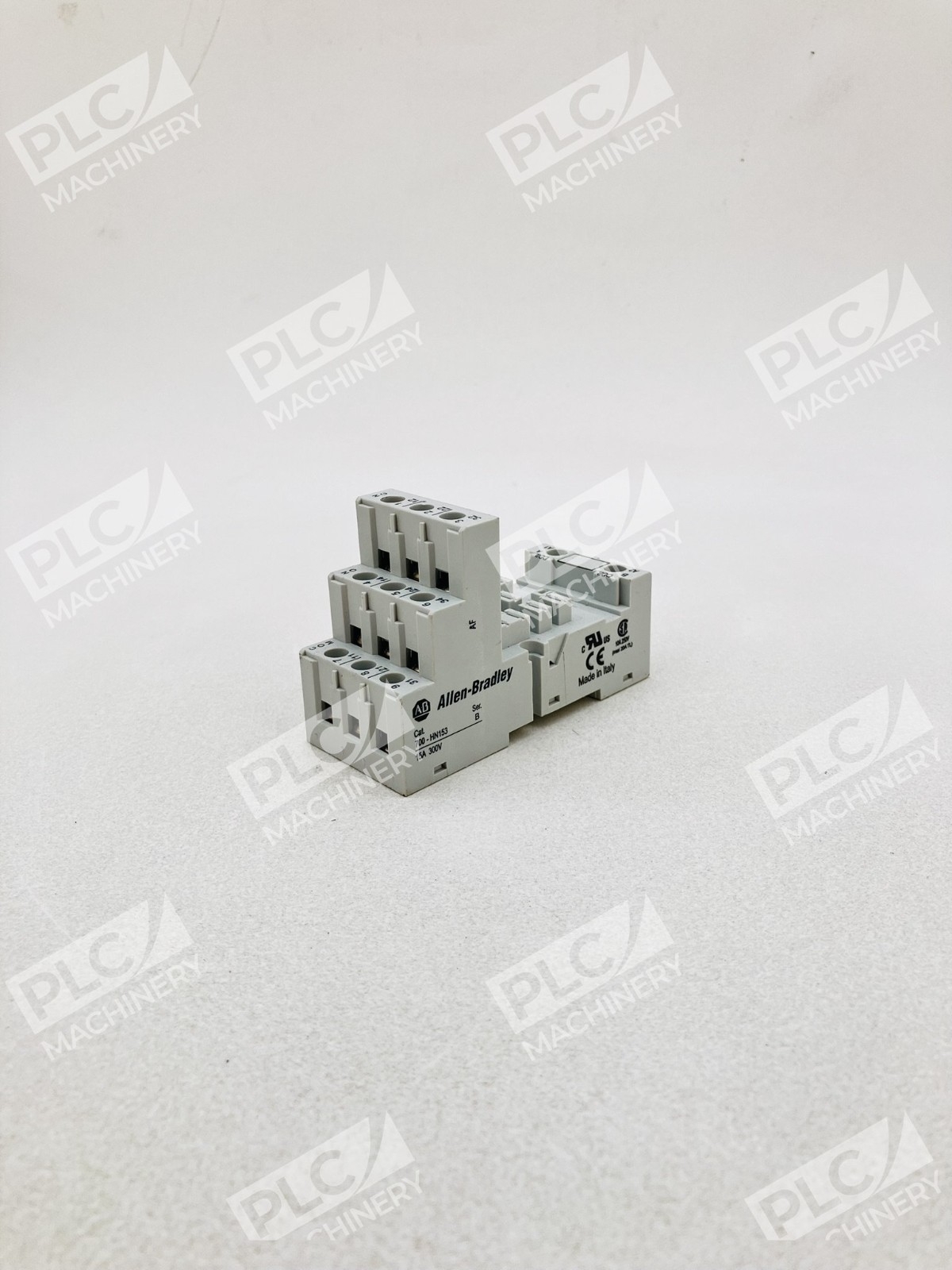

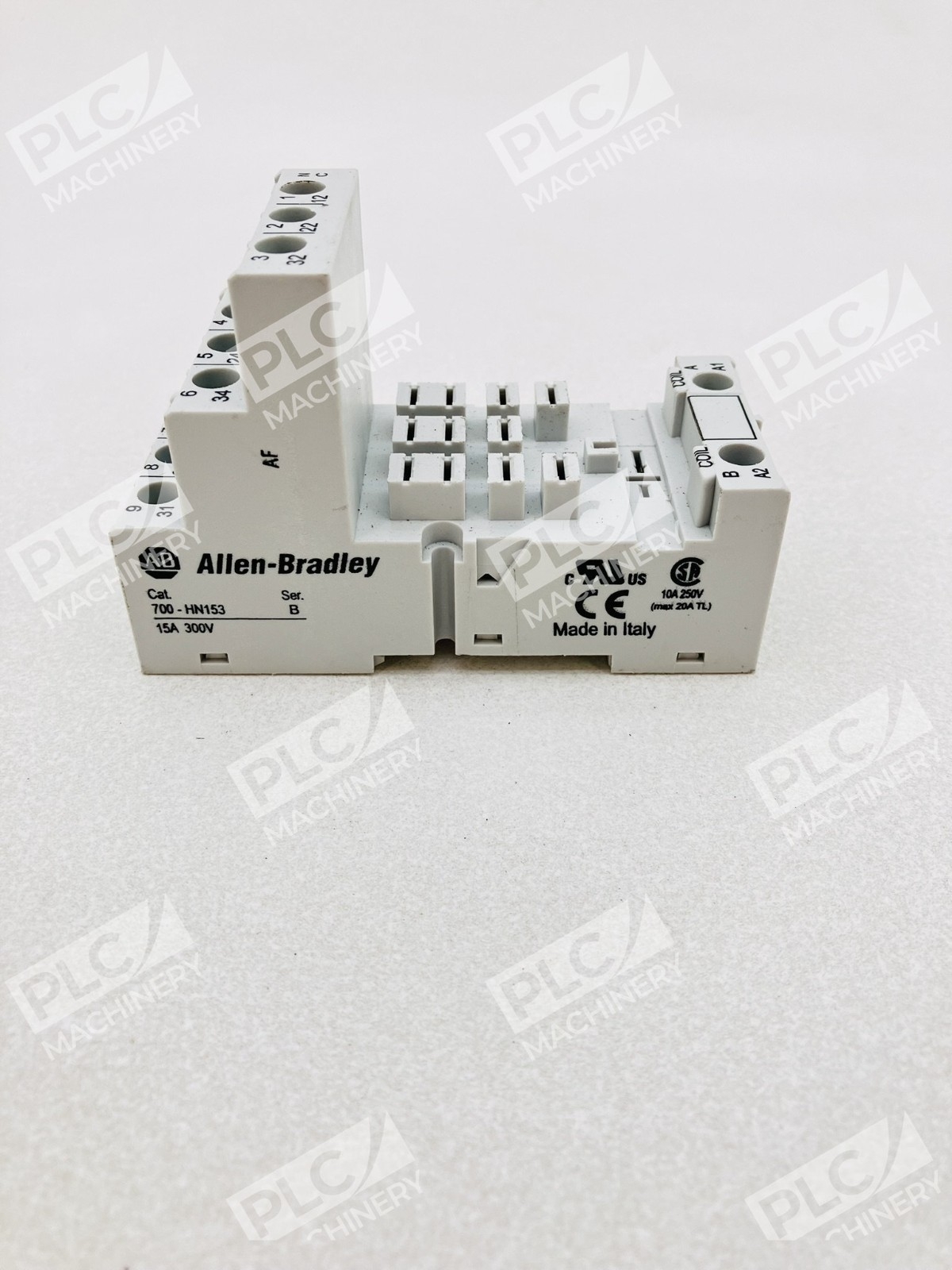

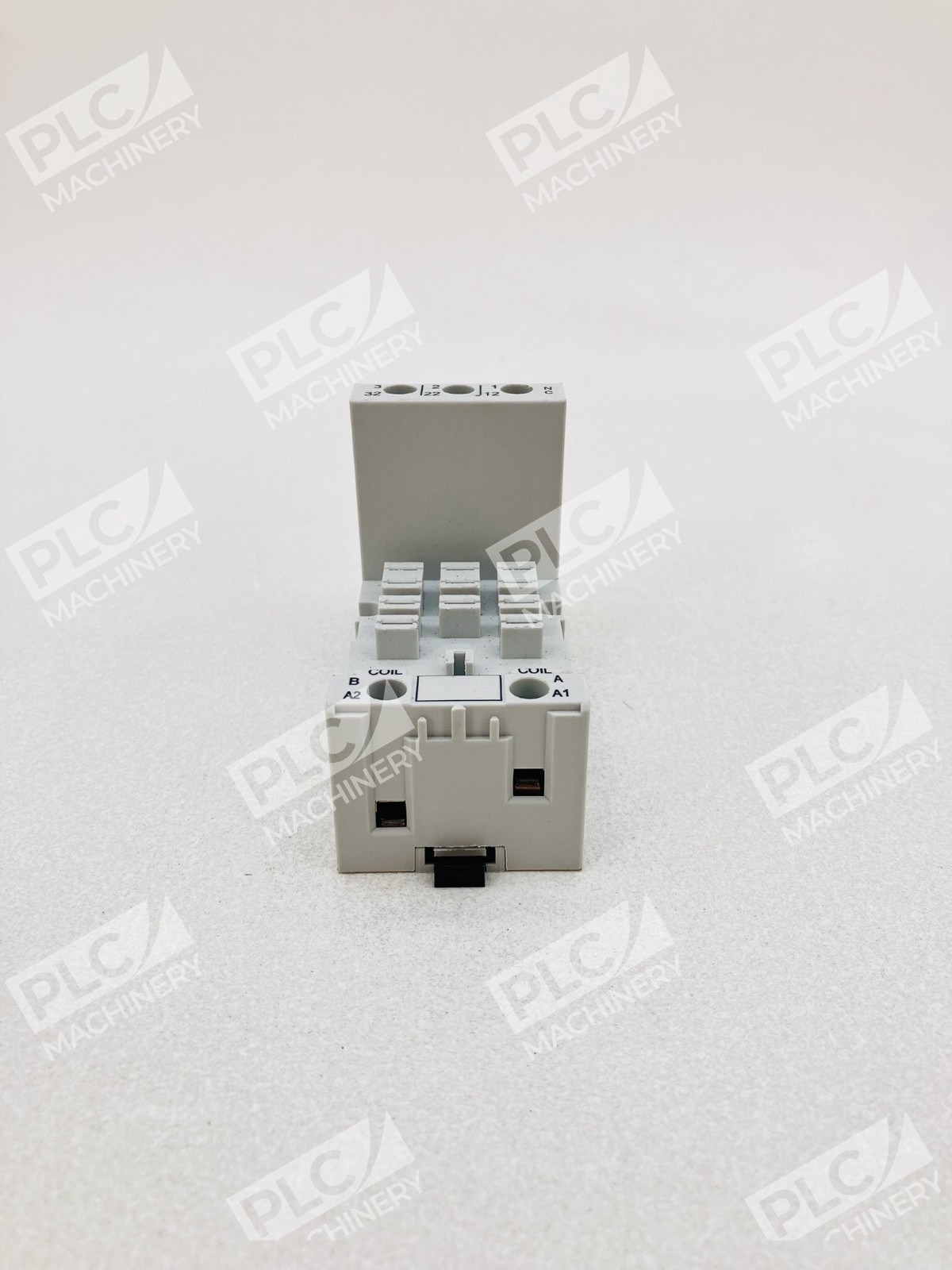

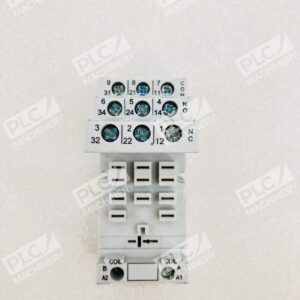

The Allen-Bradley 700-HN153 is an 11-blade relay socket designed for use with 700-HB, 700-HJ, and 700-HS series timing relays. This industrial-grade socket features screw terminals with guarded design, providing safe and reliable electrical connections in control panel applications. The socket supports both panel-mount and DIN rail mounting, making it flexible for various industrial automation layouts.
Key Features
- 11-blade configuration for compatibility with standard Allen-Bradley relay bases

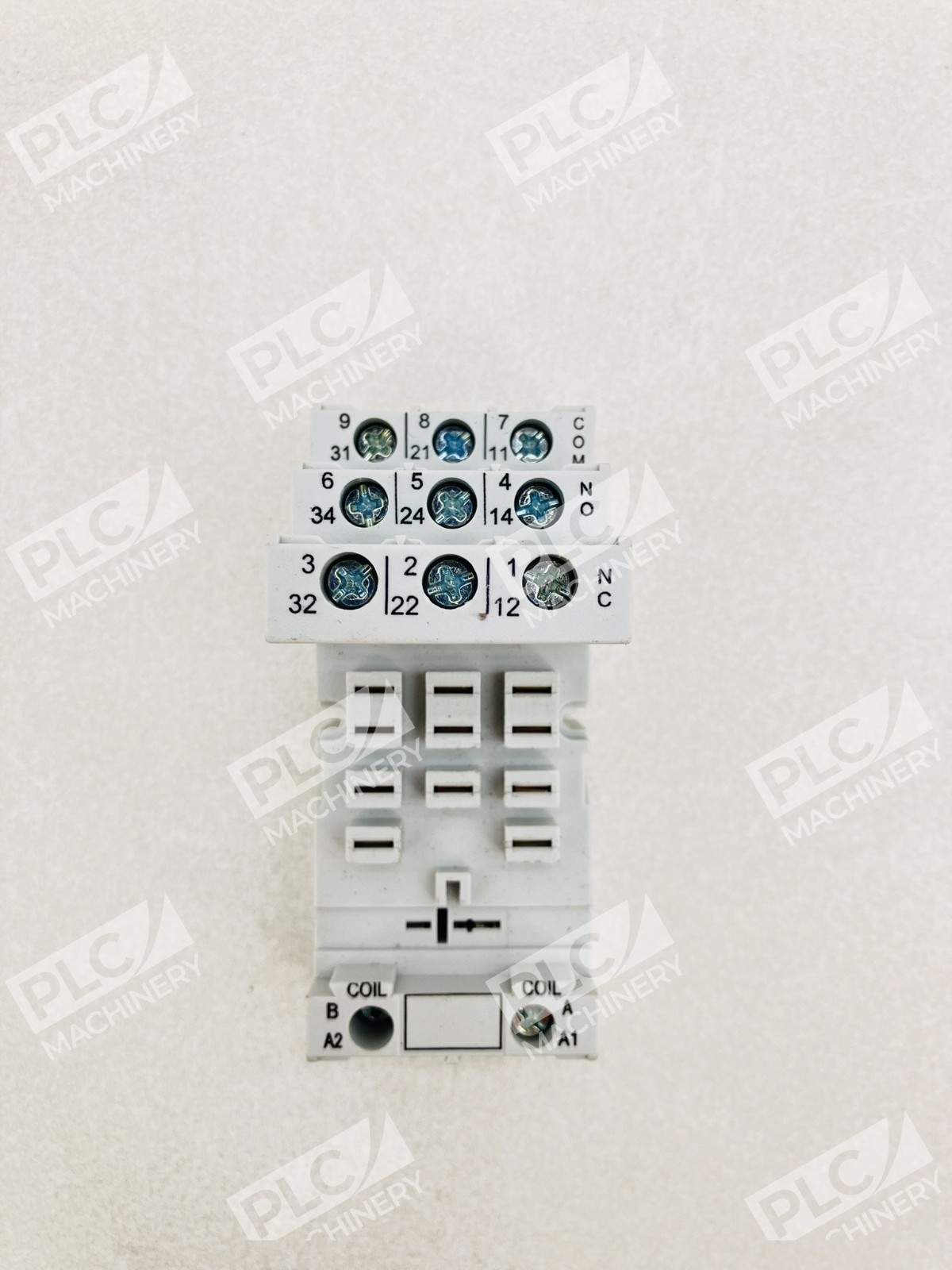

- Screw terminal connections with guarded terminals for enhanced safety

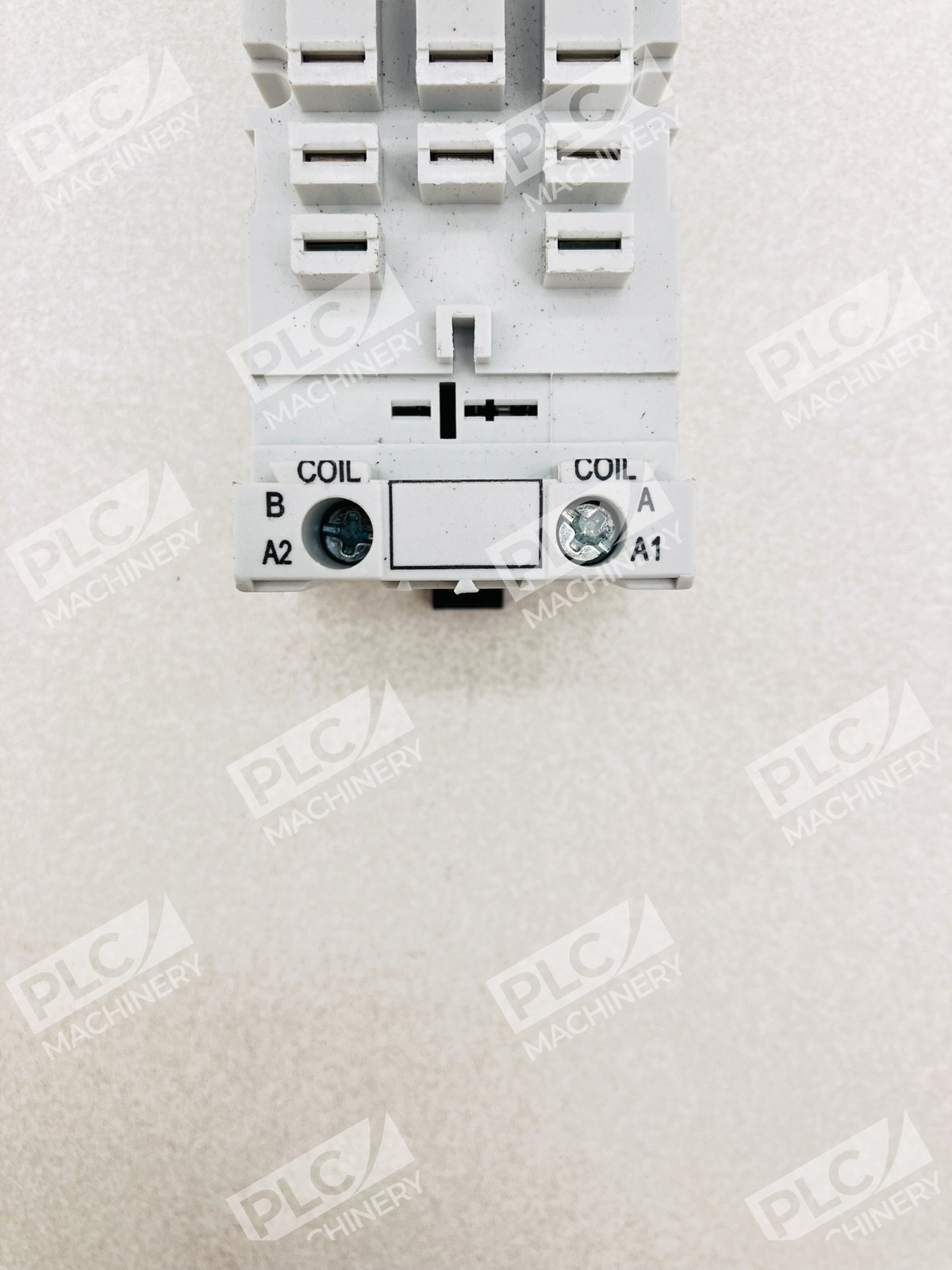

- Coil and contact separation for improved reliability and diagnostics
- Supports optional plug-in modules for expanded functionality
- Dual mounting options: panel-mount or DIN rail
- Industry-standard certifications: CCC, CE, CSA, CUL, KC, UL
Technical Specifications
- Model Number: 700-HN153
- Blade Configuration: 11-blade
- Number of Pins: 11
- Rated Current: 15 amps
- Rated Voltage: 300 volts
- Terminal Type: Screw
- Physical Dimensions: 40 mm W × 60.9 mm D × 95.3 mm H
- Weight: 0.23 lb (104 grams)
- Mounting: Panel or DIN rail
- Certifications: CCC, CE, CSA, CUL, KC, UL
- Series: 700 (Bulletin 700)
- Design Standard: Series B
Typical Applications
- Industrial control panels and motor starter circuits
- Timing relay bases for sequential control logic
- Safety and protective relay circuits
- Machine automation and process control systems
- HVAC and facility management control systems
- OEM equipment manufacturers requiring standardized relay sockets
Compatibility & Replacements
Compatible With
- Allen-Bradley 700-HB series general-purpose and industrial relays
- Allen-Bradley 700-HJ timing relays
- Allen-Bradley 700-HS timing relays
- Panel-mount and DIN rail control systems
- Standard 11-blade relay base configurations
- Optional Allen-Bradley plug-in modules
Replaces / Drop-In Replacement For
- Direct replacement for existing 700-HN153 sockets in maintenance and upgrade applications
- Compatible as a field replacement for equivalent 11-blade relay socket bases in 700 series applications
Works With
- Allen-Bradley Studio 5000 Logix Designer for relay control programming
- Rockwell Automation CompactLogix and ControlLogix systems
- Standard 24 VDC and AC relay coil circuits
- EtherNet/IP networks in distributed relay control architectures
- Legacy and modern Allen-Bradley panel designs
