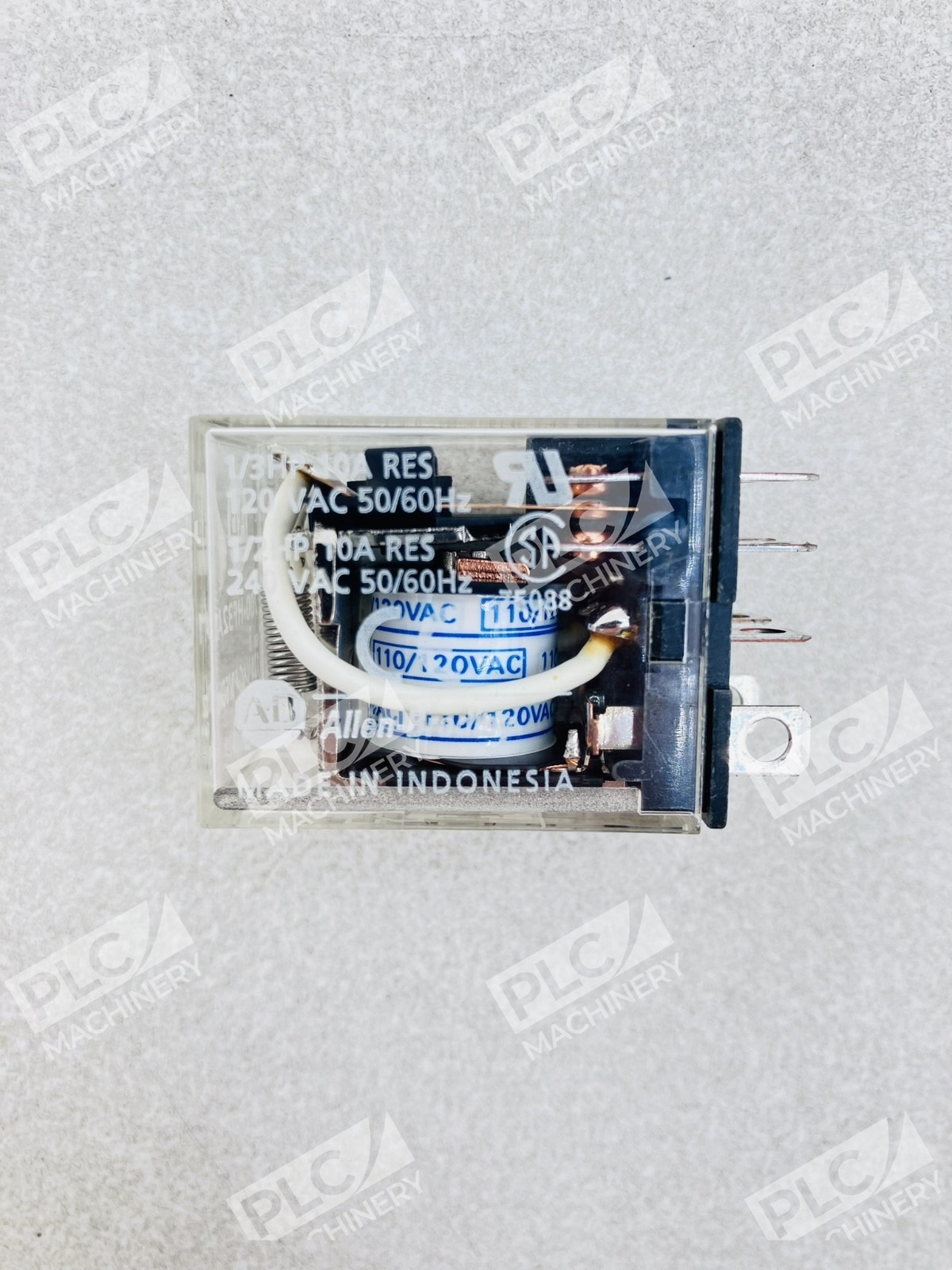

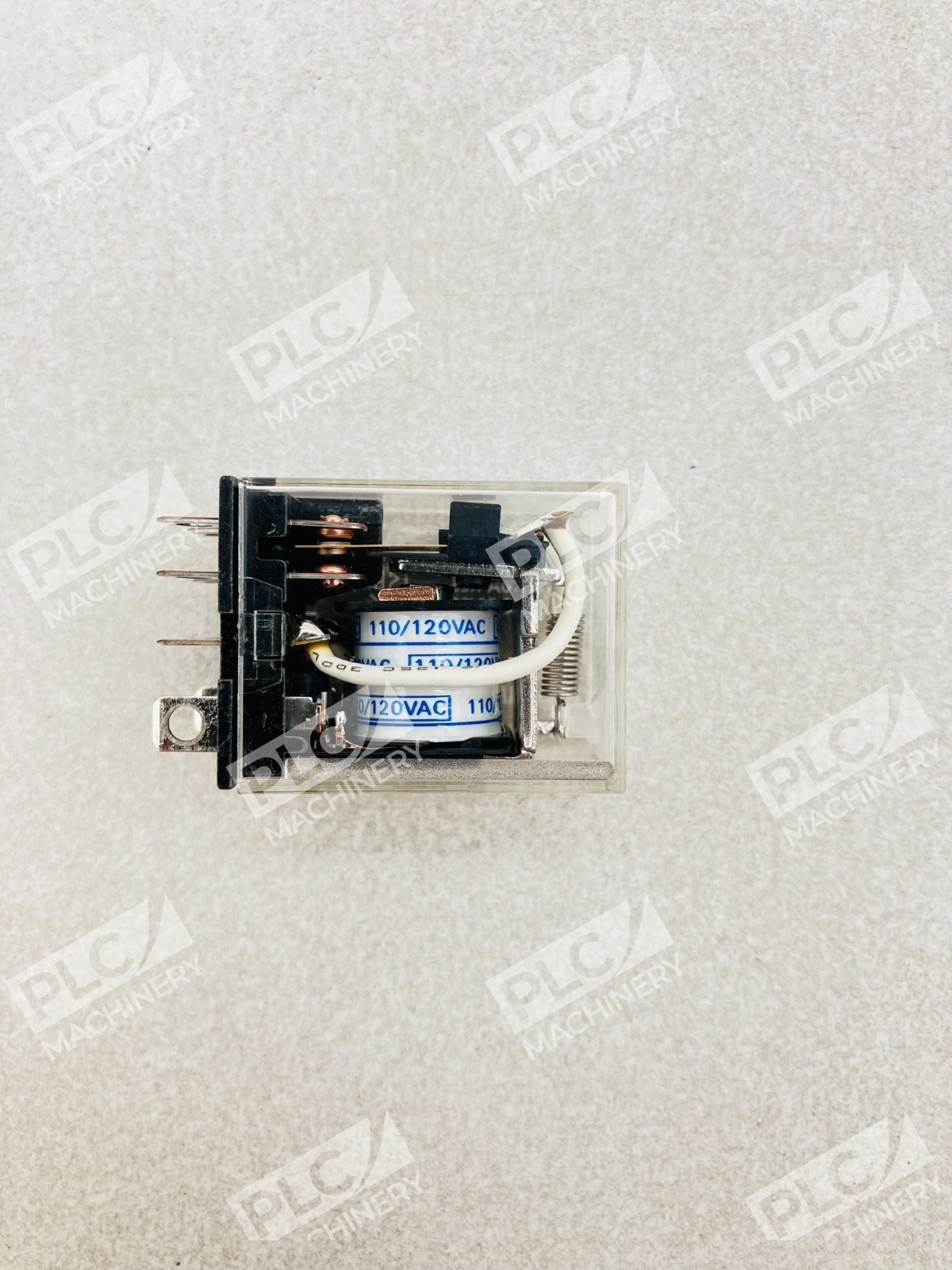

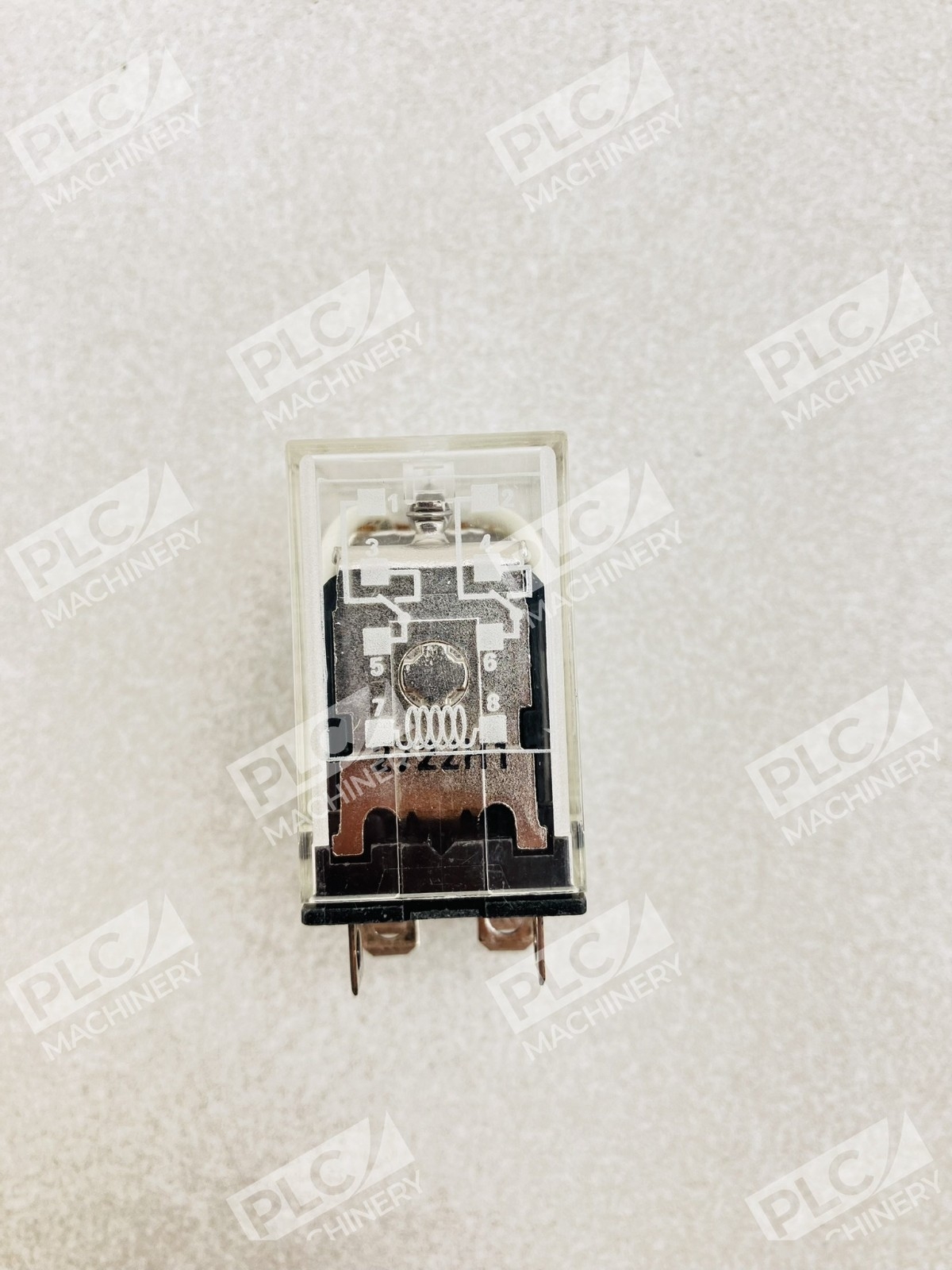

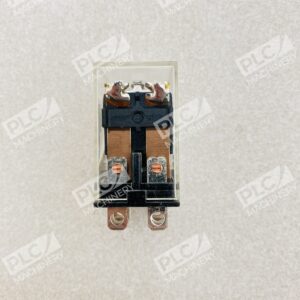

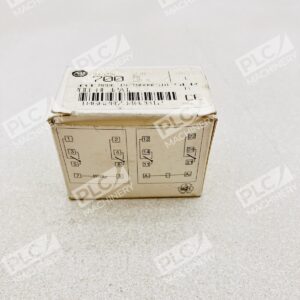

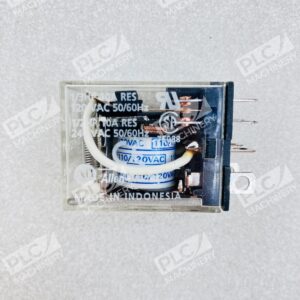

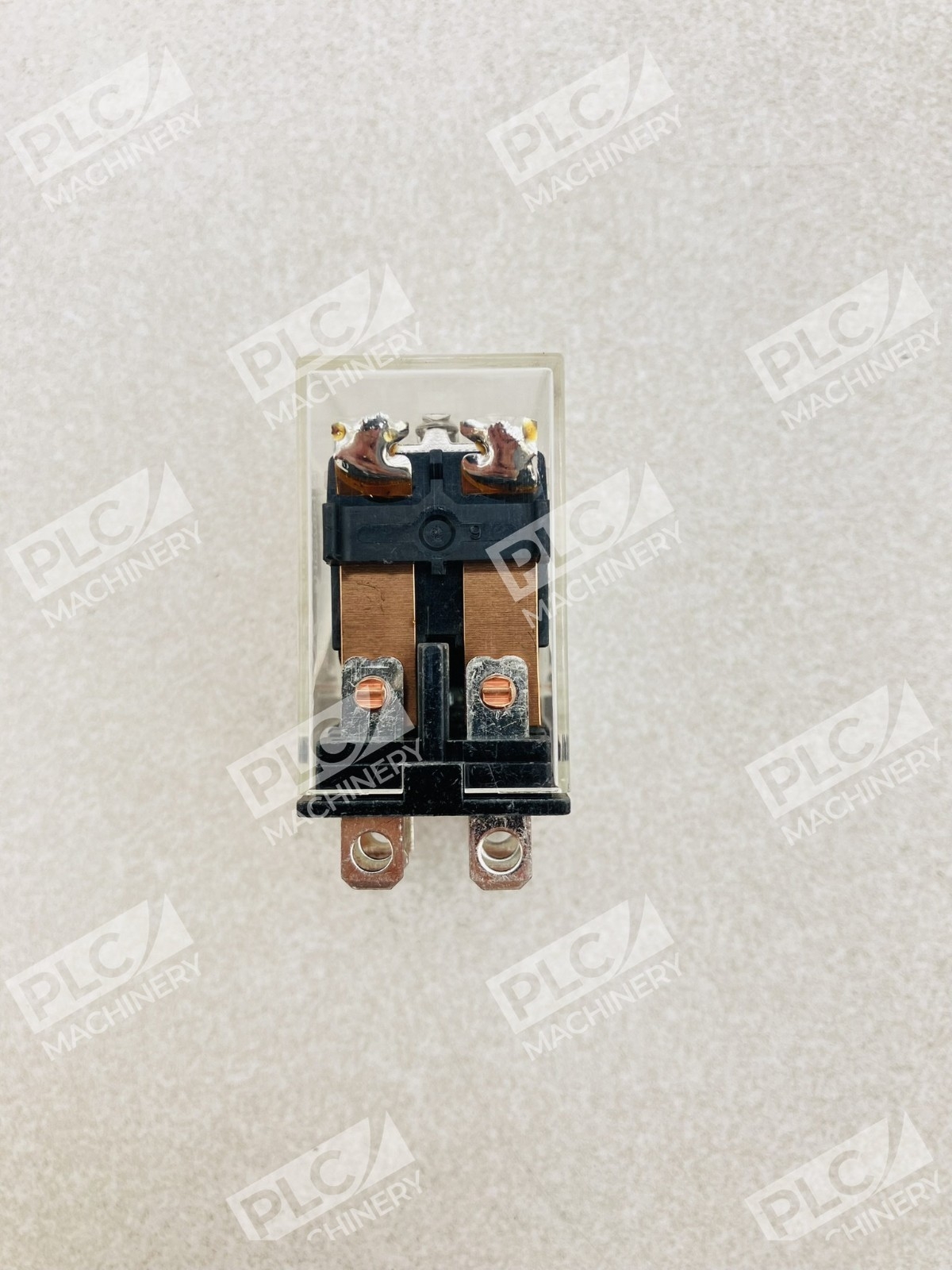

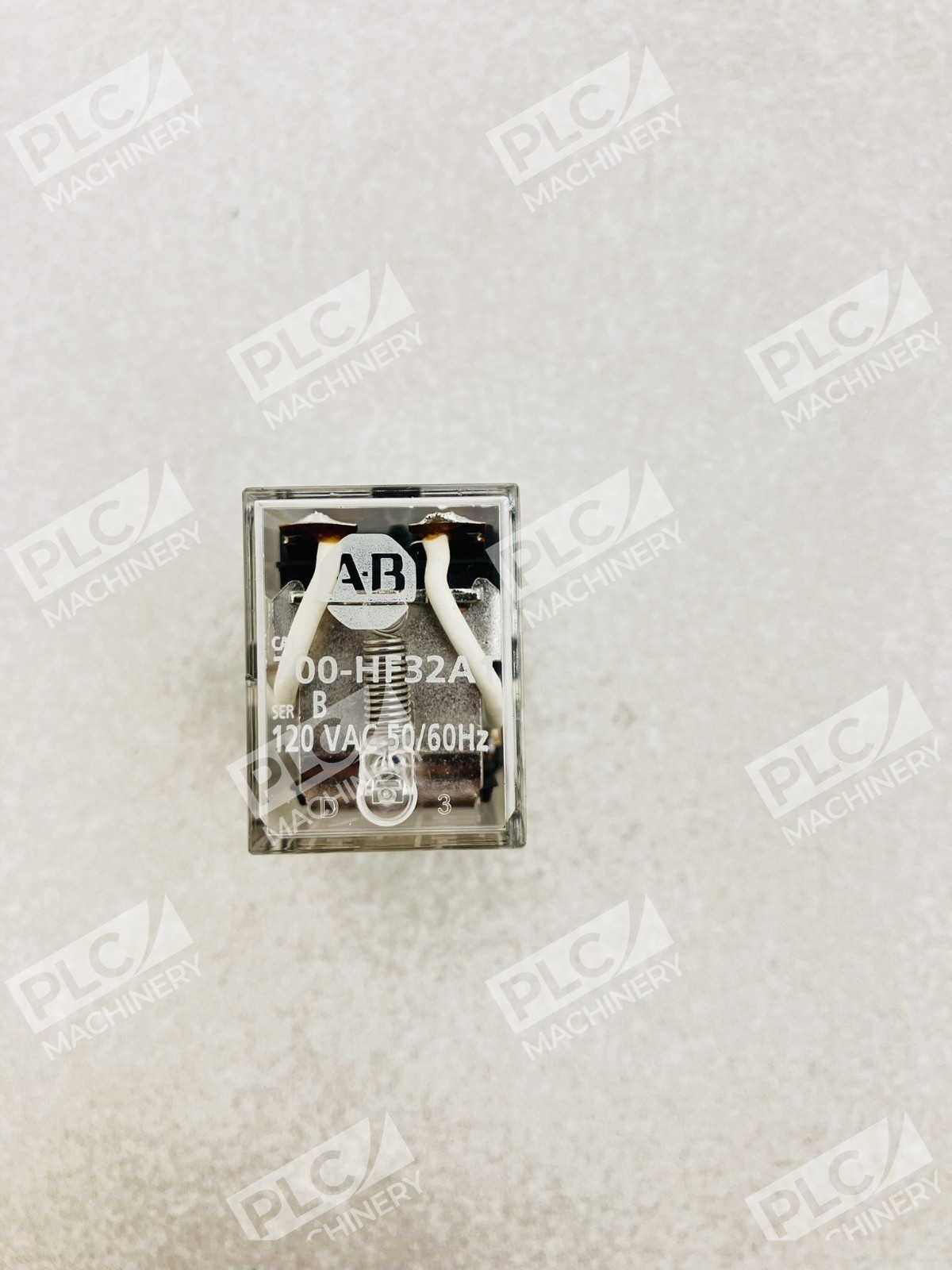

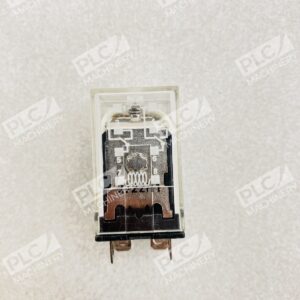

Overview

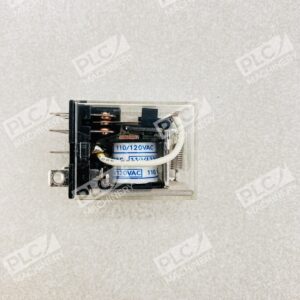

The Allen-Bradley 700-HF32A1 is a miniature square base ice-cube relay from the industry-proven Bulletin 700-HF series. This general purpose short square base relay features 10 A standard contact, 120 V 50/60 Hz, and two changeover contacts (double pole double throw, DPDT). The 700-HF general purpose relays offer plug-in quick connect terminals and a clear cover, allowing easy visual inspection. This model is ideal for industrial automation control circuits requiring reliable contact switching.
Key Features
- DPDT Configuration: Two changeover contacts (double pole double throw) for versatile switching applications
- Quick Connect Terminals: Plug-in terminal design for fast installation and removal
- Clear Cover: Transparent housing enables visual inspection of relay status
- Compact Design: Miniature square base form factor fits standard ice-cube sockets
- Industrial Rating: Suitable for control and automation circuits in harsh environments
Technical Specifications
- Contact Rating: 10 Amp standard contact
- Coil Voltage: 120V AC, 50/60 Hz

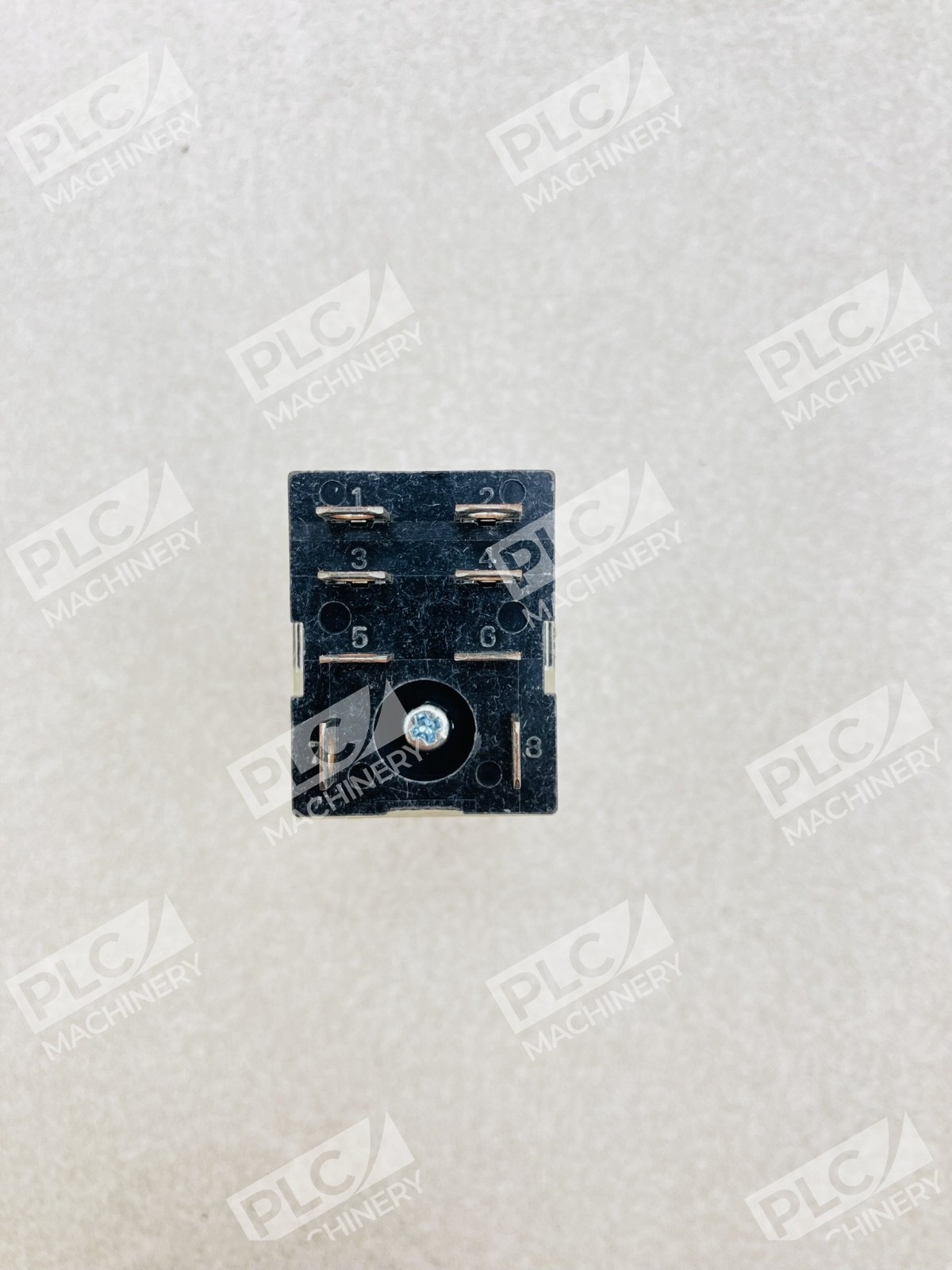

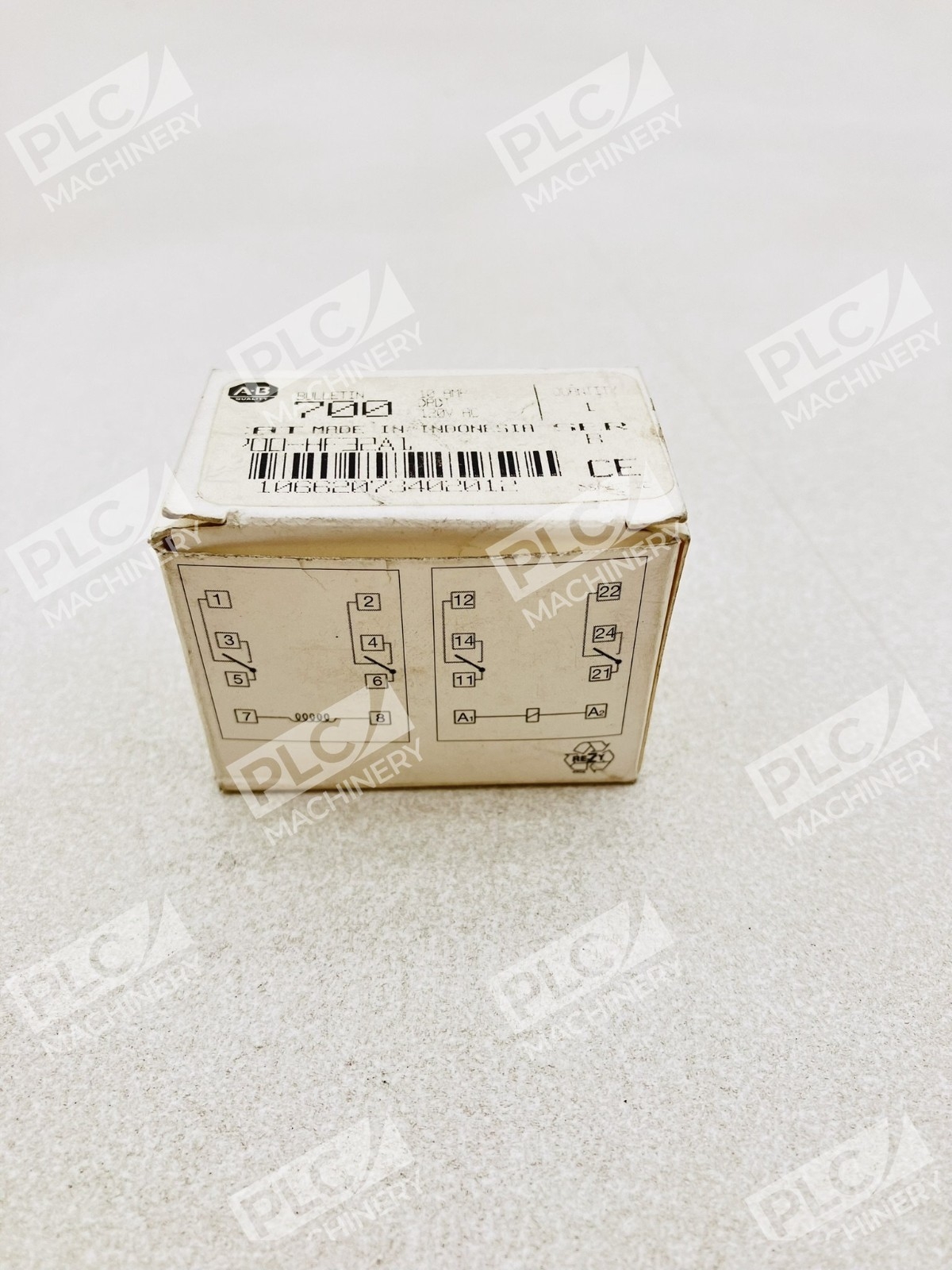

- Contact Configuration: 2 Form C (DPDT)
- Contact Material: Silver Cadmium Oxide (AgCdO)
- Base Type: Miniature square base (ice-cube)
- Mounting: Socket-mounted
- Certifications: CSA Certified (File No. 229473), UL Recognized (File No. E3125, Guide NLDX2/NLDX8), CE Marked, UL Listed when used with sockets shown above
Typical Applications
The 700-HF32A1 is suitable for:
- Industrial process control circuits
- Motor control and switching applications
- HVAC and refrigeration control systems
- Protective relay circuits
- General purpose switching and routing
- Machine tool control systems
Compatibility & Replacements
Compatible With
- Standard ice-cube relay sockets (8-pin base)
- Allen-Bradley 700-HF relay series accessories
- Industrial control panels and cabinets with ice-cube socket mounts
- General purpose 120V AC control circuits
Replaces / Drop-In Replacement For
- Other 700-HF series relays with different coil voltages can be substituted by model number (e.g., 700-HF32A06 for 6V AC, 700-HF32A12 for 12V AC, 700-HF32A24 for 24V AC, 700-HF32A2 for 240V AC) when matching voltage requirements
- Legacy tube base relays may be replaced with 700-HF32A1 when using appropriate socket adapters
Works With
- Rockwell Automation Studio 5000 / RSLogix 5000 control systems
- Allen-Bradley Bulletin 700 surge suppressors and timing unit accessories
- Standard ice-cube relay test equipment and diagnostic tools
- Manual and PLC-based control circuits
