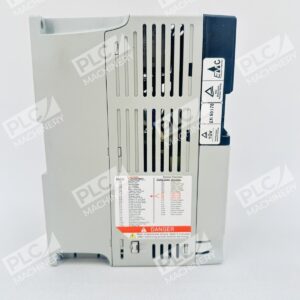

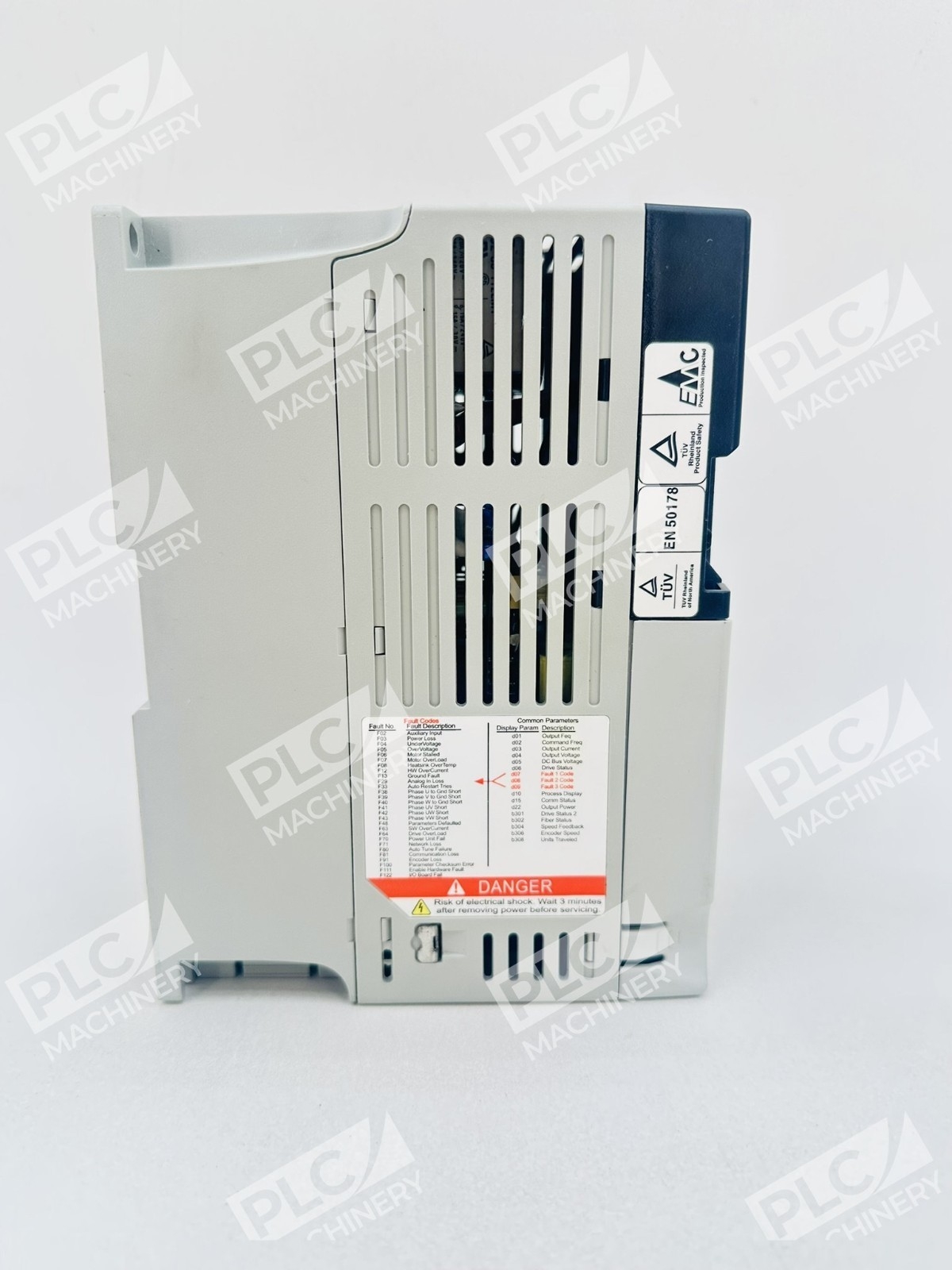

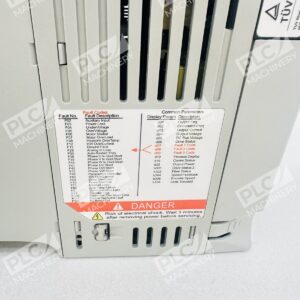

Overview

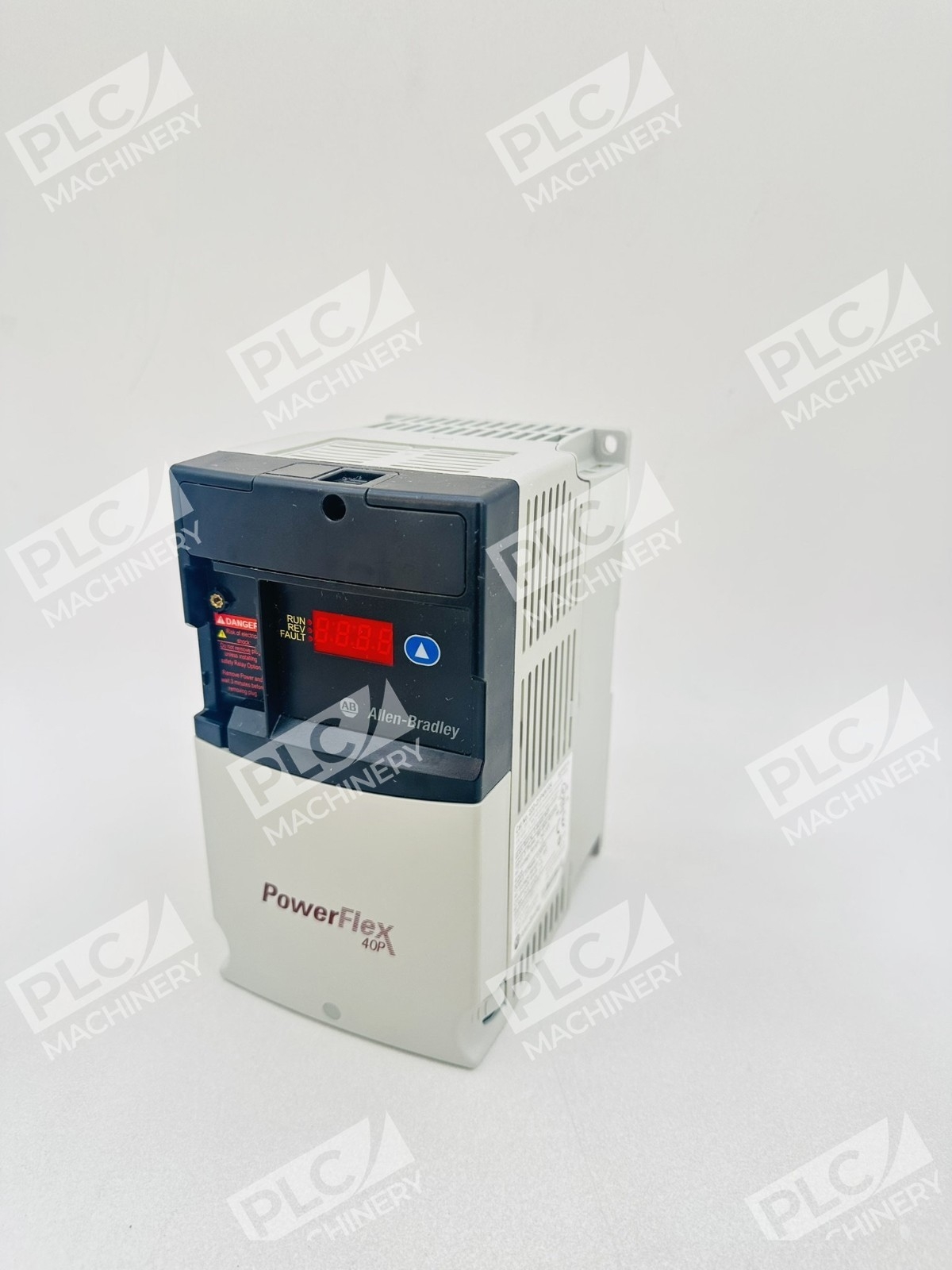

The Allen-Bradley 22D-D1P4N104 is a PowerFlex 40P adjustable frequency AC drive engineered for general-purpose small-motor speed control in industrial automation. This 22D-D1P4N104 drive operates at 480V AC, 3-phase (342–528 VAC input range) and delivers 1.4 A output current for motors rated 0.4 kW (0.5 HP). The compact Frame Size B panel-mount design with IP20 (NEMA Type Open) enclosure fits space-constrained control cabinets. Built-in RS-485 communication and Common Industrial Protocol (CIP) support enable networked operation and integration with Logix-based control systems.
Key Features
- Output power: 0.4 kW (0.5 HP) at 480V AC, 3-phase
- Compact Frame Size B panel-mount enclosure (IP20 rating)
- Dual control modes: V/Hz and Sensorless Vector Control (SVC)
- Integral RS-485 communication with CIP protocol support

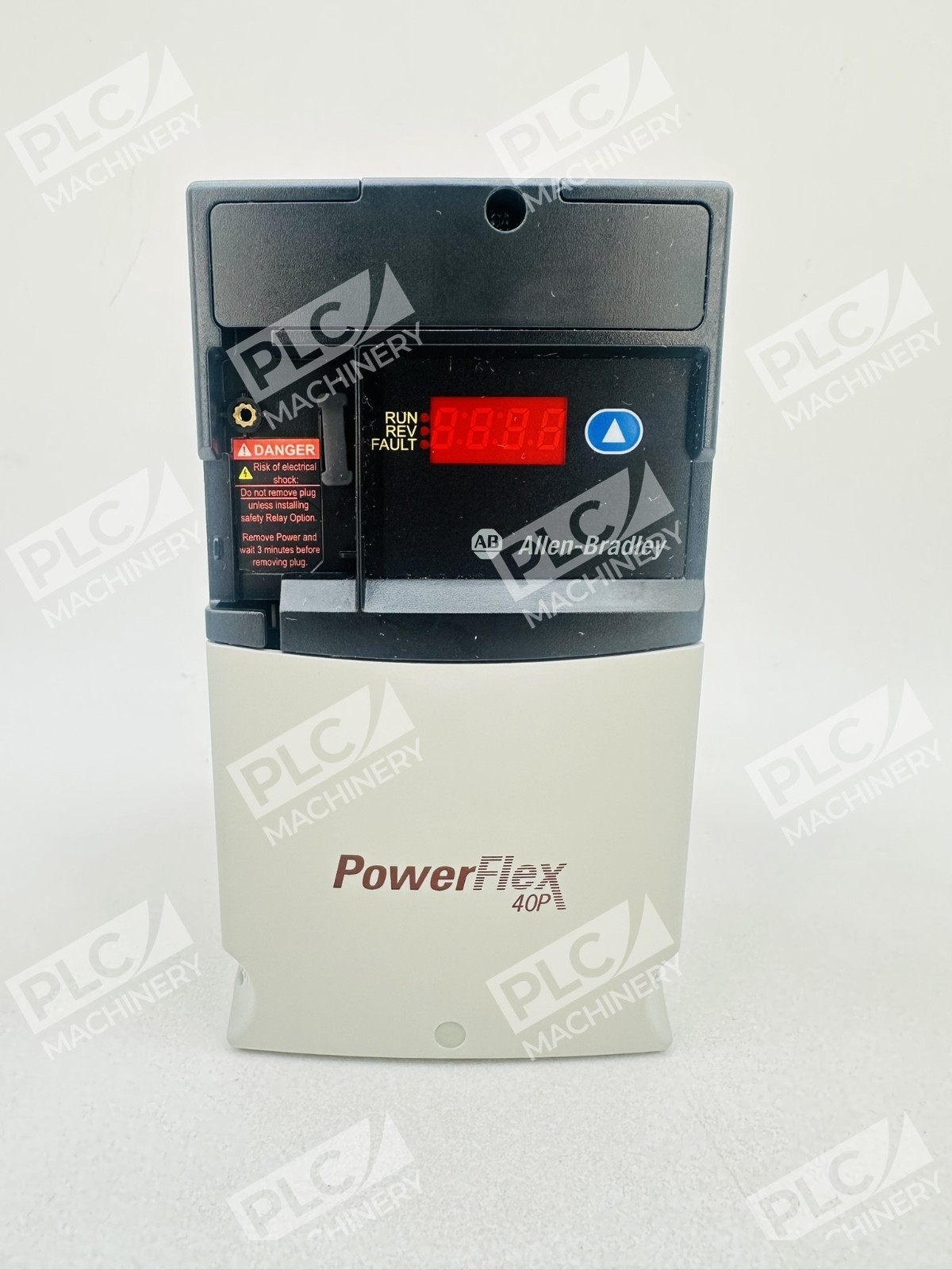

- 4-digit display with reset-only keypad
- No CE-compliant filter; suitable for non-EMC-regulated environments

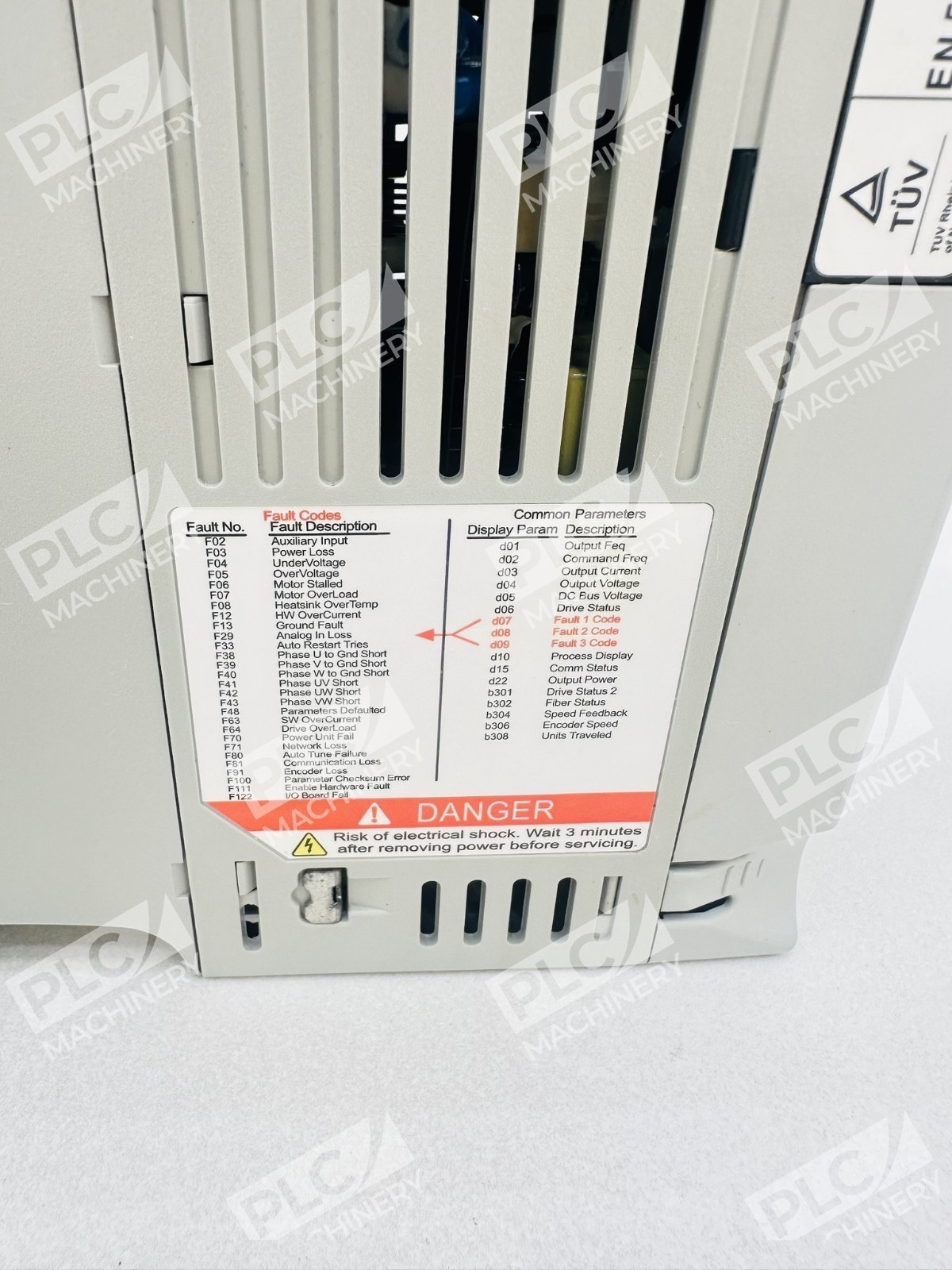

- Drive overload protection, ramp regulation, and flying start capability
- Process PID control and StepLogic positioning function support
Technical Specifications

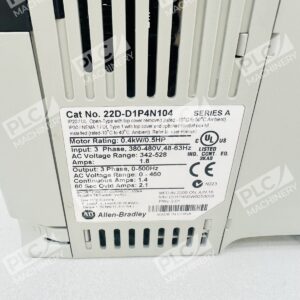

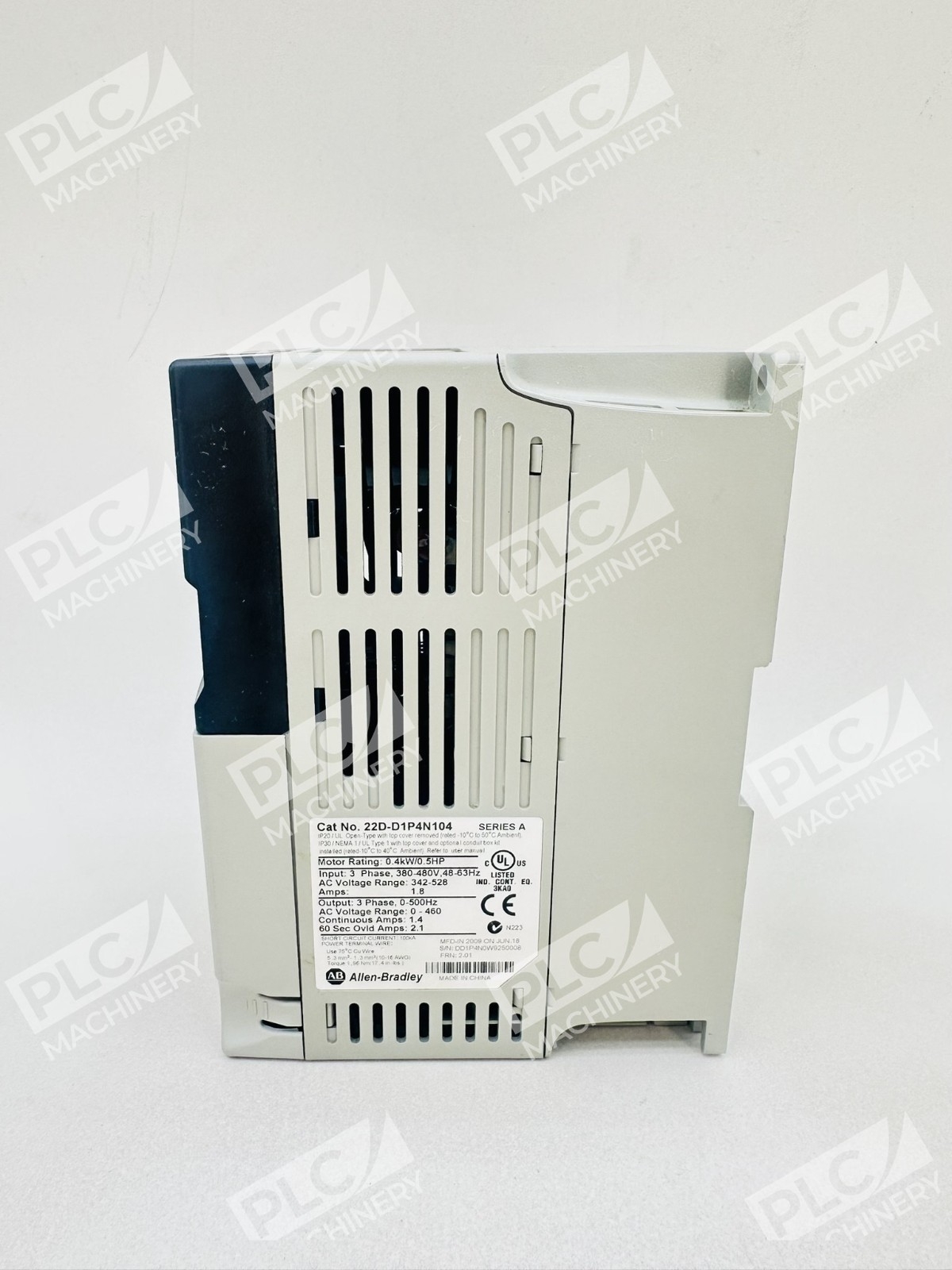

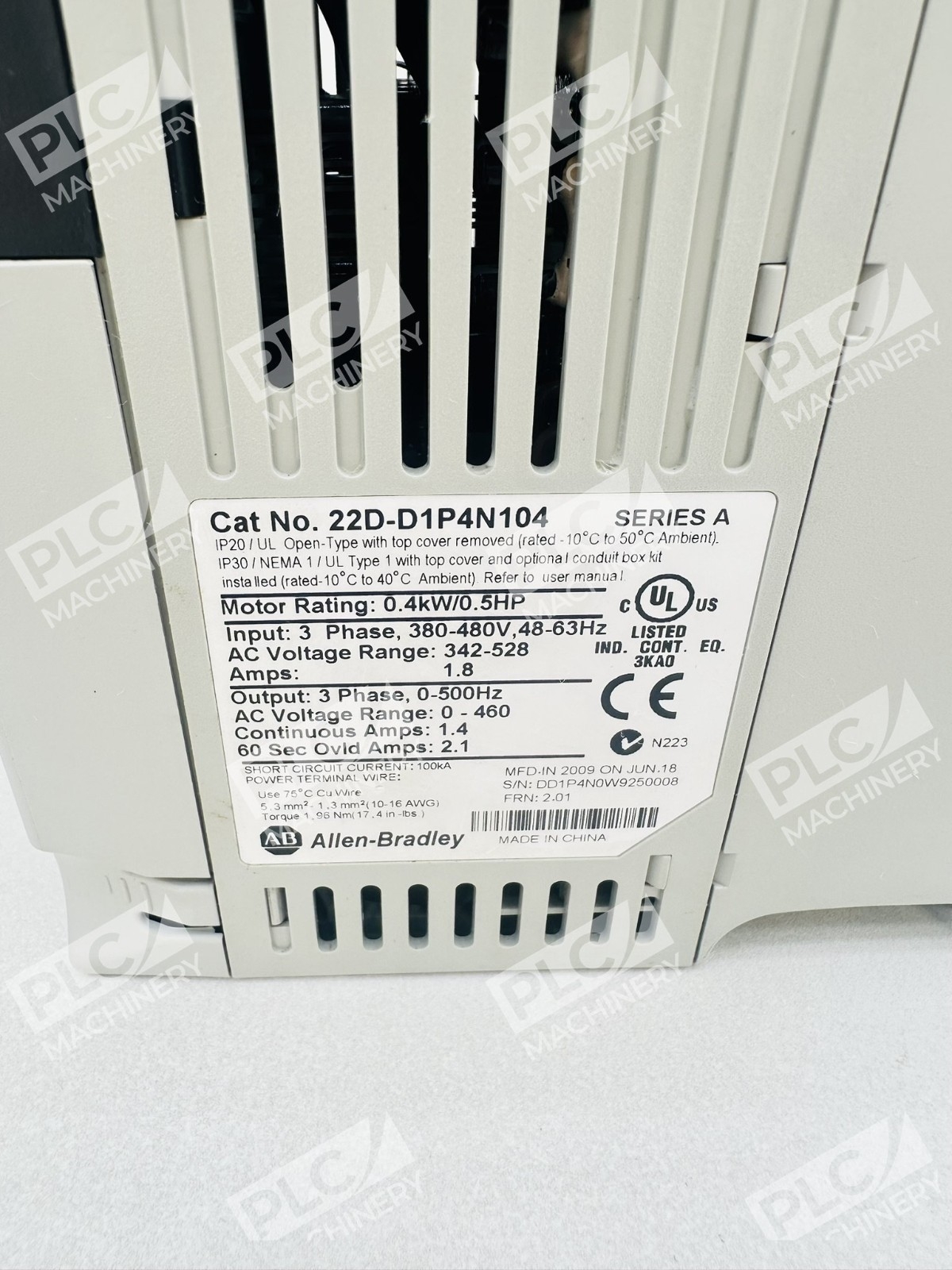

- Model: 22D-D1P4N104 (PowerFlex 40P Series A)
- Input Voltage: 342–528 VAC, 3-phase, 50–60 Hz
- Input Current: 1.8 A continuous
- Output Voltage: 0–460 VAC
- Output Current: 1.4 A continuous
- Output Power: 0.4 kW (0.5 HP)
- Output Frequency Range: 0–400 Hz
- Motor Overload Protection: 150% for 60 seconds

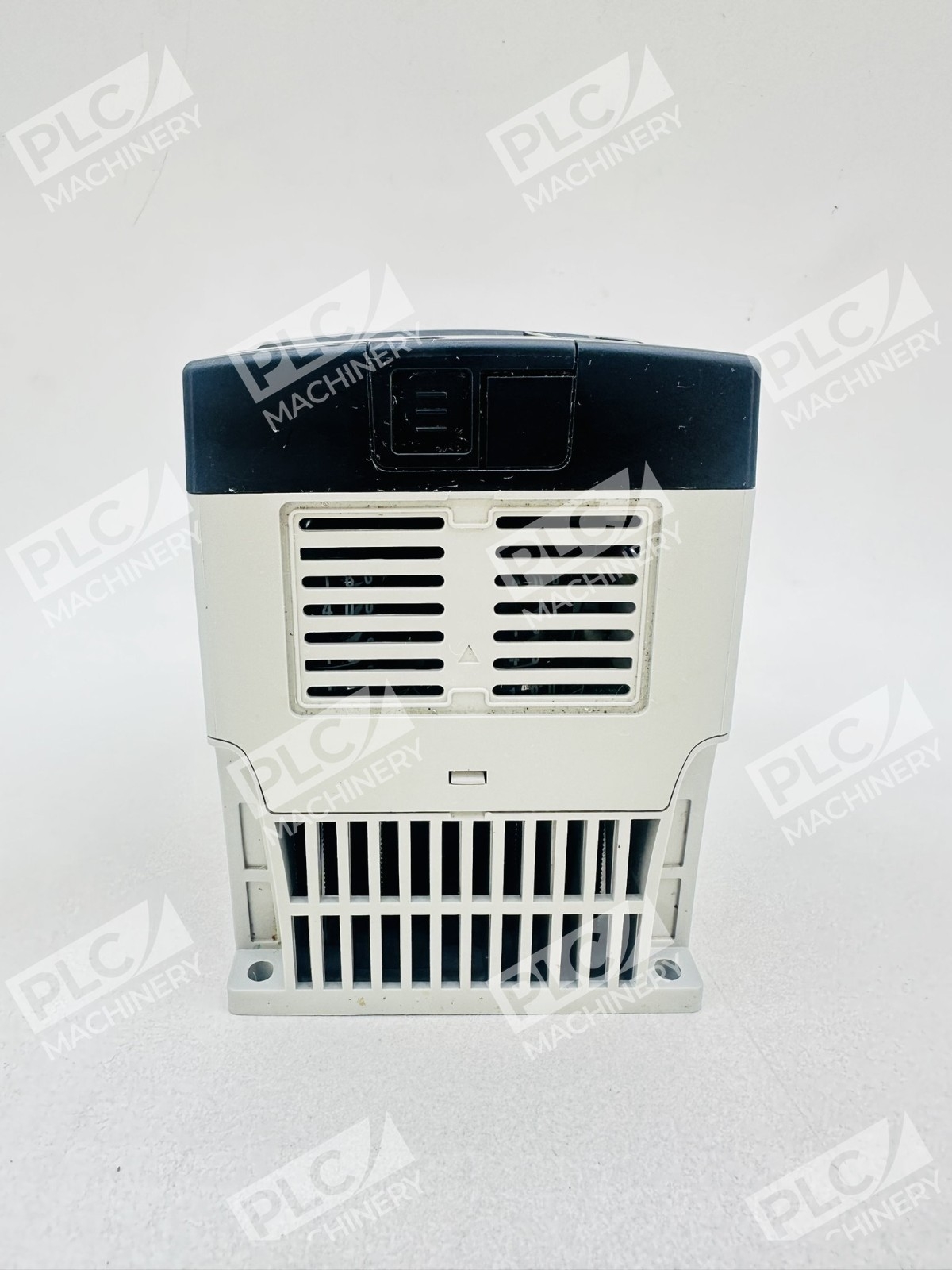

- Frame Size: B (3.94 W × 12.6 H × 5.35 D inches)
- Enclosure Type: IP20 (NEMA UL Type Open)

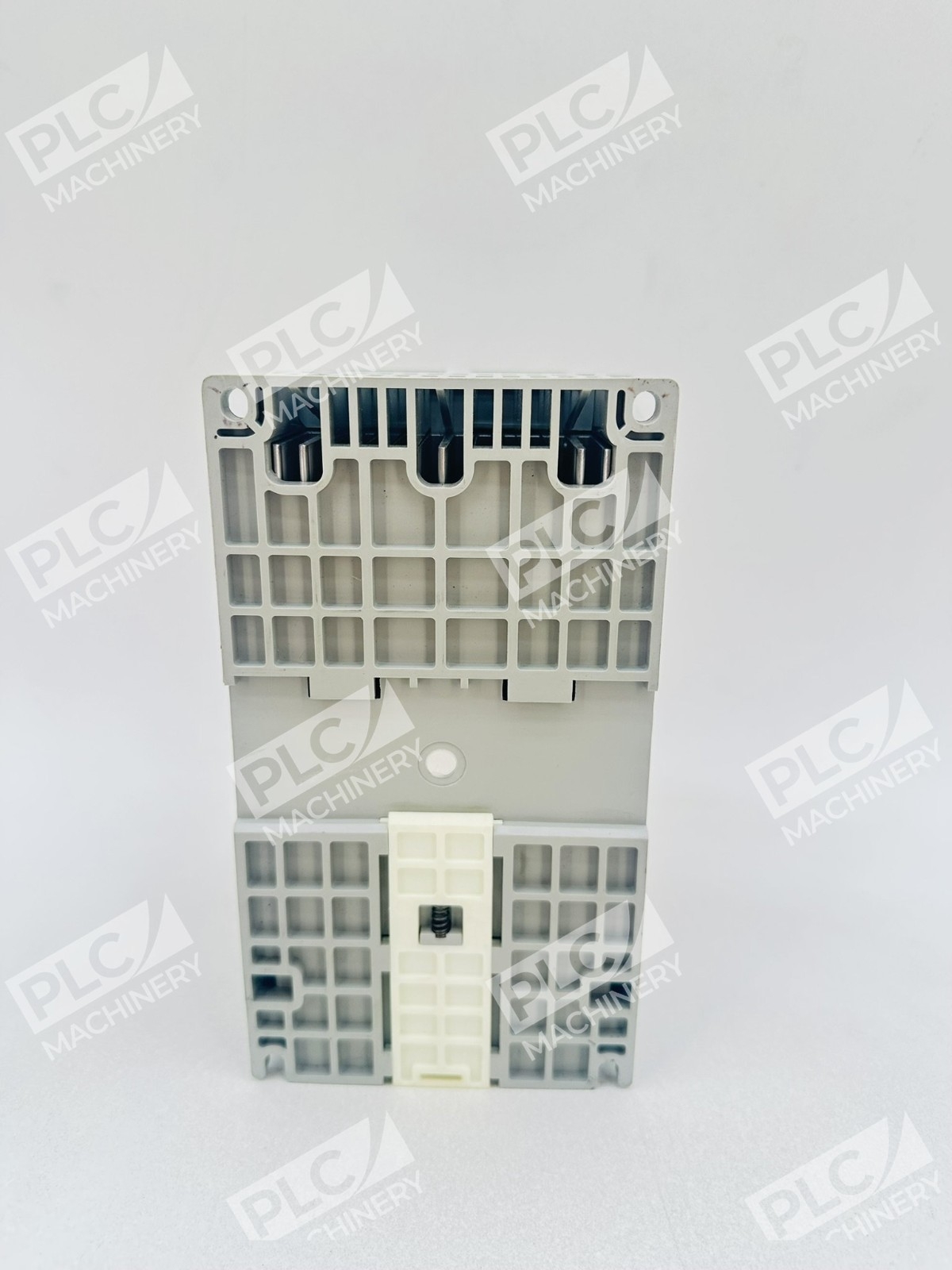

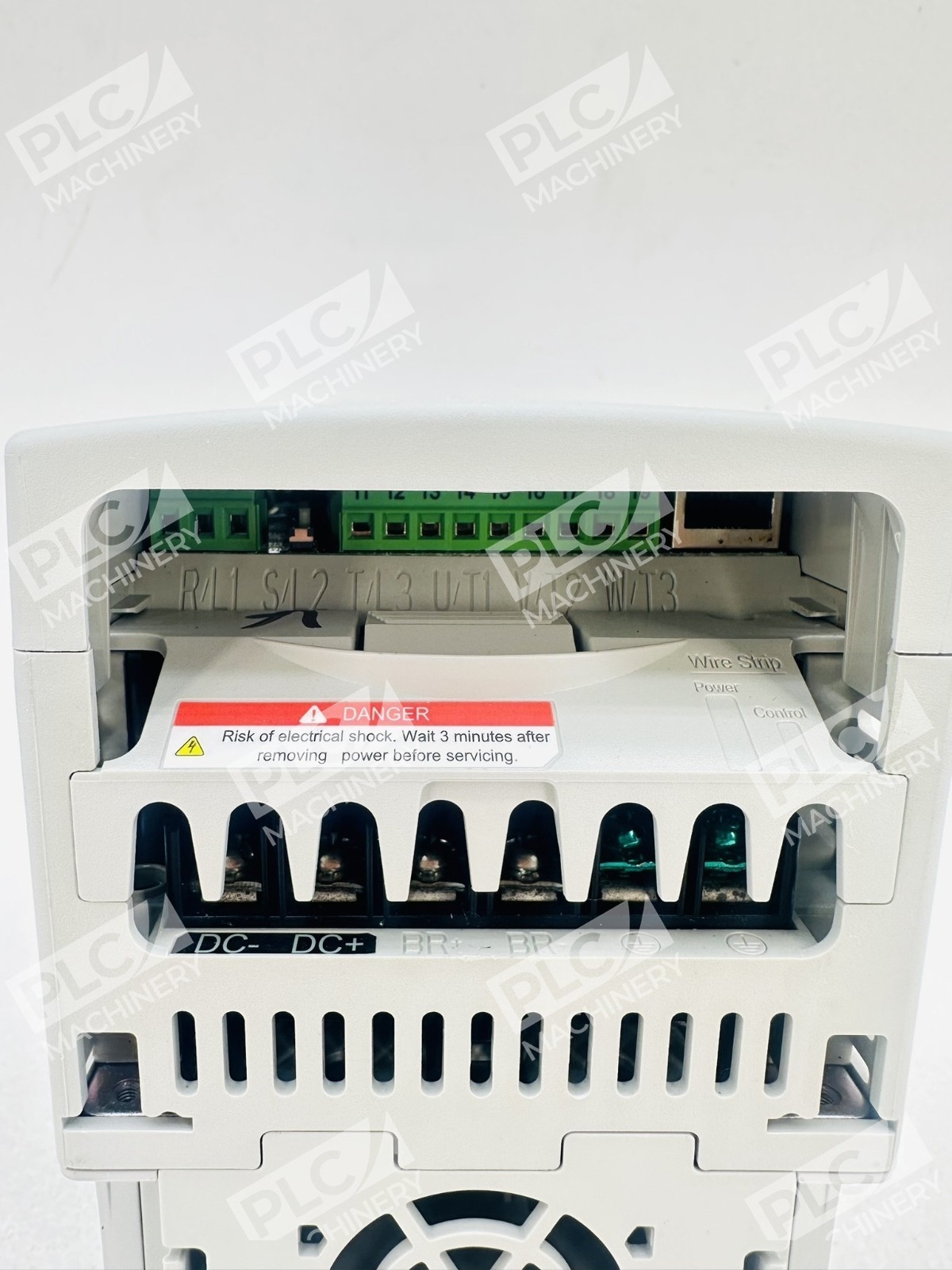

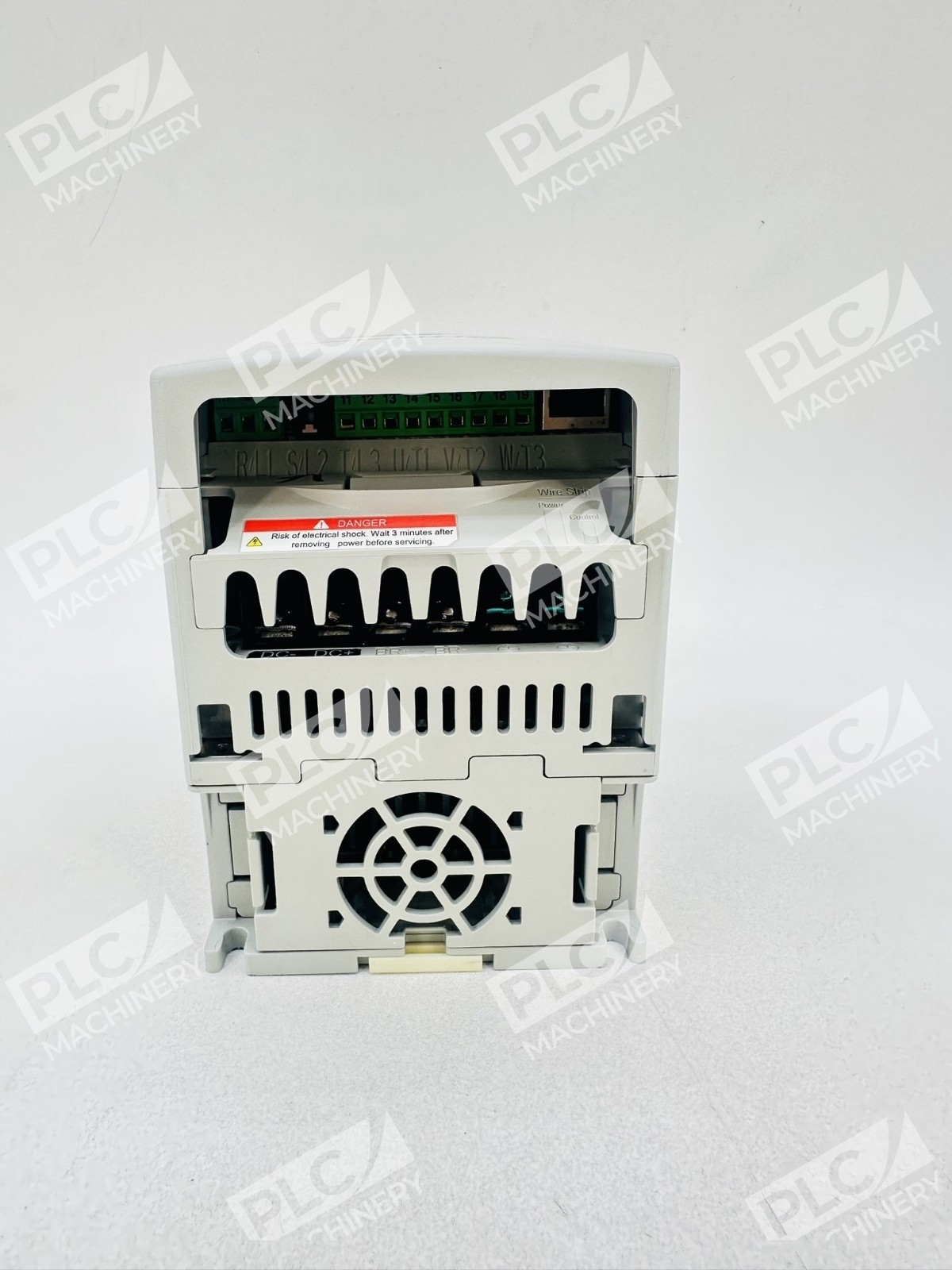

- Mounting: Panel mount with M4 (#8-32) screw fasteners (14–17 lb-in torque)
- Communication: Integral RS-485; supports CIP protocol
- Operating Temperature: 14°F to 122°F (–10°C to 50°C) with clearance spacing
- Control Modes: V/Hz, Sensorless Vector Control (SVC)
- Certifications: UL508C, CAN/CSA-22.2, CE, EMC, AS/NZS 1997 Group 1 Class A
- Filter: No CE-compliant filter included
- Compatible Models: PowerFlex 40P series 480V, 3-phase applications
Typical Applications
The 22D-D1P4N104 suits light-duty variable-speed control in:
- Conveyor systems and material handling
- Pump and fan speed control
- Packaging machinery and diverters
- Fiber spinning and textile processing
- Machine tools requiring low-power drive control
- OEM embedded motion-control systems with compact panel space constraints
Compatibility & Replacements
Compatible With
- Rockwell Automation ControlLogix and CompactLogix controllers via EtherNet/IP gateway
- Studio 5000 Logix Designer programming environment
- DriveExecutive and Drive Tool SP PC configuration software
- Master-slave networked configurations (up to 31 drives per RS-485 segment)
- EtherNet/IP and PROFINET integration via optional gateway modules
Replaces / Drop-In Replacement For
The 22D-D1P4N104 replaces earlier PowerFlex 40 models in the 0.4 kW, 480V class. Verify compatibility with your system integrator before ordering if substituting for legacy drives.
Works With
- Studio 5000 Logix Designer and Add-On Instructions (AOIs)
- Common Industrial Protocol (CIP) messaging
- RS-485 serial communication networks
- DriveExecutive monitoring and diagnostic software
- Modbus RTU over RS-485 (with configuration)
