Overview

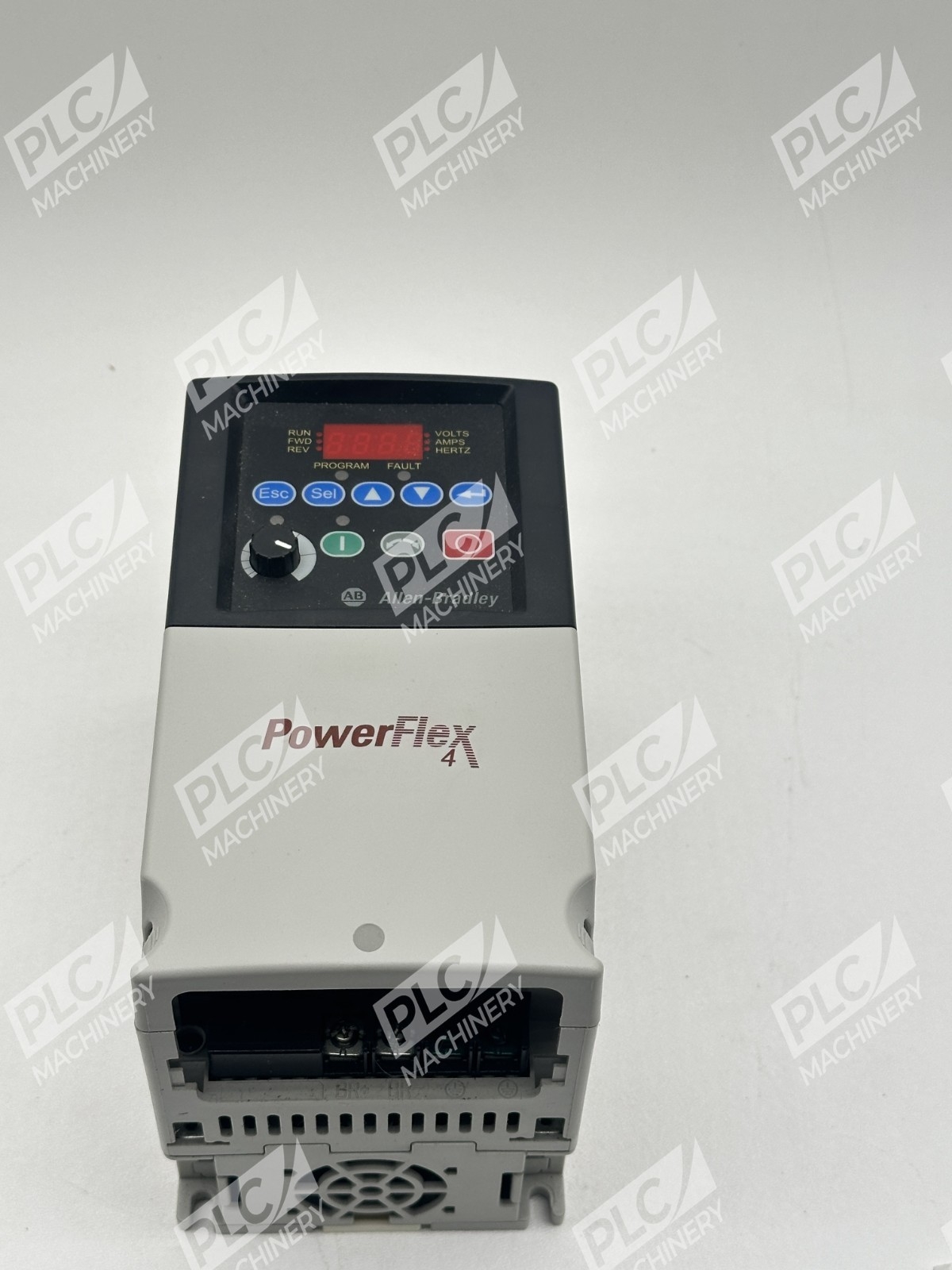

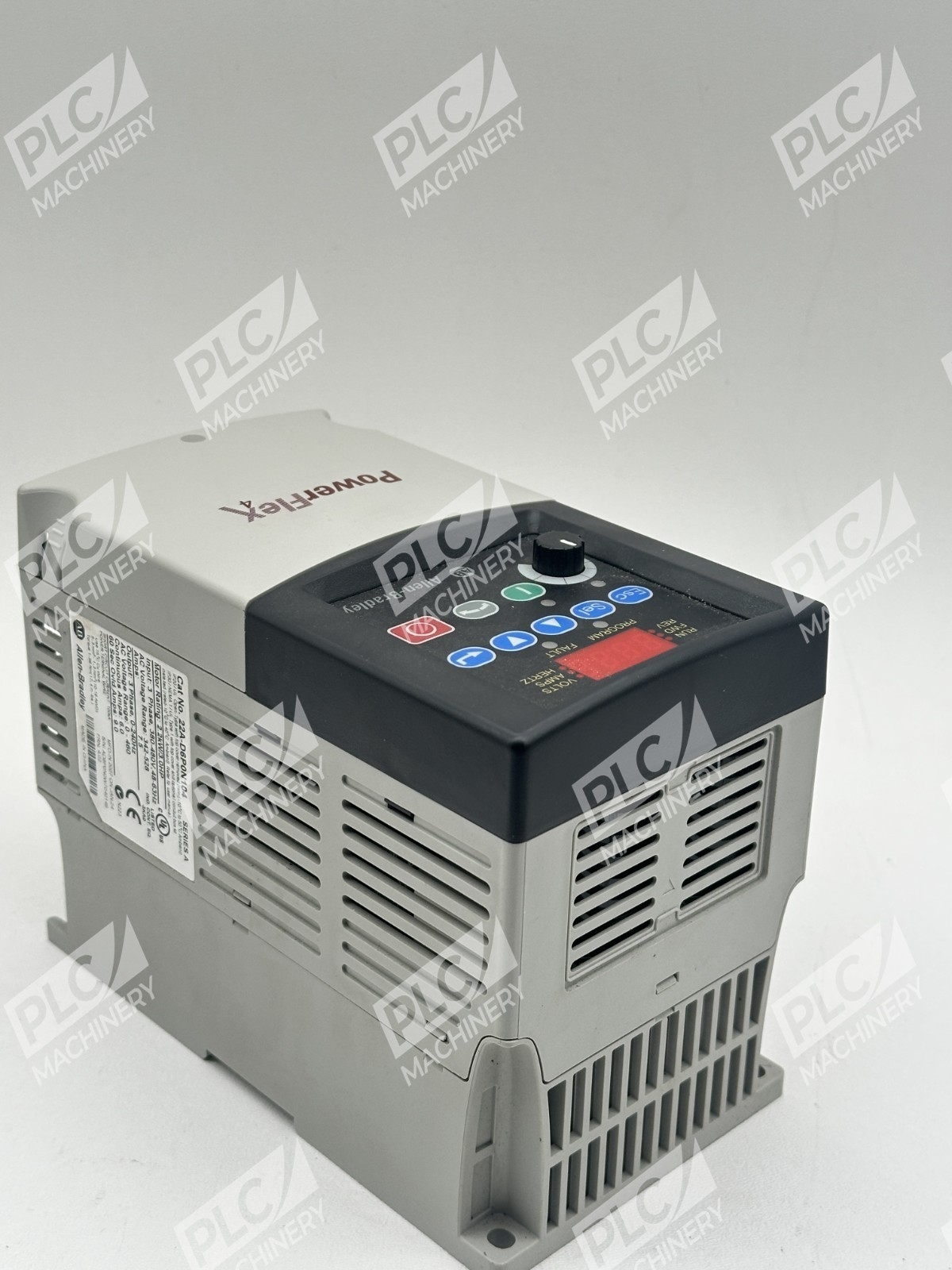

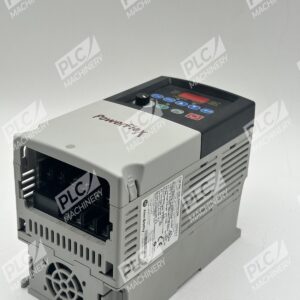

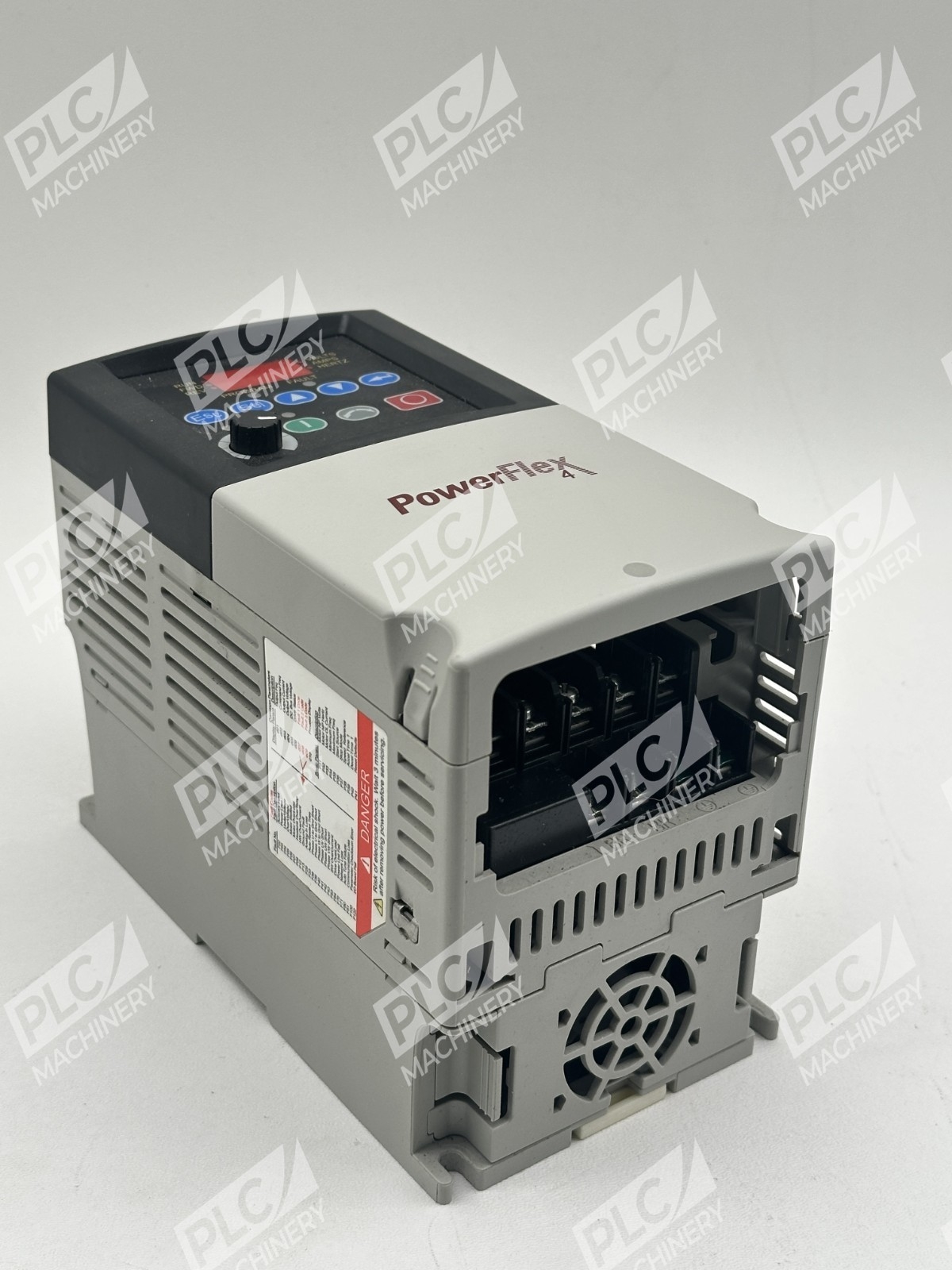

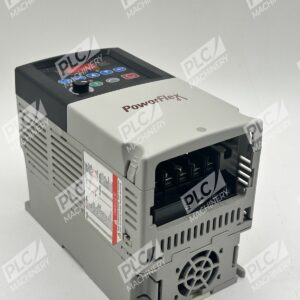

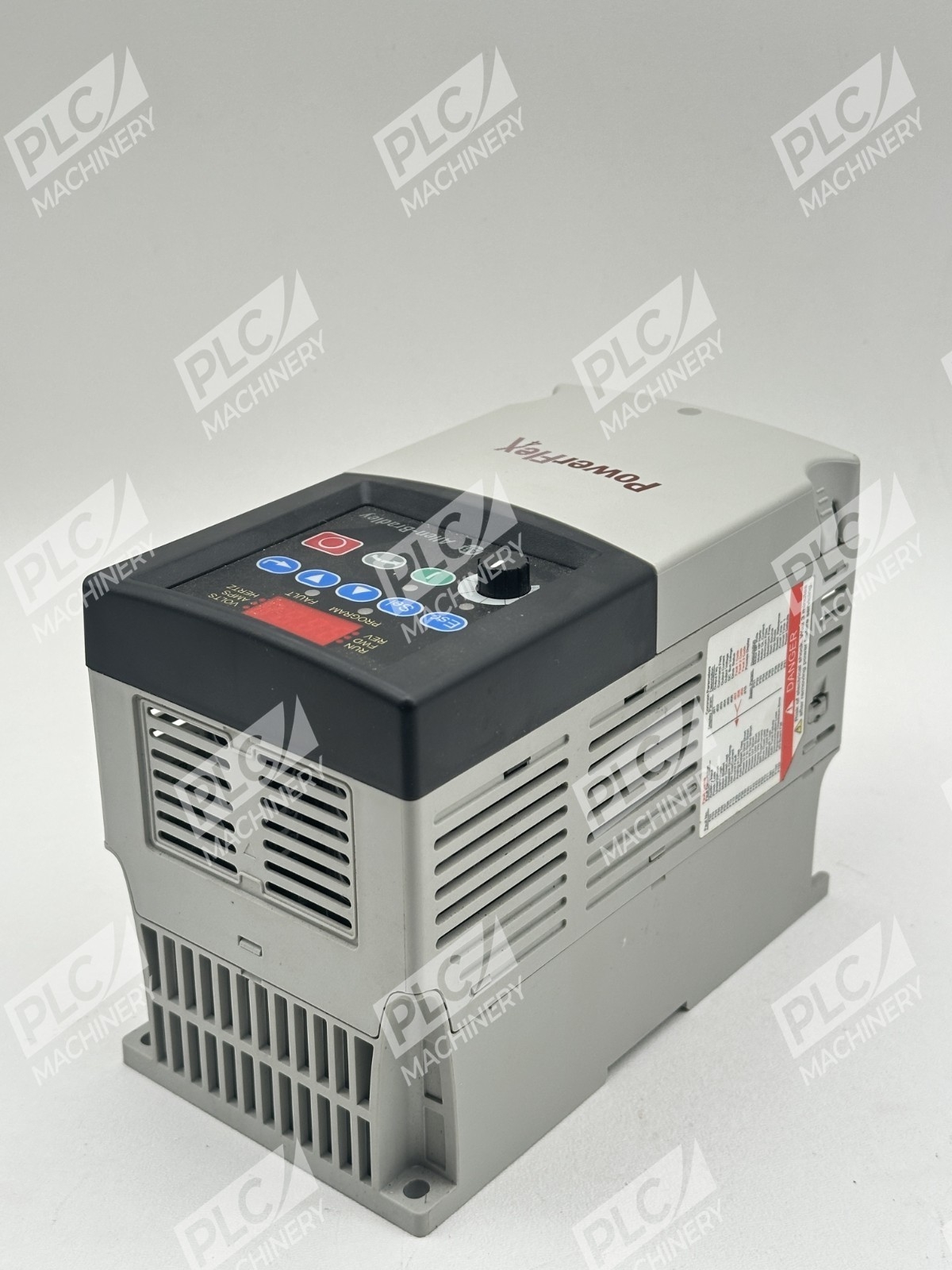

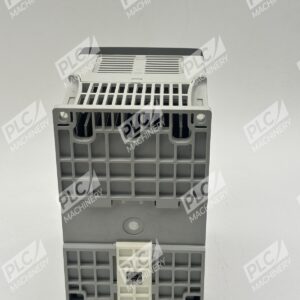

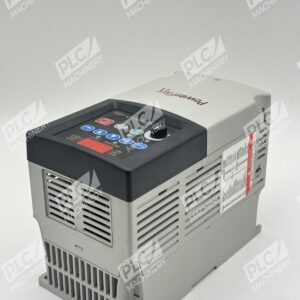

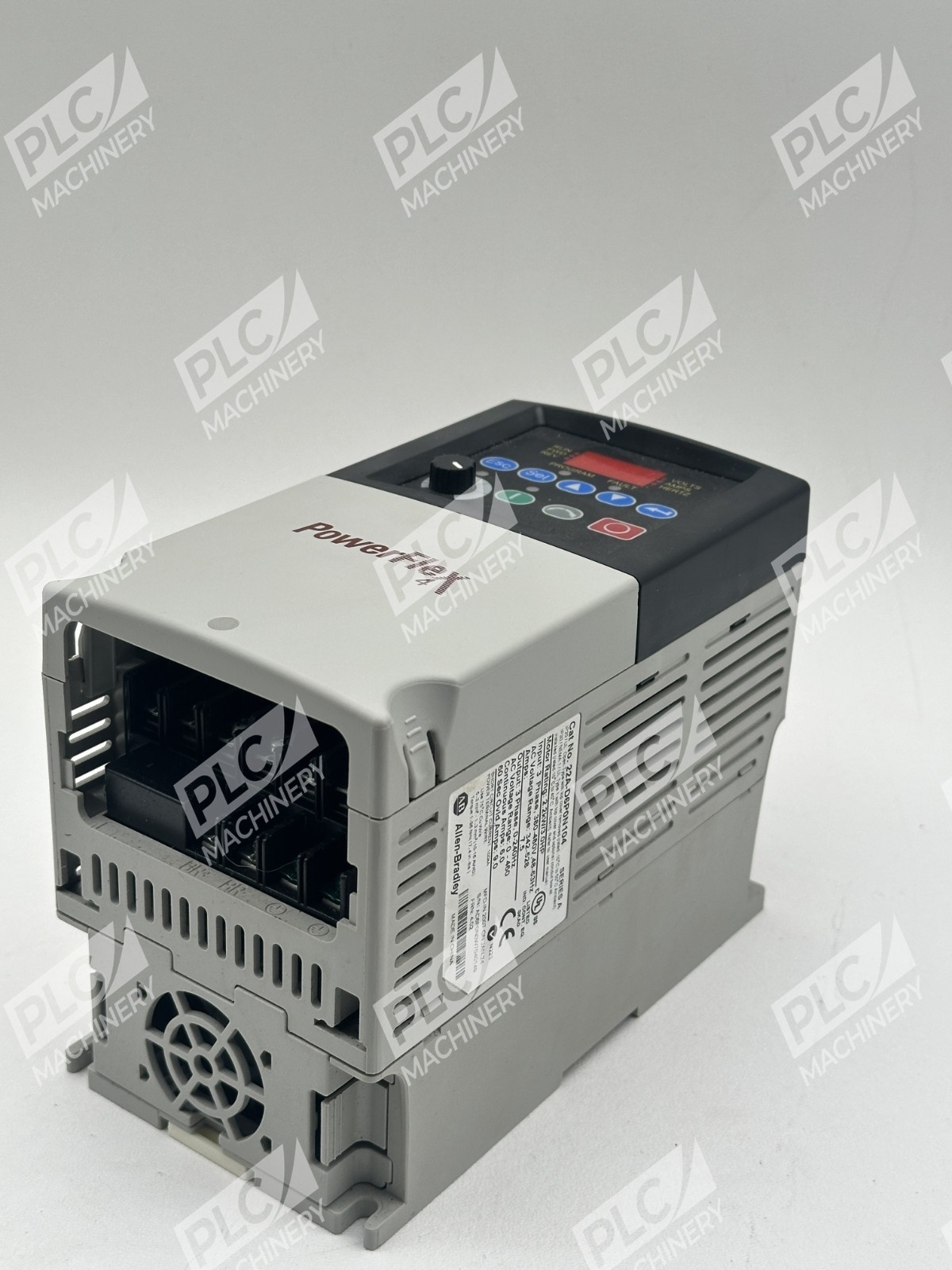

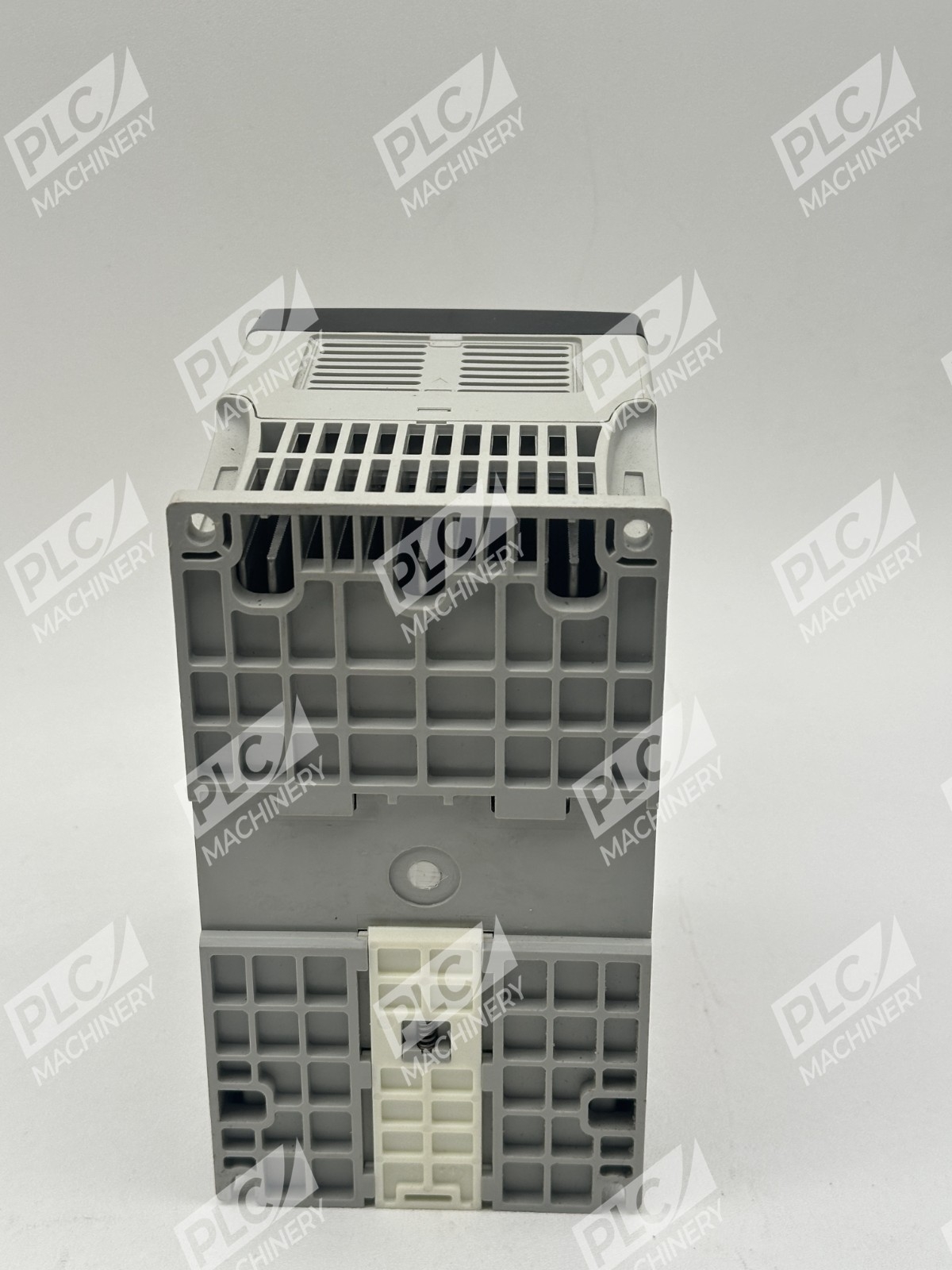

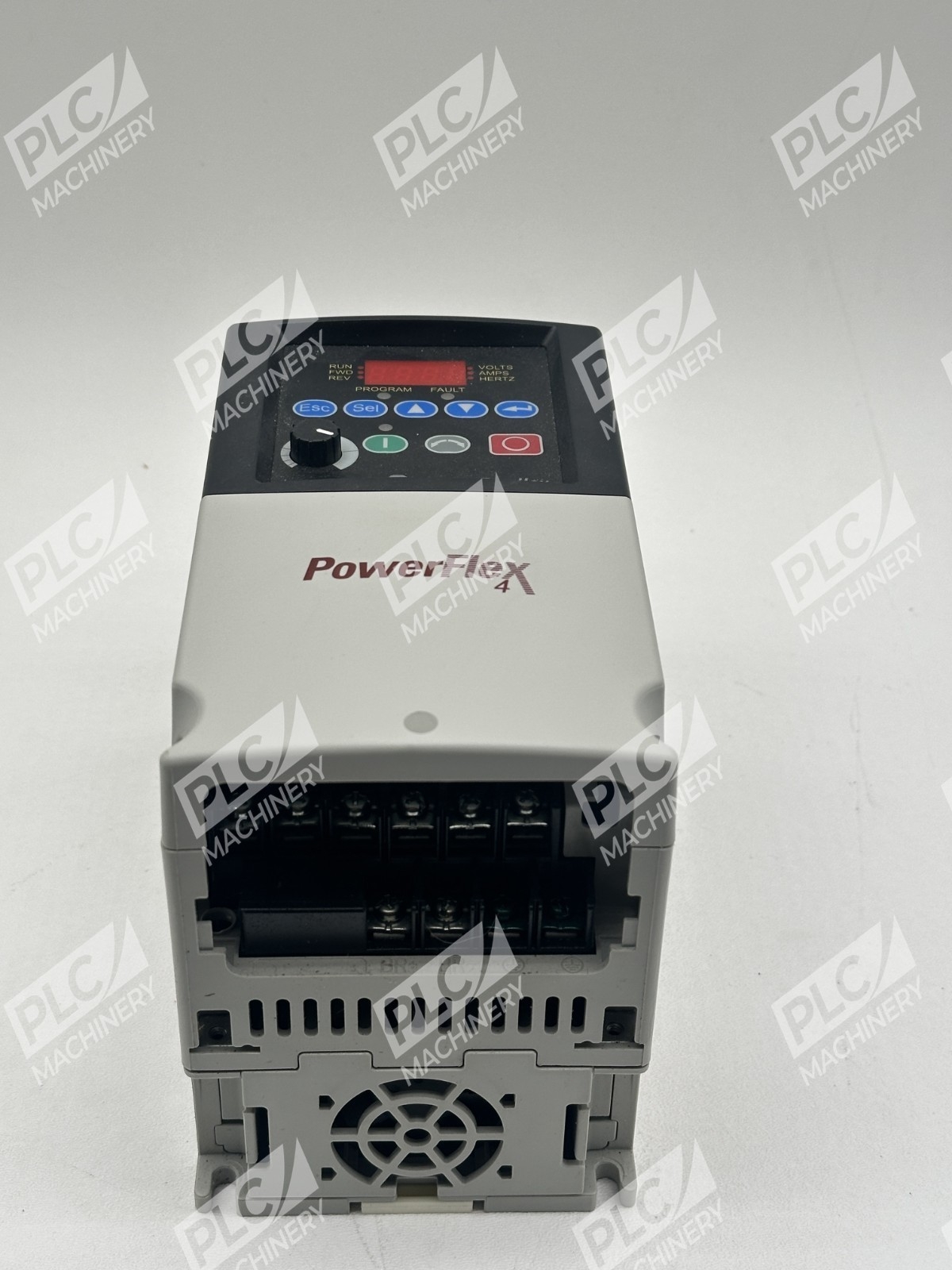

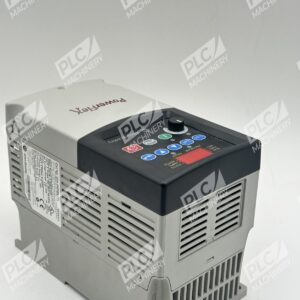

The Allen-Bradley 22A-D6P0N104 is a PowerFlex 4 adjustable frequency AC drive designed for three-phase industrial motor control applications. This unit operates at 480 VAC input (340–528 V tolerance) and delivers up to 6.0 A continuous output current, making it ideal for controlling motors up to 3 horsepower (2.2 kW). The compact Frame B, IP20 open enclosure with fixed digital keypad and LED display provides cost-effective, modular speed control suitable for fans, pumps, conveyors, and other general-purpose industrial loads.
Key Features
- Programmable Output Frequency: 0–240 Hz configurable for varied motor speed control
- High Efficiency: 97.5% typical efficiency across the speed range with a 0.98 power factor
- Sensorless Vector Control: Maintains stable speed regulation even at high torque levels
- Compact Design: Frame B mounting with integrated thermal protection and motor circuit protector
- Analog and Digital Control Inputs: 4–20 mA, 0–10 V DC, and 18–24 V digital inputs for flexible integration
- Programmable Control Relay Output: Form C relay for auxiliary equipment activation

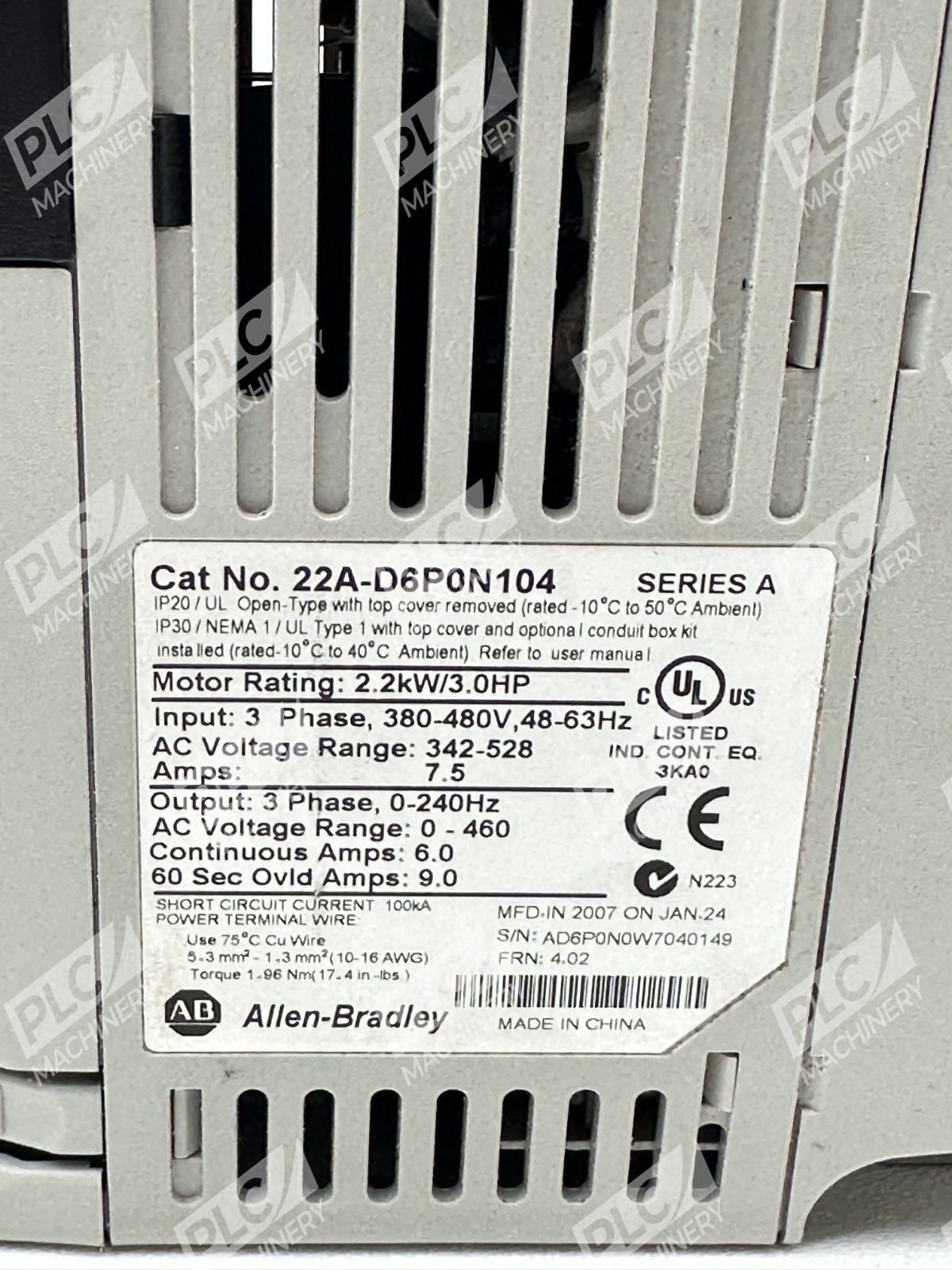

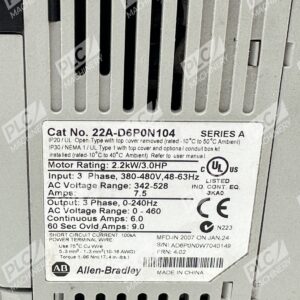

Technical Specifications
- Input Voltage Range: 340–528 VAC, 3-phase
- Frequency Tolerance: 47–63 Hz input, ±10% voltage tolerance
- Output Current Rating: 6.0 A continuous
- Power Rating: 2.2 kW (3.0 HP)
- Output Frequency: 0–240 Hz (programmable)
- Efficiency: 97.5% (typical)
- Enclosure: Frame B, IP20 (open), 15 mm knockouts
- Dimensions: 140 mm wide × 109.9 mm deep × 74.3 mm high (mounting surface)
- Weight: Approximately 1.65 kg (3.6 lbs)
- Maximum Short-Circuit Rating: 100,000 A (Symmetrical)
- Control Power Dissipation: 100 Watts
- Digital Input Current: 6 mA (18–24 V or 0–6 V logic)
- Analog Input Impedance: 250 Ω (4–20 mA); 100 kΩ (0–10 V)
- Output Relay Rating: 3.0 A at 30 V DC, 125 V AC, 240 V AC (resistive)
Typical Applications
The PowerFlex 4 22A-D6P0N104 is widely used for speed control in:
- Centrifugal pumps and positive displacement pump systems
- HVAC fan and blower units
- Conveyor belt drives and material handling equipment
- Machine tool spindle and feed drive control
- Small process applications requiring variable speed regulation
Compatibility & Replacements
Compatible With
- Allen-Bradley 140M-C2E-C10 motor contactor
- Allen-Bradley 100-C09 auxiliary contactor
- Standard three-phase 480 VAC industrial power systems
- AC induction motors rated 1.5–3 HP at 480 V, 3-phase
- Standard industrial control relays and soft-start bypass equipment
- RS485 serial communication for remote monitoring (where applicable)
Replaces / Drop-In Replacement For
The 22A-D6P0N104 serves as a direct replacement for earlier PowerFlex 4 firmware revisions in three-phase 3 HP applications. For exact compatibility with legacy systems, consult the drive manual or verify with your system integrator, as some applications may require control parameter adjustment during commissioning.
Works With
- Allen-Bradley PowerFlex 4 family drives and common contactors
- Standard industrial three-phase motor protection via dedicated fuses (UL Class J, CC, T, or BS88)
- Standalone machine control without additional PLC or master controller required
- Fixed digital keypad and LED display for local parameter setup and monitoring
- Manual potentiometer input for speed reference (1–10 kΩ, 2 W minimum)
