Overview

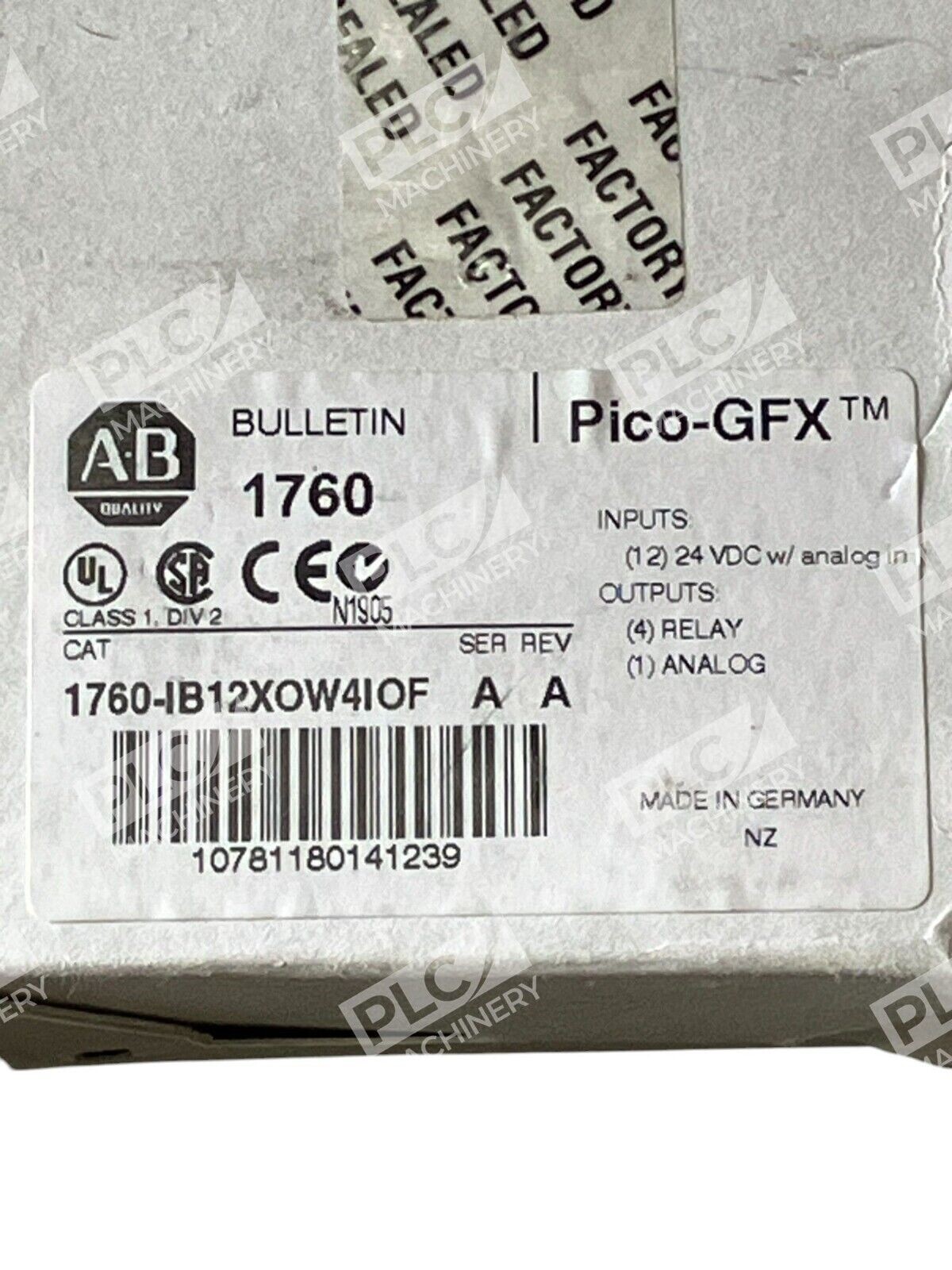

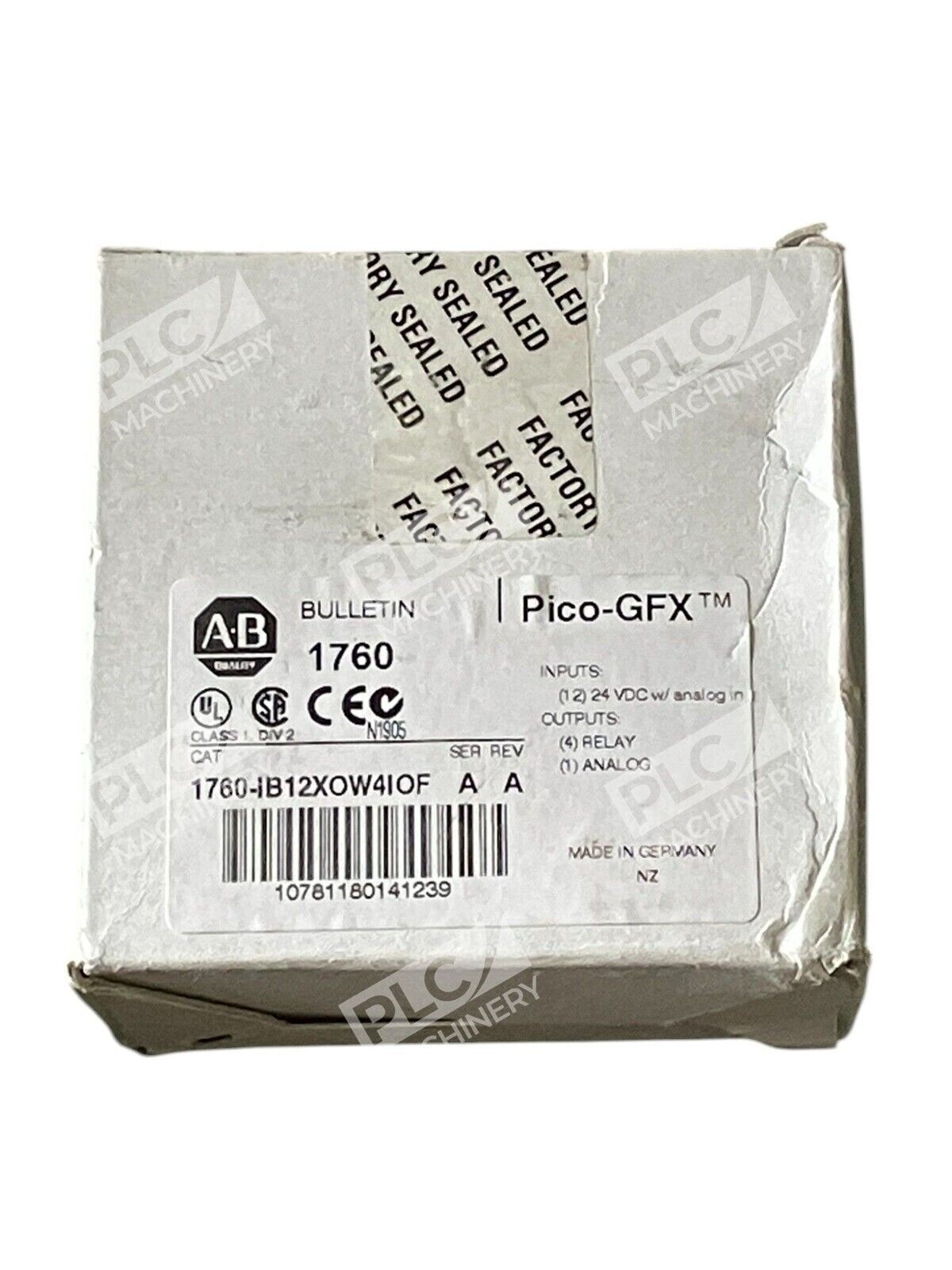

The Allen-Bradley 1760-IB12XOW4IOF is a Pico GFX analog combination I/O module engineered for seamless integration with Allen-Bradley Pico GFX controllers. This compact expansion module bridges discrete digital I/O, analog inputs, and relay control on a single snap-fitted module. Built for applications demanding mixed-signal processing—sensors, analog transducers, and relay load switching—this module delivers proven reliability in industrial automation.
Key Features
- 12 Digital Inputs, 4 Relay Outputs: Comprehensive I/O density in a compact form factor
- Dual-Purpose Inputs: Four inputs configurable as analog inputs; four inputs usable as high-speed counters
- 24V DC Rated: Standard industrial voltage with low on-state current (3.3 mA typical on standard inputs)
- Analog Signal Processing: 0–10V DC signal range with 0.01V resolution and 11.2 kΩ input impedance
- Snap-Fitted Mounting: Direct attachment to GFX processor back panel; no external wiring harness required
- Extended Cable Support: Up to 328 feet for digital inputs; 98 feet for analog inputs
Technical Specifications
- Electrical isolation to outputs, PC interface, memory module, Pico-link network, and expansion I/O
- Relay output rated at 4.2 A maximum
- Analog input resolution: 10-bit (0–1023 counts)
- Maximum unshielded cable length (digital): 328 feet; (analog): 98 feet
- Operating temperature range: −25°C to +55°C
- Weight: 0.399 lb (181 g)
- Dimensions (unmounted): 88 mm W × 90 mm H × 44 mm D
- Mounting type: Snap-fitted to processor unit
- Enclosure rating: IP20
- Certifications: C-UL-us, CE, Class 1 Division 2
Typical Applications
The 1760-IB12XOW4IOF excels in compact automation systems requiring mixed I/O types—such as sensor arrays with 4–20 mA or 0–10V analog feedback, relay-switched loads (motors, solenoids, indicators), and high-speed pulse counting (tachometers, encoders). Common deployments include packaging machinery, process control cabinets, legacy system upgrades, and distributed control nodes where space is constrained.
Compatibility & Replacements
This module is designed exclusively for Allen-Bradley Pico and Pico GFX-70 controller series (1760 family). Only one GFX I/O module and one Pico expansion module can be connected per controller. The 1760-IB12XOW4IOF has been discontinued by the manufacturer; however, surplus and refurbished units remain available through authorized distributors. For newer applications, consider alternative Pico expansion modules or modern CompactLogix I/O cards. Verify controller firmware compatibility before field installation.
