Overview

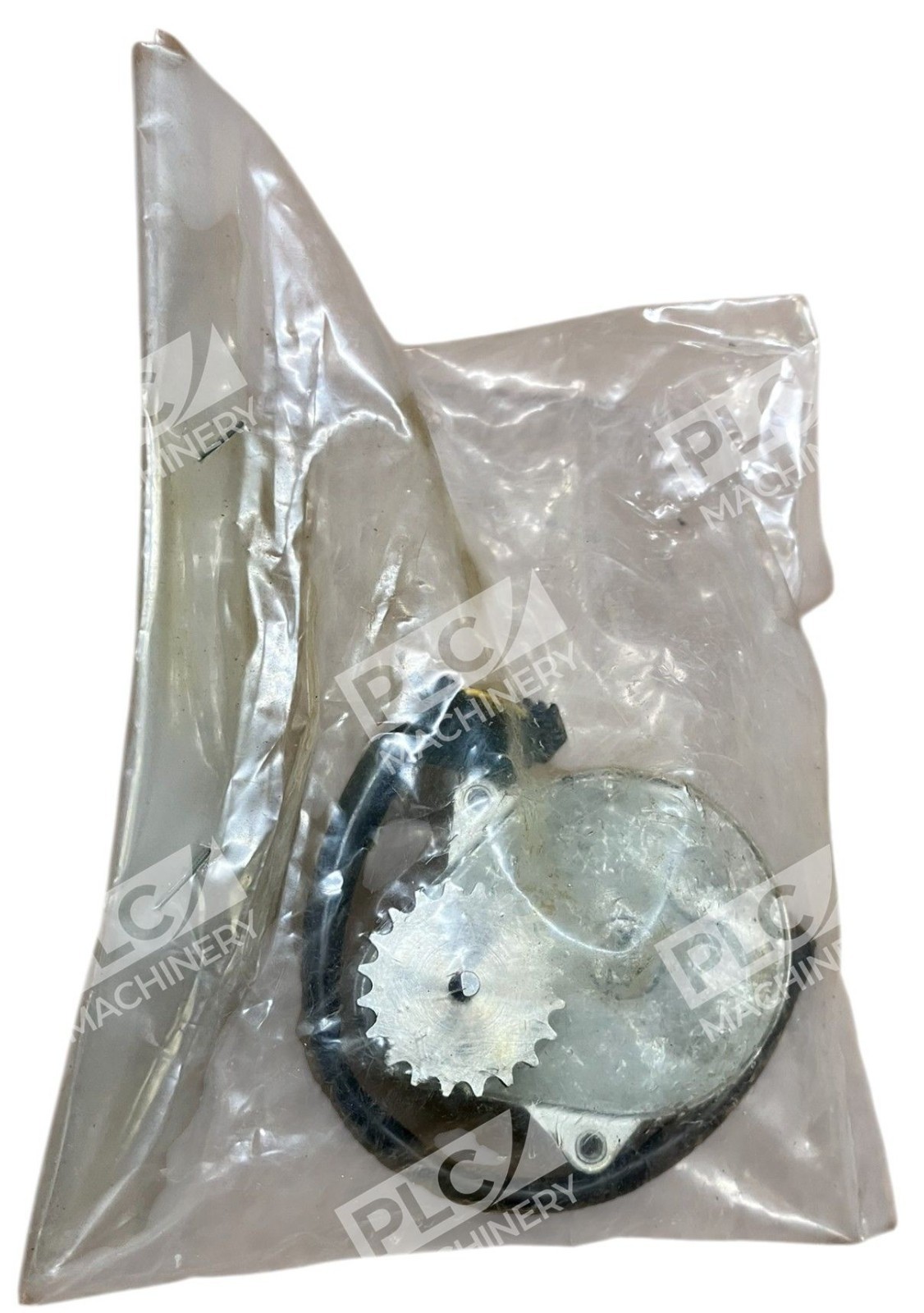

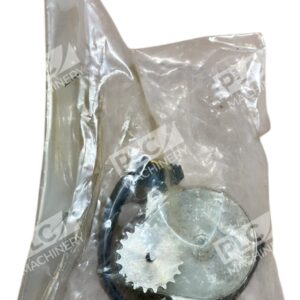

The Airpax D82263-M1 is a permanent magnet stepper motor operating at 12V DC, engineered for reliable positioning and motion control in industrial and commercial applications. This synchronous electric motor features a proven design with claw-tooth stator configuration and multi-pole ring magnet rotor assembly, delivering consistent step accuracy and repeatability. The unit is supplied in new, open-box condition, ready for immediate integration into existing systems.
Key Features
- Permanent magnet stepper motor with stable holding torque
- 7.5° step angle for precise 48-step-per-revolution positioning
- 75:1 gear ratio for increased torque output with compact form factor
- 12V DC supply voltage with 147 Ω per coil impedance
- Claw-tooth pole stator construction for consistent torque delivery
- Standard industry configuration enables drop-in replacement compatibility
Technical Specifications
The Airpax D82263-M1 delivers the mechanical precision and electrical stability required for motion control systems across manufacturing, automation, and instrumentation sectors. Its stepper design eliminates cumulative positioning error within each 4-step electrical cycle, ensuring accurate and repeatable motion over extended operation.
Typical Applications
- CNC machine positioning and spindle indexing
- Conveyor systems and material handling equipment
- Precision assembly automation
- Medical and laboratory instrumentation
- Print head positioning in industrial printing systems
- Automated test equipment and data acquisition systems
Compatibility & Replacements
Compatible With
- 12V DC power supplies and battery systems
- Stepper motor drivers and motion control cards
- Industrial PLC and motion control systems
- Standard 2-phase stepper motor configurations
Replaces / Drop-In Replacement For
The Airpax D82263-M1 follows standard industry configuration for stepper motors, making it suitable as a drop-in replacement in systems requiring 12V DC stepper motors with 7.5° step angles and 75:1 gear reduction. Verify compatibility with your system integrator before ordering to ensure mechanical and electrical specifications match your application requirements.
Works With
- Parallel and serial stepper motor driver interfaces
- Pulse-and-direction motion control protocols
- Industrial motion control software and firmware
- Standard 2-phase stepper motor wiring harnesses
