Overview

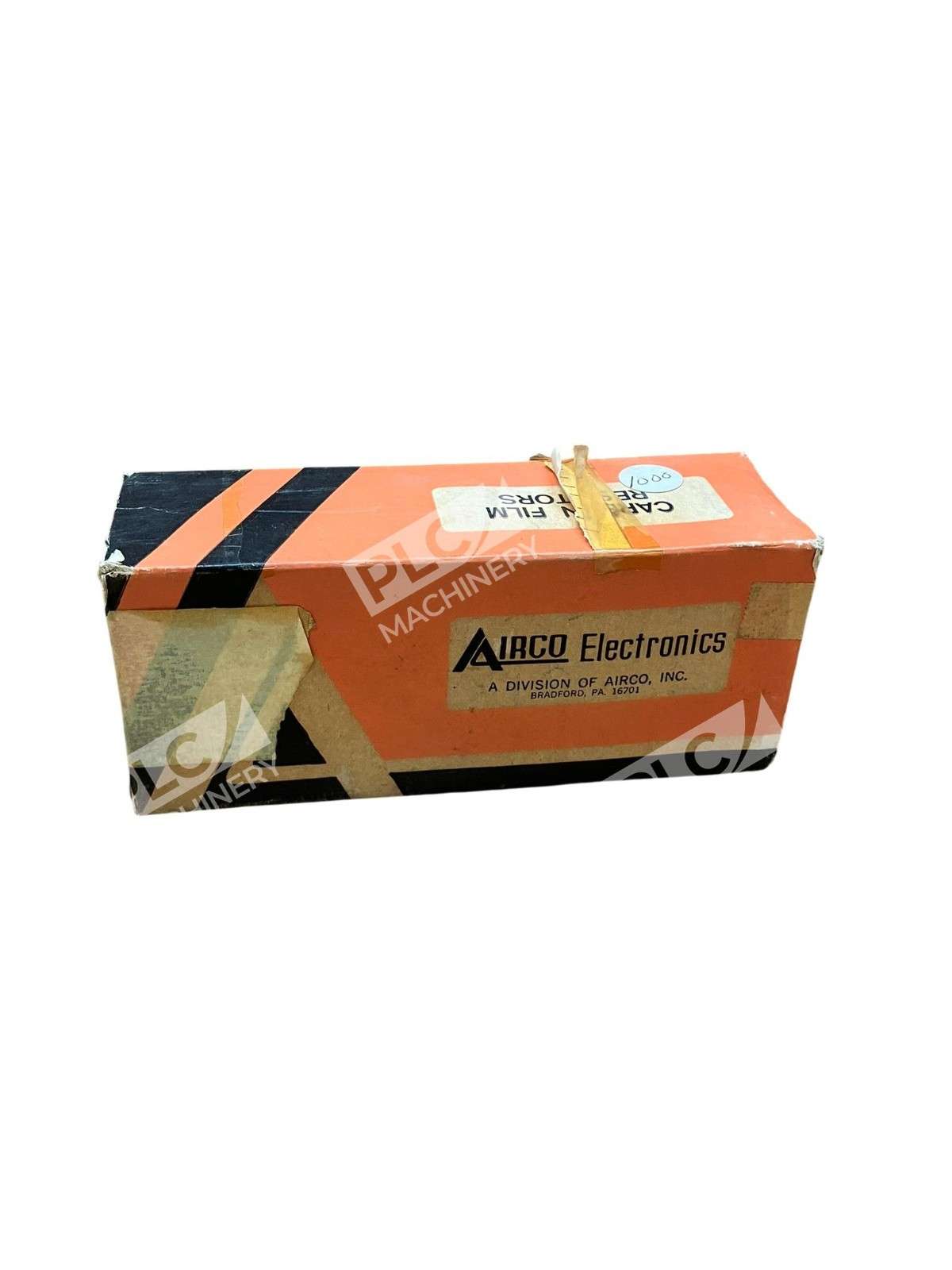

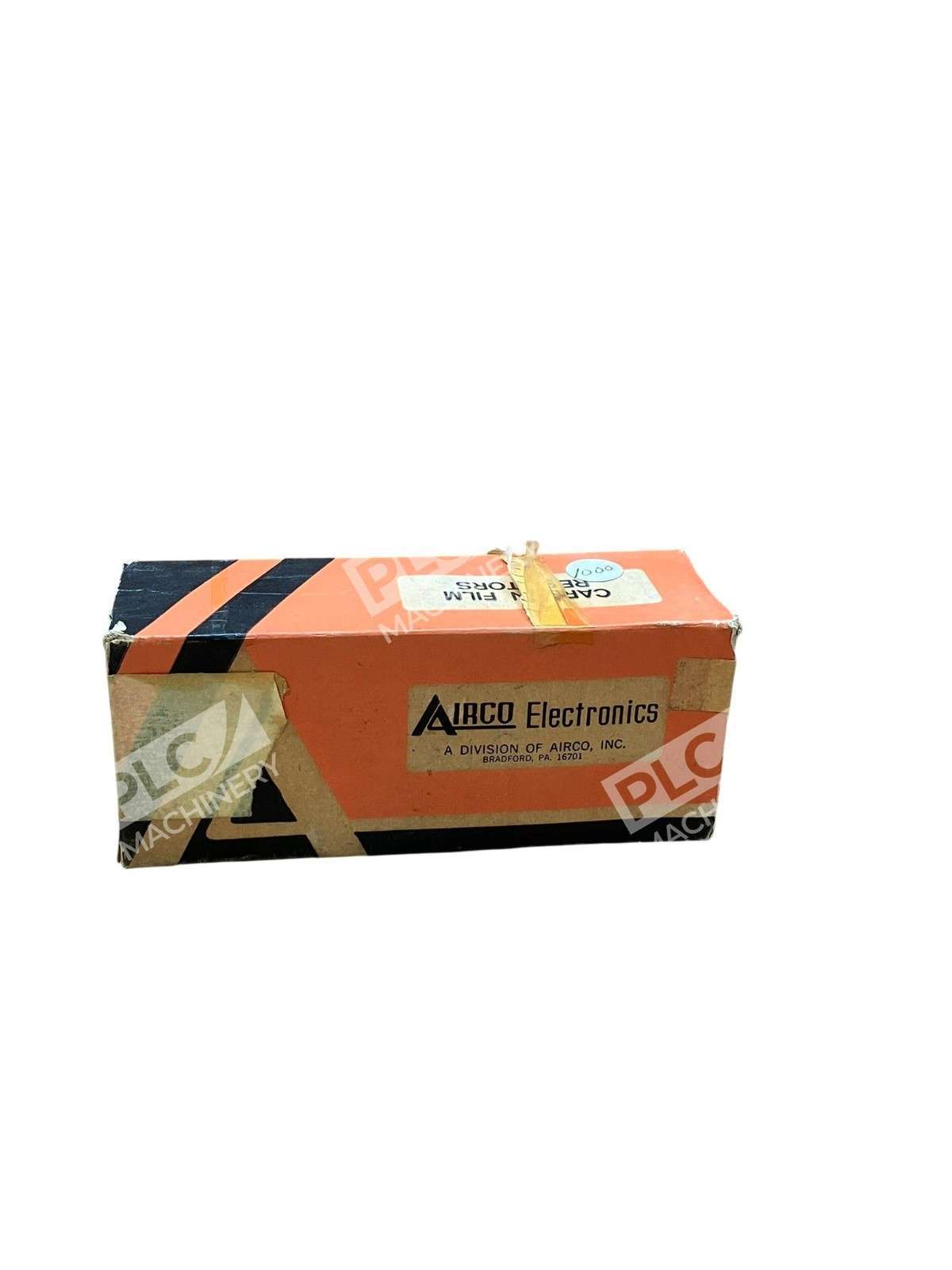

The AICO Electronics CF 1/2 carbon film resistor is a precision fixed resistor designed for general-purpose and industrial electronic applications. With a resistance value of 2.4 ohms and a 0.5W (1/2 watt) power rating, this component delivers stable performance across a wide range of circuit configurations. The ±5% tolerance ensures reliable current limiting, voltage division, and load balancing in power supplies, amplifiers, and control circuits. This bulk offering of 1,000 units per box provides excellent value for production environments, repair facilities, and stock replenishment.
Key Features

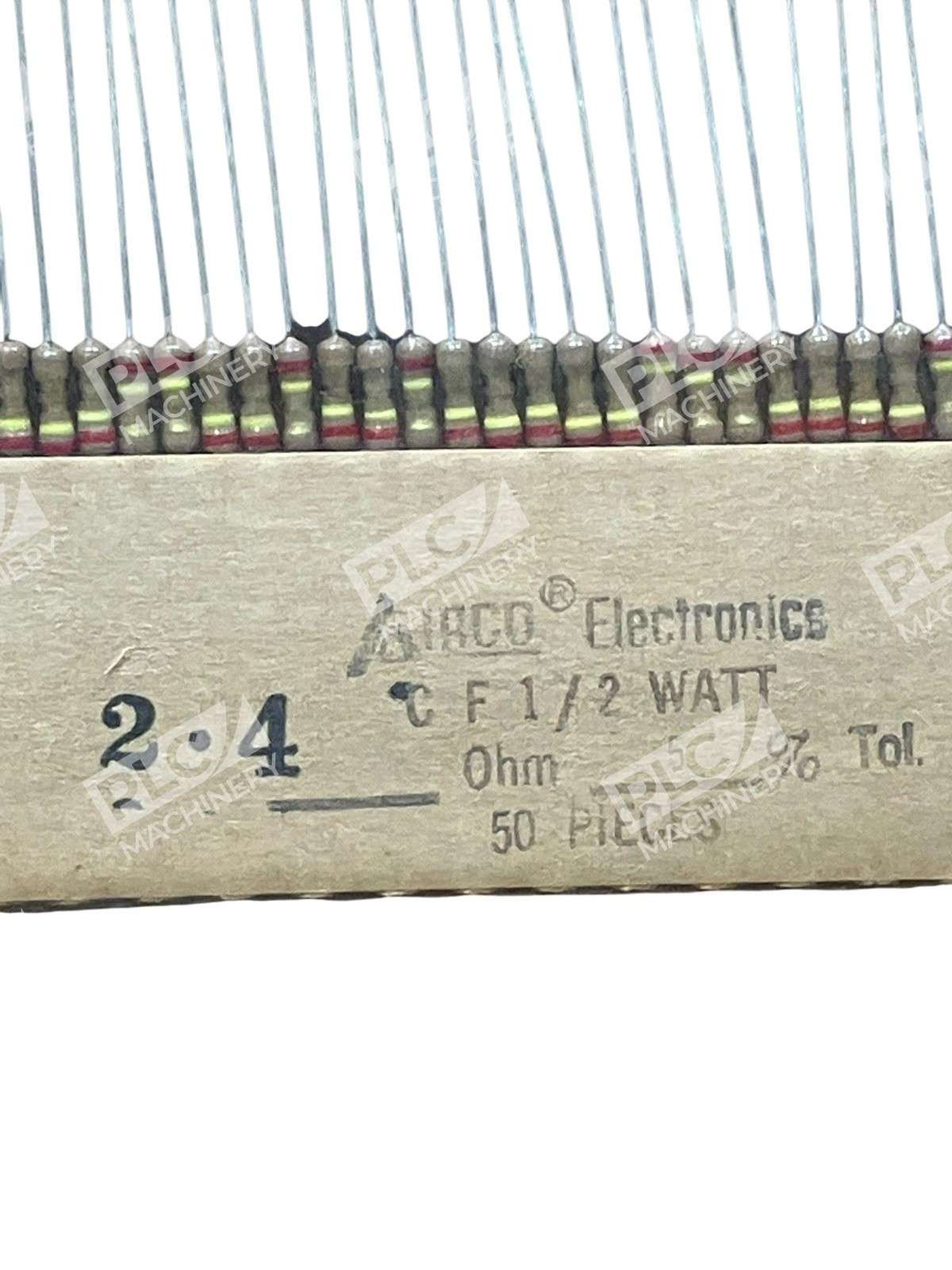

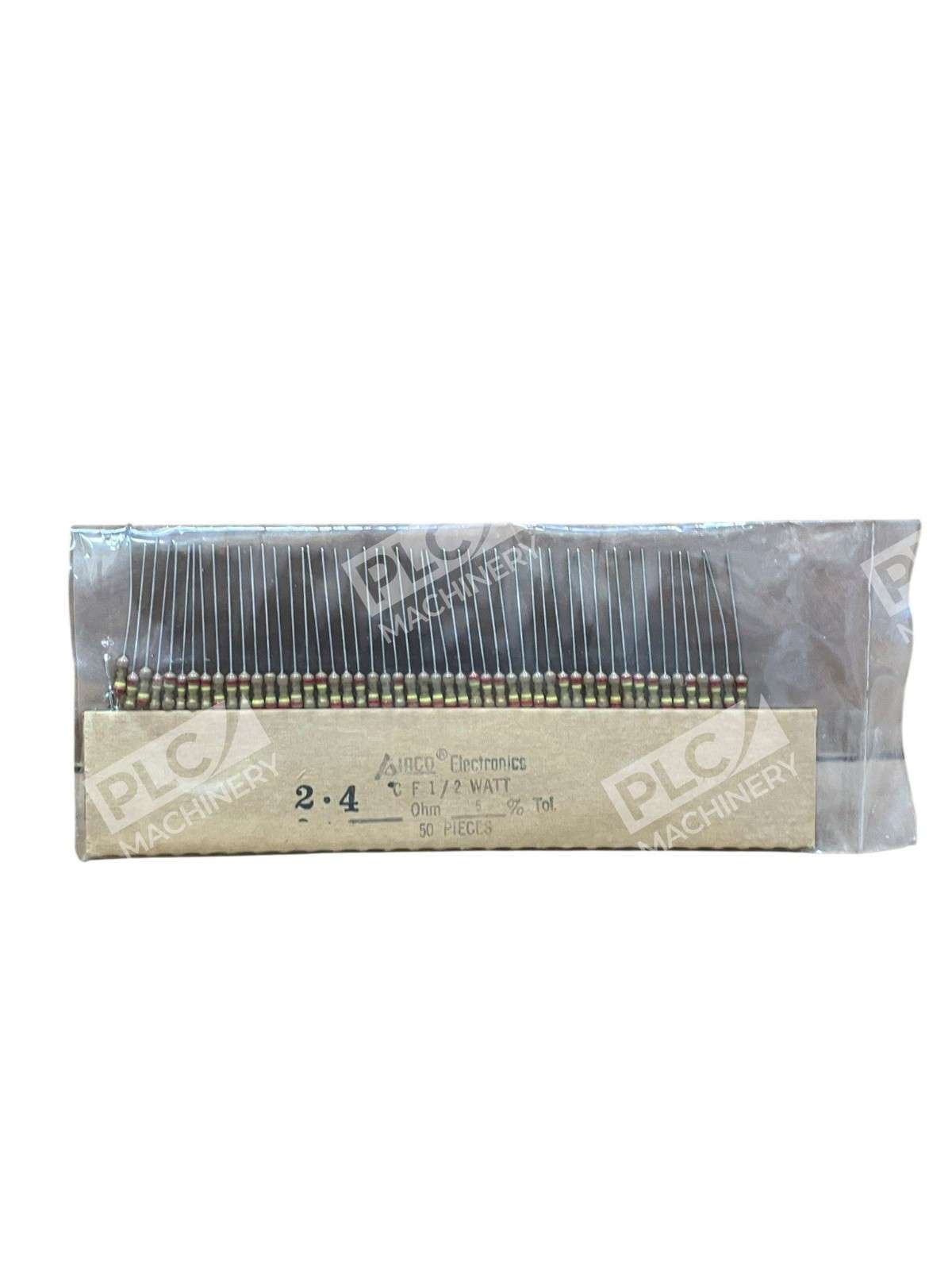

- Resistance: 2.4 ohms ±5% tolerance
- Power Rating: 0.5W (1/2 watt) continuous duty
- Technology: Carbon film construction for stable long-term performance
- Packaging: Axial leads with color-band identification

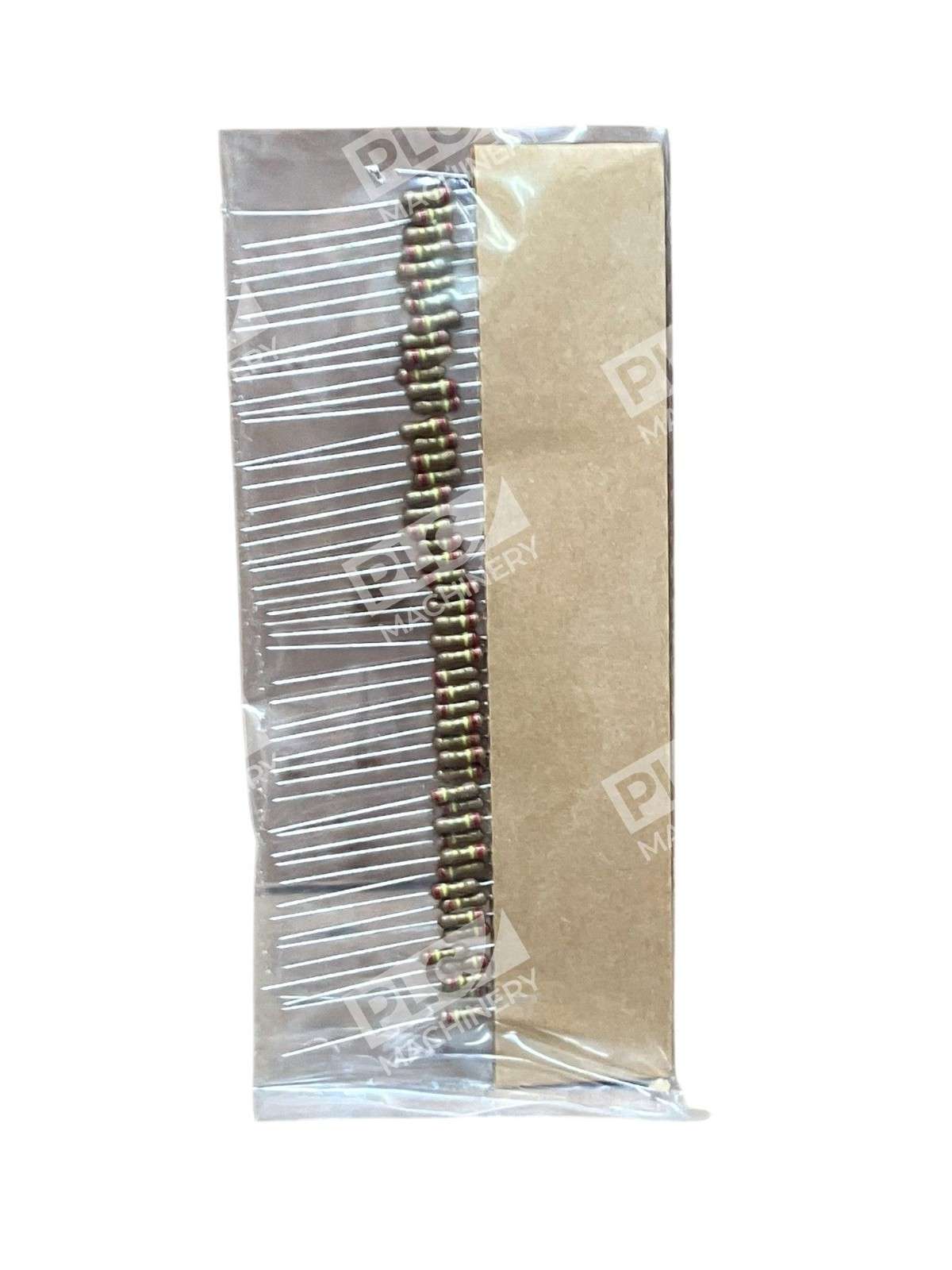

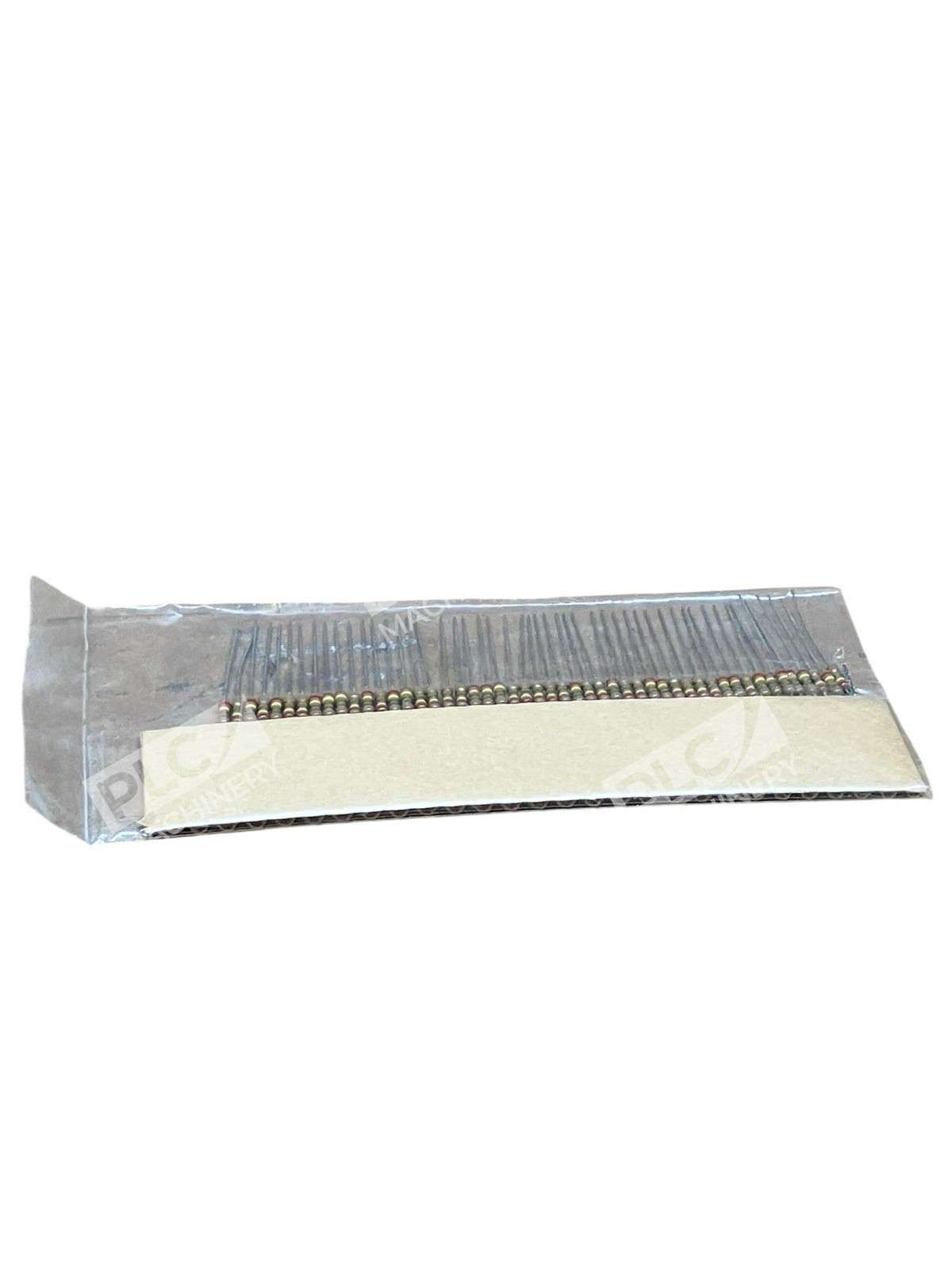

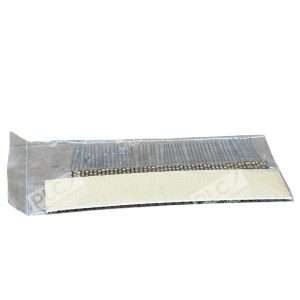

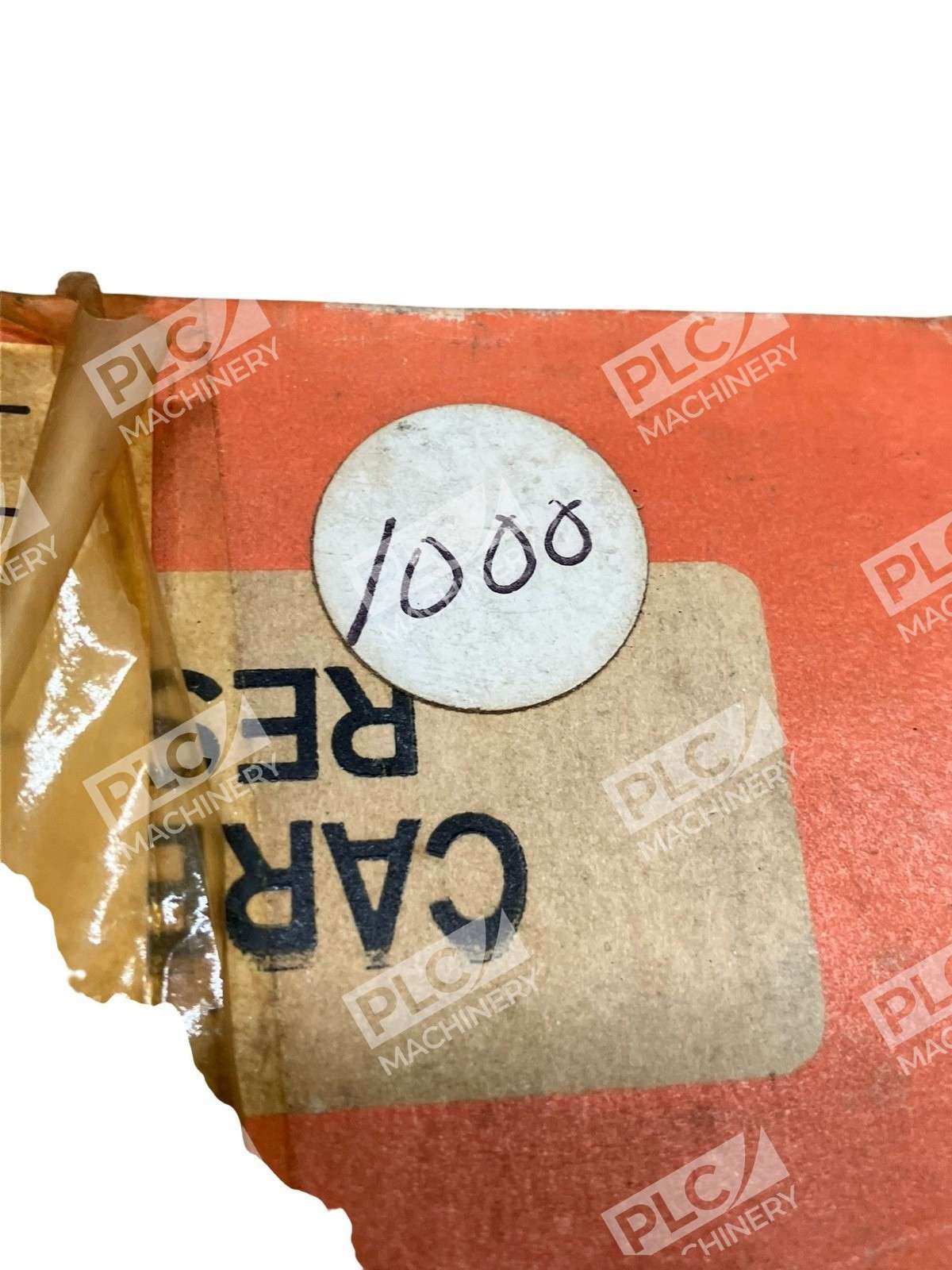

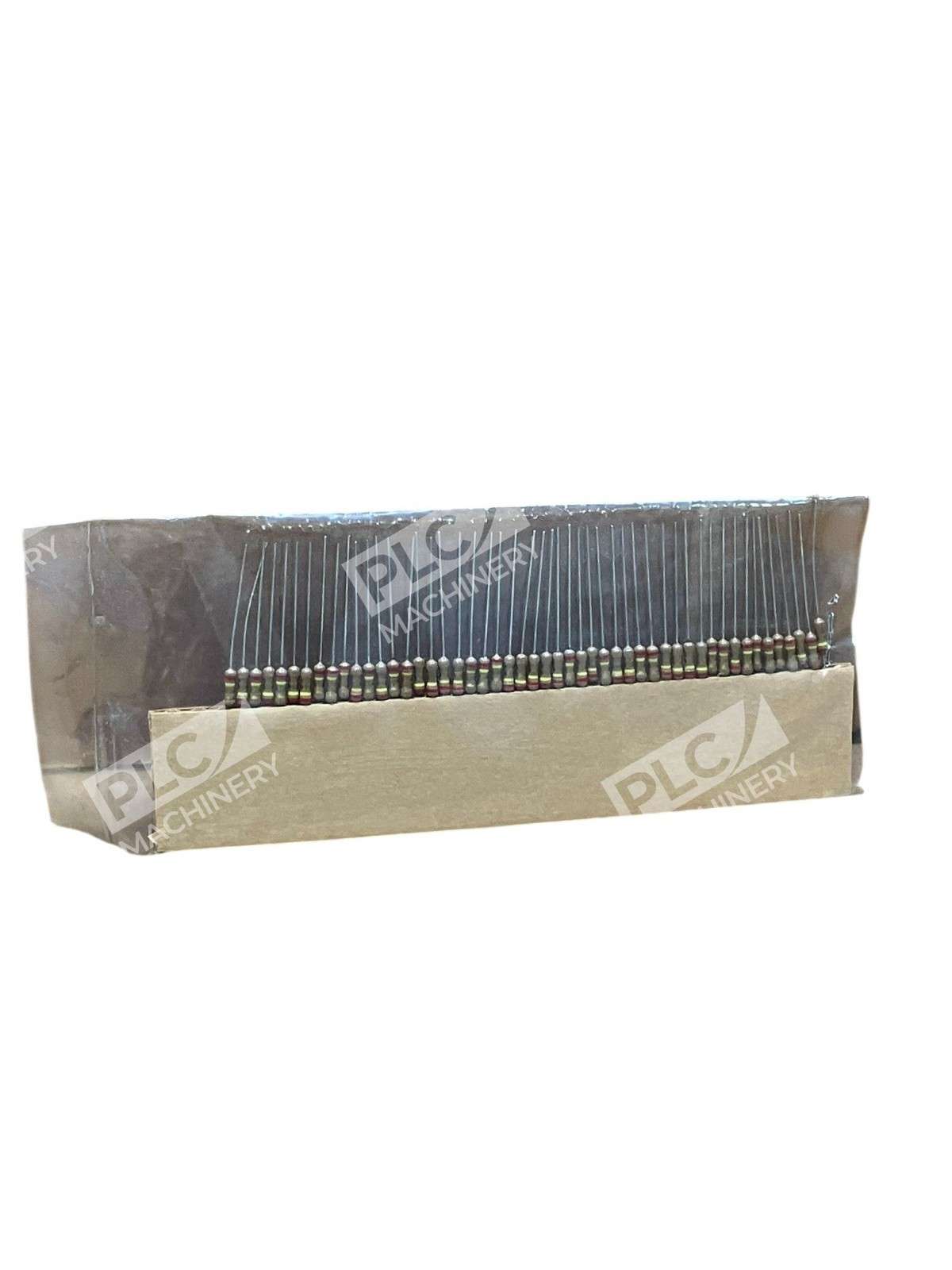

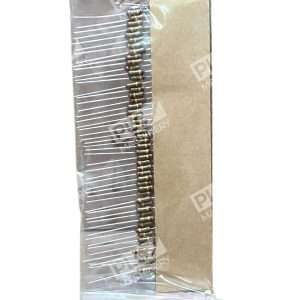

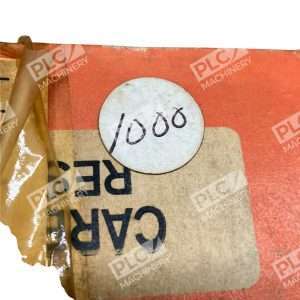

- Bulk Quantity: 1,000 pieces per box for inventory consolidation
- Operating Temperature: Standard -55°C to +155°C range
Technical Specifications
Carbon film resistors provide excellent reliability with minimal temperature coefficient change across the operating range. The CF 1/2 series exhibits typical performance characteristics suitable for both DC and low-frequency AC applications.
Typical Applications
- Current limiting circuits in power supplies and battery chargers
- Load balancing in parallel resistor networks
- Emitter and collector resistors in transistor bias circuits
- Low-value pulldown and bleed resistors in logic circuits
- Thermal management and derating applications where low resistance is required
- Industrial equipment repair and circuit board refurbishment
Compatibility & Replacements
Compatible With
- Industrial PCB assemblies and control modules
- Consumer electronics repair (power amplifiers, switching supplies)
- Educational and prototype breadboarding
- Any standard through-hole circuit design using axial resistors
Replaces / Drop-In Replacement For
Standard 2.4 ohm, 0.5W, 5% carbon film resistors from equivalent manufacturers in the industrial supply chain. Verify compatibility with your system integrator before ordering if specific cross-reference numbers are required.
Works With

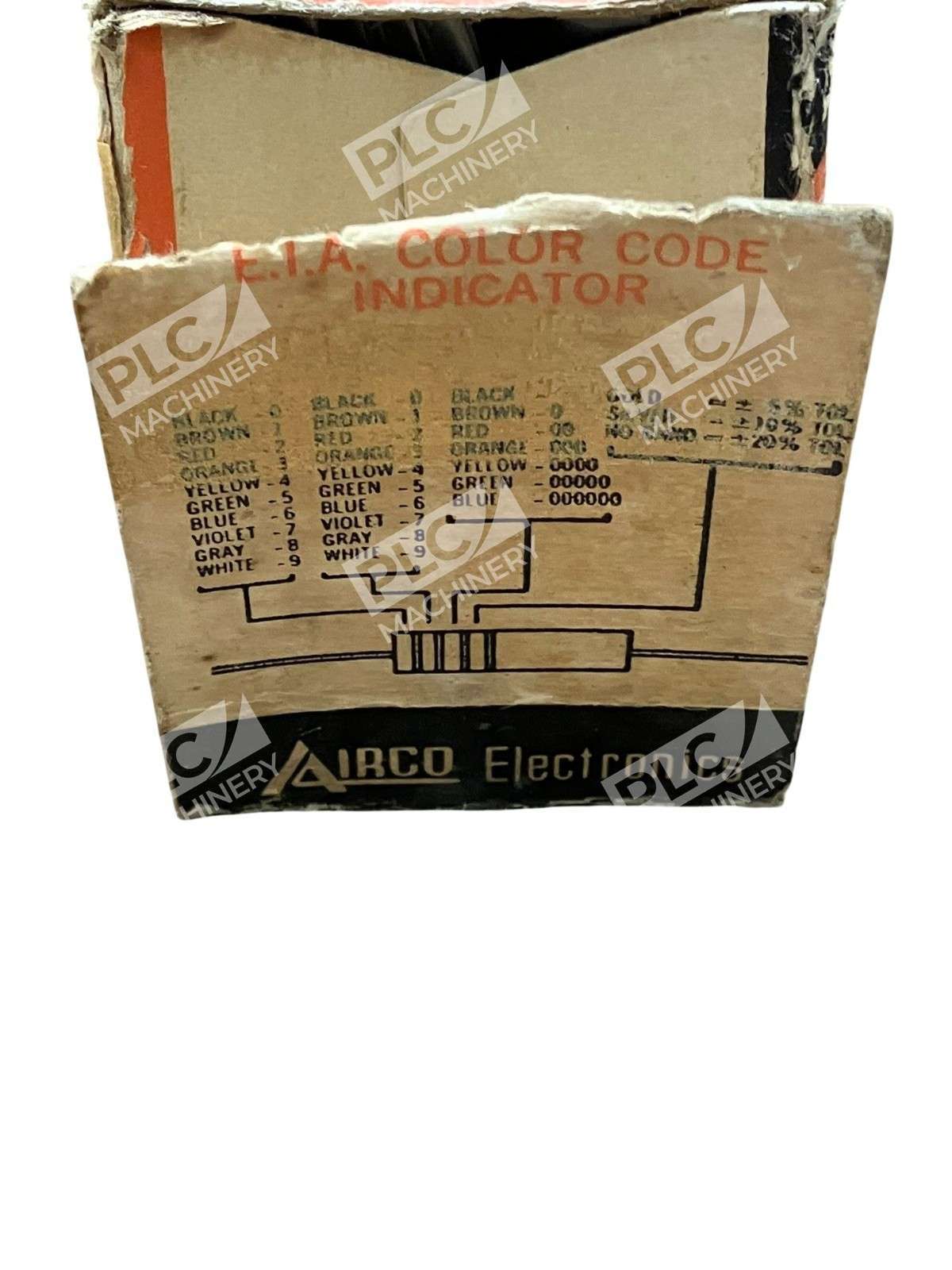

- Standard EIA color-band marking (red-yellow-gold-red)
- Axial-lead through-hole PCB mounting
- Soldering and automated pick-and-place assembly equipment
- All standard electronic test and measurement instruments
