Overview

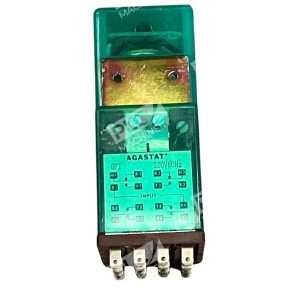

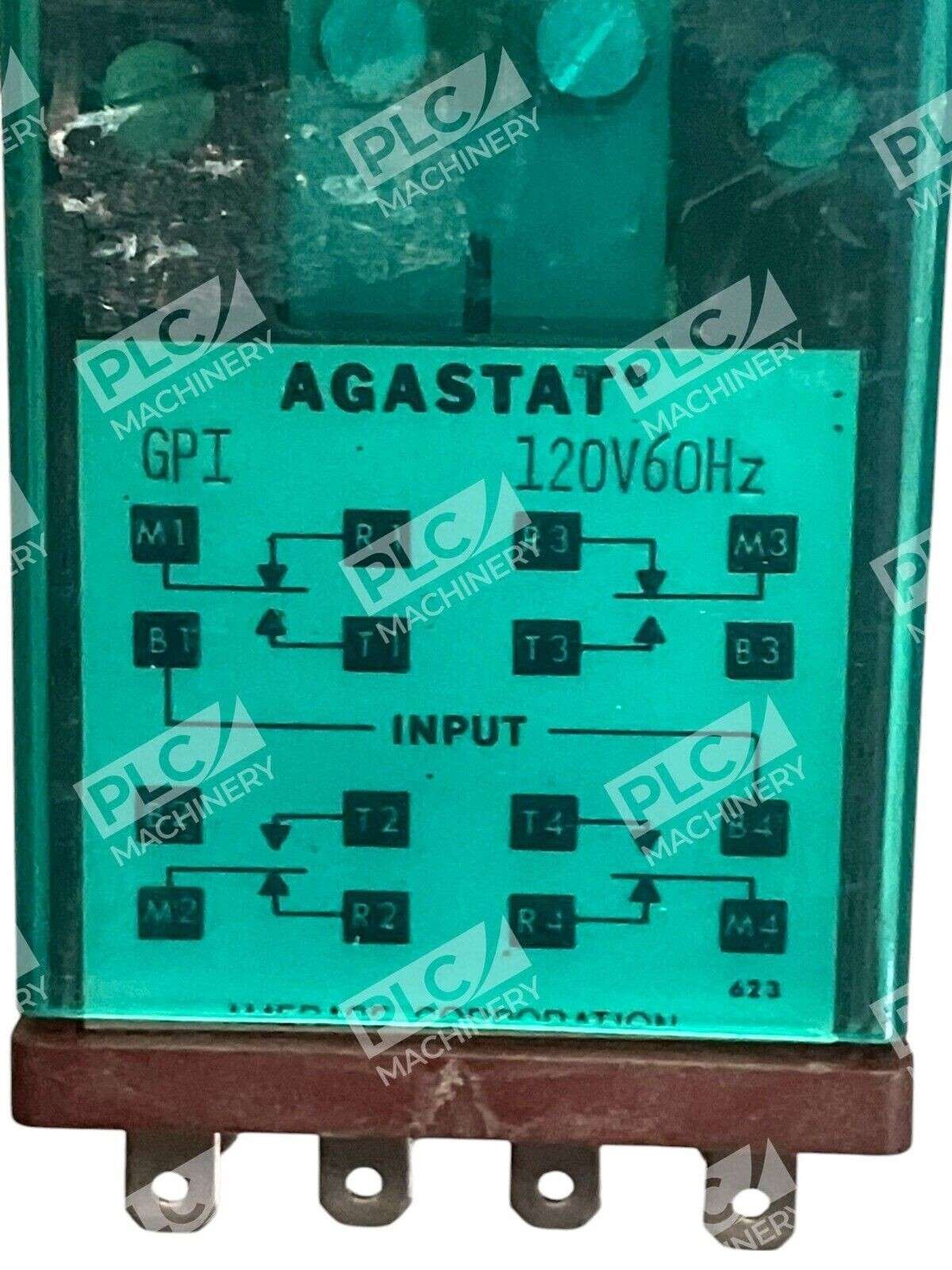

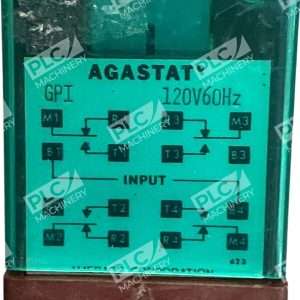

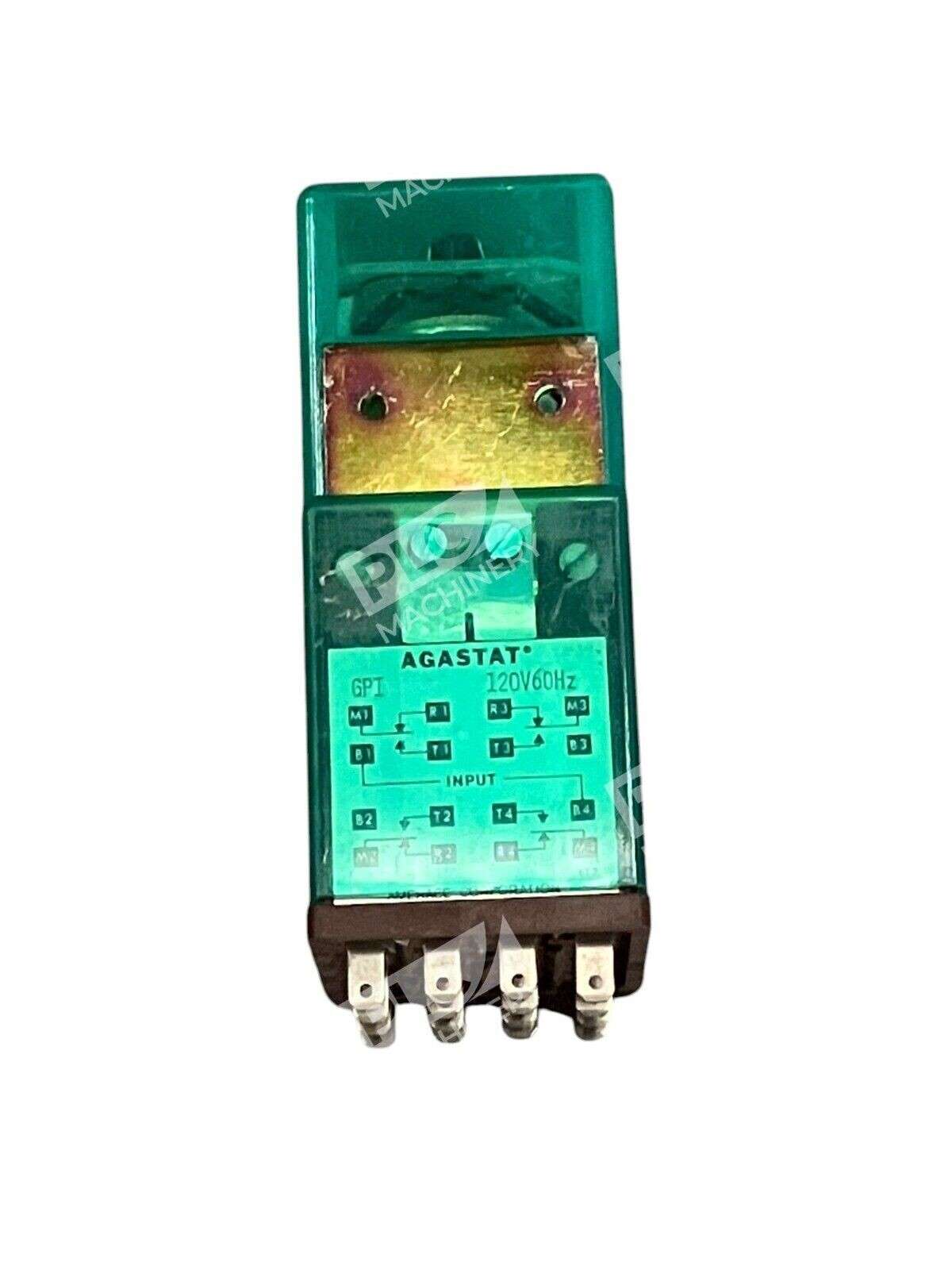

The Agastat GPI 120V 60Hz control relay is a general-purpose AC relay engineered for industrial switching and control applications. Featuring a 120VAC coil rated at 60Hz, this proven relay delivers consistent, reliable actuation in factory automation, HVAC systems, and process control environments. The compact socket-mount design integrates easily into relay racks and control panels.
Key Features
- Contact Configuration: 1 Form C (SPDT – Single Pole Double Throw) for flexible switching logic
- AC-Actuated Operation: Reliable electromagnetic actuation at 120V, 60Hz
- Socket Mounting: Standard octal-style pin base for quick replacement
- Operating Temperature Range: 0°C to 60°C for stable performance across industrial environments
- Compact Footprint: Dimensions approximately 1.772″ × 1.722″ × 4.64″ (45 × 45 × 109 mm)
Technical Specifications
- Coil Voltage: 120VAC, 60Hz
- Voltage Tolerance: ±10%
- Contact Type: 1 Form C / SPDT (1 changeover contact)
- Contact Rating: Nominal 10A @ 120VAC resistive
- Dielectric Strength: 1500V RMS minimum @ 60Hz
- Operating Temperature: 0°C to +60°C
- Mounting Type: Socket (octal base pins)
- Housing Material: Flame-retardant
- Dimensions (L × W × H): 1.772″ × 1.722″ × 4.64″ (45 × 45 × 109 mm)
- Weight: Approximately 10.9 oz (308g)
Typical Applications
The Agastat GPI relay is commonly deployed in:
- Industrial motor control and starter circuits
- HVAC system sequencing and interlocking
- Process automation and machinery control
- Alarm and status indication circuits
- General-purpose switching in control panels and relay racks
Compatibility & Replacements
Compatible With
- Standard 8-pin octal relay sockets
- Industrial control panels and relay racks
- AC-powered automation systems operating 120V, 60Hz
- Legacy and modern industrial control architectures
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Agastat GPI will directly replace other Agastat general-purpose relay models in the same voltage and frequency class when socket-mounted in compatible relay panels.
Works With
- Standard 8-pin octal relay socket mounting
- 120VAC, 60Hz industrial control power supplies
- General-purpose relay circuit design standards
- Screw-terminal wiring and terminal blocks
