Overview
The ABB RXME1 RK221052-AD 24V relay is a plug-in auxiliary relay engineered for industrial electrical equipment and control applications. Built with a robust plastic enclosure and configured for 24V DC operation, this relay delivers reliable signal switching and load control in demanding automation environments. The RXME1 series is recognized across industrial sectors for consistent performance in machinery starter circuits, control panels, and process automation systems.
Key Features
- 24V DC coil voltage for standard industrial control circuits

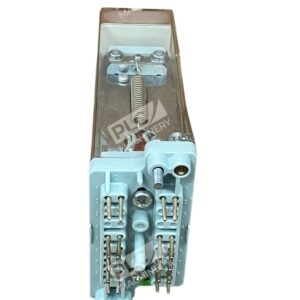

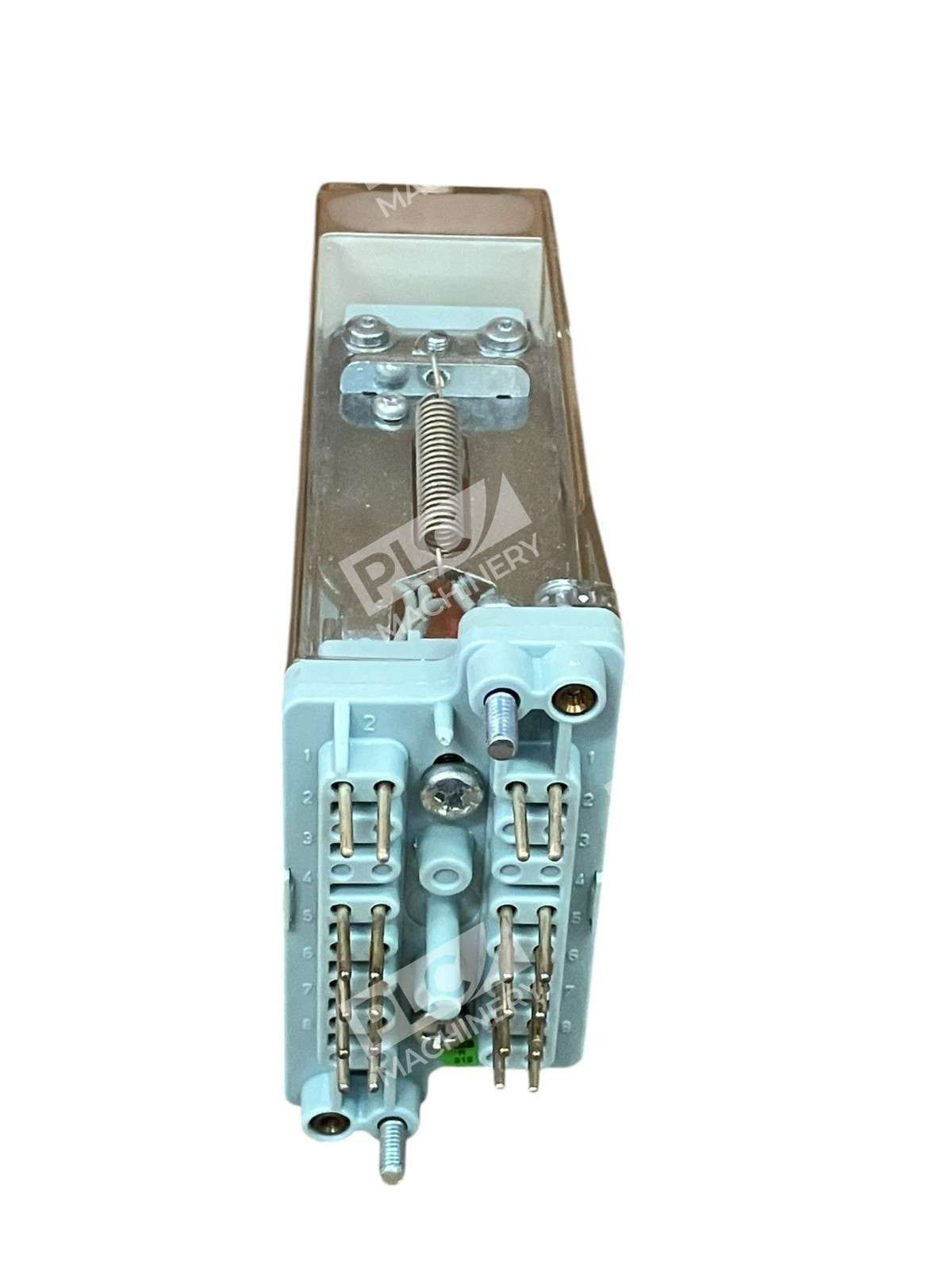

- Plug-in package for quick installation and maintenance

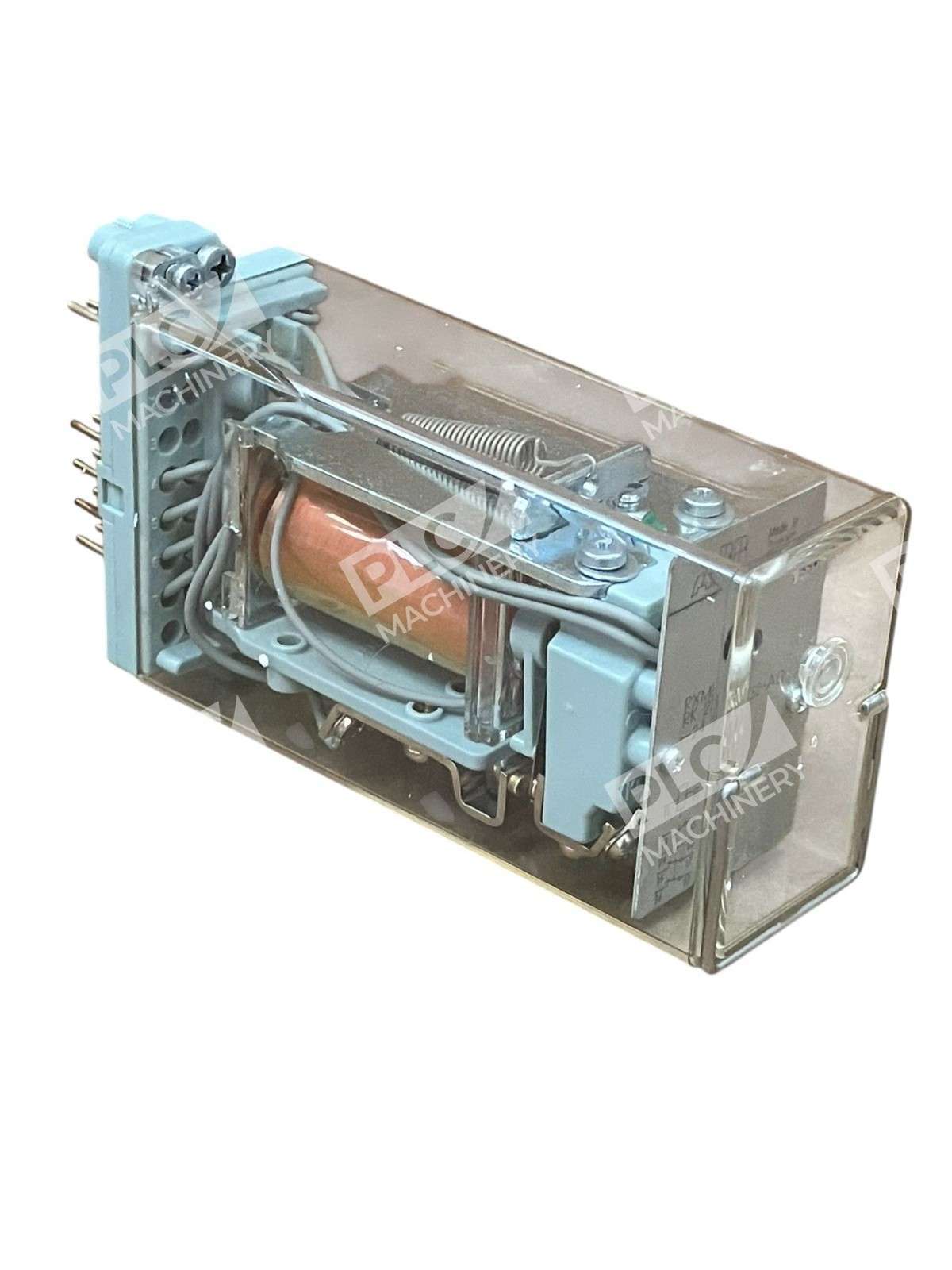

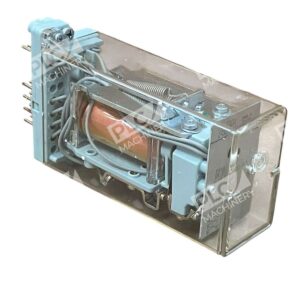

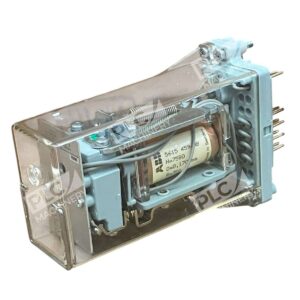

- Dust-proof plastic enclosure protects contacts from contamination
- Multiple make and break contact configuration
- Long mechanical life and proven reliability
- Compact design fits standard relay bases
Technical Specifications

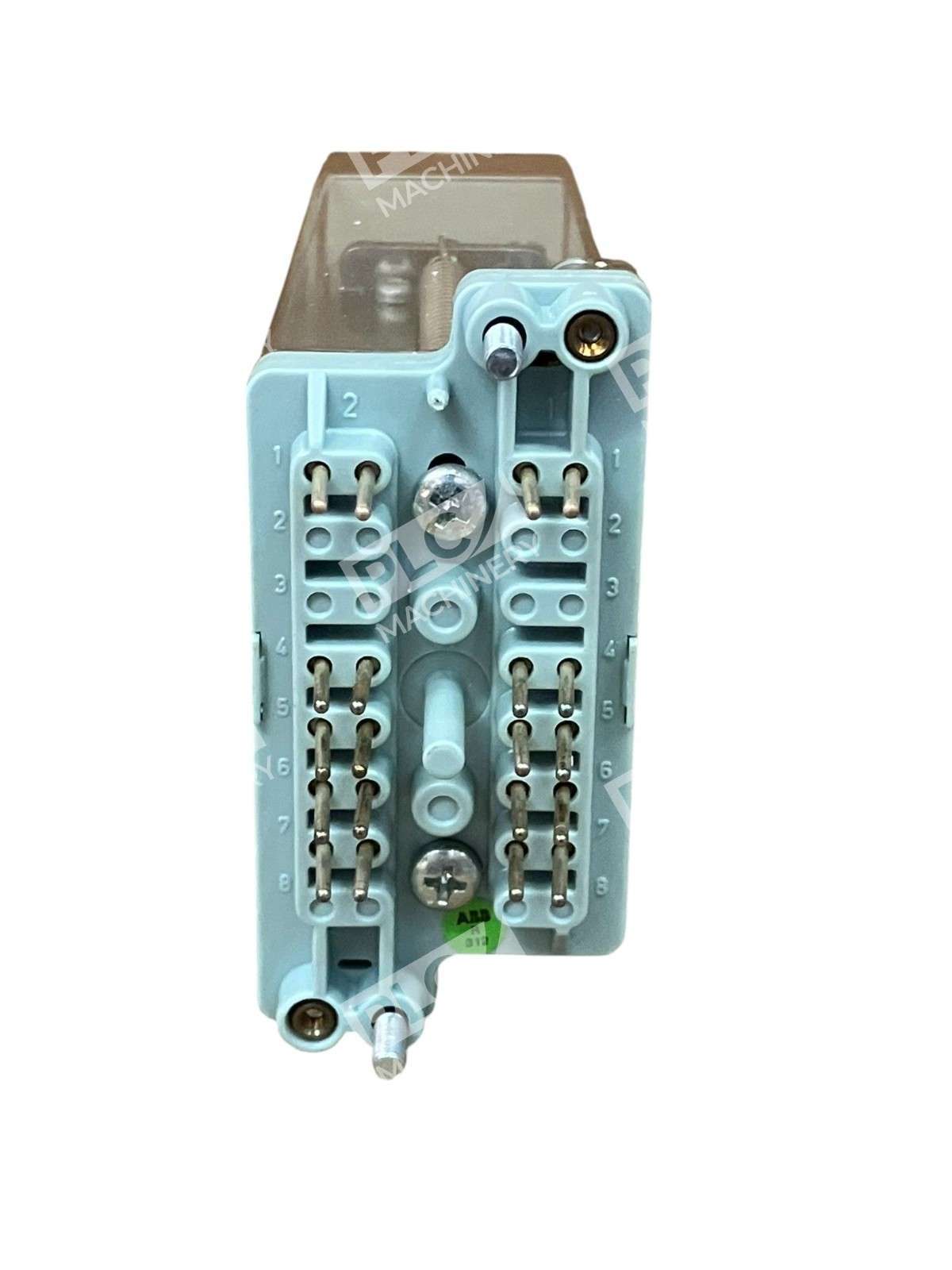

The RXME1 RK221052-AD meets industrial standards for auxiliary and control relays. Key operational parameters include nominal coil voltage of 24V DC, 20-pin plug-in interface, and dual make/break contact arrangement supporting both protective and control functions. The relay’s dust-proof enclosure and mechanical robustness enable operation across manufacturing, process control, and equipment protection applications.
Typical Applications
- Motor Starting Circuits: Provides auxiliary switching in three-phase motor starters and soft-starters
- Safety Interlocking: Enables safety loop monitoring and emergency stop circuits
- Load Shedding: Controls secondary load disconnection in power management systems
- Signal Conditioning: Converts logic-level outputs to industrial AC/DC switching for control devices
- Overload Protection: Works with protection relays to manage abnormal circuit conditions
Compatibility & Replacements
The ABB RXME1 RK221052-AD is a direct replacement for equivalent 24V DC auxiliary relays in plug-in bases. When retrofitting or upgrading legacy control systems, verify that existing relay sockets accommodate the 20-pin configuration and that circuit voltage exactly matches the 24V DC specification. ABB RXME series relays are interchangeable within the same voltage and contact rating class, making this unit suitable for field replacements in established installations without panel modifications.
