Overview

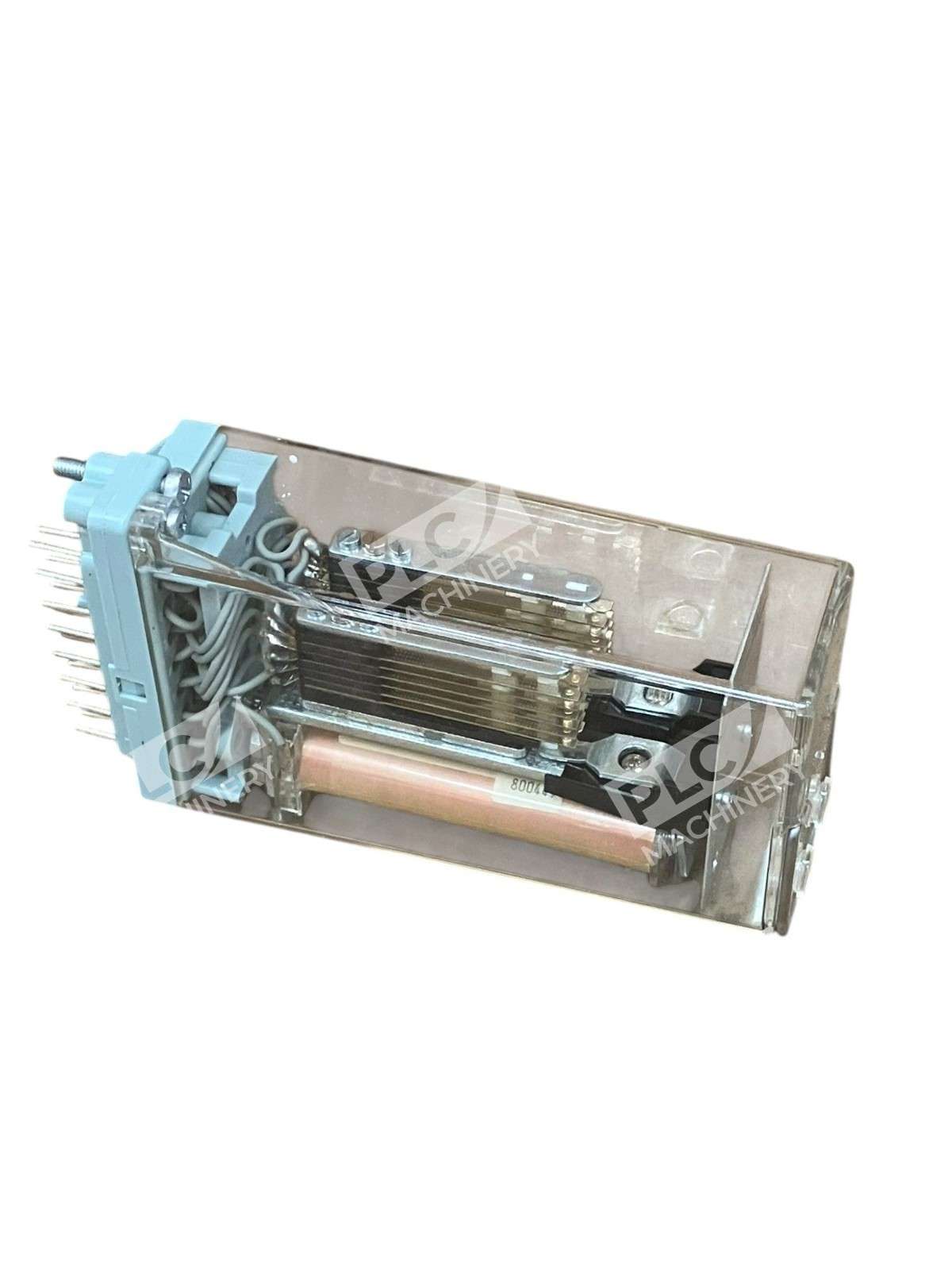

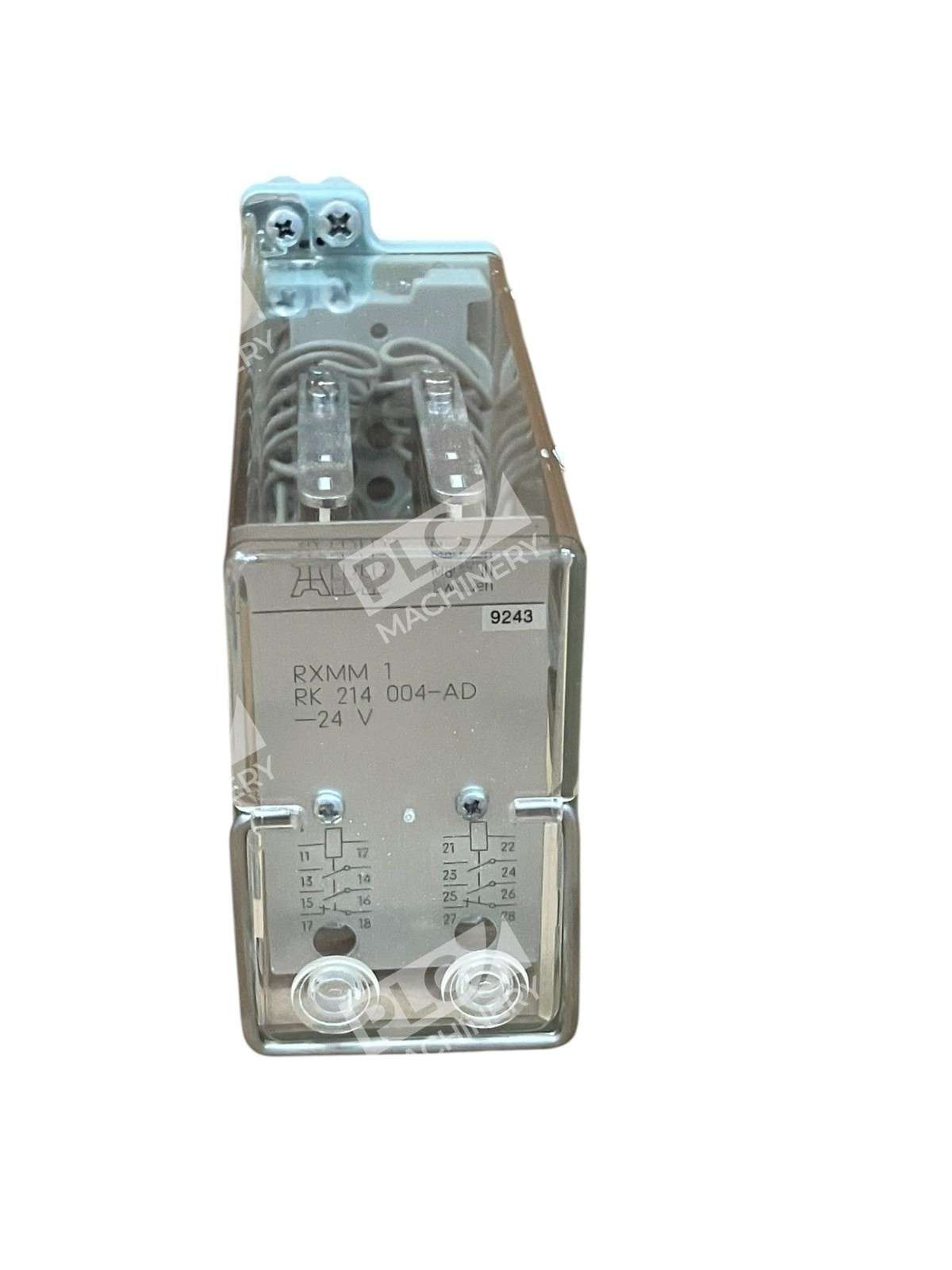

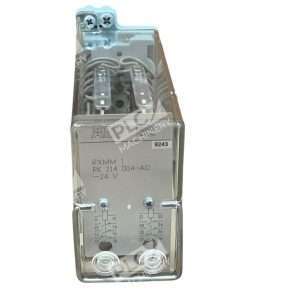

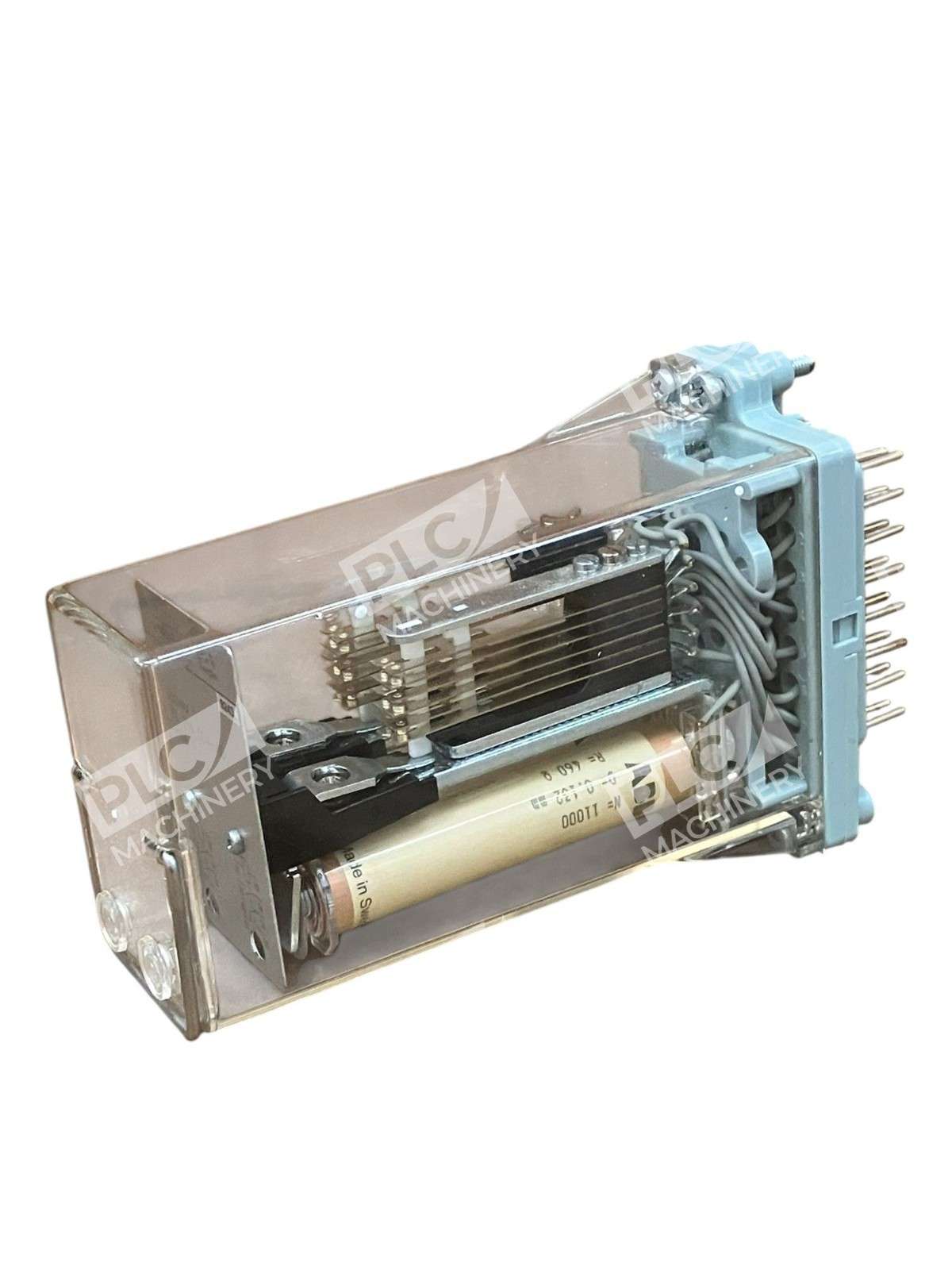

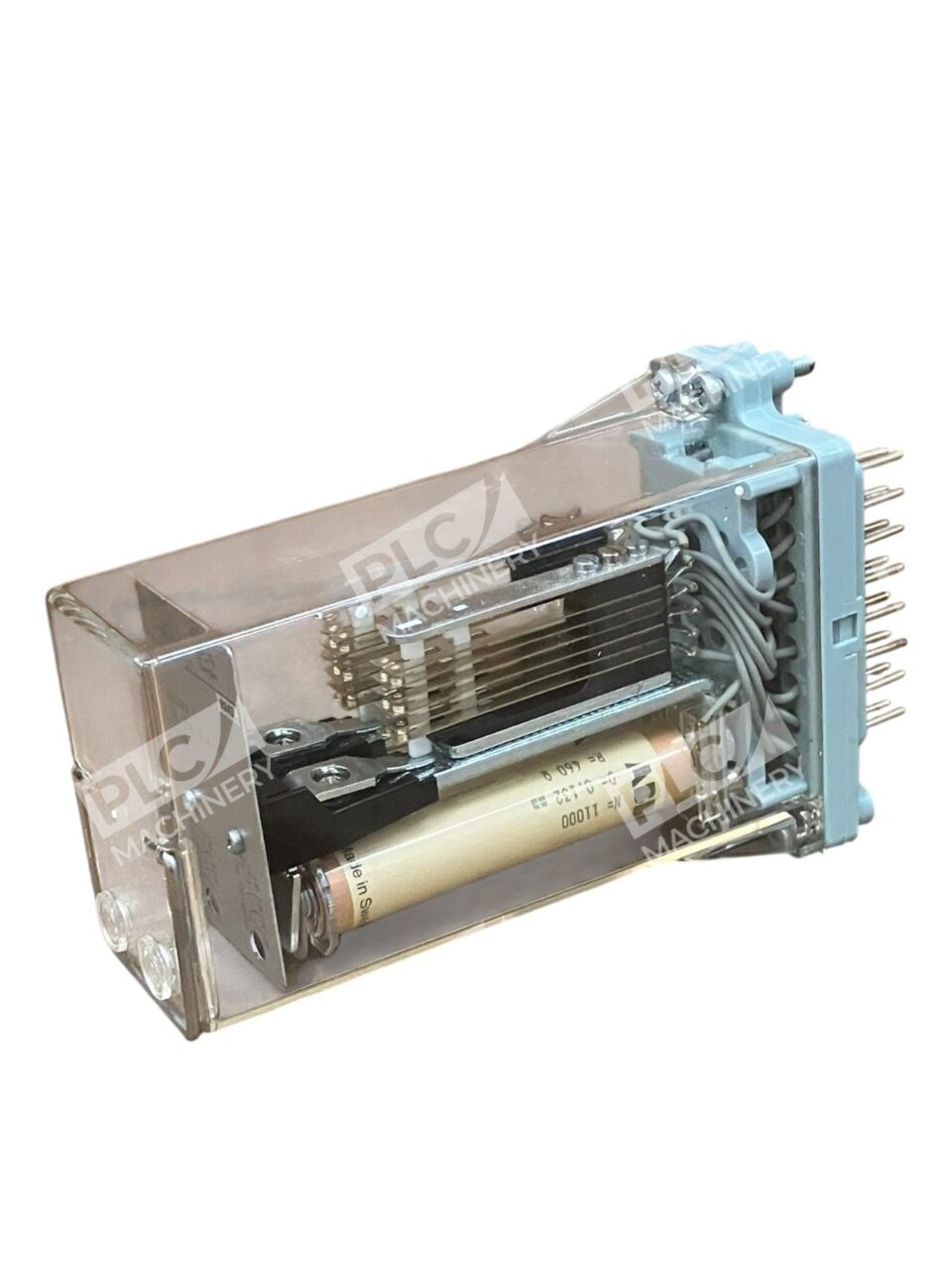

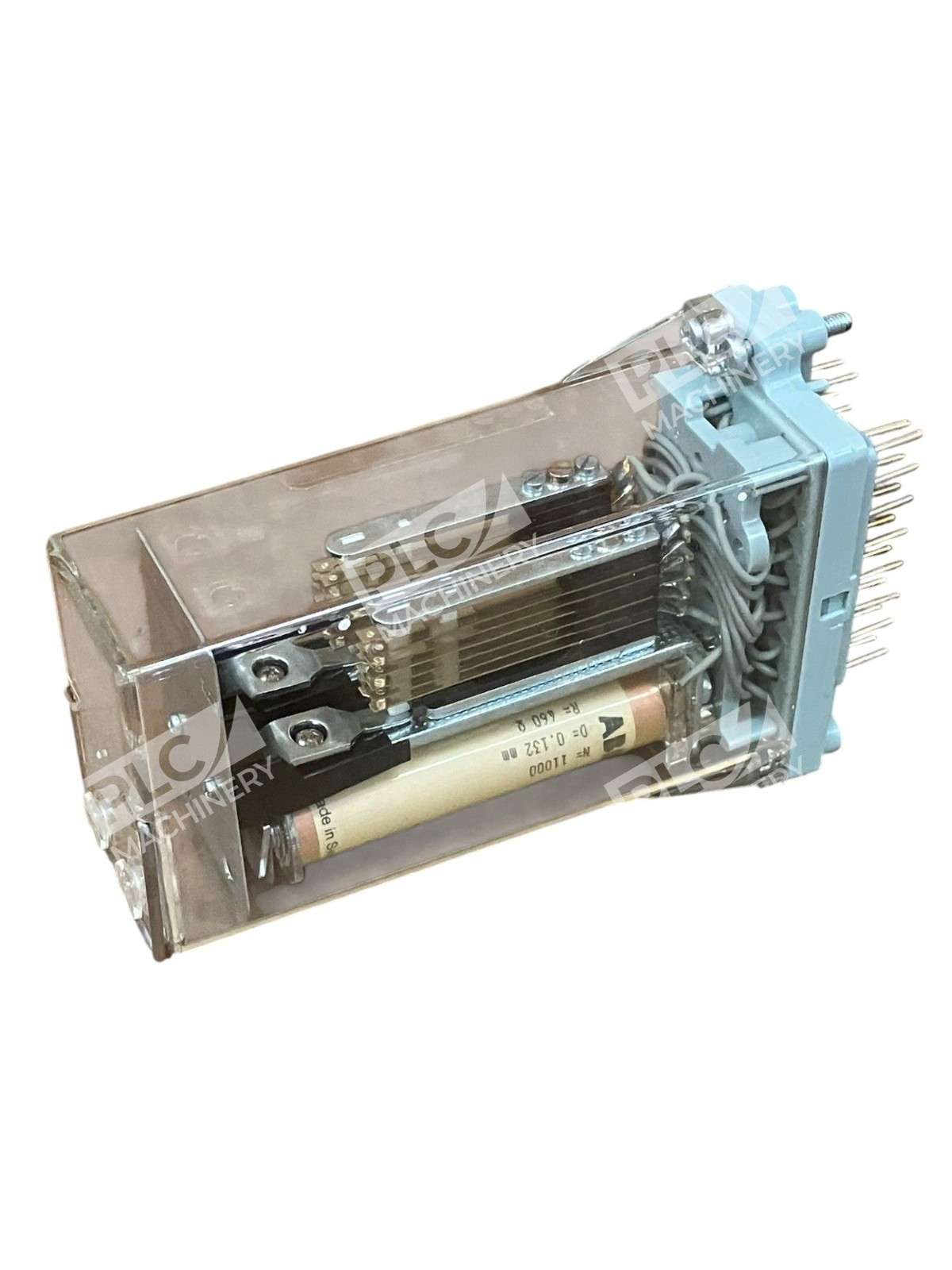

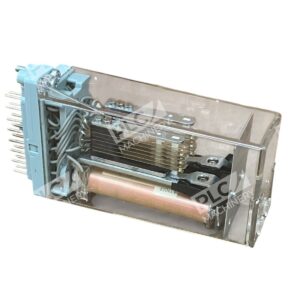

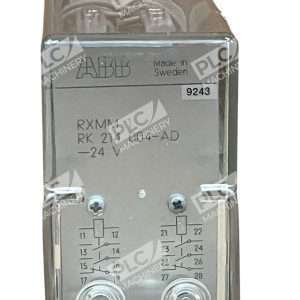

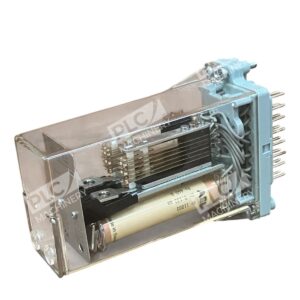

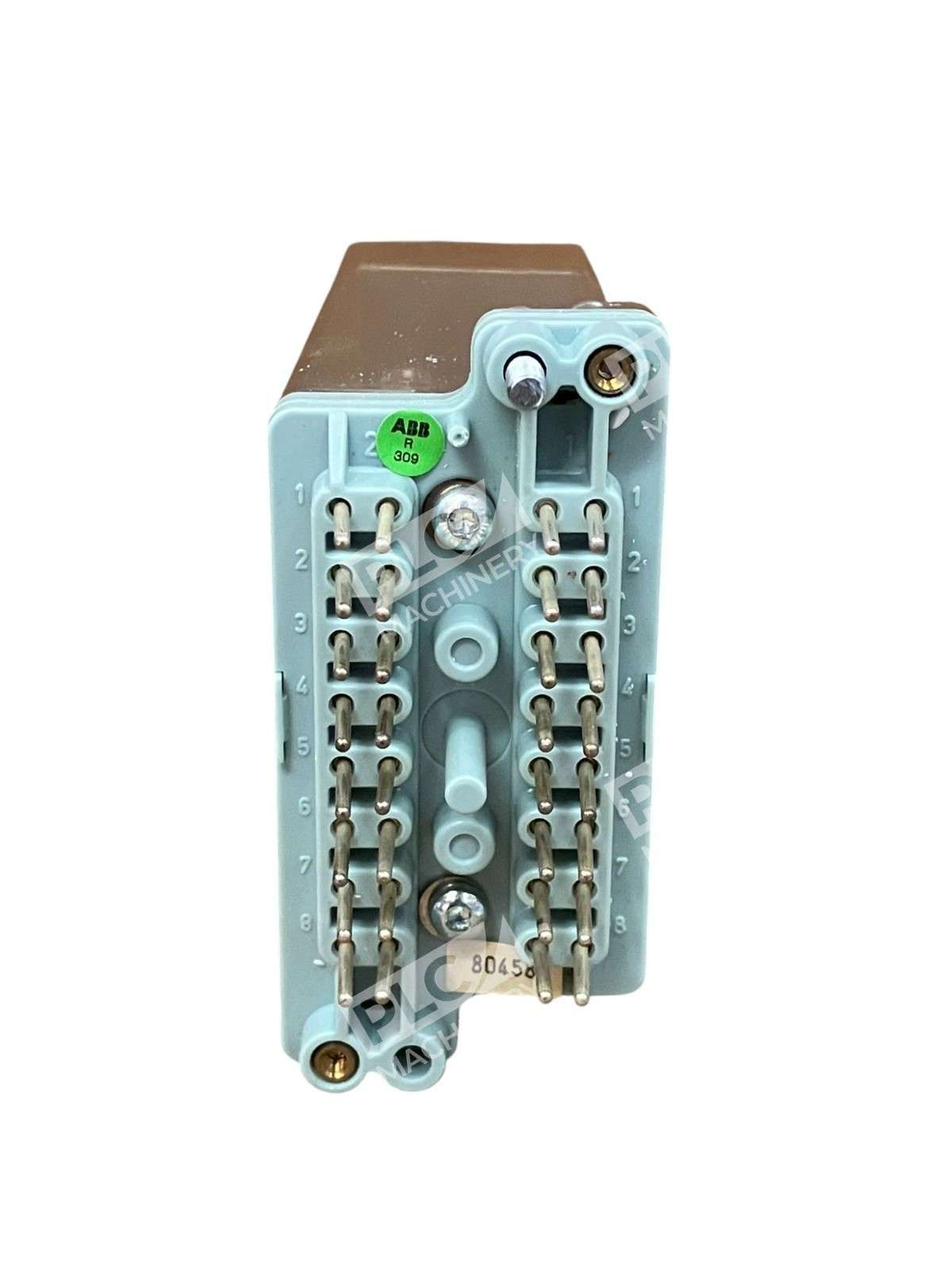

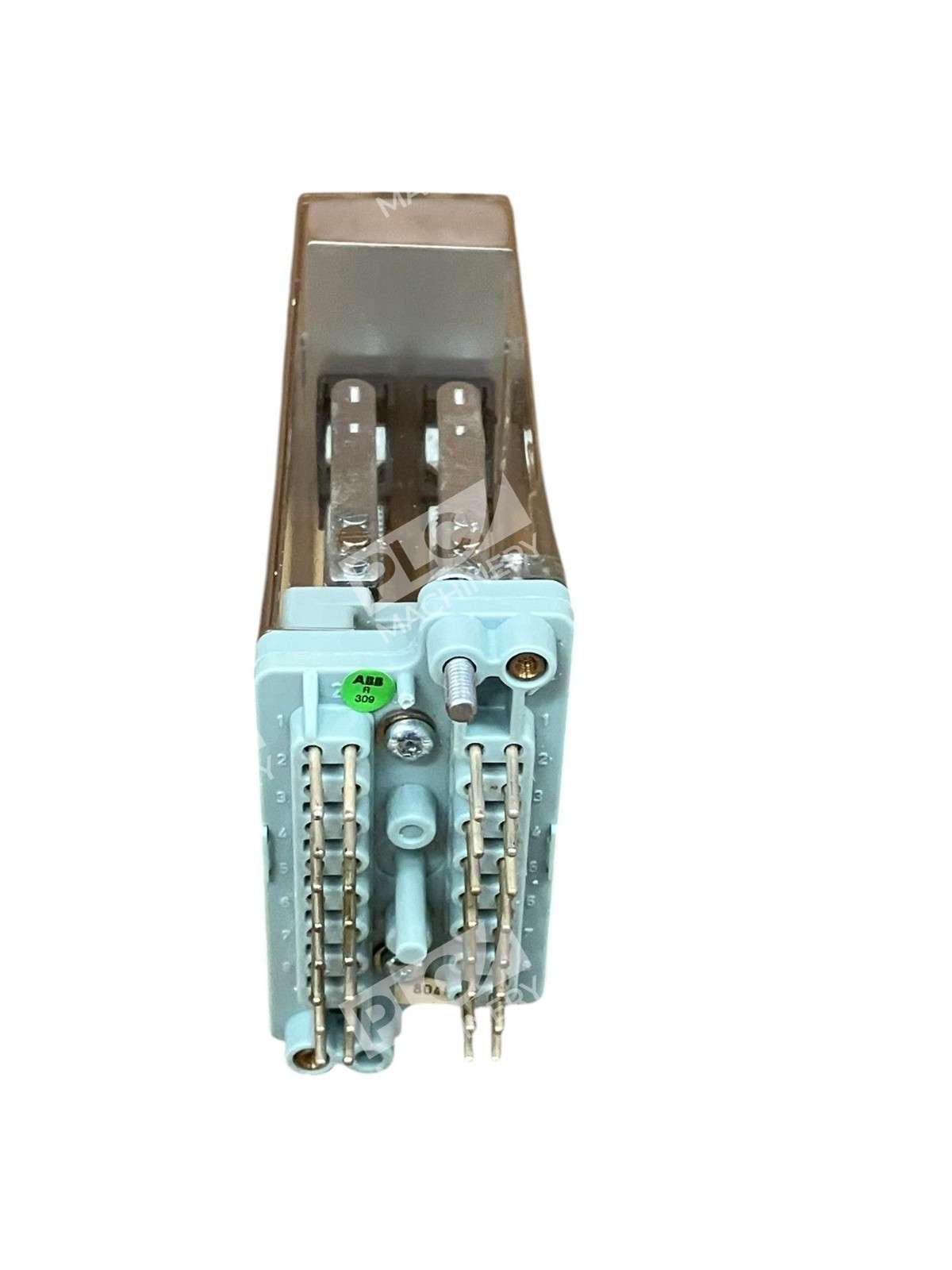

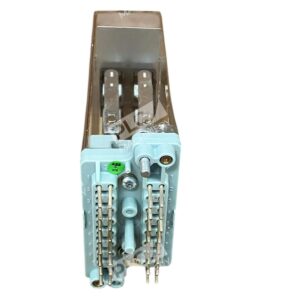

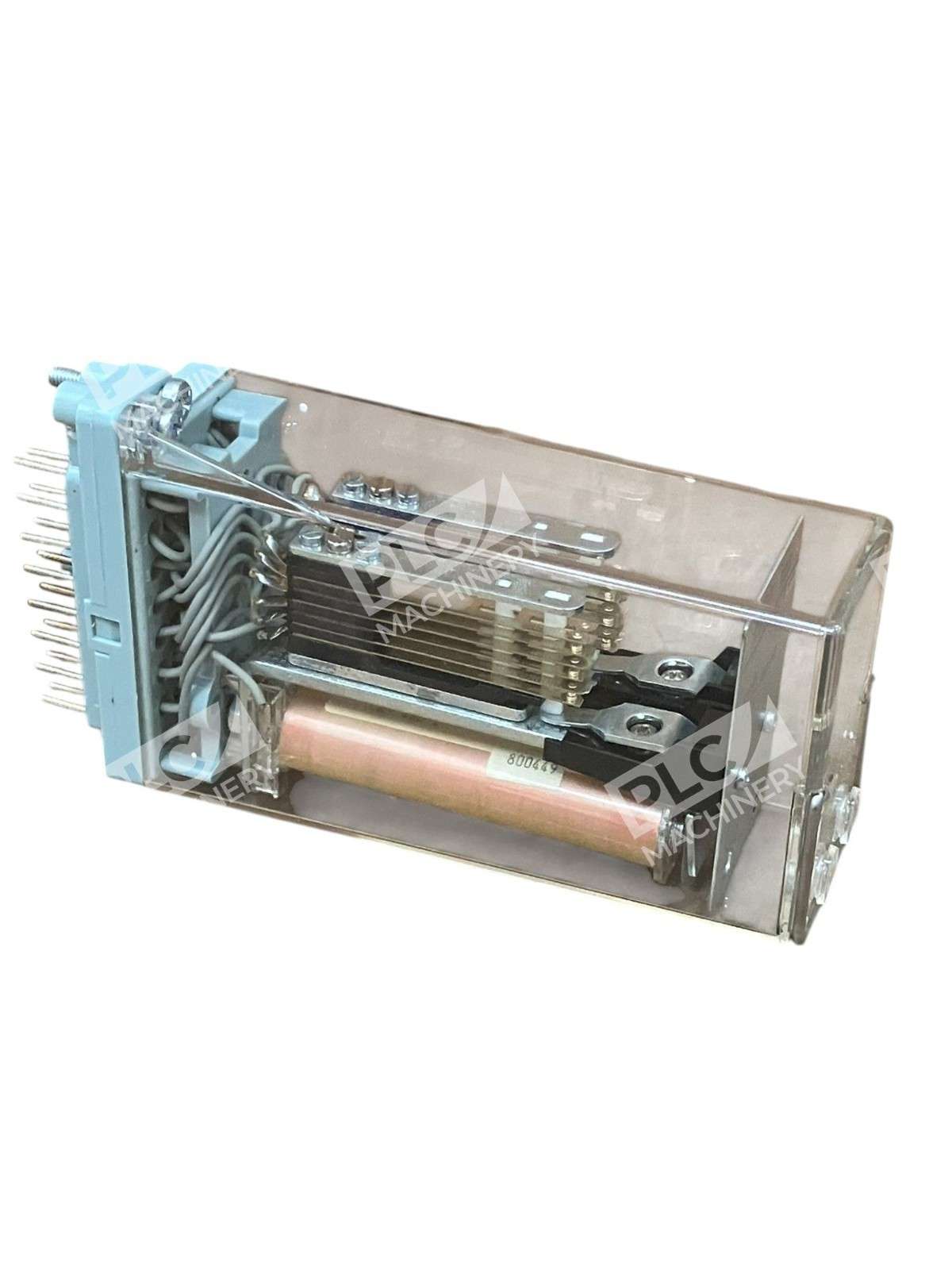

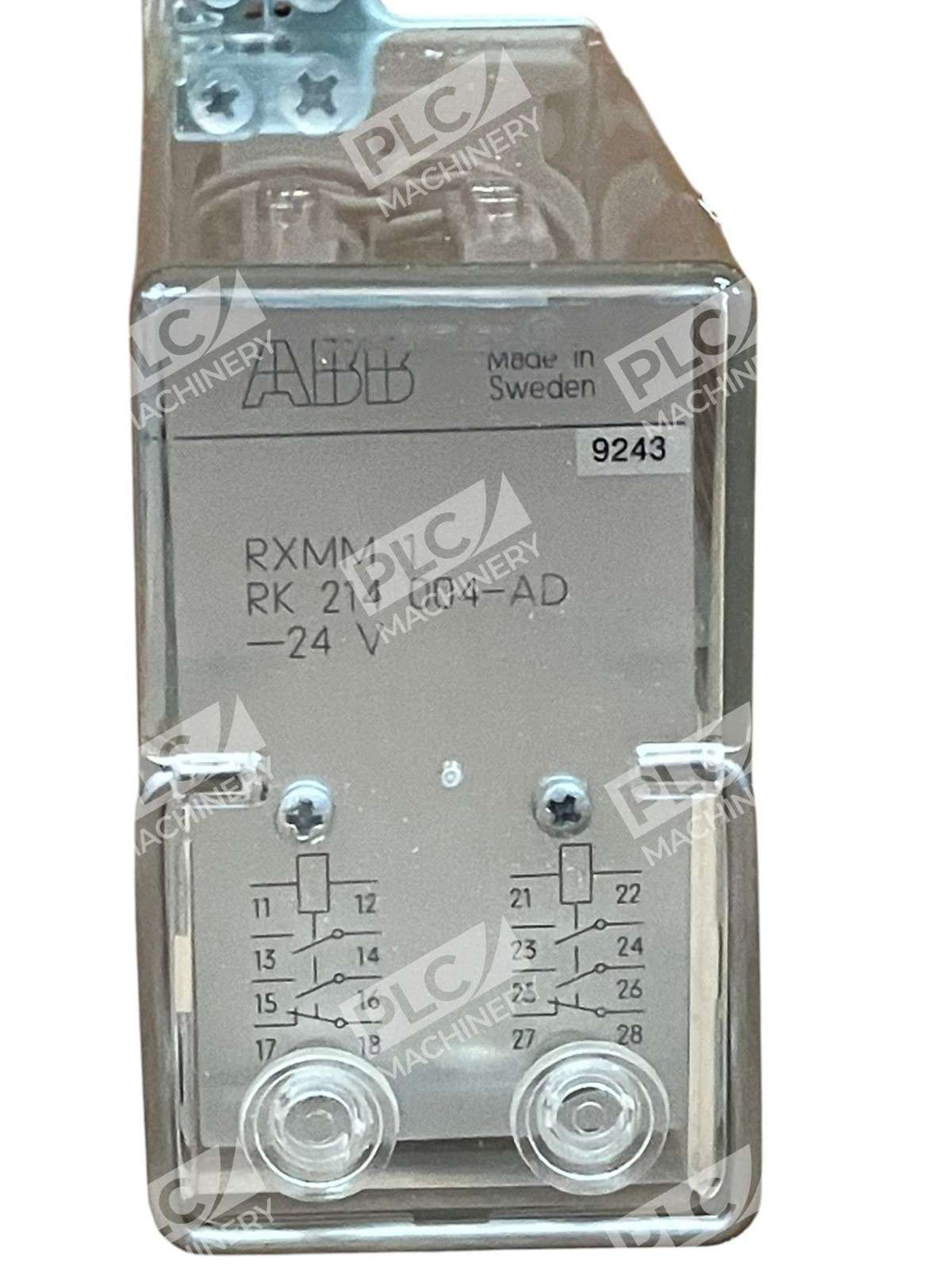

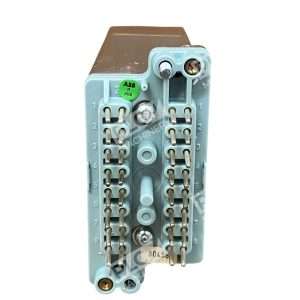

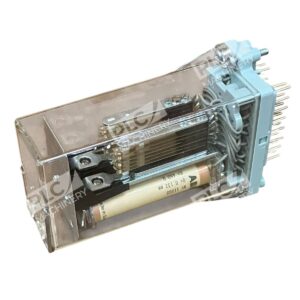

The ABB RXMM1 RK214004-AD is a robust 24VDC auxiliary relay designed for dependable operation across general-purpose industrial control and signaling applications. Built to ASEA BROWN BOVERI standards, this relay module integrates seamlessly into electromechanical control systems, relay logic panels, and protection schemes where auxiliary switching is required. The RXMM1 series represents proven plug-in relay architecture trusted across power generation, manufacturing, and utility automation.
Key Features
- 24VDC coil voltage for universal industrial DC control circuits
- Plug-in relay construction for fast installation and removal
- Compact form factor suitable for relay terminals and mounting racks
- General-purpose auxiliary switching for signaling and control logic
- Reliable electromechanical operation without digital dependencies
Technical Specifications
Specifications for the RXMM1 RK214004-AD are based on ABB auxiliary relay platform design. Contact the manufacturer or distributor for complete operating curves, contact ratings, and dimensional drawings.
Typical Applications
- Auxiliary signaling and interlocking in power system protection schemes
- General-purpose relay logic and control circuits
- Industrial control panel auxiliary switching
- Signal conditioning in electromechanical automation systems
Compatibility & Replacements
The RXMM1 RK214004-AD is designed as a direct replacement for equivalent ABB RXMM1 installations. As this product is discontinued by the manufacturer, it is typically sourced as surplus inventory. Verify socket, terminal configuration, and coil voltage (24VDC) compatibility before installation. For applications requiring new production units with extended support, consult with your ABB representative regarding alternative current-generation auxiliary relay modules.
