Overview

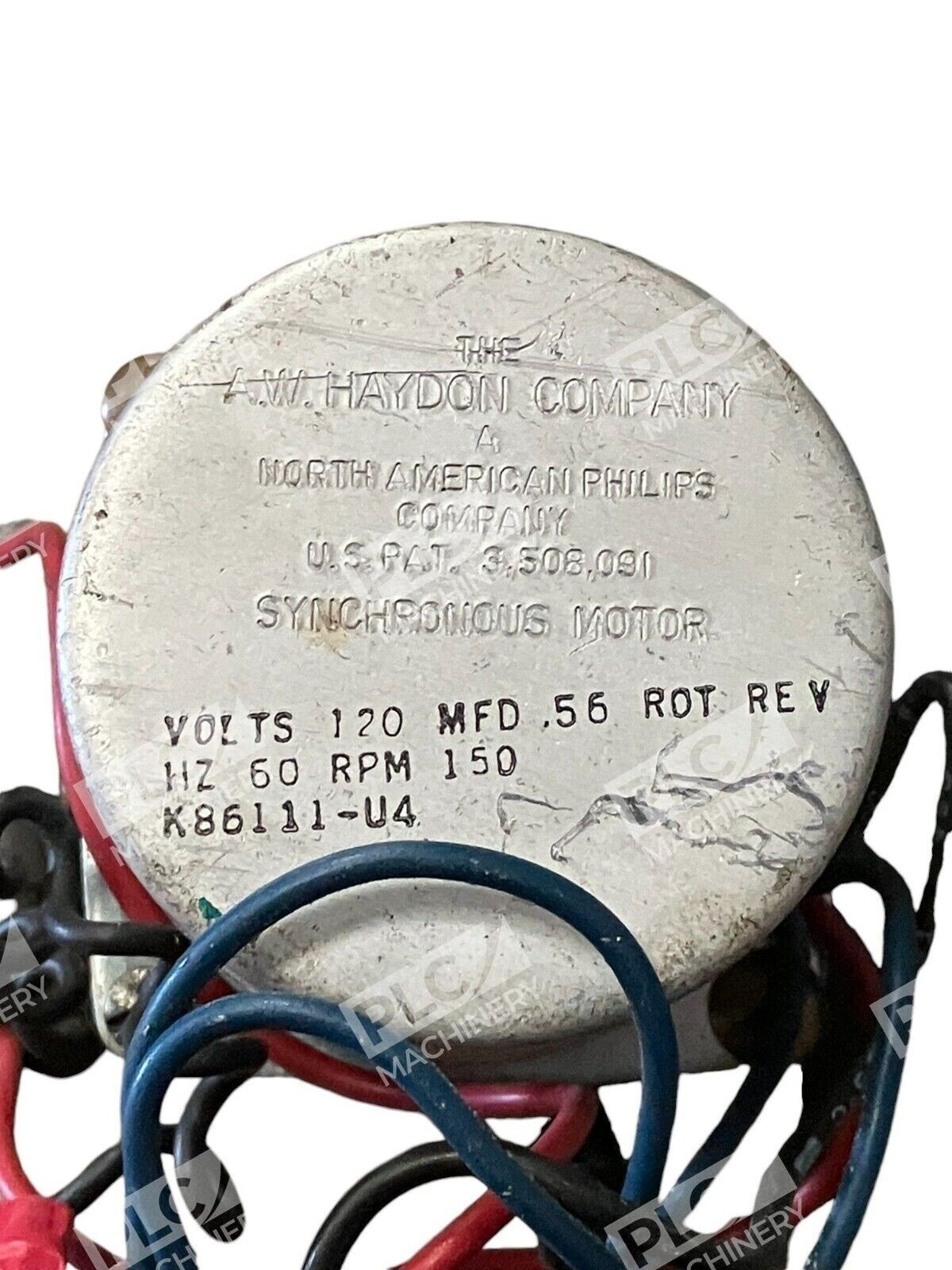

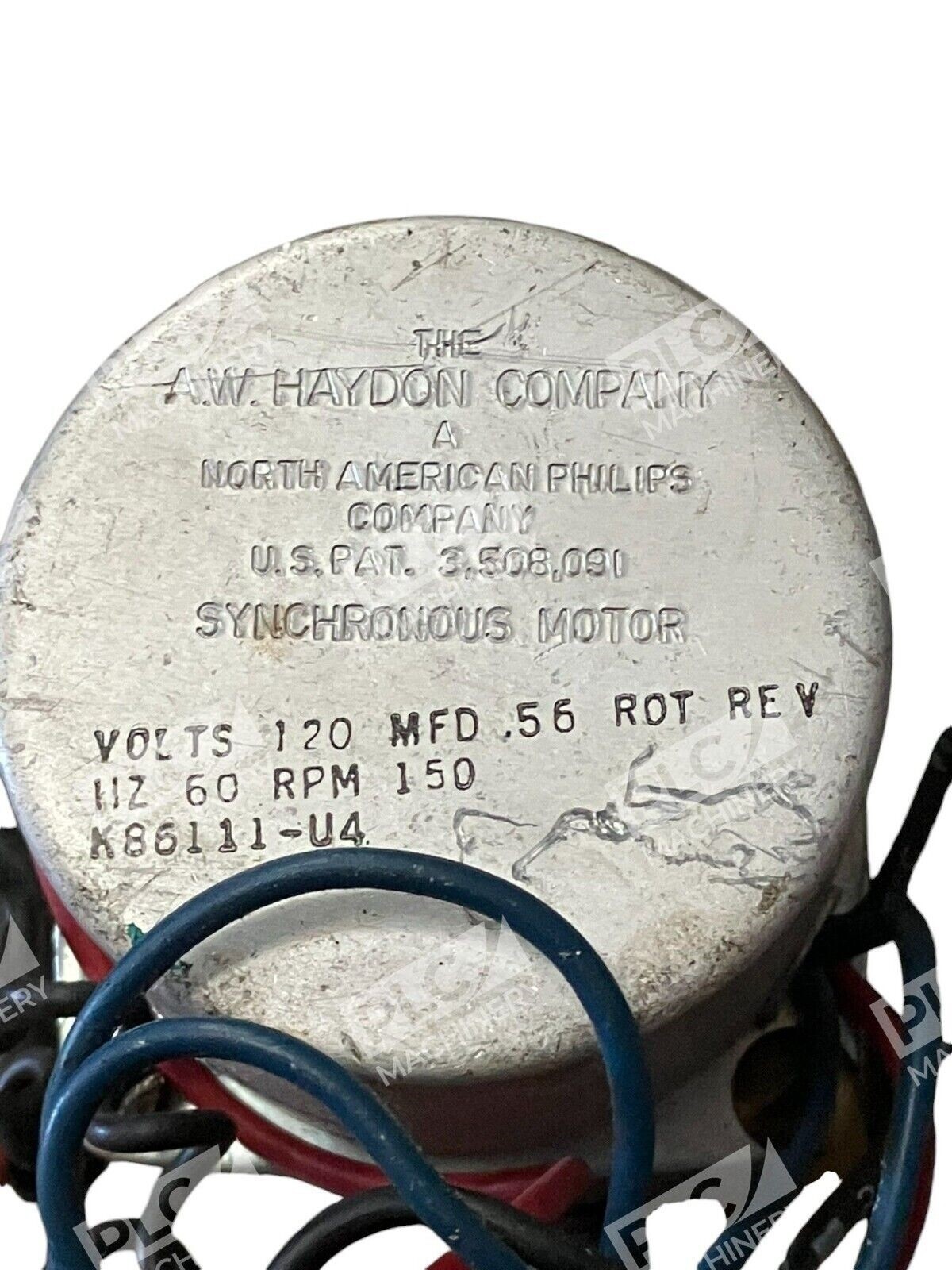

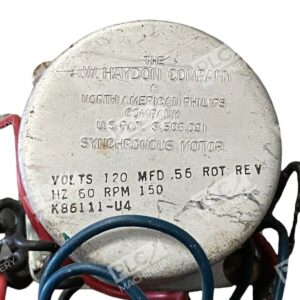

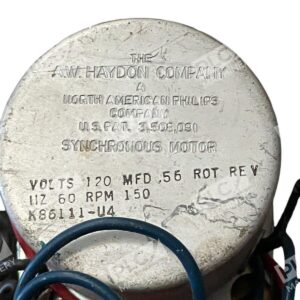

The A.W. Haydon Company K86111-U4 is a precision synchronous timing motor built for dependable cycle control in industrial automation. With its 120V single-phase design, 56MFD capacitor rating, and 150RPM rotary operation, this motor delivers consistent timing and reversible motion control essential for manufacturing equipment, process automation, and motion sequencing applications. A.W. Haydon’s legacy of timing and motion control devices makes this K86111-U4 a trusted choice in legacy and retrofit automation systems.
Key Features
- 120V AC single-phase input voltage
- 56MFD run capacitor for motor start and operation
- Rotary encoder-based operation for accurate timing measurement
- 150RPM rated speed at 60Hz
- Suitable for reversible and forward-rotation applications
- Compact synchronous design for OEM and retrofit integration
Technical Specifications
- Input Voltage: 120V AC
- Frequency: 60Hz
- Speed: 150RPM
- Run Capacitor: 56MFD
- Motor Type: Synchronous timing motor with rotary encoder
- Rotation: Reversible/forward capable
- Application: Industrial cycle timing and motion control
Typical Applications
- Automatic production line sequencers and timing controllers
- Carousel and rotary indexing equipment
- Process control and cycle management in manufacturing
- Legacy and retrofit automation systems requiring synchronous timing
- Automotive assembly and conveyor automation
- Industrial timer and drum sequencer drives
Compatibility & Replacements
Compatible With
- 120V AC single-phase power supplies rated for motor loads
- Legacy industrial automation control systems and PLC timer modules
- Electromechanical and solid-state timer circuits
- Rotary indexing and drum sequence controllers
Replaces / Drop-In Replacement For
- Similar A.W. Haydon synchronous timing motors with matching 120V/60Hz/150RPM ratings
- Legacy synchronous drive motors in carousel and rotary table equipment
- Verify compatibility with your system integrator or equipment OEM before ordering.
Works With
- 120V AC motor control circuits and power distribution
- Capacitor-start and capacitor-run motor starter configurations
- Industrial programmable logic controllers (PLCs) with motor control outputs
- Standard industrial motor starters and contactors
