Overview

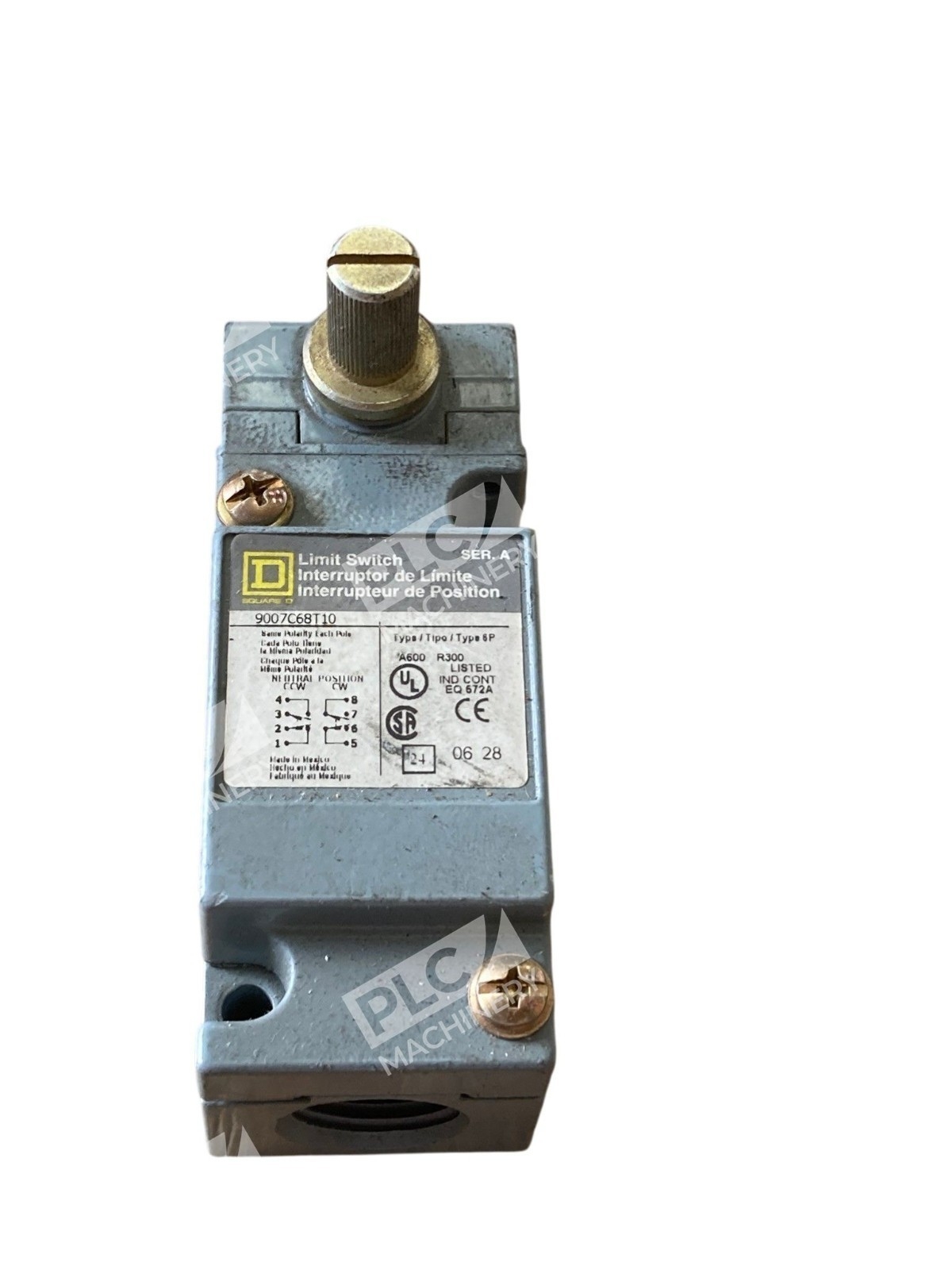

The Square D 9007C68T10 is a limit switch with zinc body and head featuring 2 (NC-NO) snap action Form Z silver contacts, zinc spring return without operating lever operator, left/right CW and CCW switch actuation. The lever arm unit has 90° maximum displacement angle and 10° tripping angle. It is suitable for use with the 9007 range products and can withstand the impact of heavy industry.
Key Features
- 4PST-2NO, DPST-NC contact configuration rated 10A AC maximum at 600V
- Rotary/Spring Return/Snap operation with 1.2A at 600VAC, 0.11A at 250VDC rated current
- Mechanical durability of about 10 million operating cycles and electrical durability of about 1 million operating cycles
- IP67 and NEMA 1/2/4/12/13 rated protection
- UL Listed and CSA certified
- Furnished with screw clamp terminals for electrical connection
Technical Specifications
- Voltage Rating: 600V AC maximum
- Current Rating: 10A AC maximum
- Contact Configuration: 4PST-2NO, DPST-NC (2NO-2NC)
- Actuator Type: Rotary lever arm, CW and CCW switch actuation
- Operation: Snap Action with Spring Return
- Displacement Angle: 90° maximum with 10° tripping angle
- Operating Force: 4in-lb maximum
- Mounting: Plug-in body type, fixed by the body
- Material: Metal construction
- Dimensions: 39.37mm (width) x 63.5mm (depth) x 102.11mm (height)
- Weight: 0.57kg
- Terminal Connection: Screw Clamp
- Certifications: UL, CSA and CE certified; complies with UL 508, NEMA 250, IEC 60947, EN 60947-5-1, EN 60947-1 and C22-2-14-95
Typical Applications
9007C limit switches can be used in material working, packaging, material handling, conveying, food and beverage, mining and mineral, construction, oil and gas, and crane and hoist applications. This NEMA limit switch is suitable for use in process machinery applications such as machine tools, plastic, rubber and moulding, printing, textile, pulp, paper and wood.
Compatibility & Replacements
Compatible With
- 9007 series limit switch bodies and components
- Industrial automation control systems requiring NEMA-rated limit switches
- Material handling and conveying equipment
- Heavy-duty machinery requiring snap action position sensing
Replaces / Drop-In Replacement For
The 9007C68T10 replaces other 9007C series full body units with equivalent rotary lever arm and 2NO-2NC snap action specifications. Verify exact compatibility with your original equipment manufacturer documentation before ordering.
Works With
- Industrial control relays and contactors
- PLC input modules accepting discrete 24VDC signals
- Safety control circuits (UL/CSA certified for safety applications)
- NEMA-rated motor starters and control panels
- EtherNet/IP and PROFINET networks (via I/O gateway modules)
