Overview

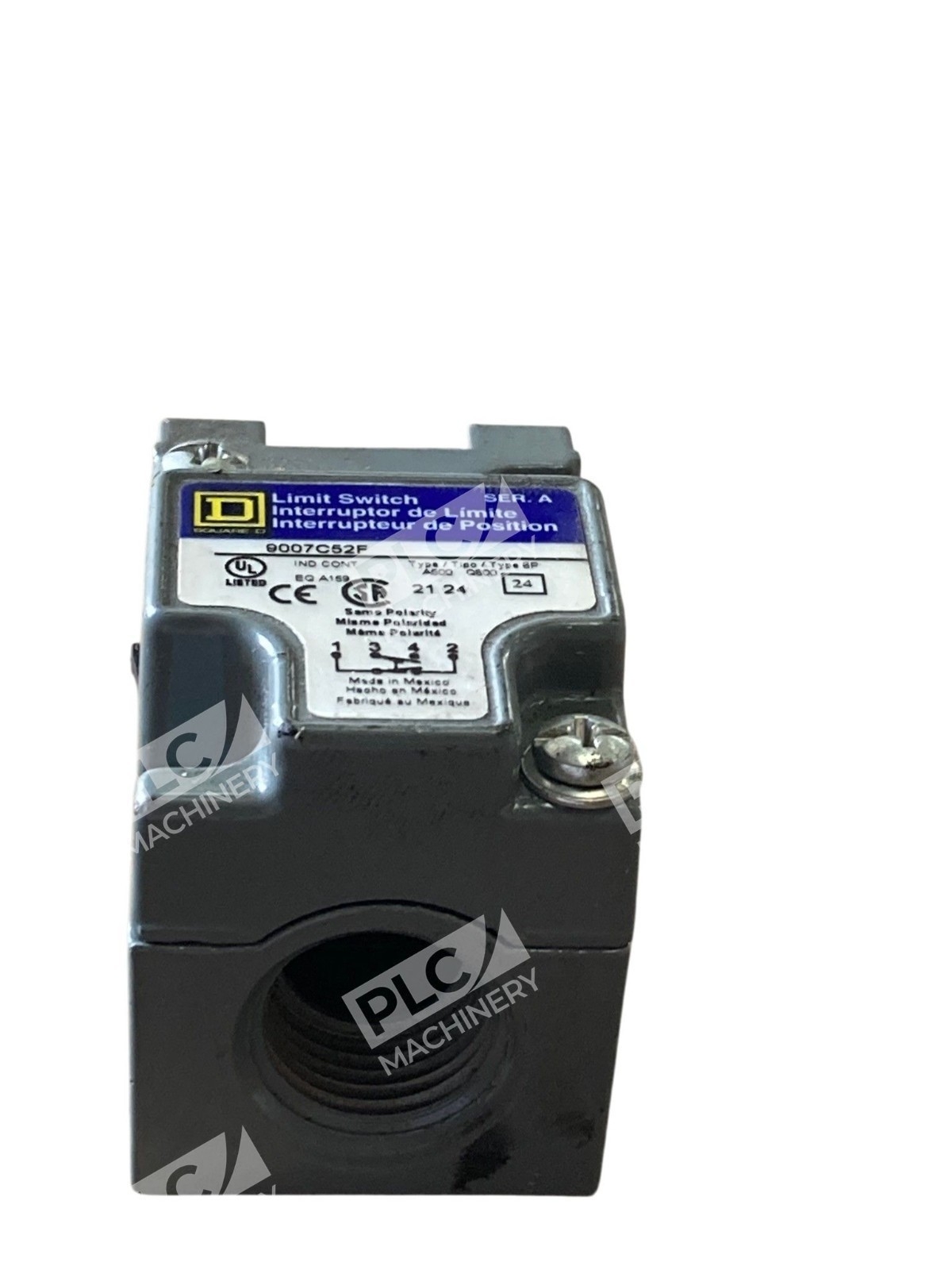

The Square D 9007C52F is a heavy duty industrial limit switch body engineered for dependable position sensing and control in demanding automation environments. This compact-size heavy duty industrial limit switch with NEMA enclosure has a single-pole contact type and side roller plunger head type. The 9007C52F features a die-cast zinc alloy body with maximum voltage rating of 120/240/480/600 Vac 50/60 Hz 10A and 125/250/600 Vdc 10 A. The modular design allows flexible head and lever arm configuration options, making it ideal for retrofit and new machine integration.
Key Features
- Contact configuration SPDT with one NO and one NC double break contacts
- Operating temperature range -0 to 185°F
- 0.25 inch total travel for precise positional actuation
- Meets the Ingress Protection IP67 standard for protection against dust and water
- UL listed, CSA certified, and CE marked
- Die-cast enclosure with rugged 9.5mm diameter shaft and interlocked turret head, up to 85° safety over-travel
- Modular body design compatible with multiple head and arm types
Technical Specifications
- Maximum Voltage (AC): 120/240/480/600 VAC, 50/60 Hz
- Maximum Voltage (DC): 125/250/600 VDC
- Rated Current: 10A continuous
- Contact Type: SPDT (1 NO + 1 NC) – double break
- Actuator Type: Side roller plunger head
- Total Travel: 0.25 inch
- Operating Temperature: -0°F to +185°F (-18°C to +85°C)
- Enclosure Material: Die-cast zinc alloy (Zamak)
- Shaft Diameter: 9.5 mm
- Sealing: Oil-tight, dust-tight, water-tight
- IP Rating: IP67
- NEMA Rating: 2, 4, and 13
- Certifications: UL listed, CSA certified, CE marked
- Series: Square D 9007C (Heavy Duty Compact)
Typical Applications
Contacts are snap action, spring return or maintained, and are designed for use with inductive loads. The 9007C52F is used in:
- Machine tool position detection and safety interlocks
- Conveyor belt and transfer line control
- Guard and door interlocks
- Elevator and lift platform monitoring
- Press brake and punch tooling position sensing
- Automated material handling systems
- Oil-tight and dust-tight industrial environments
Compatibility & Replacements
Compatible With
- Square D 9007 series body assemblies and component heads
- Standard industrial control cabinets and junction boxes
- Manifold mounting blocks (with gasket)
- Telemecanique sensors and Schneider Electric product ecosystem
Replaces / Drop-In Replacement For
The 9007C52F body can be paired with various lever arm and plunger head options to replace or substitute for similar 9007C series configurations. Specific cross-reference to other models depends on head style and mounting options selected. Consult the manufacturer catalog (Schneider Electric 9007CT0401) for exact equivalencies and available substitutions.
Works With
- Standard relay and contactor control circuits
- Programmable Logic Controllers (PLCs) – discrete input modules
- Safety controllers and emergency stop circuits
- Motor starters and overload protection relays
- Fieldbus protocols that support discrete I/O (PROFIBUS, EtherNet/IP when integrated via gateway modules)
