Overview

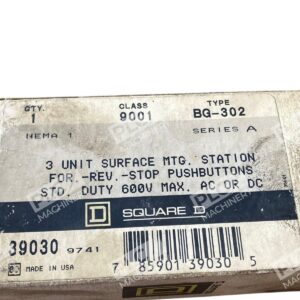

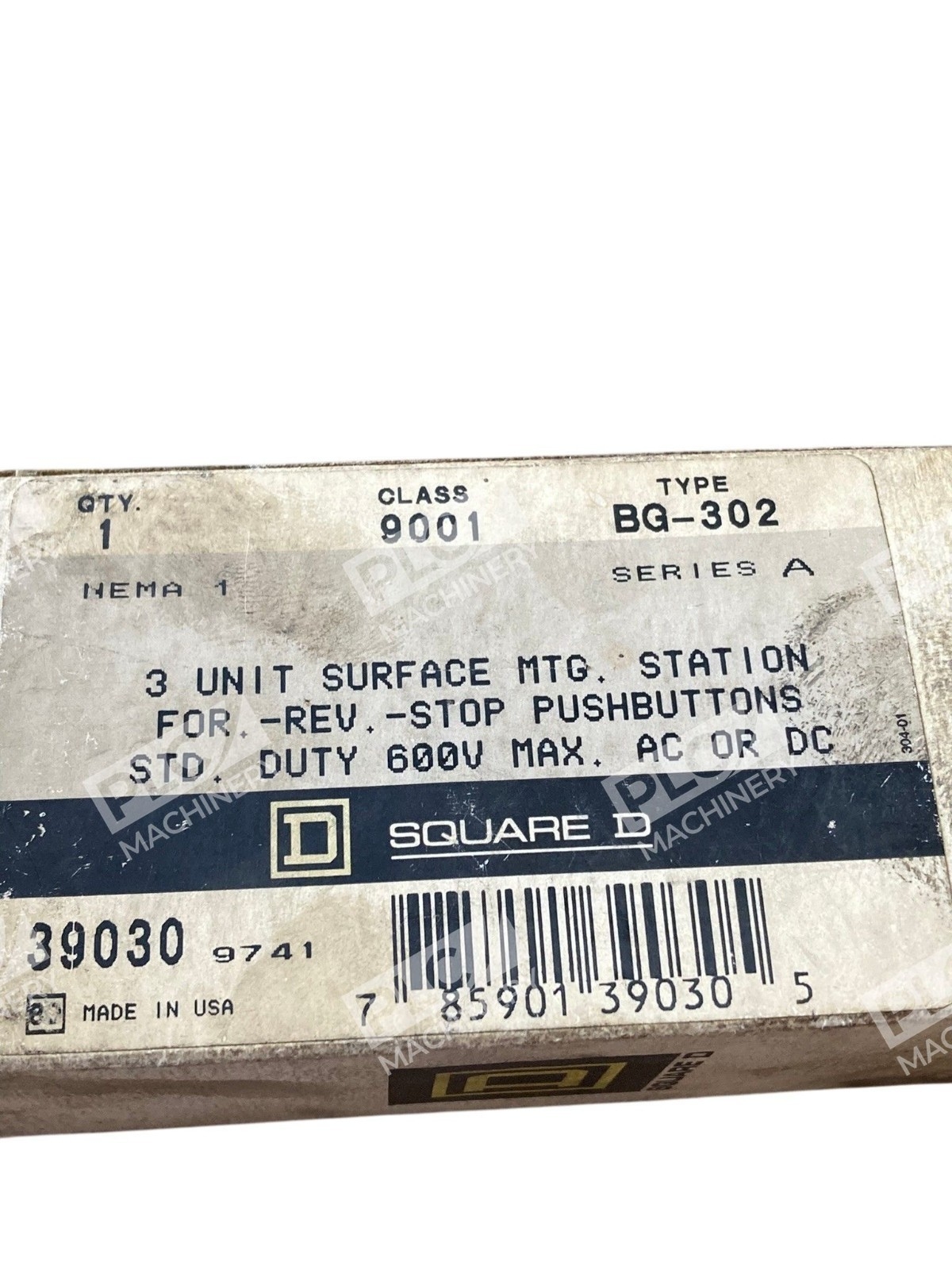

The Square D 9001BG302 is a Class 9001 Type B standard duty control station designed to operate in conjunction with magnetic motor starters for starting, stopping, or reversing electric motors. This three-button station features a sheet steel enclosure and NEMA 1 rating for general-purpose industrial control applications.
Key Features
- Three momentary contact pushbuttons
- Contact configuration: 2 NO / 3 NC (normally open / normally closed)
- Sheet steel enclosure construction
- NEMA 1 rated for indoor, general-purpose use
- Surface mount installation
- Made in USA
- Screw terminal connections
Technical Specifications
- Voltage Rating: 600 VAC/DC maximum
- Current Rating: 5A
- Contact Configuration: 2 NO-3 NC
- Number of Buttons: 3
- Enclosure Material: Sheet steel
- Mounting Type: Surface mount
- NEMA Rating: NEMA 1
- Operation: Momentary contact
- Conduit Entry: 1/2 inch
- Terminal Size: Accepts up to two #14 AWG wires (copper only)
Typical Applications
The 9001BG302 is commonly used in motor control circuits including:
- Three-phase motor starters
- Pump and fan motor control
- Hoist and lift control systems
- Conveyor system operation
- HVAC equipment motor control
- General industrial machinery operation
Compatibility & Replacements
Compatible With
- Magnetic motor starters (Class 9000 series)
- 24V DC and AC control circuits
- Standard motor control relays and overload devices
- Industrial electrical enclosures and control panels
- NEMA 1 equipment installations
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to ensure proper fit and function with existing installations.
Works With
- Square D Class 9001 series components
- Magnetic motor starter coils
- Pilot lights and indicator devices
- Control circuit wiring up to #14 AWG
