Overview

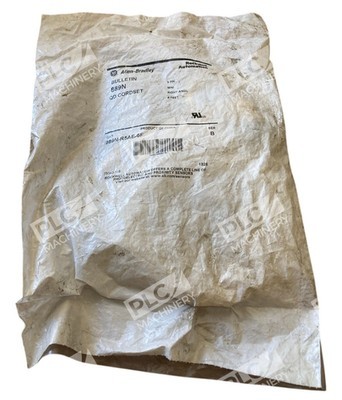

The Allen-Bradley 889N-R5AE-6F is a Series B quick disconnect (QD) cordset designed for industrial sensor and actuator connectivity. This mini-style connector assembly combines the 5-pin right-angle connector with a 6-foot pre-assembled cable for ready-to-deploy field wiring in control and automation systems.
Key Features
- Right-Angle Connector Orientation: Ideal for panel-mounted sensors and confined installation spaces where straight connectors create interference.
- 5-Pin Mini Style Connector: Compatible with Allen-Bradley sensor and actuator lines using mini-style quick disconnect architecture.
- 300V / 5.6A Rating: Suitable for standard industrial control voltages in low-power sensor circuits.
- 18 AWG Conductor: Properly sized for sensor signal and low-power applications without excessive voltage drop over 6-foot runs.
- Yellow PVC Jacket: High-visibility outer sheath with oil and chemical resistance for plant floor durability.
- Pre-Assembled for Quick Deployment: Ships ready-to-use; eliminates field termination labor and ensures reliable connections.
Technical Specifications
- Conductor Size: 18 AWG
- Number of Pins: 5
- Connector Style: Mini, Right Angle
- Voltage Rating: 300V AC
- Current Rating: 5.6A
- Cable Length: 6 feet (1.828 m)
- Jacket Material: Yellow PVC
- Color Code: C
- Series: B
- UPC: 662468992596
Typical Applications
The 889N-R5AE-6F serves connectivity needs in:
- Proximity and limit switches in confined spaces where cable routing is tight.
- Photo-eye and color-sensing applications on conveyor systems and vision inspection stations.
- Temperature and pressure sensor installations on machinery where right-angle orientation prevents cable stress.
- Industrial control panel sensor harnesses and machine tool sensor feed-throughs.
- Process automation and bottling/packaging line equipment requiring rapid connector changeout.
Compatibility & Replacements
Compatible With
- Allen-Bradley 5-pin mini-style quick disconnect receptacles and plugs
- Rockwell Automation sensor and actuator product lines using 889 mini connectors
- Industrial control systems requiring IEC-style M12 mini connector alternatives
- Standard 300V control voltage circuits in manufacturing and process automation
Replaces / Drop-In Replacement For
- 889N-R5AE-6F Series A (earlier revision)
- Other 5-pin mini-style QD cordsets with same voltage and current ratings
- Custom field-fabricated sensor harnesses using mini connector termination
Works With
- Allen-Bradley TL-Series and other mini-style receptacle assemblies
- Quick disconnect socket and plug modules rated for 300V / 5.6A operation
- Standard industrial control enclosures and DIN-rail mounted sensor junction boxes
- Allen-Bradley cordset family (related mini and compact connector variants available in 2-pin, 3-pin, 4-pin, and 6-pin configurations)
