Overview

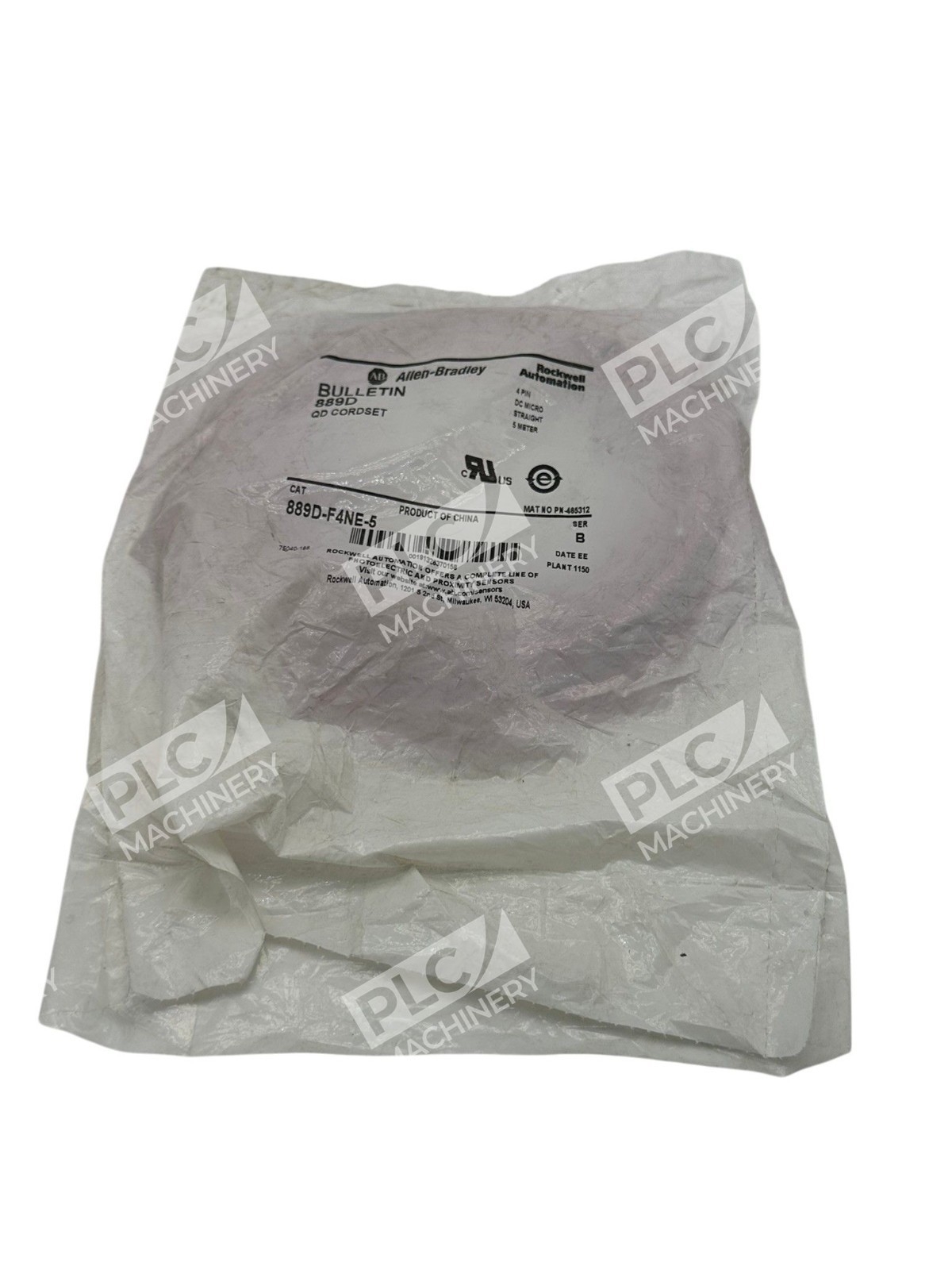

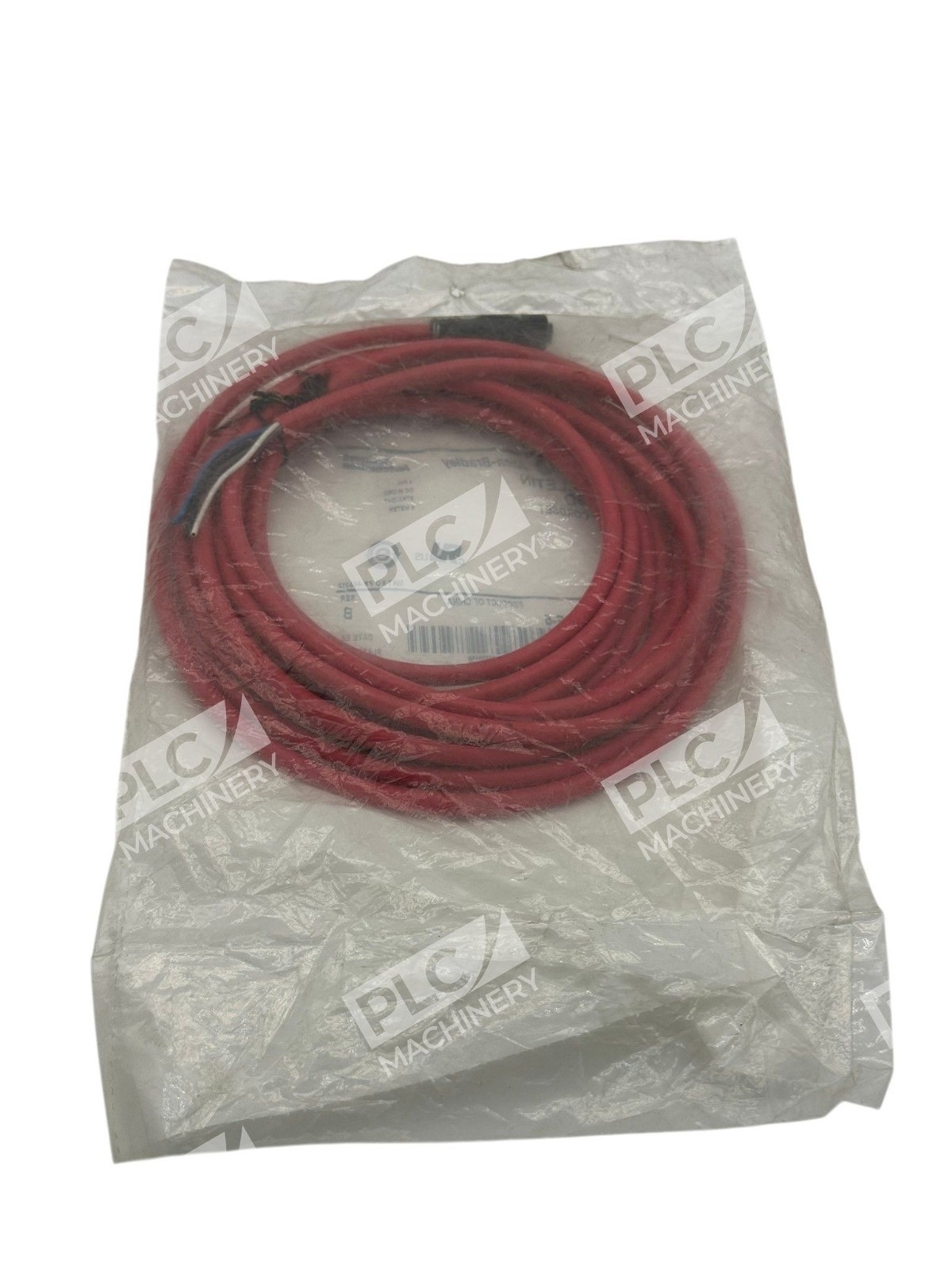

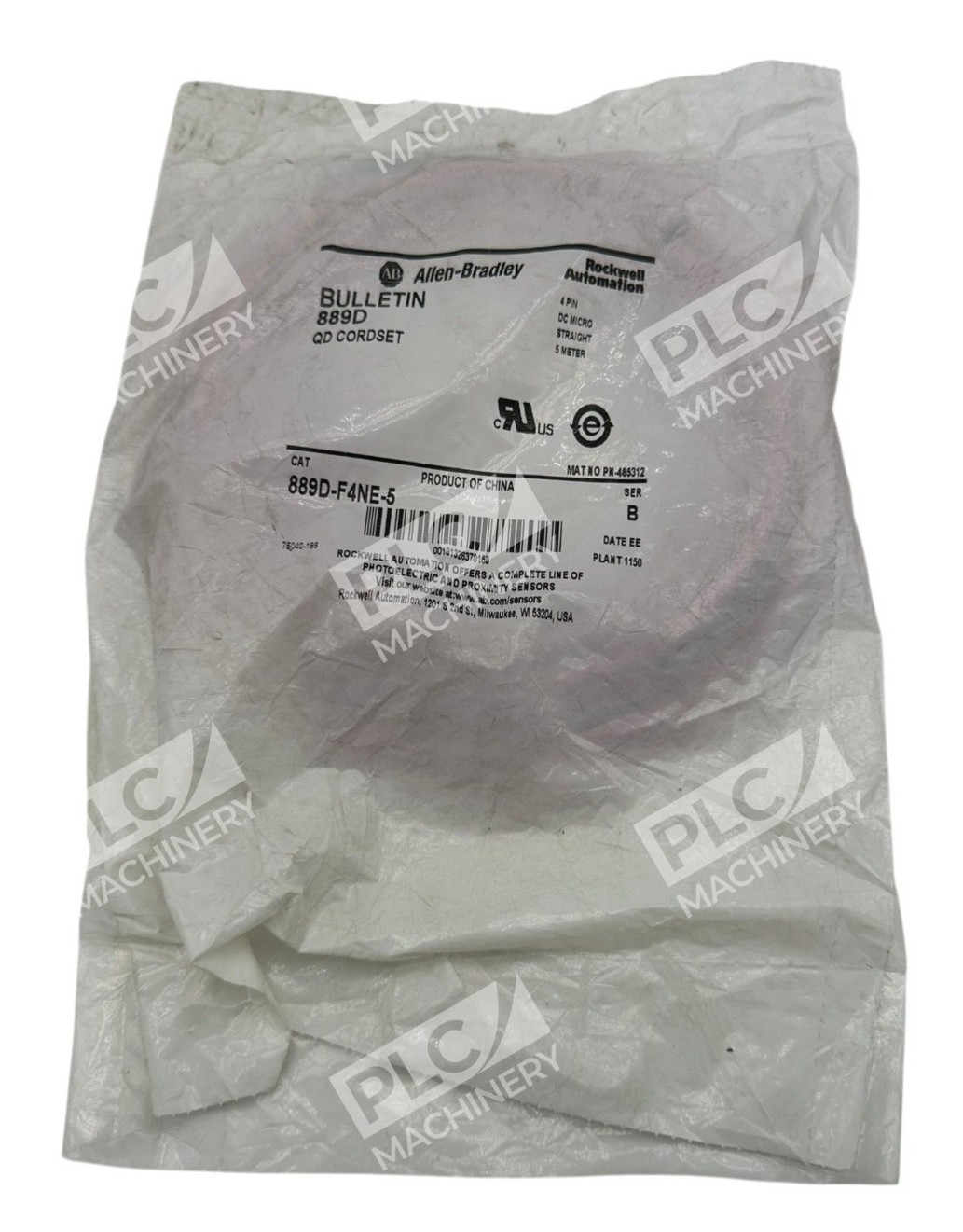

The Allen-Bradley 889D-F4NE-5 Series B is a QD (quick disconnect) cordset designed for industrial automation and field device connectivity. This 4-pin DC micro M12-style cordset provides reliable overmolded connections for proximity sensors, limit switches, photoelectric sensors, and other field-mounted components in demanding industrial environments.
Key Features
- 4-pin straight connector configuration with M12 DC Micro standard compatibility
- 5-meter cable length for flexible installation and device positioning
- Overmolded connector design for durability and environmental sealing
- Operates at 4 amp, 250V maximum capacity
- 22 AWG wire gauge for reliable signal transmission
- PUR (polyurethane) or PVC jacket for oil and abrasion resistance
- Gold over nickel-plated brass contacts for corrosion protection
- Series B design indicating current generation compatibility
Technical Specifications
- Connector Type: M12 DC Micro, 4-pin straight female
- Cable Length: 5 meters
- Wire Gauge: 22 AWG
- Amperage Rating: 4 amps
- Voltage Rating: 250V DC
- Contact Material: Gold over nickel-plated brass
- Coupling Nut: Epoxy coated zinc
- Housing Material: Oil-resistant molded PUR
- Series: B
- Condition: New in Box
Typical Applications
The 889D-F4NE-5 cordset is ideal for:
- Proximity sensor connections in industrial control systems
- Limit switch wiring for motion control applications
- Photoelectric sensor field connections
- PLC and automation system sensor inputs
- Plant floor machinery and conveyor systems
- Any DC-powered field device requiring M12 connectivity
Compatibility & Replacements
Compatible With
- Rockwell Automation PLCs and control modules accepting M12 DC Micro inputs
- Allen-Bradley Bulletin 889 DC Micro connection systems
- Standard M12 A-code 4-pin female receptacles
- Industrial sensors and switches using DC Micro connectors
- Motion control and automation systems requiring field device connectivity
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 889D-F4NE-5 variant specification may differ from similar 889D models such as 889D-F4AC-5 or 889D-F4EC-5; confirm the exact pin configuration and connector orientation required for your application.
Works With
- Allen-Bradley Studio 5000 and FactoryTalk automation software environments
- EtherNet/IP and PROFINET industrial networks (when used with appropriate gateways)
- DC Micro (M12) standard field devices and junction boxes
- Industrial automation control systems across all major automation platforms
