Overview

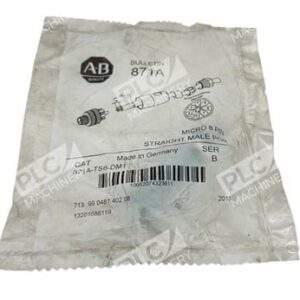

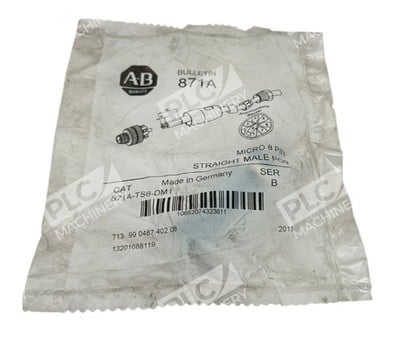

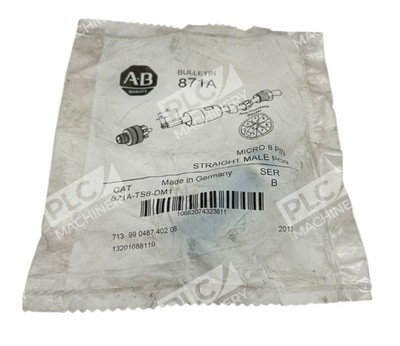

The Allen-Bradley 871A-TS8-DM1 is a terminal chamber connector designed for DC Micro M12 applications. This straight male connector features an 8-pin configuration with PG9 thread entry and supports 6–8mm cable diameters. Built for reliable performance in industrial automation systems, the 871A-TS8-DM1 is commonly used in control circuits, sensor networks, and I/O connectivity.
Key Features
- DC Micro M12 connector type with 8-pin straight male configuration
- PG9 cable gland entry supporting 6–8mm (0.24–0.32 inch) cable diameters
- 23 Amp rated amperage capacity
- External threads for secure mechanical connection
- Standard materials and construction for industrial environments
- Compact form factor suitable for control cabinets and panel installations
Technical Specifications
- Connector Type: DC M12 Micro
- Pin Configuration: 8-Pin
- Orientation: Straight Male (External Threads)
- Cable Gland: PG9
- Cable Diameter Range: 6–8mm (0.24–0.32 inch)
- Amperage Rating: 23 Amp
- Weight: 0.05 lbs
- Standards: CUL, KC, UL
- Condition: New in Box
Typical Applications
The 871A-TS8-DM1 terminal chamber connector is suitable for:
- Industrial sensor and actuator connectivity
- Automation control panel wiring
- DC signal distribution in discrete control systems
- Inductive proximity sensor networks
- Machine tool and manufacturing equipment interconnection
- On-machine control circuit assemblies
Compatibility & Replacements
Compatible With
- Allen-Bradley DC Micro M12 sensor and actuator systems
- Rockwell Automation control environments
- Industrial automation networks using M12 micro connectors
- PG9 cable gland and conduit entry systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 871A-TS8-DM1 is a terminal chamber connector; check your existing part number and cable configuration to confirm direct replacement compatibility.
Works With
- Allen-Bradley proximity sensors and limit switches
- Rockwell Automation discrete I/O modules
- DC-rated M12 micro sensors and actuators
- Standard industrial cable types rated for M12 connectivity
