Overview

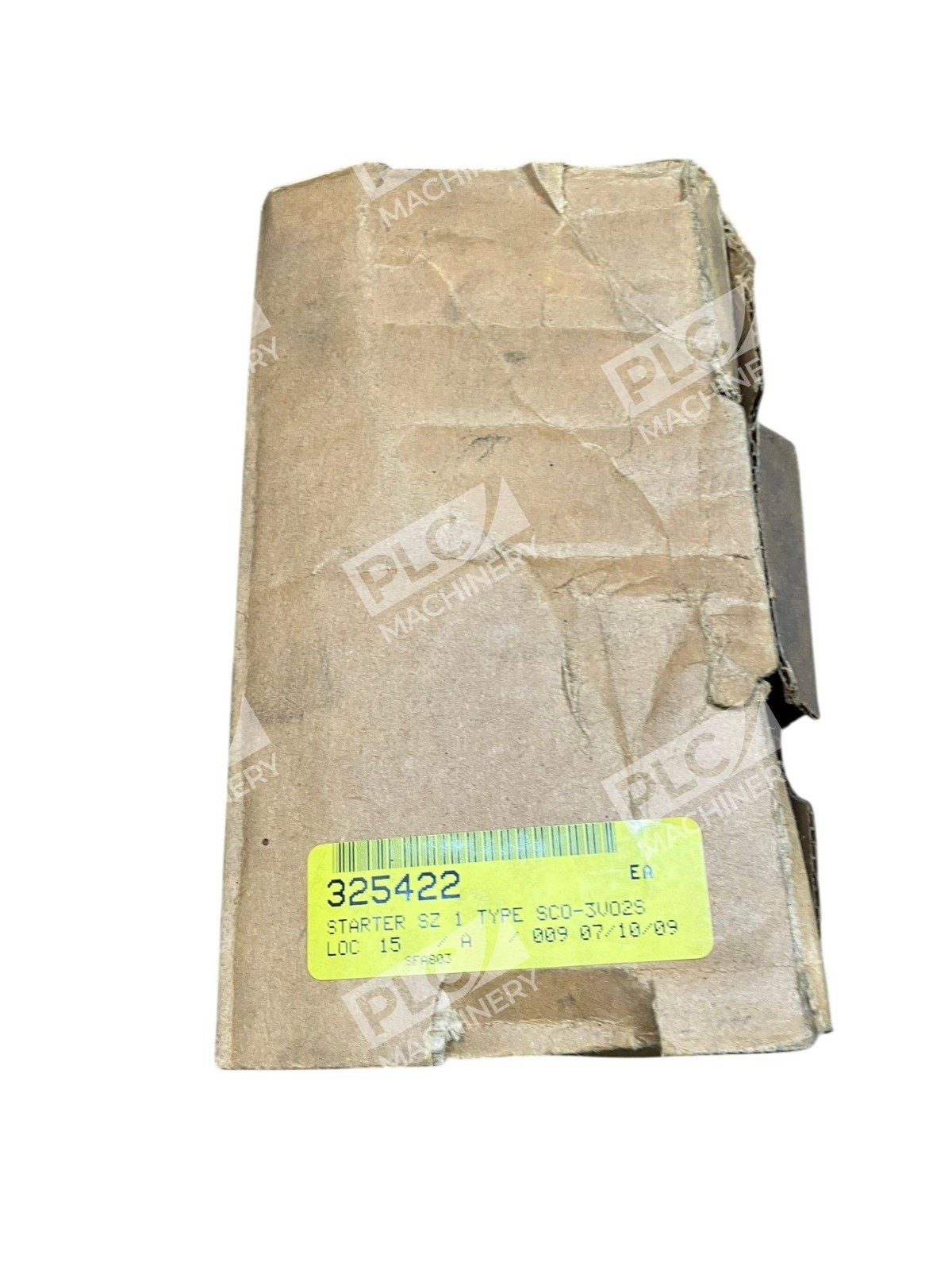

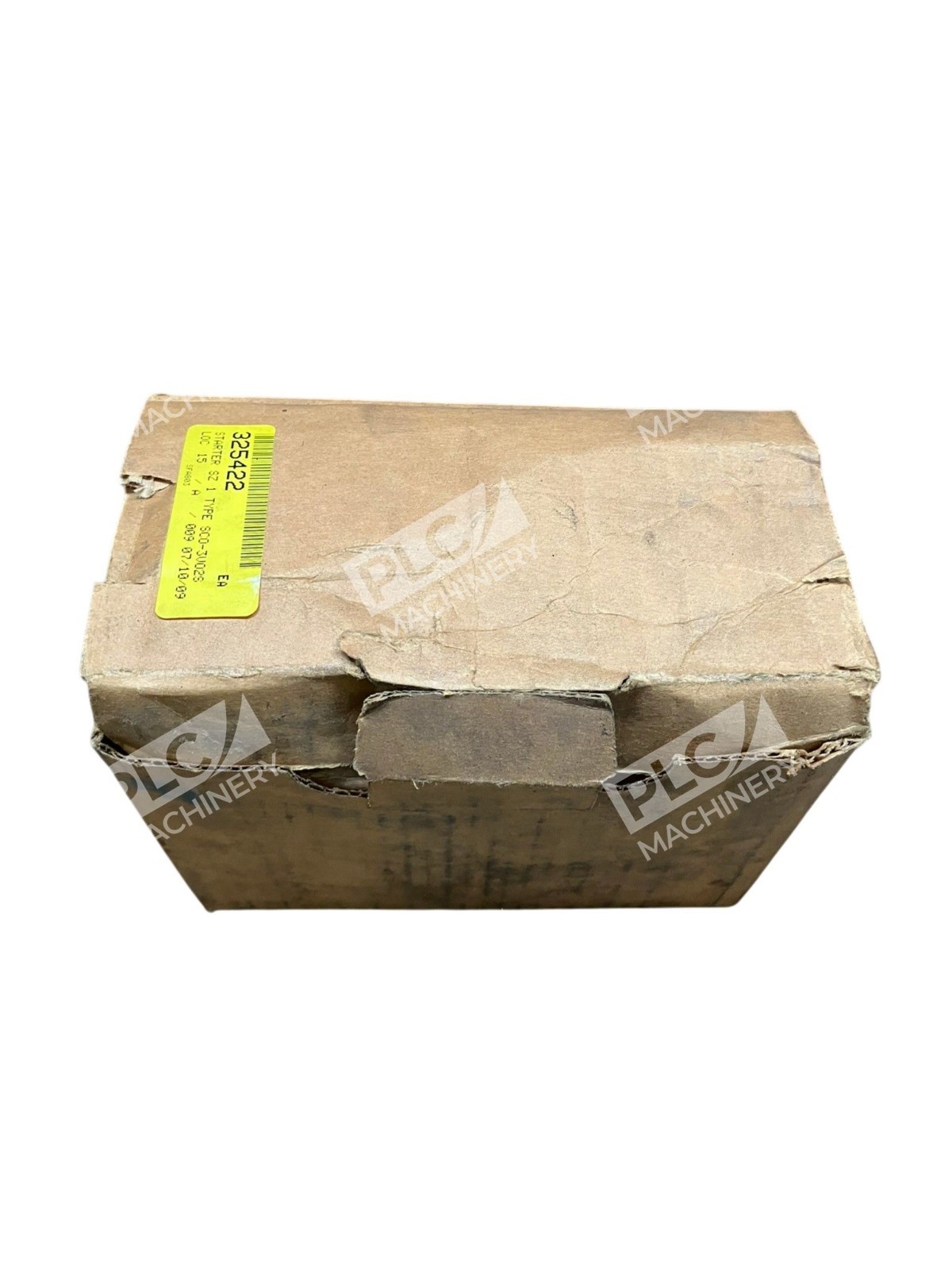

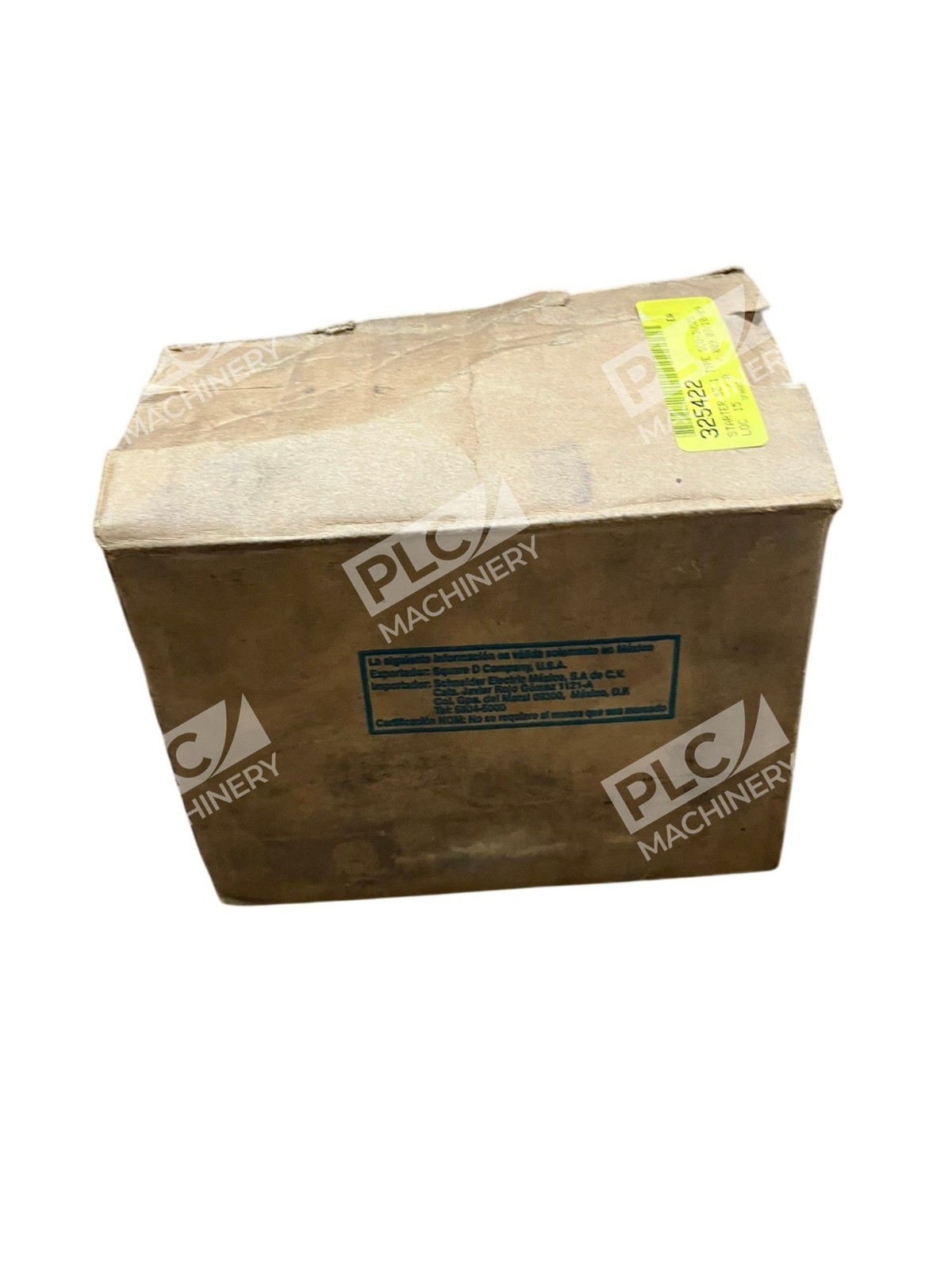

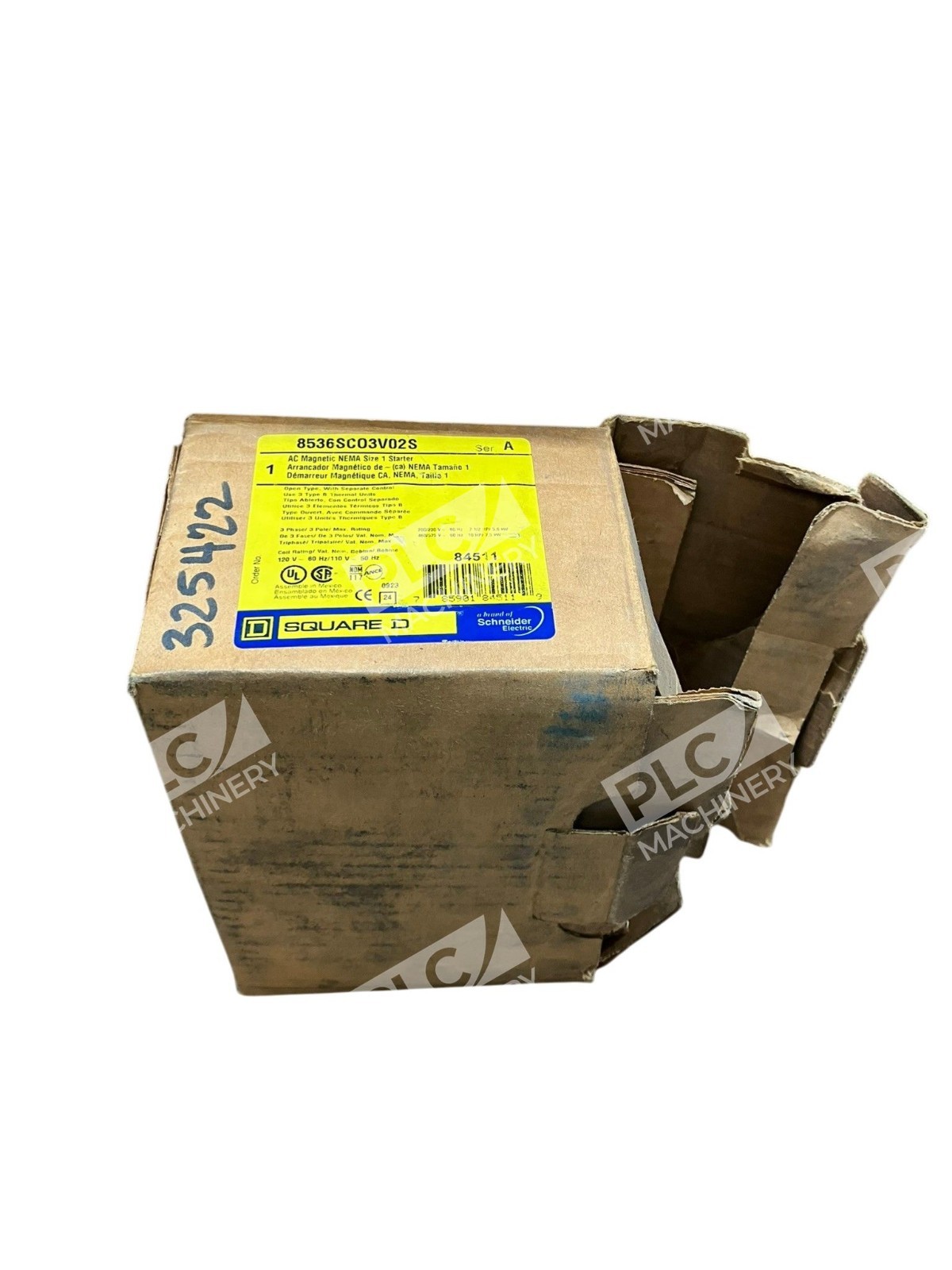

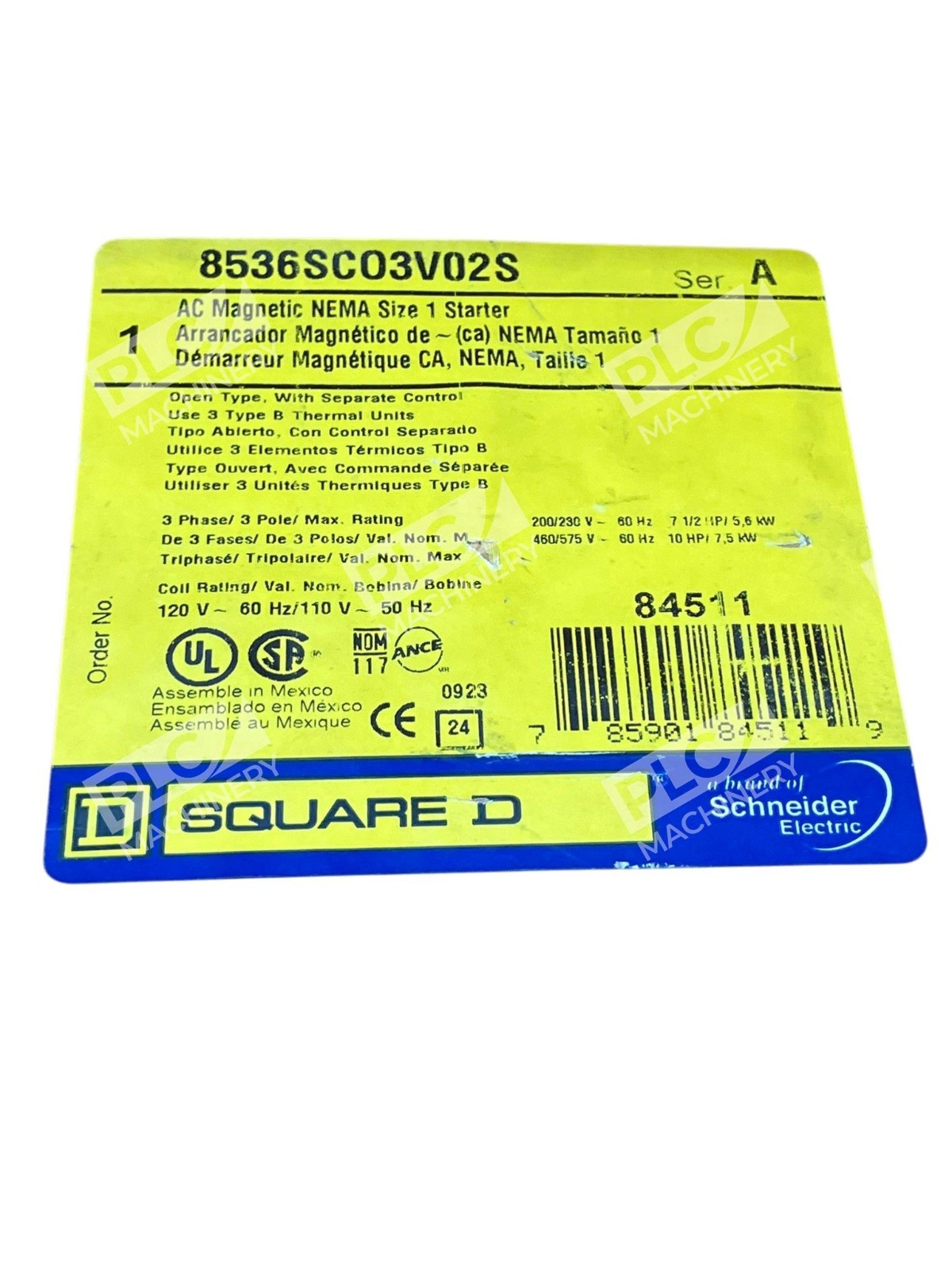

The Square D 8536SC03V02S is a Class 8536 Type S NEMA Size 1 magnetic motor starter engineered for full voltage starting and stopping of AC squirrel cage motors. This non-reversing starter delivers reliable electromechanical control in industrial automation applications, featuring a 27-amp continuous rating at 600VAC and a 110/120V AC coil for independent control circuits. The unit comes new in box, tested and ready for installation.
Key Features
- Three-pole non-reversing design for straightforward motor starting/stopping without reversibility
- 27-amp continuous rating with 600VAC maximum operating voltage
- Melting alloy thermal overload relay using Type B thermal units for motor overload protection
- 110/120V AC 50/60Hz coil with separate control wiring for flexible integration into existing control schemes
- Open enclosure type (no cover) for direct mounting in control cabinets or panels
- 5 kA short-circuit current rating (SCCR) per UL508A with appropriate protective devices
- Replaceable coil and accessories available in multiple voltages for future customization
Technical Specifications
- Motor Ratings (3-Phase): 7.5 HP @ 200–230VAC; 10 HP @ 460–575VAC
- Continuous Amps: 27A
- Maximum Voltage: 600VAC, 50–60 Hz
- Poles: 3 (three-pole)
- Control Coil: 120V 60Hz / 110V 50Hz
- Overload Relay Type: Melting alloy with thermal units
- Enclosure: Open (no NEMA enclosure; mounting face exposed)
- Dimensions: 6.77" H × 3.50" W × 4.22" D
- Short-Circuit Rating: 5 kA SCCR (UL508A) per UL listed design
- Certifications: UL listed, CSA certified
Typical Applications
- AC squirrel cage motor control in machine tools and production equipment
- Pump and fan motor starting in HVAC and facility automation systems
- Conveyor and material handling line control
- General-purpose industrial automation and process control
- OEM equipment integration requiring reliable full-voltage starting
Compatibility & Replacements
Compatible With
- Three-phase AC motors (squirrel cage induction type)
- 600VAC industrial power distributions
- Standard electromechanical relay-based control systems
- NEMA Size 1 mounting footprints and standard DIN rail enclosures
- Industrial control panels and motor control centers (MCCs)
- Standard thermal overload relay accessories and auxiliary contacts
Replaces / Drop-In Replacement For
- Earlier Square D 8536 Class Type S Size 1 starters with equivalent 27A ratings
- Verify the exact coil voltage and thermal unit compatibility with your system before ordering
Works With
- Type B thermal units for motor overload protection
- SX-7 Series B auxiliary contacts for holding circuits and interlocks
- Square D SC-series overload modules and replacement coils
- Standard three-wire and two-wire control circuits
- Mechanical and electrical interlocking accessories (sold separately)
