Overview

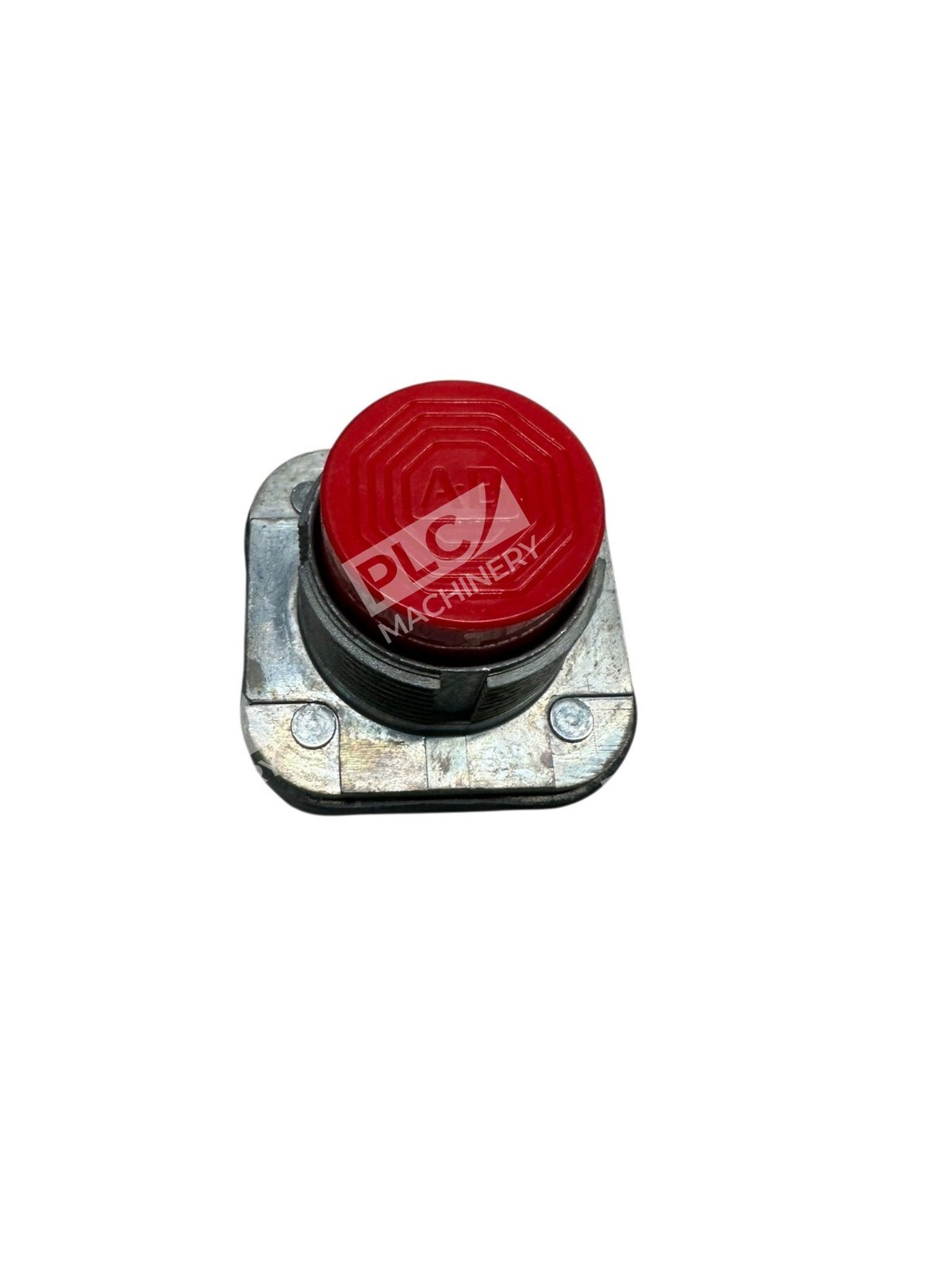

The Allen-Bradley 800T-B6 is a 30mm momentary push button operator designed for demanding industrial automation and control environments. This NEMA 4/13 rated unit features an extended head actuator and red color, making it ideal for stop functions and emergency-stop circuits in manufacturing, machinery, and process control systems. The unit is supplied as an operator only, without contact blocks or power modules, allowing integration into existing control architectures.
Key Features
- Extended head push button actuator for easy operation and visibility
- NEMA 4 and NEMA 13 enclosure rating for wet, corrosive, and spray environments
- Momentary contact action—returns to normal state when released
- Industrial-grade construction built for harsh factory and field conditions
- Compatible with standard 800T contact blocks and power modules
- Meets UL, CSA, CUL, CCC, KC, and MARINE certifications
Technical Specifications

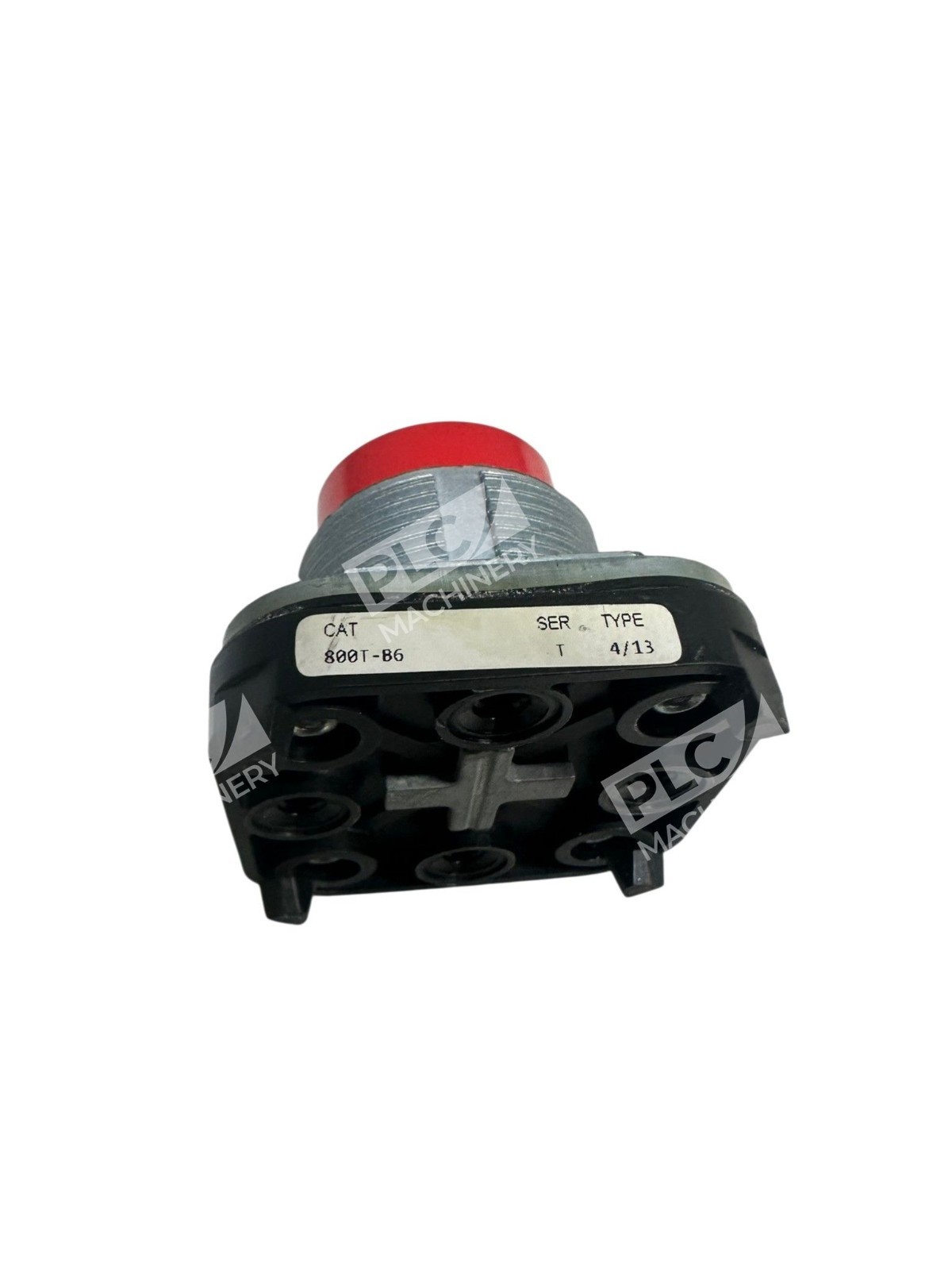

- Part Number: 800T-B6 (alternate: 800TB6)
- Manufacturer: Allen-Bradley / Rockwell Automation
- Size: 30mm (30.5mm)
- Color: Red
- Actuator Type: Extended Head
- Action: Momentary
- NEMA Rating: NEMA 4/13
- Terminal Type: Screw
- Contact Blocks: None (operator only)
- Terminal Guards: None
- Electrical Design Life Cycles: 1,000,000 (at maximum rated load)
- UPC: 78118061025
- GTIN: 00781180610257
Typical Applications
- Emergency stop (E-stop) circuits in production machinery
- Motor start/stop control in pumps, fans, and compressors
- Machine tool operation and process control
- Safety interlocks in manufacturing environments
- Wet, corrosive, and spray-wash industrial locations
Compatibility & Replacements
Compatible With
- Allen-Bradley 800T Bulletin series contact blocks and modules
- Standard industrial control relay circuits
- Rockwell Automation pilot device assemblies
- NEMA 4 and NEMA 13 rated enclosures
- PLC input modules and hardwired logic circuits
Replaces / Drop-In Replacement For
- Verify with your system integrator before ordering. The 800T-B6 is a stand-alone operator; replacement compatibility depends on the complete assembly configuration (contact block selection, enclosure design, and control circuit requirements).
Works With
- Allen-Bradley Studio 5000 and FactoryTalk systems
- Industrial hardwired relay logic and PLC input circuits
- Control circuits rated for standard pilot device operators
- Contact blocks from the 800T series (sold separately)
