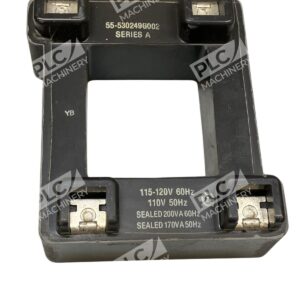

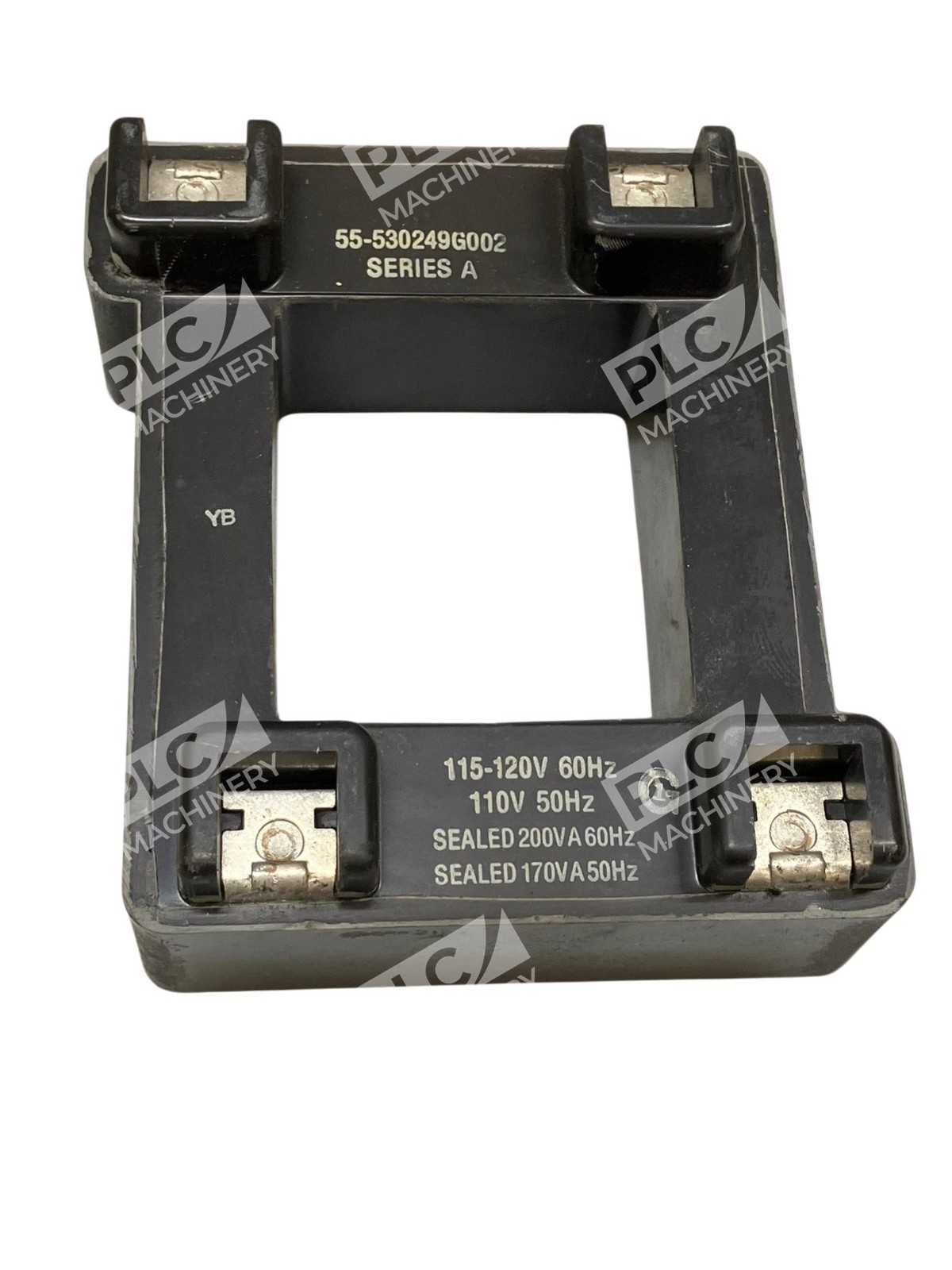

GE 55-530249G002 Magnetic Contactor Replacement Coil
The GE 55-530249G002 is a magnetic coil from General Electric’s 300-Line Series (Type 55-5), operating at 110V 50Hz or 115-120V 60Hz and suitable for use with NEMA size 5, 300 Line type CR305, CR306 contactors, motor starters, and motor controls. This replacement coil kit is engineered for drop-in installation in existing contactor and starter assemblies, minimizing downtime in critical motor control applications.
Key Features
- Size 2 or 3 pole NEMA 5 contactor configuration
- AC rated at 110V (50Hz) / 115–120V (60Hz)
- Compatible with GE 300-Line Series magnetic contactors and starters
- The 002 coil suffix supersedes the older 022 coil suffix, providing improved performance in modern control systems
- Direct replacement—no rewiring or extensive modifications required
Technical Specifications
This coil meets IEC and NEMA standards for industrial motor control equipment and integrates seamlessly with GE contactor platforms designed for factory automation, HVAC systems, and pump control.
Typical Applications
- Motor starter and contactor replacement in manufacturing facilities
- HVAC system control and air handler automation
- Pump and compressor motor control circuits
- Industrial process automation requiring reliable electromagnetic switching
- Facilities upgrading from older 022-suffix coils to current 002-suffix standards
Compatibility & Replacements
Compatible With
- NEMA size 5 300 Line type CR305 and CR306 contactors
- GE 300-Line motor starters and magnetic contactors
- Two-pole and three-pole contactor configurations
- Industrial control circuits rated 115–120V AC, 60Hz
Replaces / Drop-In Replacement For
- Older GE 022 coil suffix versions (115-120V, 60Hz)
- Direct replacement for 55-530249G2 and related 100, 200, and 300-Line contactor coils
- Previous generation GE magnetic starter coils in the 300-Line series
Works With
- GE 300-Line contactor and starter platforms
- Standard NEMA motor control circuits and systems
- IEC-compliant automation and industrial control environments
- Two- and three-pole magnetic switching assemblies
