Overview

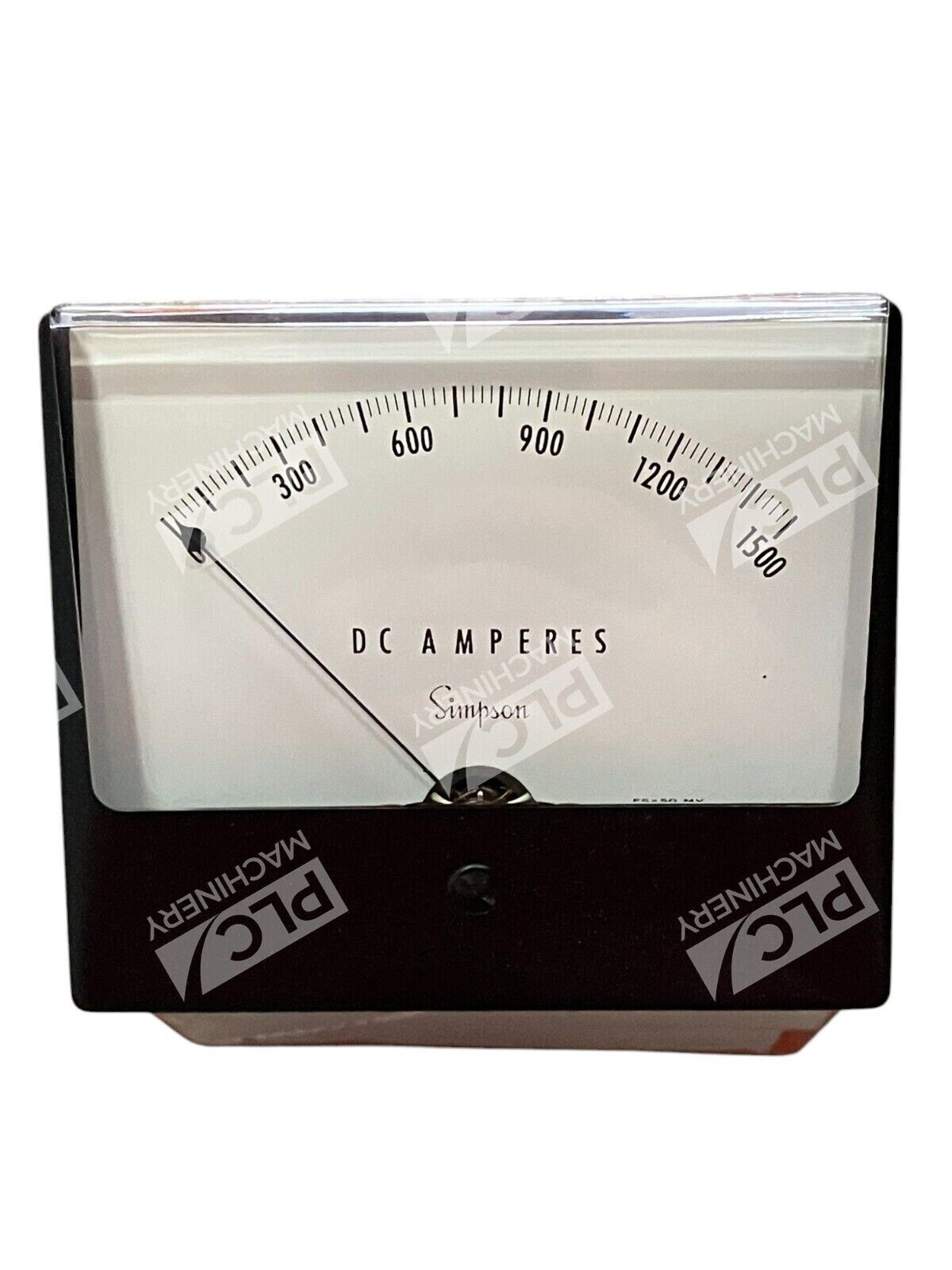

The Simpson 1329 is a round analog panel meter from Simpson Electric’s Wide-Vue line, designed for reliable measurement of DC voltage and DC current in industrial systems. This model combines 0-50 DC millivolt and 0-1500 DC ampere measurement ranges on a single dial, making it suitable for both voltage monitoring and current measurement through external shunts. The meter features a self-shielding movement and is housed in a rugged high-density black plastic case with a clear glass window for easy readability.
Key Features
- Dual measurement range: 0-50 DC millivolts and 0-1500 DC amperes
- Self-shielding meter movement for stable performance in industrial environments
- Wide-Vue analog display for clear, at-a-glance readings
- Rugged high-density plastic case with glass window and annular mounting
- UL recognized Wide-Vue panel meter design

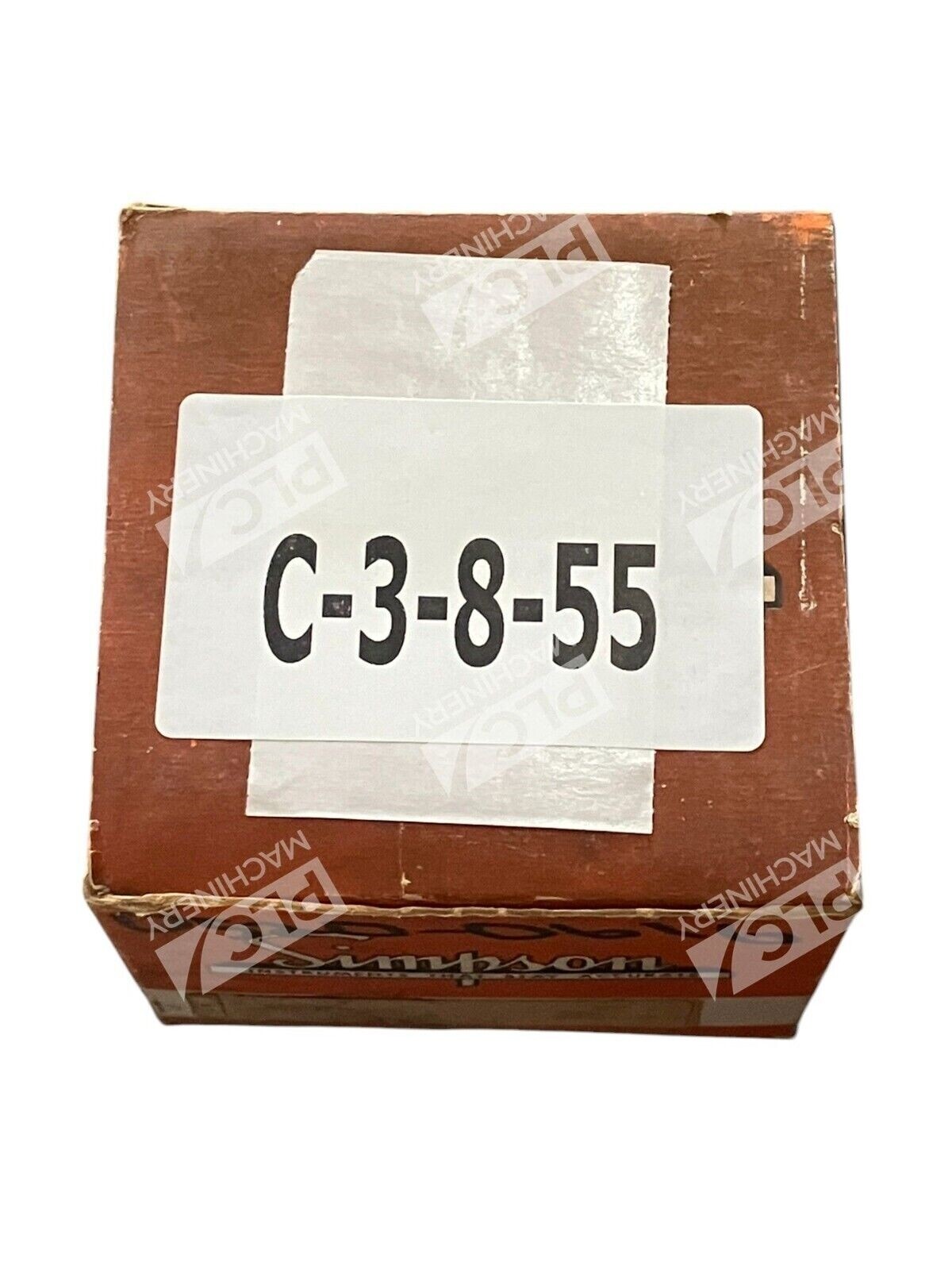

- New in box condition, ready for immediate deployment
Technical Specifications
- Voltage Range: 0-50 DC millivolts
- Current Range: 0-1500 DC amperes

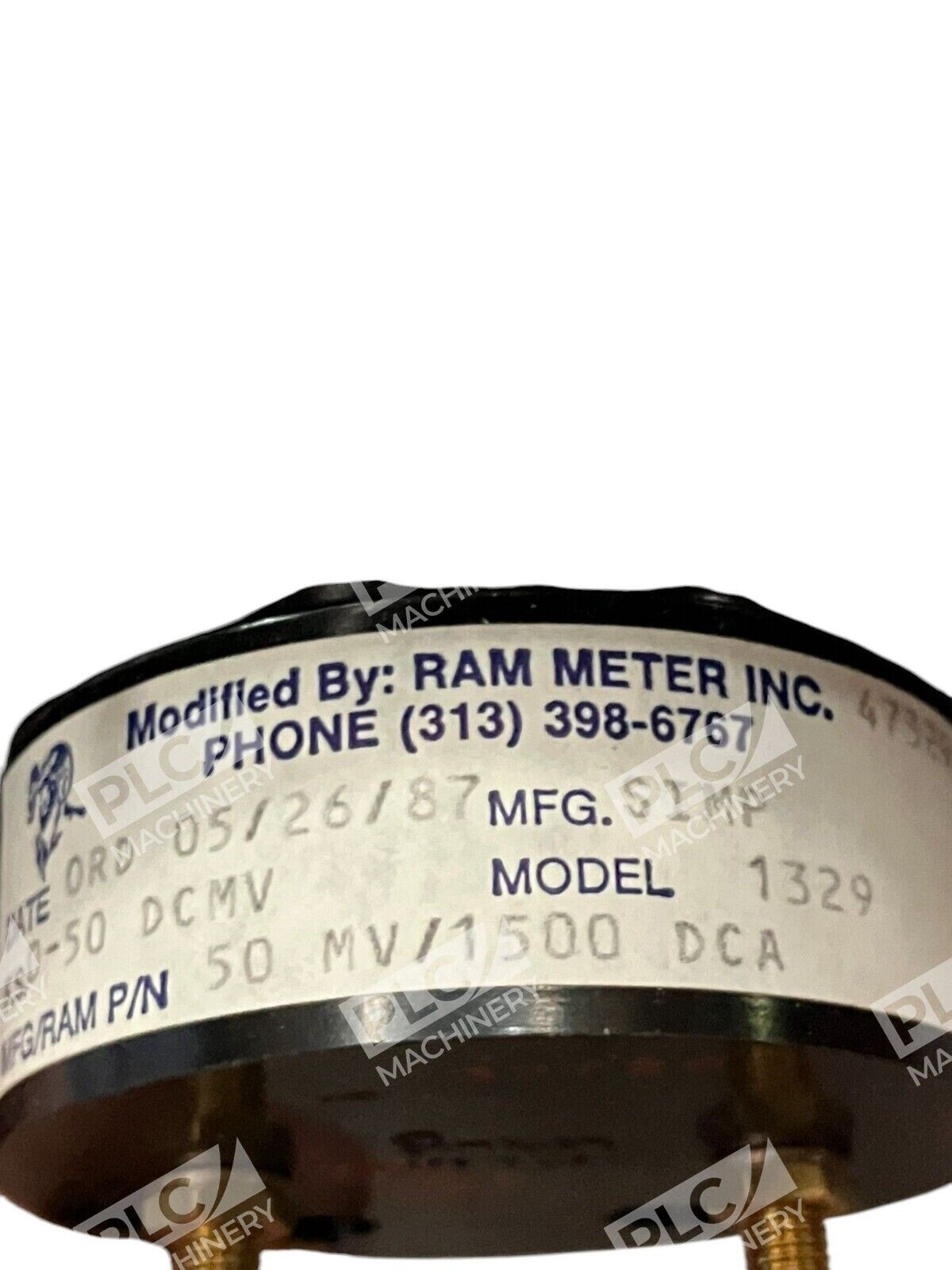

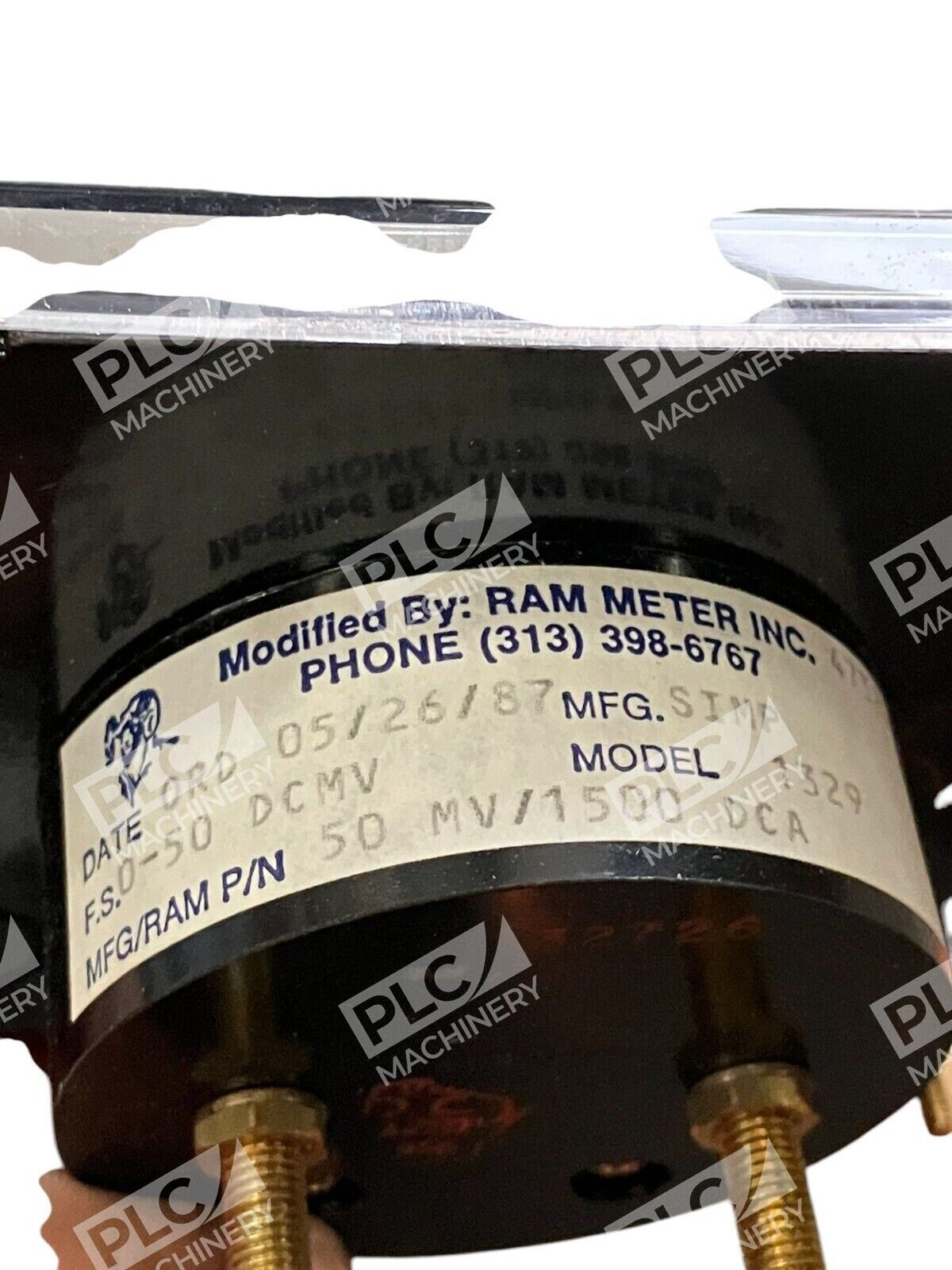

- Model: Simpson 1329
- Catalog Number: 47329
- Display Type: Analog dial with fixed scale
- Case Material: High-density black plastic
- Window: Glass
- Mounting Style: Panel mount annular
- Weight: 9 oz (0.26 kg)
- Case Dimensions: 3-1/8″ square x 5/8″ front panel depth + 1-3/4″ behind panel
- Movement Type: Self-shielding galvanometer
- Certifications: UL recognized
Typical Applications
- Industrial DC power distribution monitoring
- Battery charging system supervision
- Precision DC current measurement in test and measurement setups
- Legacy equipment maintenance and replacement
- Control panel instrumentation for DC-powered machinery
- Machine tool and industrial automation systems requiring DC voltage/current indication
Compatibility & Replacements
Compatible With
- Industrial DC power systems rated up to 1500 amperes
- External current shunt networks (50mV measurement)
- Standard 3-1/8″ square panel cutouts
- Control cabinets and electrical enclosures with panel instrumentation
Replaces / Drop-In Replacement For
- Simpson 1329 (previous lot stock)
- Similar vintage Wide-Vue analog meters with matching dial configurations
Works With
- External DC current shunts (precision 4-terminal resistors rated for 50mV / 1500A)
- DC power supplies and battery systems
- Analog instrumentation networks
- Industrial maintenance and testing protocols
