Overview

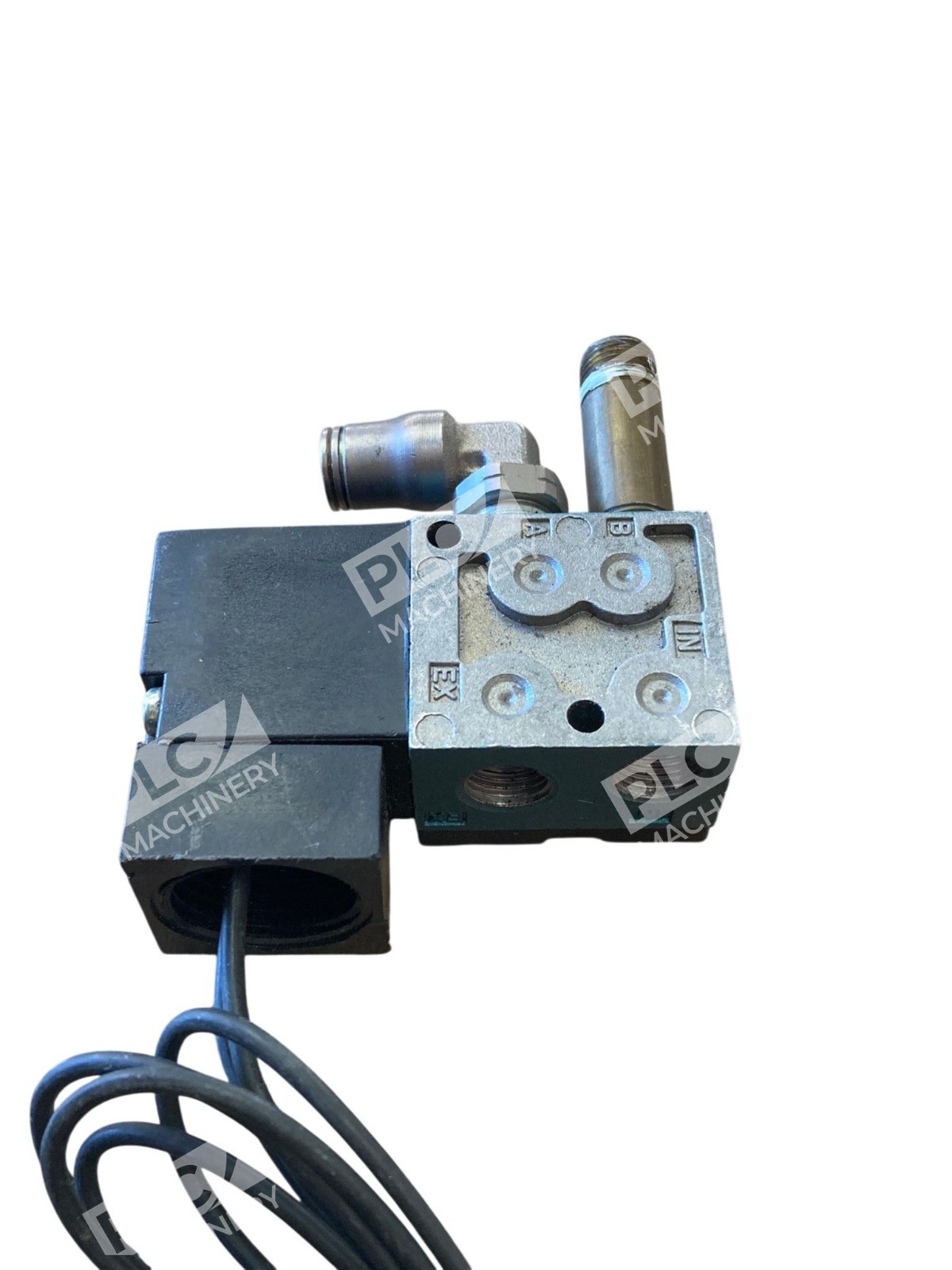

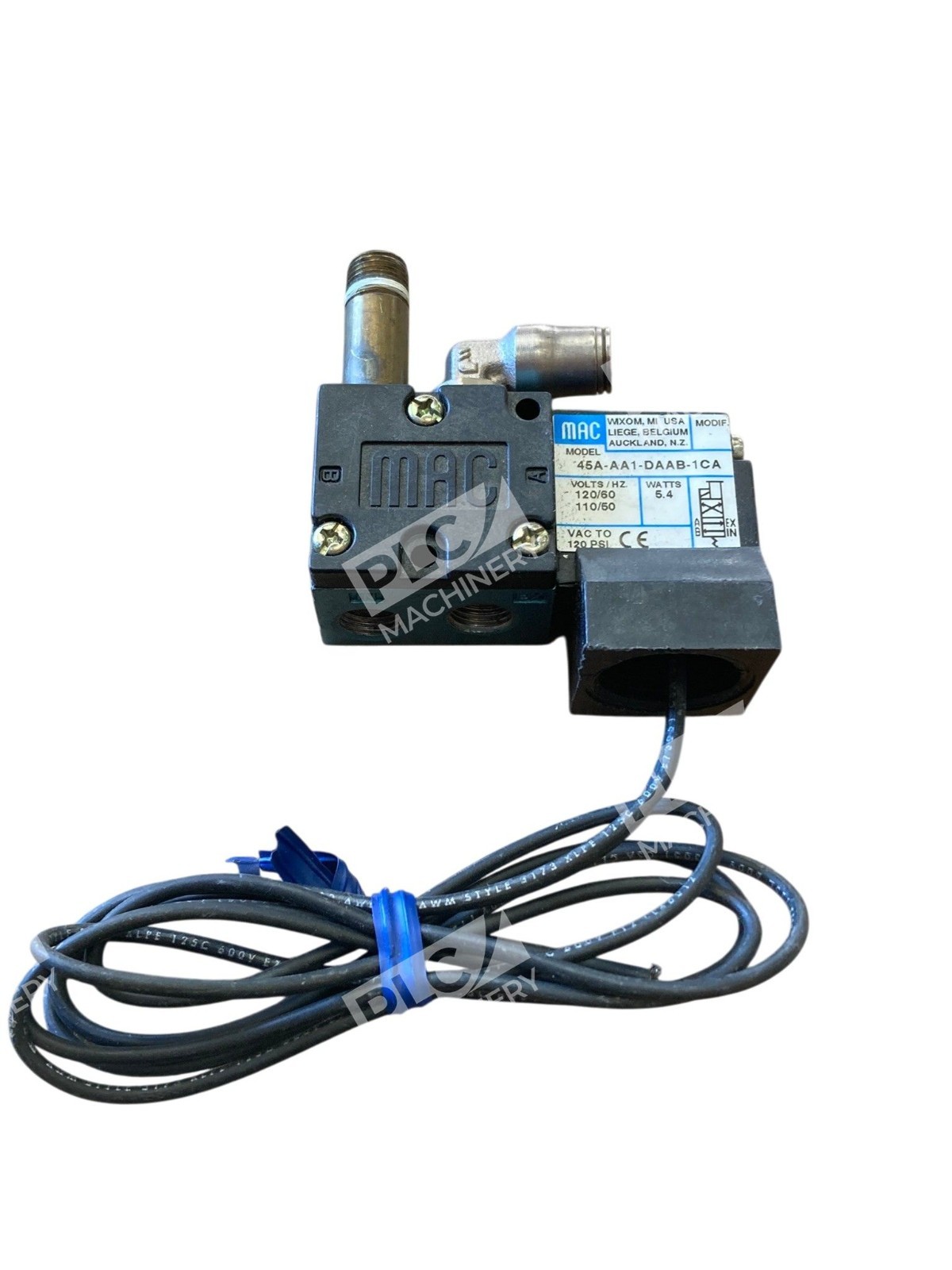

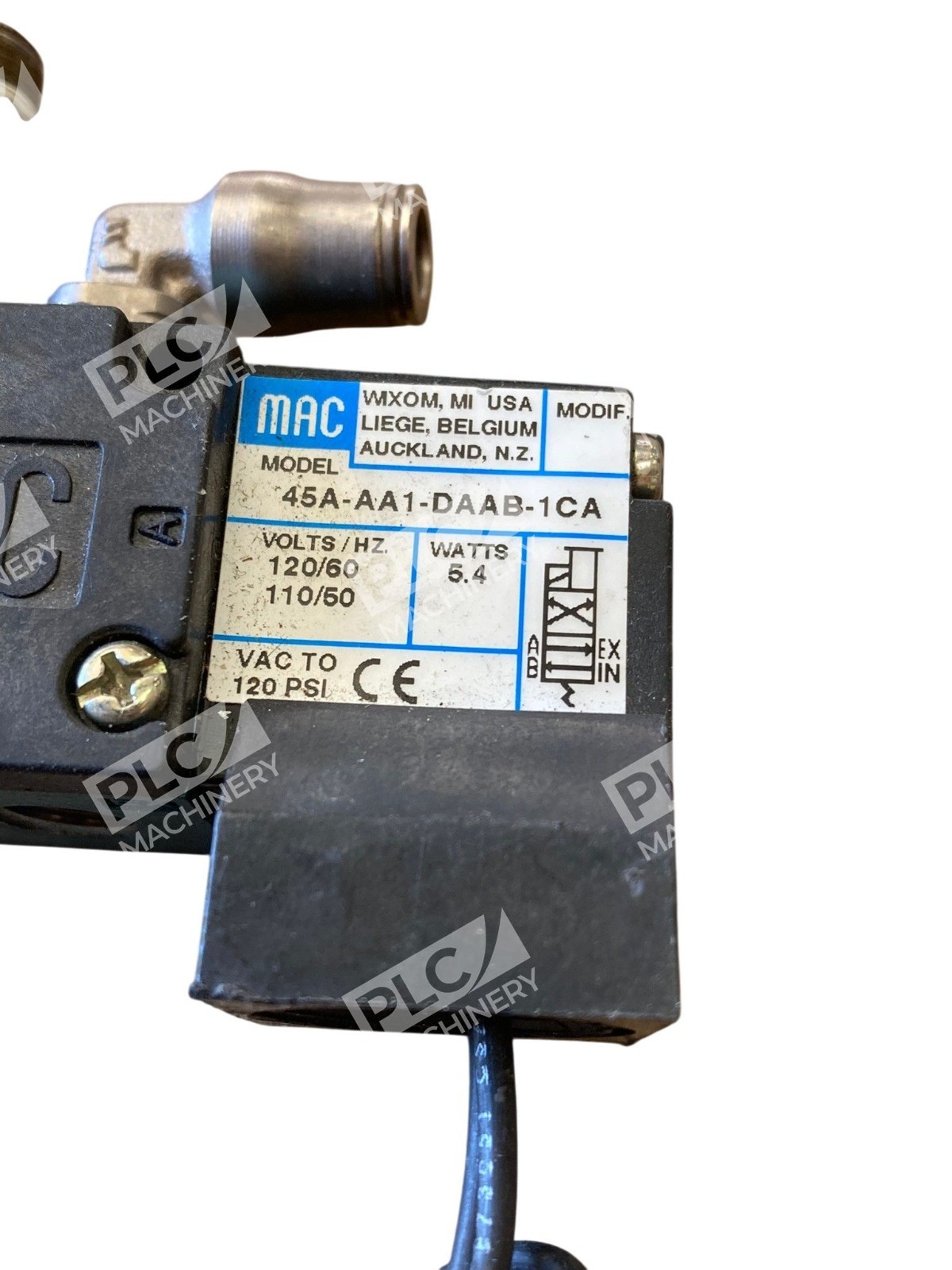

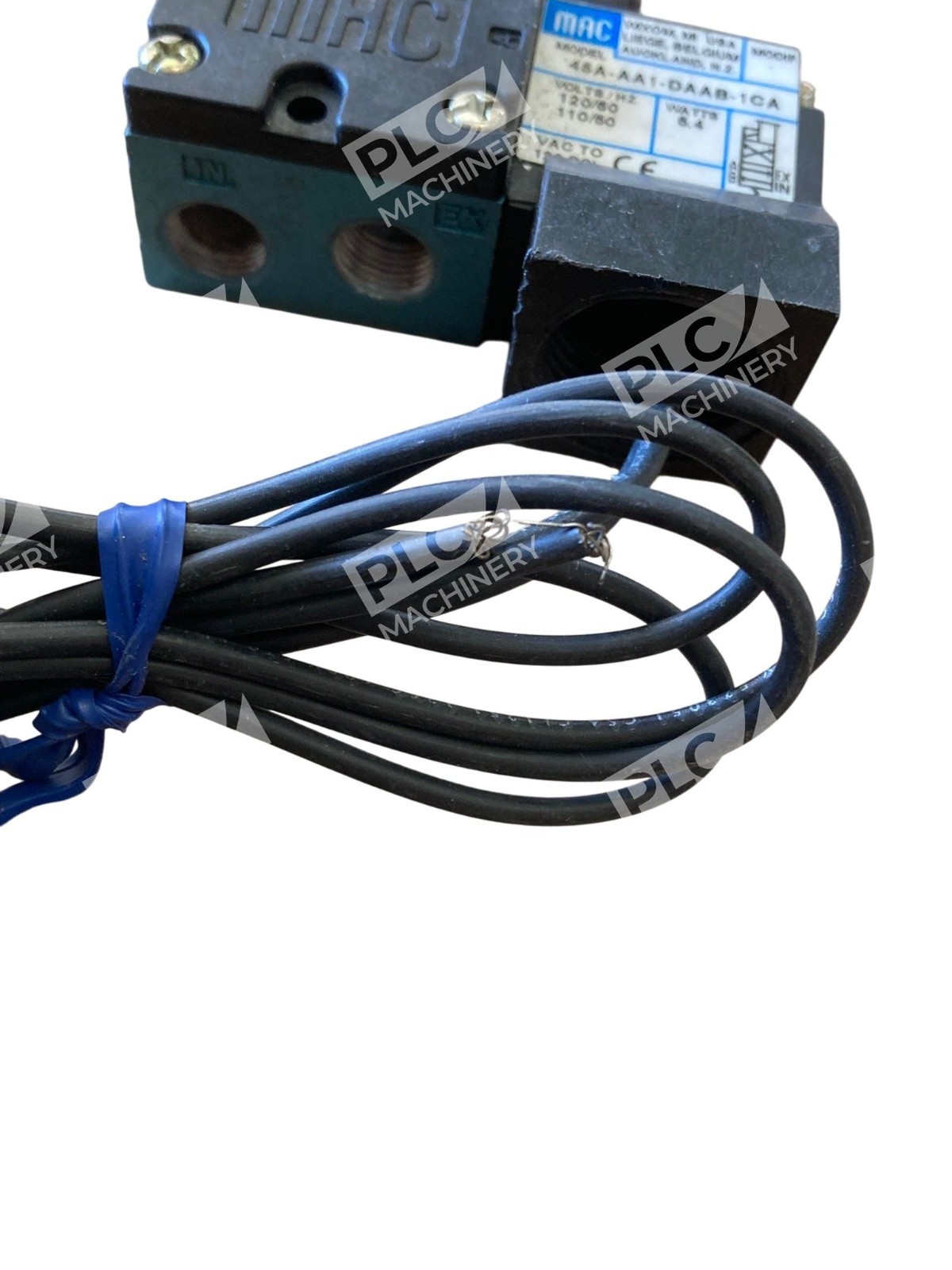

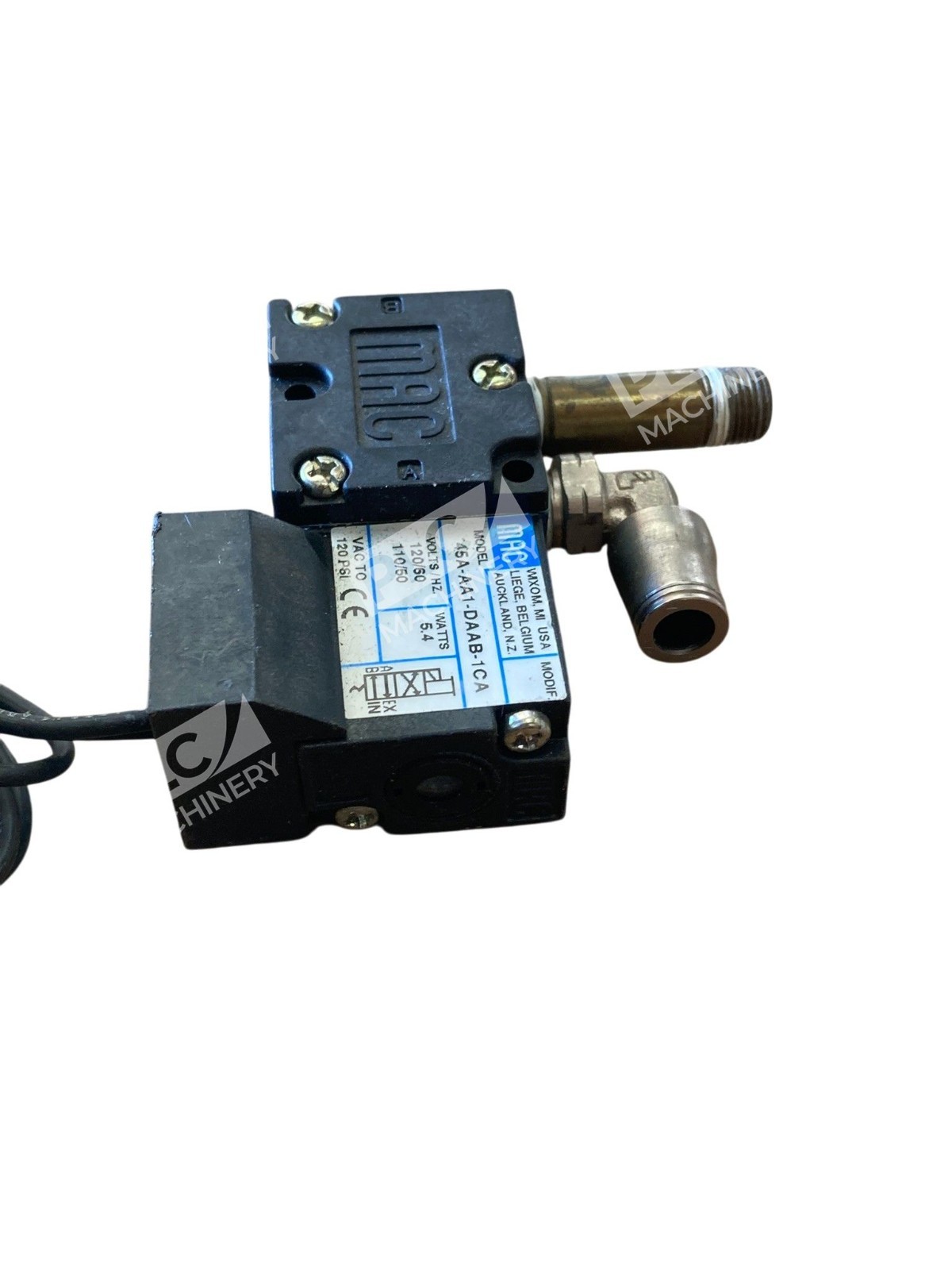

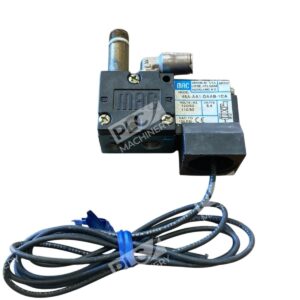

The MAC Valves 45A-AA1-DAAB-1CA is a direct-acting solenoid poppet valve from MAC’s 45 Series, one of the most widely deployed pneumatic control valves in industrial automation. The 45 Series is a direct solenoid operated 4-way poppet valve featuring a short stroke solenoid, balanced poppet and conical seats, delivering high shifting forces, fast consistent response times, and long life. When configured as a 3-way valve, this model is ideal for single-acting actuator control and applications requiring precise pneumatic distribution.
Key Features
- Patented MACSOLENOID technology provides fastest possible response times with bonded balanced poppets for high flow, precise repeatability and consistent operation
- Balanced poppet design permits versatility in piping—valves can be configured as 4-way, 3-way, 2-way, normally closed, normally open, or for vacuum/diverter/selector applications
- Extremely high cycle rates with extremely long service life due to unique poppet cushions
- Manual override as standard for emergency operation
- Suitable for both lube and non-lube service
Technical Specifications
The 45A-AA1-DAAB-1CA provides verified performance data across a range of industrial conditions:
Typical Applications
This solenoid valve is commonly deployed in:
- Single-acting cylinder control and automation systems
- Pneumatic logic and sequencing circuits
- Vacuum and diverter applications
- Industrial process automation requiring quick switching and high cycle reliability
- Portable and stationary industrial equipment requiring compact direct-acting control
Compatibility & Replacements
Compatible With
- Standard compressed air systems (0 to 120 psi operating range)
- Inert gas and vacuum service
- Single-acting pneumatic cylinders and actuators
- Direct electrical control via 24VDC solenoid coil
- Industrial PLC and automation controller outputs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Common MAC 45 Series model variations exist; consult application documentation for precise cross-reference.
Works With
- MAC 45 Series valve accessories and sub-bases
- MAC flow control kits and pressure regulators
- Standard 1/2″ NPS conduit fittings and cabling
- NAMUR adapter kits (MAC part N-45028-03 for 3-way operation)
- Industrial automation platforms using 24VDC valve control
