Overview

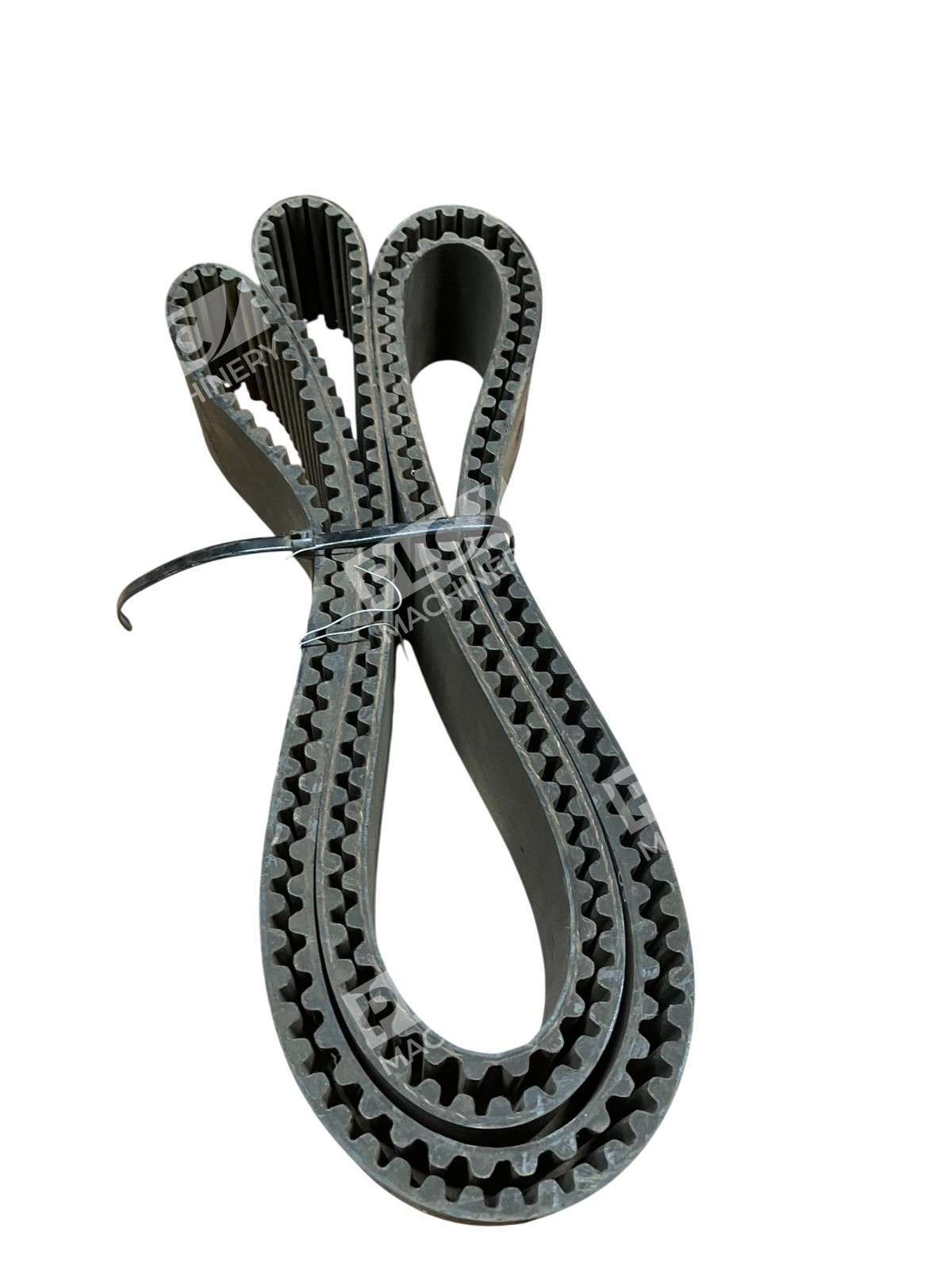

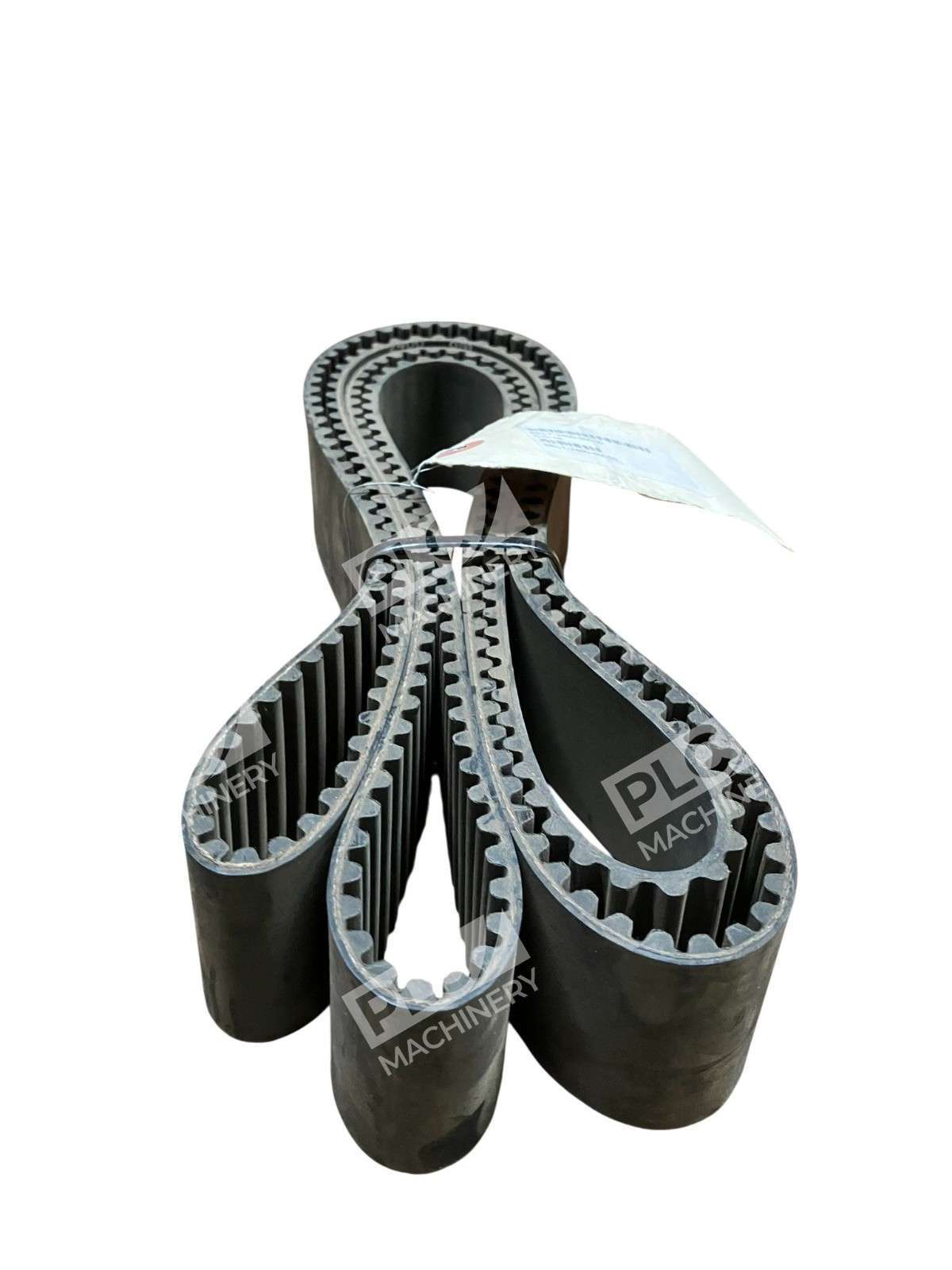

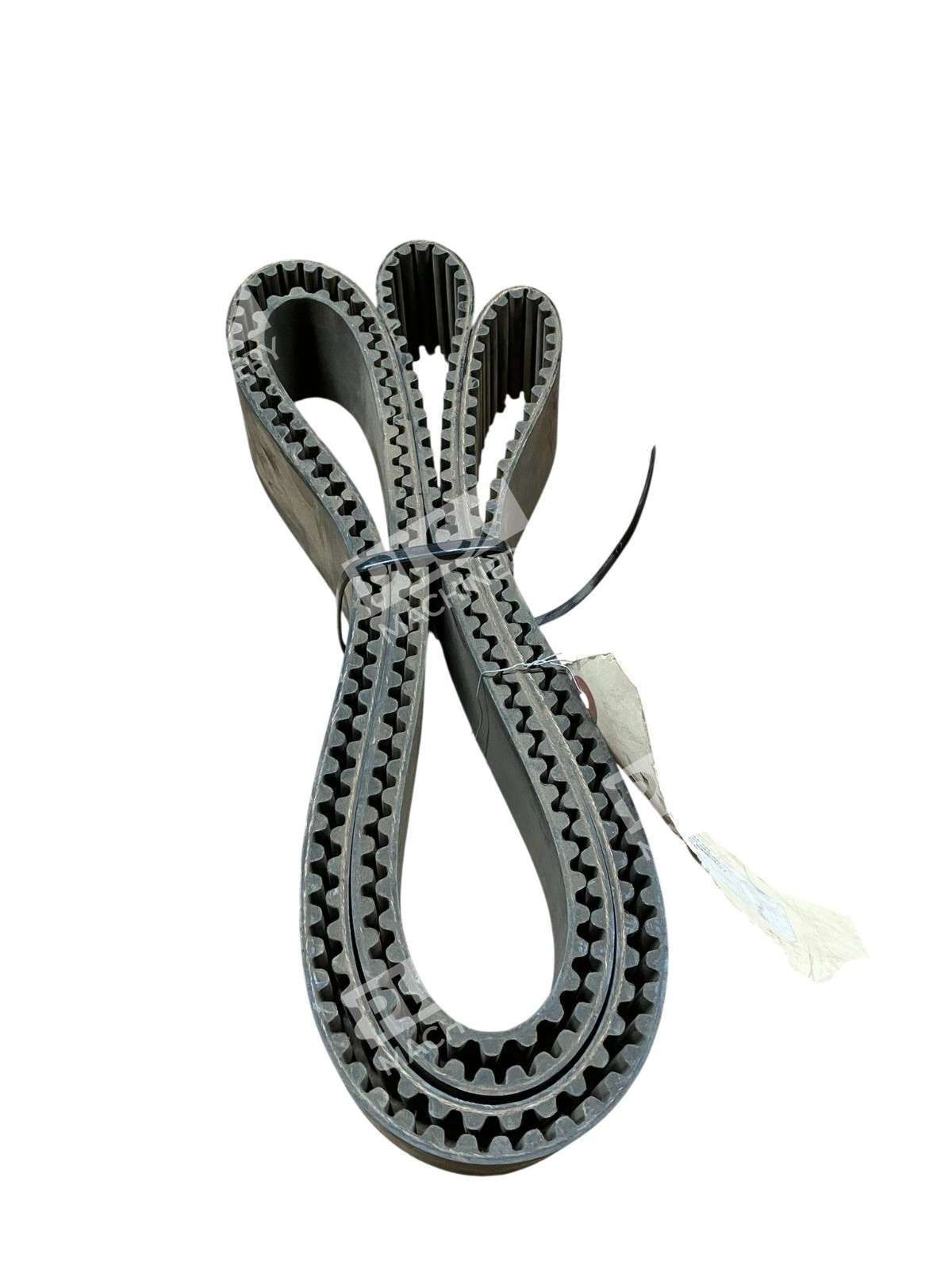

The 2400-8M-50 HTD timing belt is a synchronous power transmission component engineered for precise torque delivery and zero-slip operation. This belt features a 2400mm pitch length, 50mm width, and 300 teeth with HTD (High Torque Drive) profile—a proven design for industrial machinery, automation equipment, and motion control systems requiring reliable, accurate speed transmission.
Key Features
- HTD tooth profile engineered for compatibility with standard HTD, Gates PowerGrip GT2, and RPP pulleys
- Neoprene backing with fiberglass tensile cord reinforcement for durability and strength
- Oil and heat resistant construction for harsh industrial environments
- Precision ground backing for smooth, uniform running
- Helically wound, chemically set fiberglass cording ensures consistent performance
Technical Specifications
- Part Number: 2400-8M-50
- Length (Pitch): 2400 mm / 94.49 inches
- Width: 50 mm / 1.97 inches
- Number of Teeth: 300
- Pitch: 8 mm
- Tooth Profile: HTD
- Belt Depth / Height: 6.00 mm
- Tooth Height: 3.36 mm
- Weight: 1.48 lb / 0.67 kg
- Material: Neoprene backing with fiberglass cord
- Operating Characteristics: Oil and heat resistant
Typical Applications
- Conveyor system drives
- Industrial packaging machinery
- Automated assembly equipment
- CNC machine tool drives
- Power transmission in motor-to-pulley applications
- Robotics and motion control systems
Compatibility & Replacements
Compatible With
- Standard HTD 8M pulleys (8mm pitch tooth profile)
- Gates PowerGrip GT2 pulleys (50mm width)
- RPP (Raised Post Profile) pulleys with standard HTD 8M specification
- Industrial automation controllers and drive systems
- Conveyor and motion control assemblies using HTD synchronous drive
Replaces / Drop-In Replacement For
- OEM timing belt applications requiring HTD 8M 2400mm × 50mm specification
- Standard-equivalent HTD timing belts from major manufacturers (BANDO, Continental, B&B Manufacturing)
- Previous generation 2400-8M-50 belts requiring upgrade or renewal
Works With
- HTD 8mm pitch pulley systems
- Industrial synchronous drive configurations
- Tension adjustment mechanisms and belt guides
- Standard timing belt pulleys with HTD tooth profile
