Overview

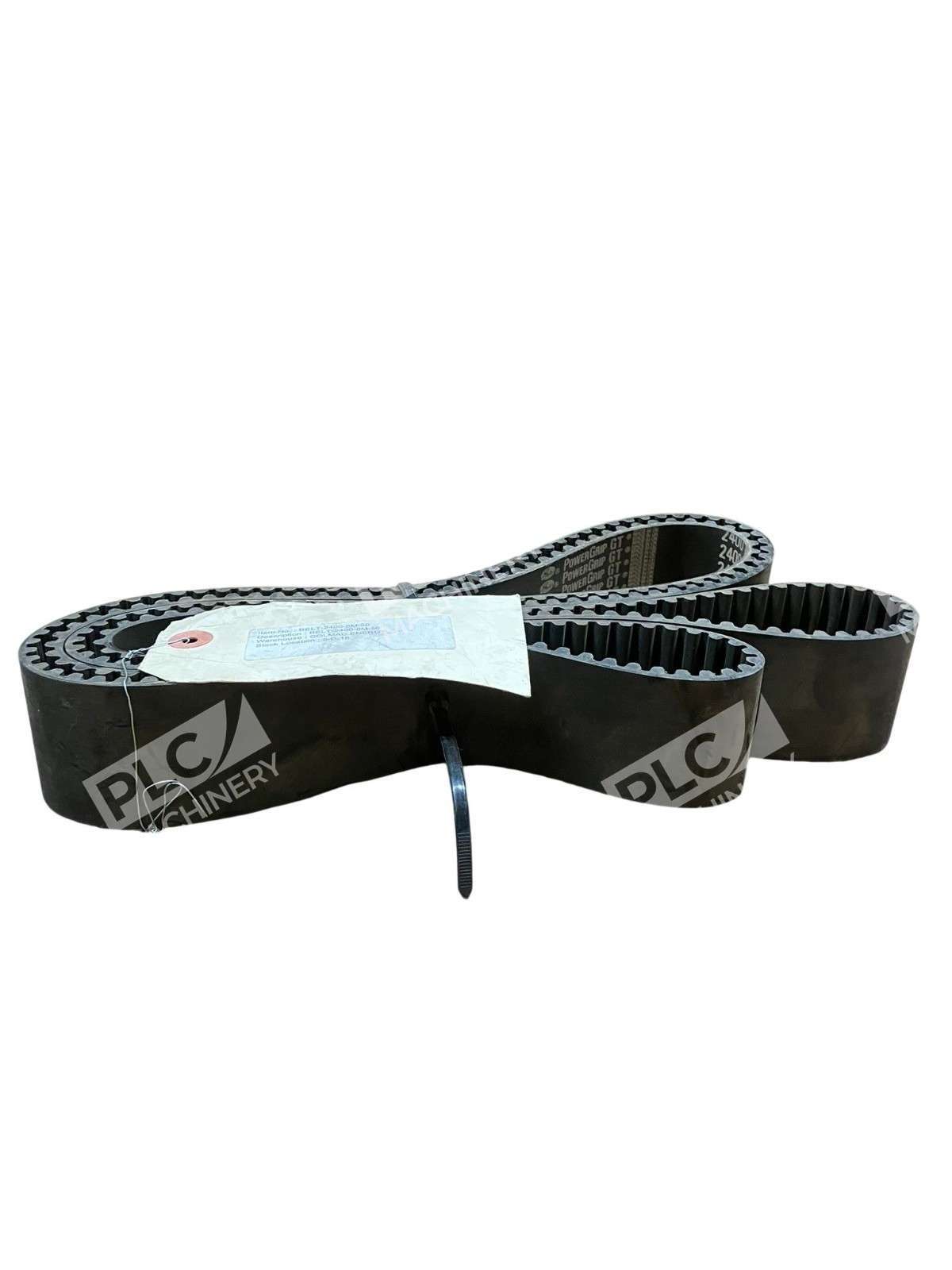

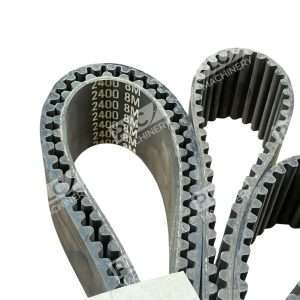

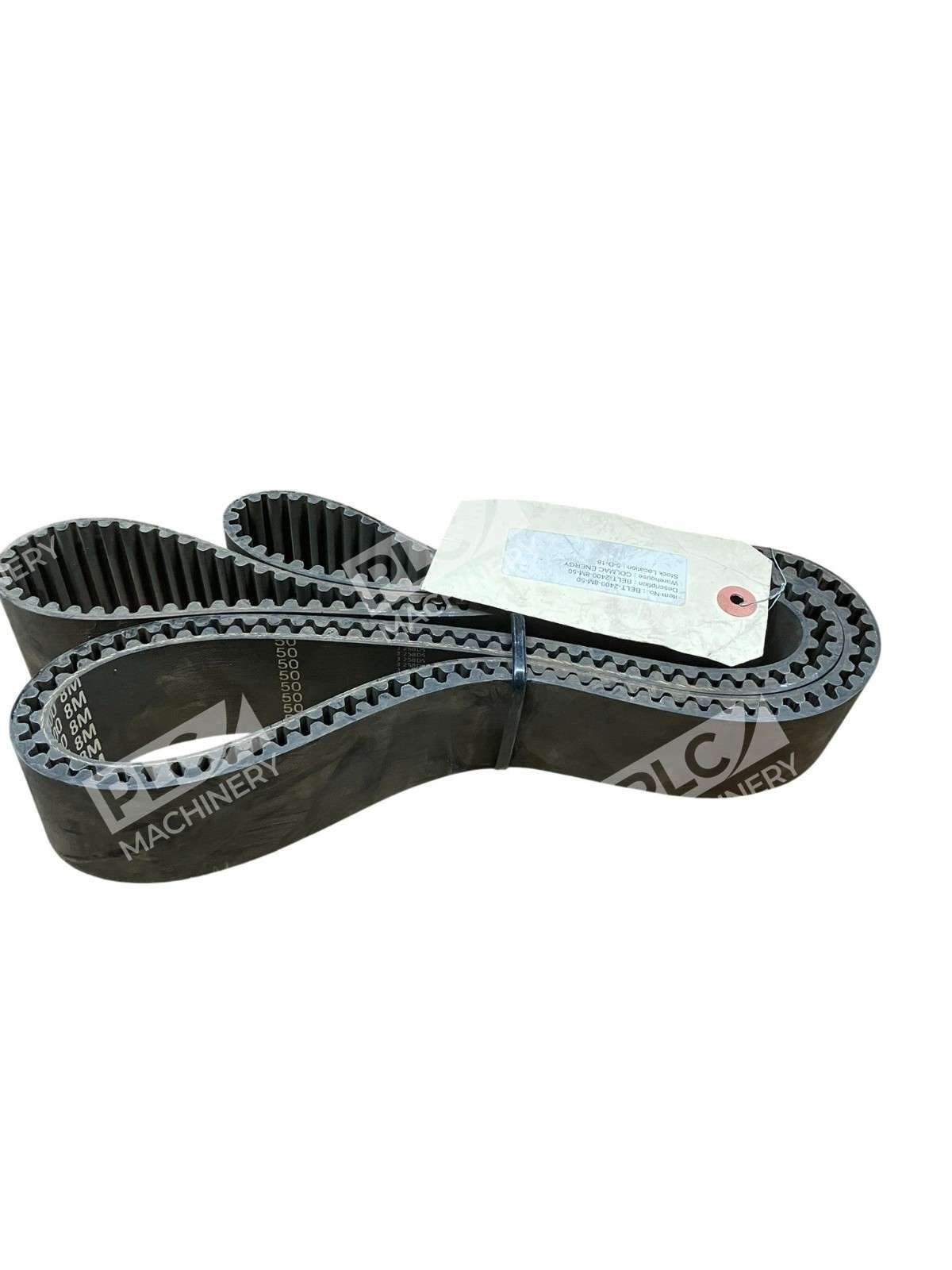

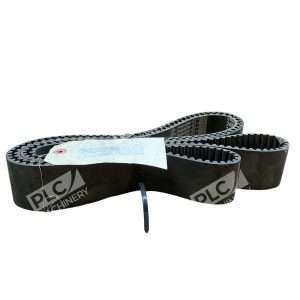

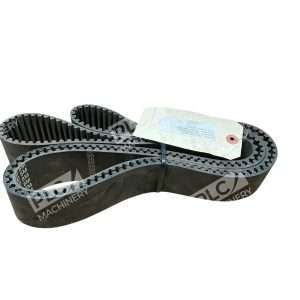

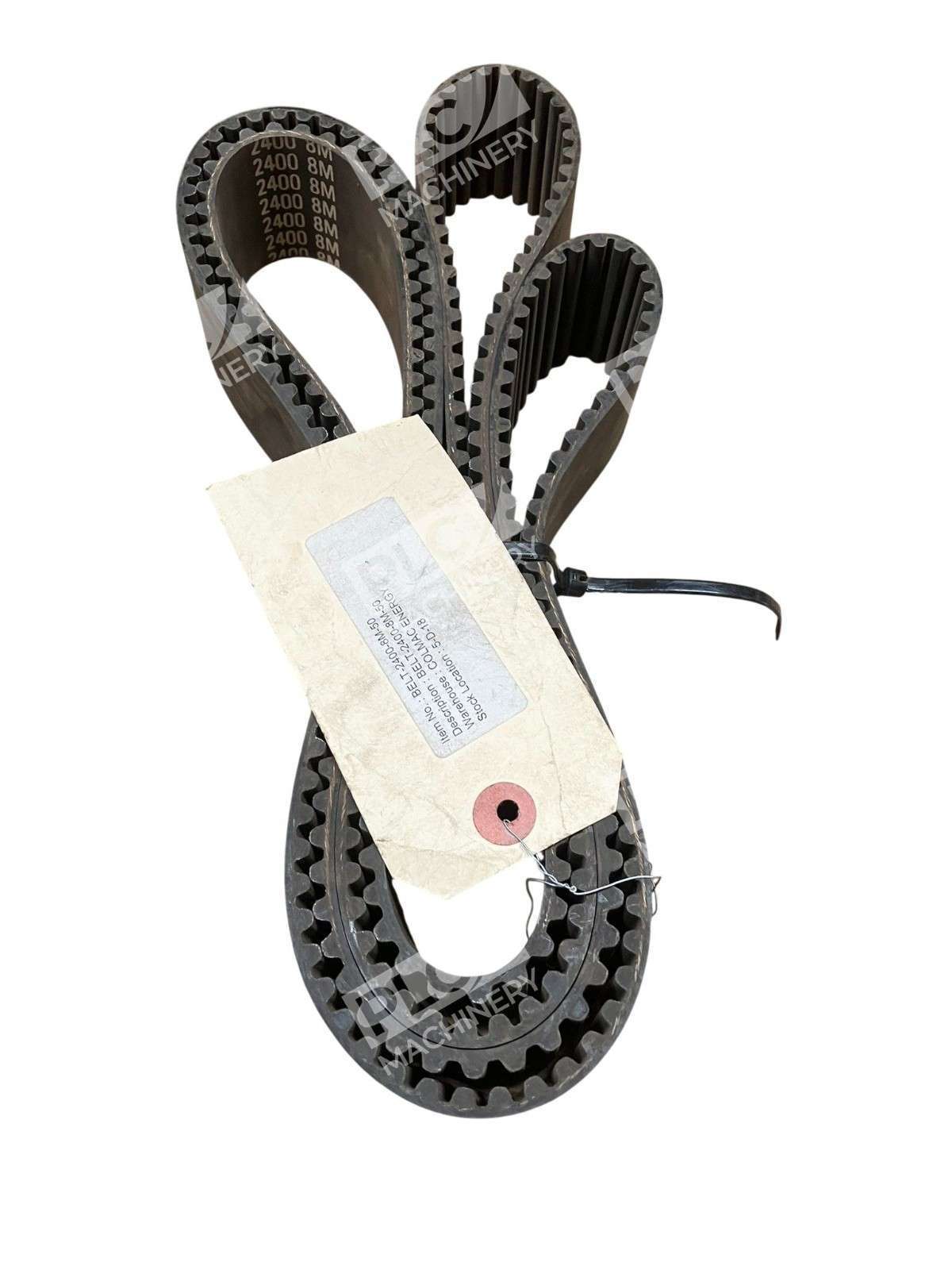

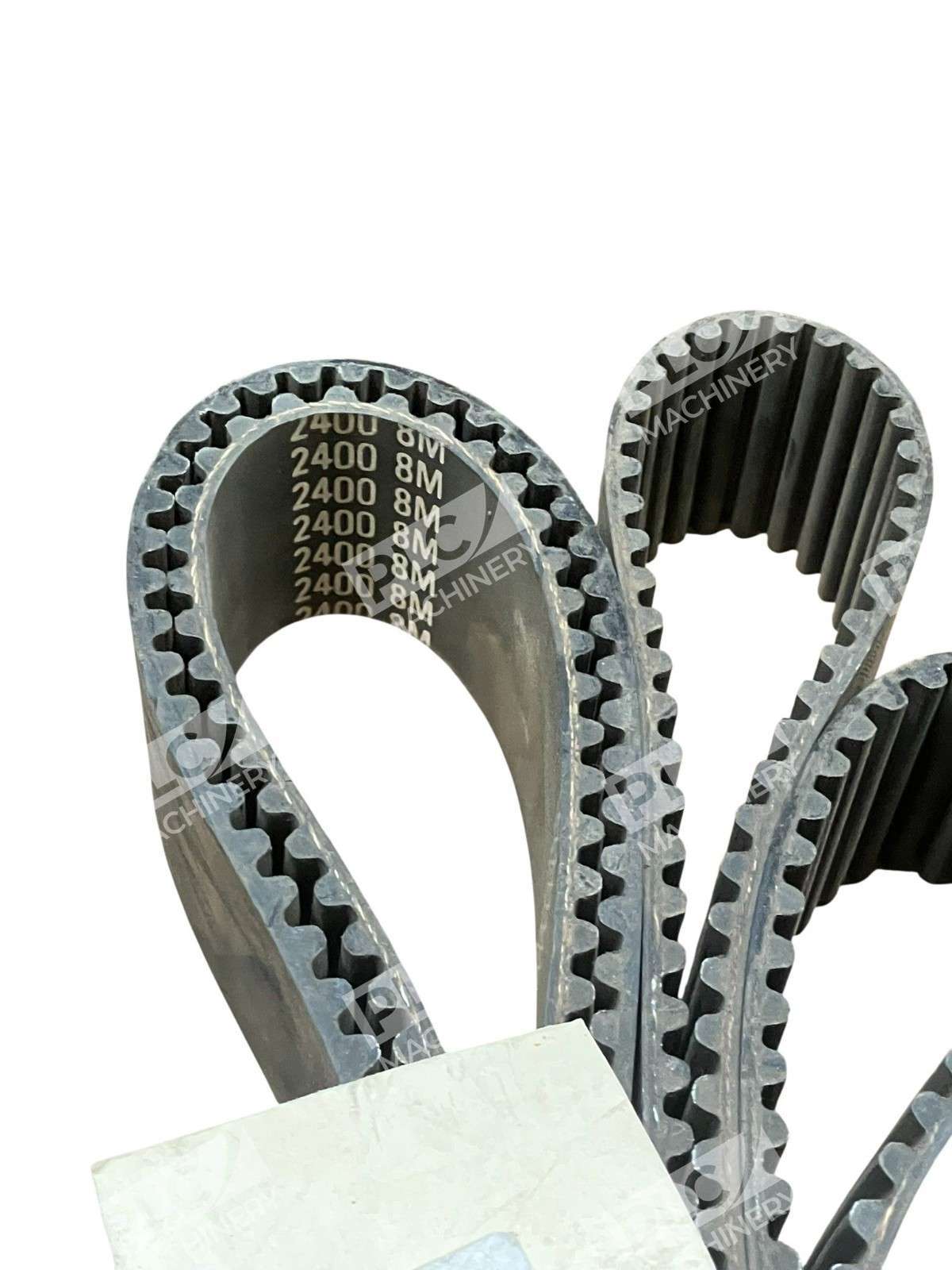

The Gates 2400-8M-50 PowerGrip GT synchronous timing belt delivers proven reliability for demanding industrial motion control and power transmission applications. Featuring Gates’ proprietary modified curvilinear (GT) tooth profile, this belt combines precision tooth geometry with robust construction to maximize power capacity and service life in high-performance drive systems.
Key Features
- Modified curvilinear GT tooth geometry for increased power capacity and superior tooth shear resistance
- Fiberglass tensile cords provide high strength, excellent flex life, and exceptional resistance to elongation
- Neoprene body resists environmental contamination—grease, oil, moisture, and grime
- Nylon tooth facing delivers a durable wear surface for extended service life
- Non-slip positive drive with smooth, low-noise operation
- Maintenance-free alternative to lubricated chain drives
Technical Specifications
- Pitch Profile: HTD 8M / PowerGrip GT
- Pitch (tooth spacing): 8 mm
- Belt Width: 50 mm
- Belt Length: 2400 mm
- Number of Teeth: 300
- Body Material: Neoprene (polychloroprene)
- Tensile Reinforcement: Fiberglass cord
- Tooth Facing: Nylon
- Tooth Location: Single-sided
- Color: Black
- Temperature Range: -30°F to +185°F (-34°C to +85°C)
Typical Applications
The Gates 2400-8M-50 is engineered for high-performance, high-torque applications where durability and low maintenance are essential:
- Machine tool drives (milling machines, lathes, grinding equipment)
- Textile industry machinery and drive systems
- Paper processing and converting equipment
- Industrial automation and motion control
- Power transmission in manufacturing environments
- Equipment requiring reliable, maintenance-free synchronous drive performance
Compatibility & Replacements
Compatible With
- HTD 8M pulley systems and sprockets
- Standard 8mm pitch synchronous pulley drives
- Industrial drive systems rated for fiberglass-reinforced synchronous belts
- Existing HTD/GT3 type applications (direct upgrade path available)
Replaces / Drop-In Replacement For
Verify compatibility with your specific system. The Gates 2400-8M-50 is dimensionally equivalent to other standard HTD 2400-8M-50 synchronous belts; however, confirm part number compatibility with your equipment documentation or system integrator before ordering.
Works With
- HTD 8M profile pulleys and timing wheels
- Standard conveyor and drive systems using 8mm pitch synchronous belts
- Industrial automation control systems requiring precise, synchronous power transmission
- Retrofit applications upgrading from chain or other belt systems to synchronous technology
