Overview

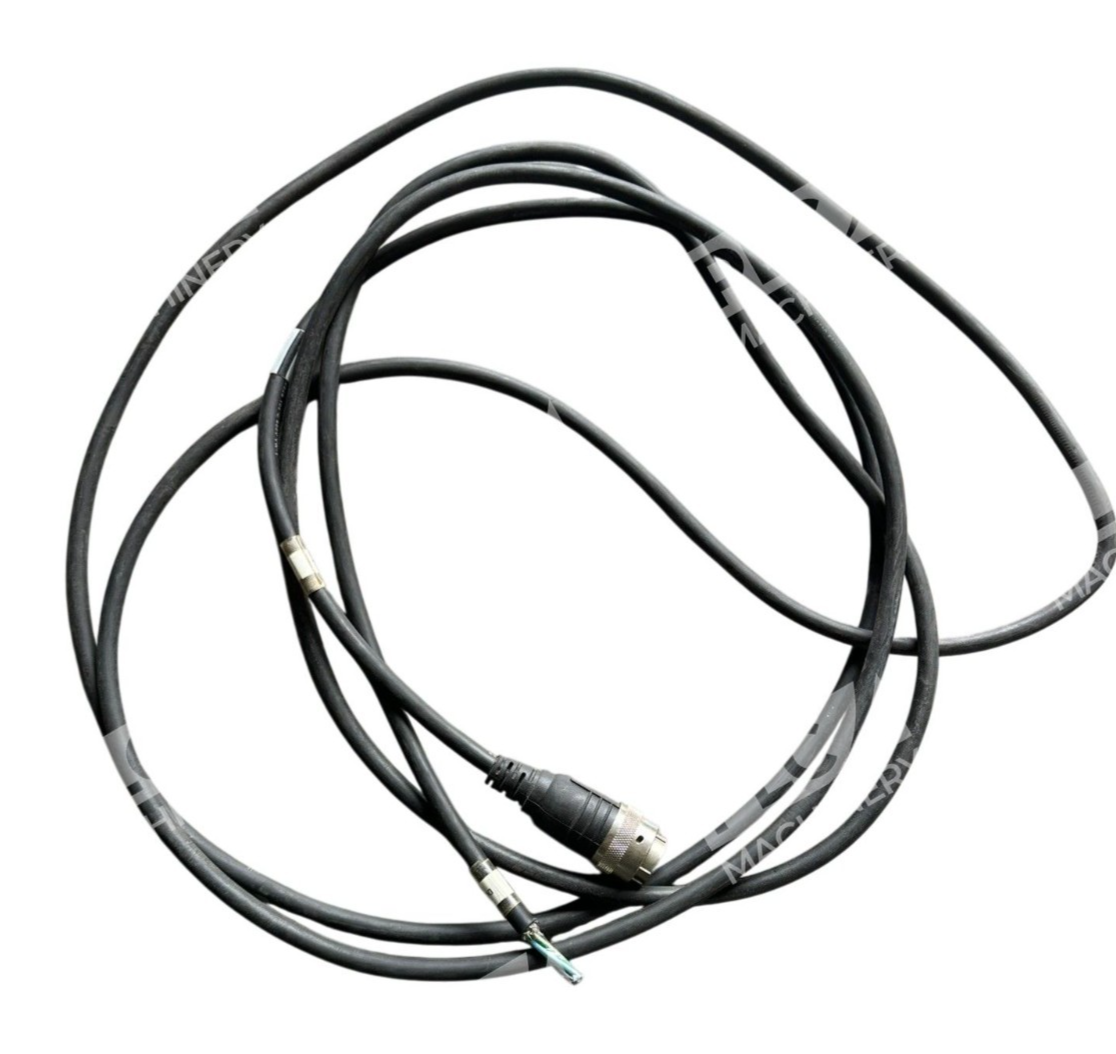

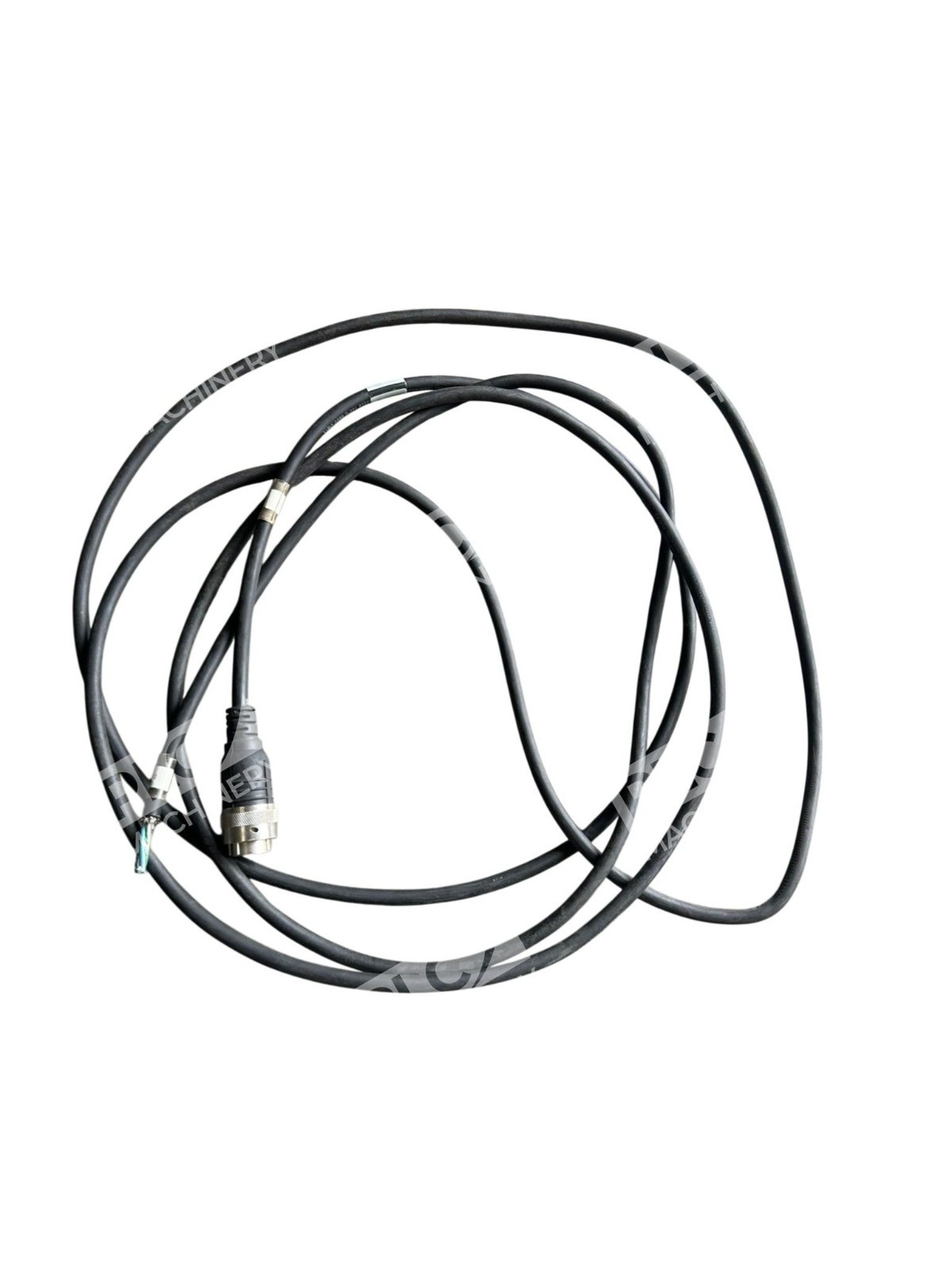

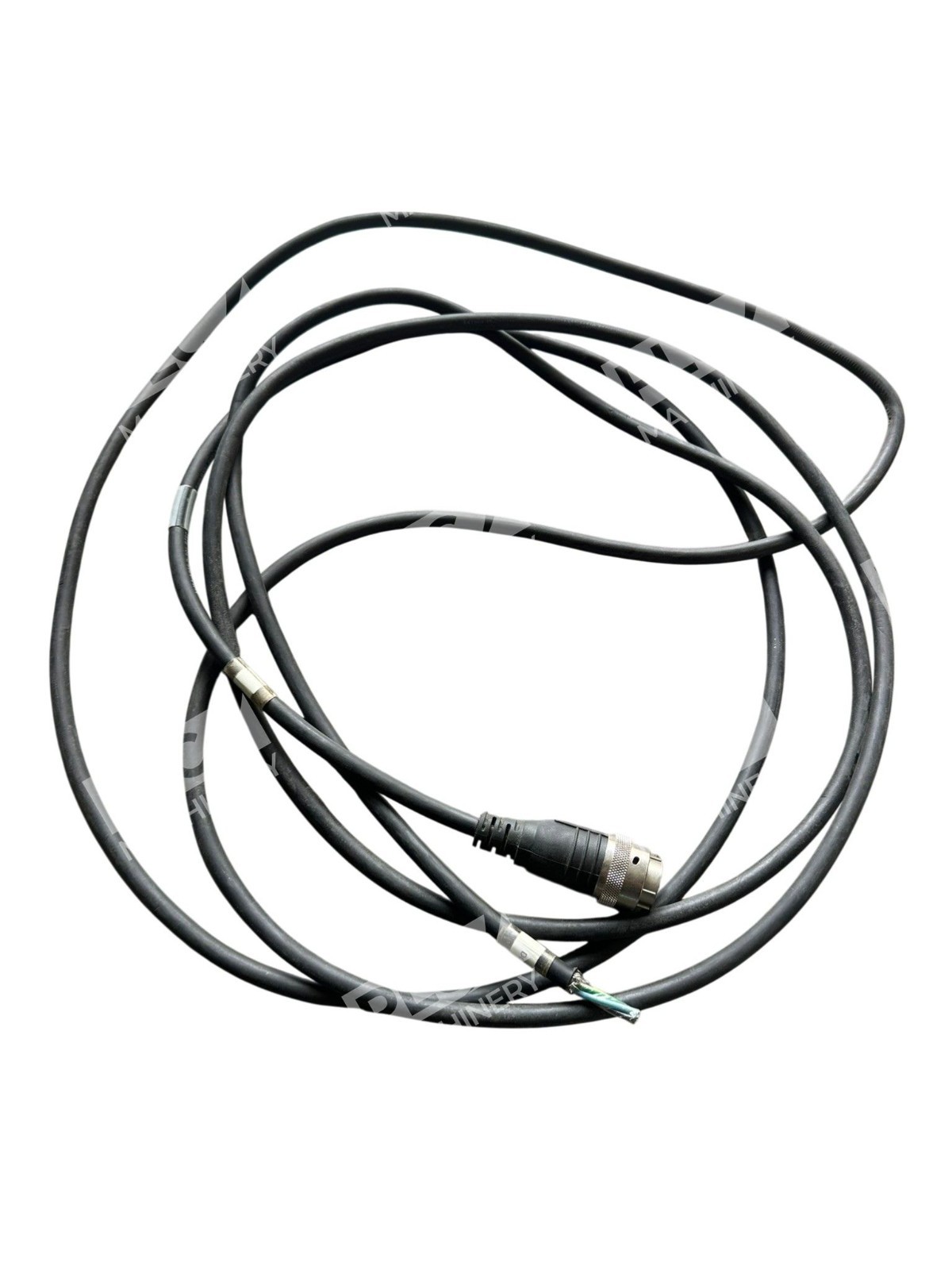

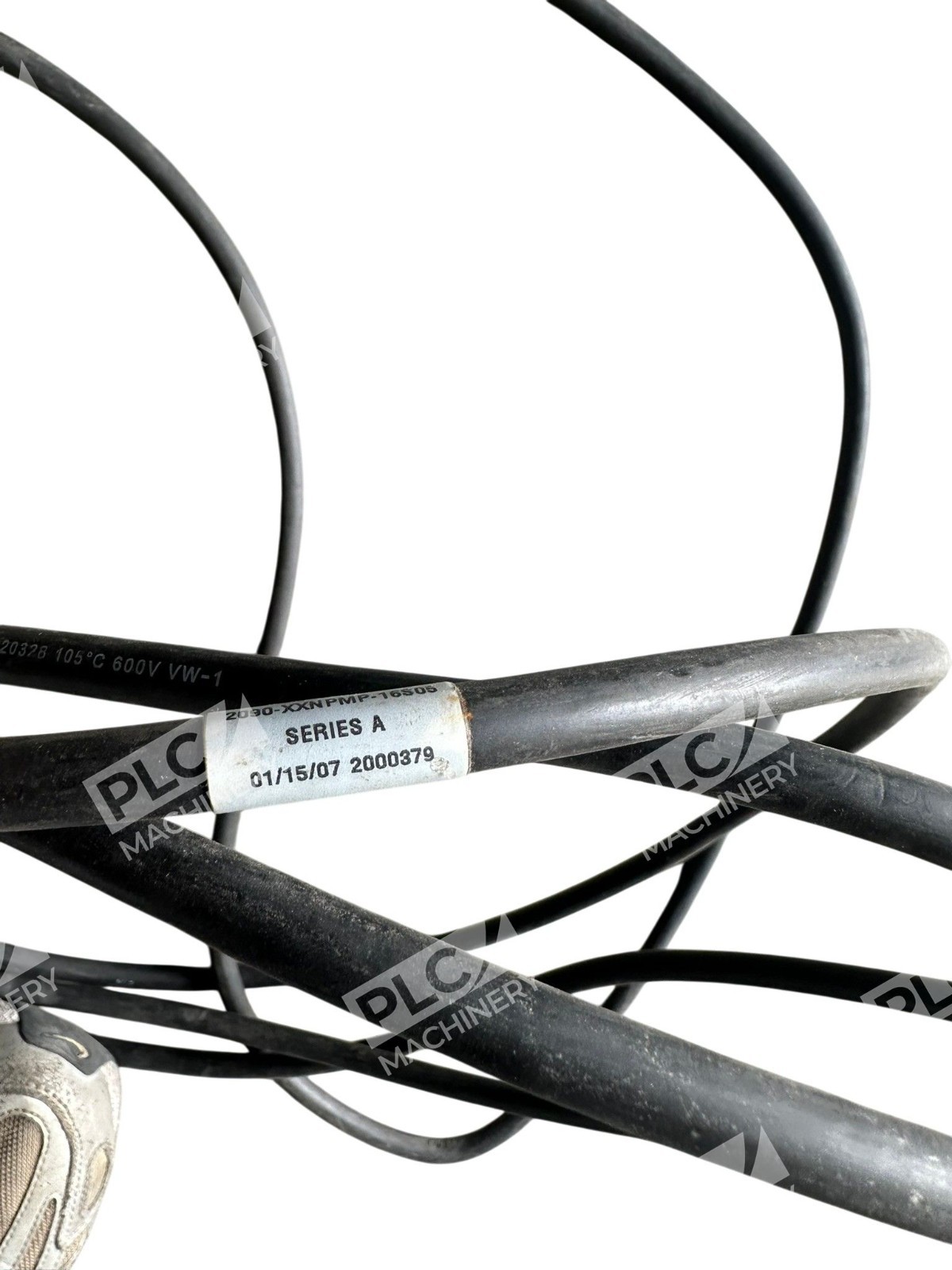

The Allen-Bradley 2090-XXNPMP-16S05 is a standard power distribution cable for Kinetix servo motor systems. This 5-meter cable connects Kinetix drives to MP-Series and 1326AB servo motors, carrying three-phase power with integrated brake and spare conductors. Built with industrial-grade thermoplastic elastomer jacket and shielded conductors, it meets the performance demands of automated machinery and control applications.
Key Features
- 5-meter length with bayonet connector (motor end) and flying leads (drive end)
- 16 AWG shielded conductors rated for 600V operation
- Industrial-grade thermoplastic elastomer (TPE) jacket, black color
- Non-flexible design for durable, long-term installation
- Includes power conductors plus additional brake and spare conductors for motor control
- Standard cable type certified to KC standards
Technical Specifications
- Conductor Size: 16 AWG (power), 18 AWG (brake/spare)
- Cable Length: 5 m (16.4 feet)
- Voltage Rating: 600V
- Connector Type (Motor End): Bayonet
- Connector Type (Drive End): Flying Leads
- Jacket Material: Industrial Grade Thermoplastic Elastomer
- Cable Type: Non-Flexible Standard
- Color: Black
- Weight: 1.8 lb (0.82 kg)
- UPC: 820919008818
- Standard Certification: KC
Typical Applications
- Assembly line machinery with servo-driven motion axes
- Packaging equipment requiring precise motor control
- Robotic systems and material handling automation
- Machine tool motion control where shielded power distribution is required
- Industrial equipment using Rockwell Automation Kinetix drives and MP-Series motors
Compatibility & Replacements
Compatible With
- Rockwell Automation Kinetix servo drives
- Allen-Bradley MP-Series low-inertia servo motors
- Allen-Bradley 1326AB-Series servo motors (M2L/S2L variants)
- 230V and 460V three-phase power systems
- Industrial automation control platforms using Kinetix motion control
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. This cable is application-specific and should match your existing drive-to-motor wiring configuration.
Works With
- Kinetix servo drives and controllers
- Studio 5000 Logix Designer motion control programming
- Rockwell Automation CompactLogix and ControlLogix PLC systems with motion modules
- EtherNet/IP and industrial networking protocols for drive integration
- Integrated motor braking and spare control circuits for safety-rated applications
