Overview

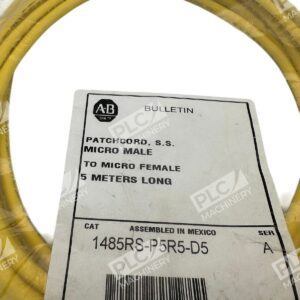

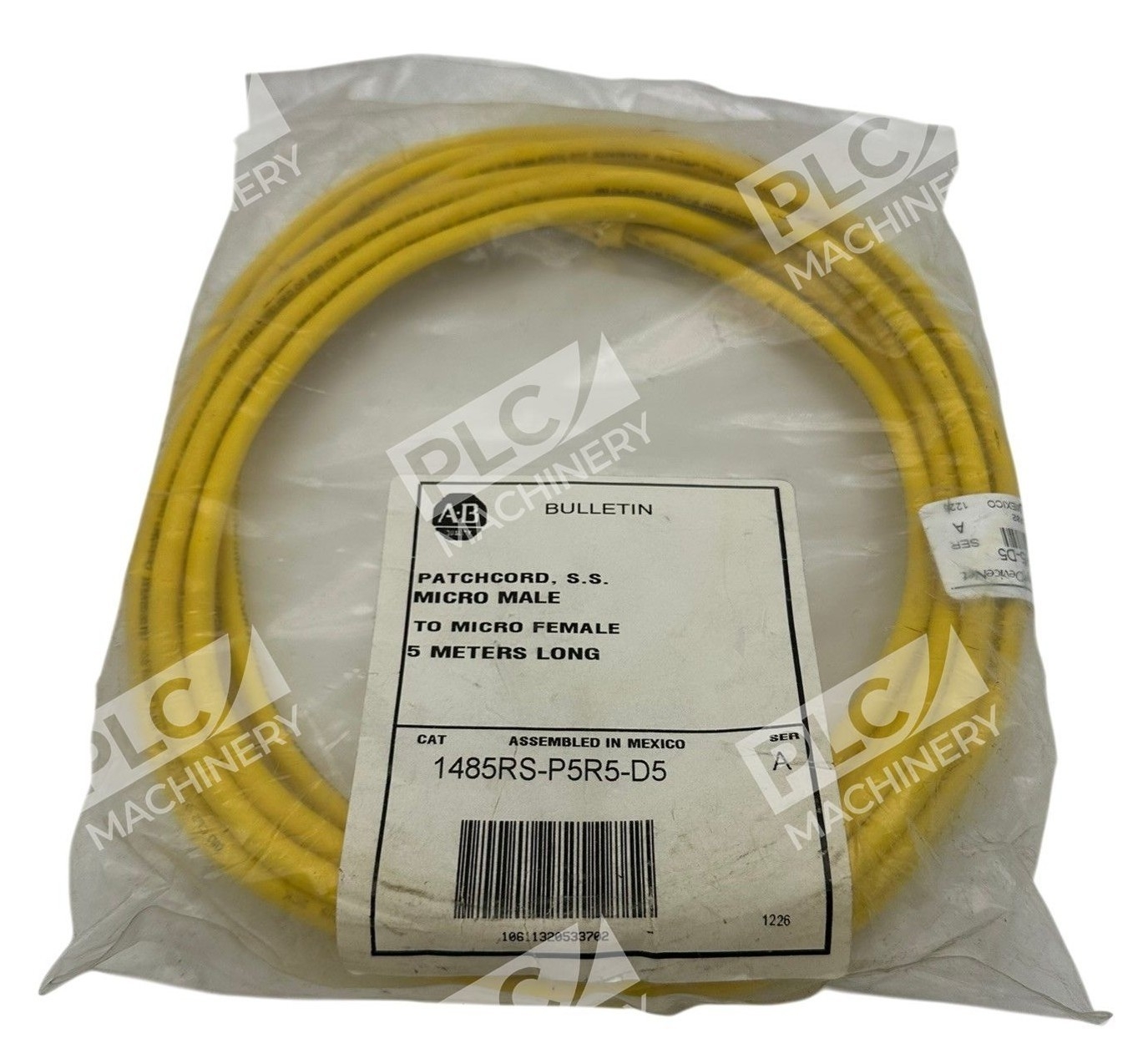

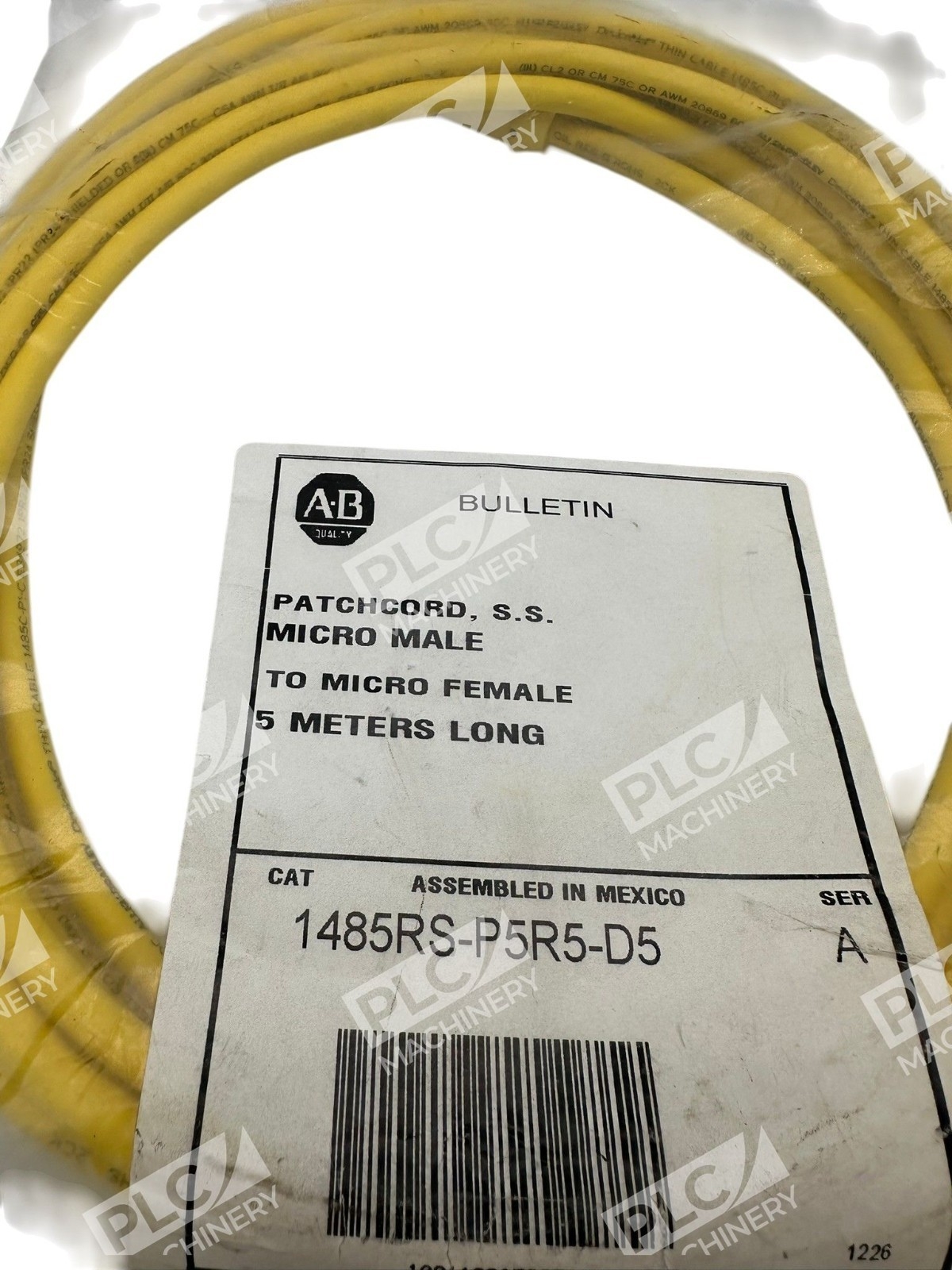

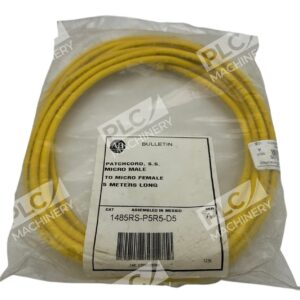

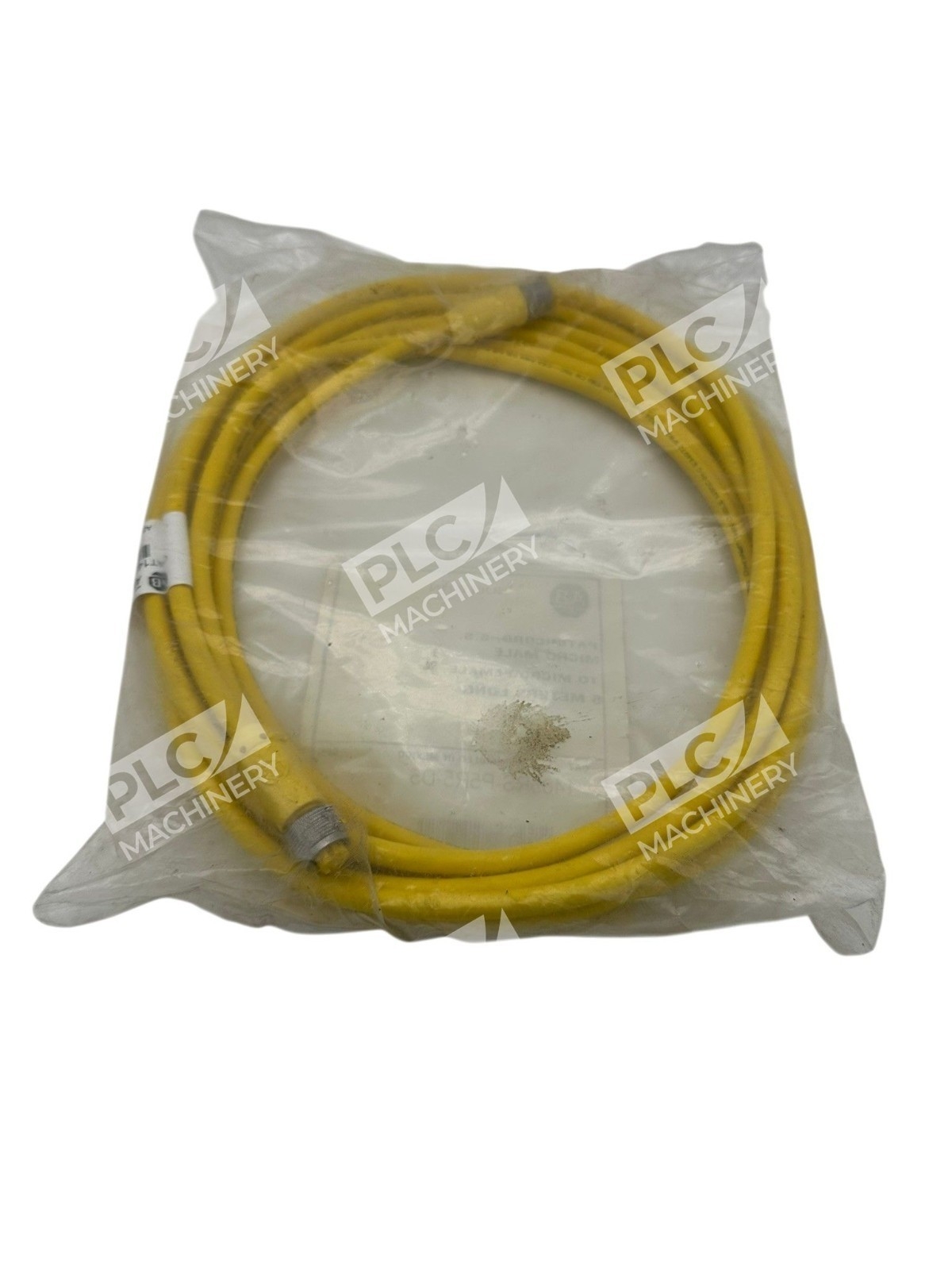

The Allen-Bradley 1485RS-P5R5-D5 Series A is a 5-meter DeviceNet patchcord engineered for secure, high-reliability connectivity in industrial automation applications. This cable features stainless steel connectors and robust construction to withstand demanding factory environments. The patchcord is designed for seamless integration with Allen-Bradley DeviceNet nodes, drives, and control devices.
Key Features
- 5-meter cable length for flexible installation distances
- Stainless steel connectors for corrosion resistance and durability
- DeviceNet communication protocol compliance
- Micro connector configuration for secure mating
- Yellow polyurethane jacket for visual identification
- Series A specification ensures compatibility with legacy and current systems
Technical Specifications
- Cable Length: 5 meters
- Connector Type: Micro micro connectors with stainless steel housings
- Cable Jacket: Yellow polyurethane (CPE)
- Connector Ends: Female to Male configuration
- Protocol: DeviceNet
- Series: Series A
- Condition: New in Box
- Shielding: Multi-conductor twisted-pair with shield
Typical Applications
- Connecting DeviceNet scanner modules to I/O nodes
- Industrial drive and motor control communication
- Factory floor sensor and actuator networks
- Programmable logic controller (PLC) peripheral connectivity
- Manufacturing equipment and process automation
- Packaging and conveyor system control
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix controllers with DeviceNet modules
- Rockwell Automation 1485A, 1485C, 1485F, 1485G, 1485K, 1485P, 1485R, and 1485T series DeviceNet components
- Third-party DeviceNet-compliant industrial devices and nodes
- Factory automation systems using DeviceNet physical media
Replaces / Drop-In Replacement For
The 1485RS-P5R5-D5 is functionally equivalent to other 5-meter Series A DeviceNet patchcords in the 1485RS-P5R5 family. Verify the exact end connector configuration (D5 vs. other designations) matches your existing installation before substitution. Consult Allen-Bradley documentation or your system integrator to confirm drop-in compatibility.
Works With
- DeviceNet protocol (CAN-based communication)
- Allen-Bradley Studio 5000 Logix Designer software configuration
- Rockwell Automation RSLinx communication gateway
- Any DeviceNet scanner or adapter module
- Industrial network commissioning and diagnostic tools
