Overview

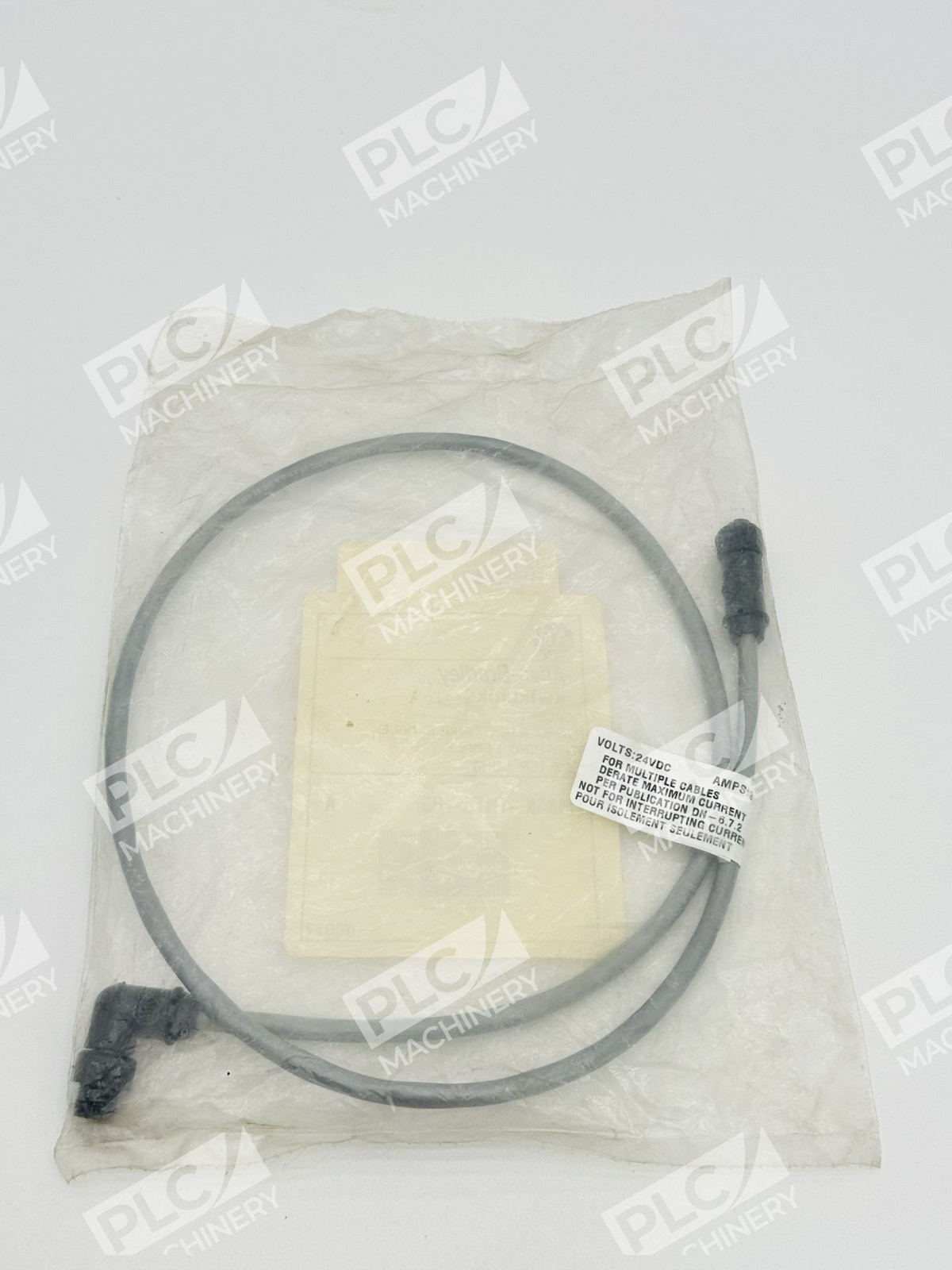

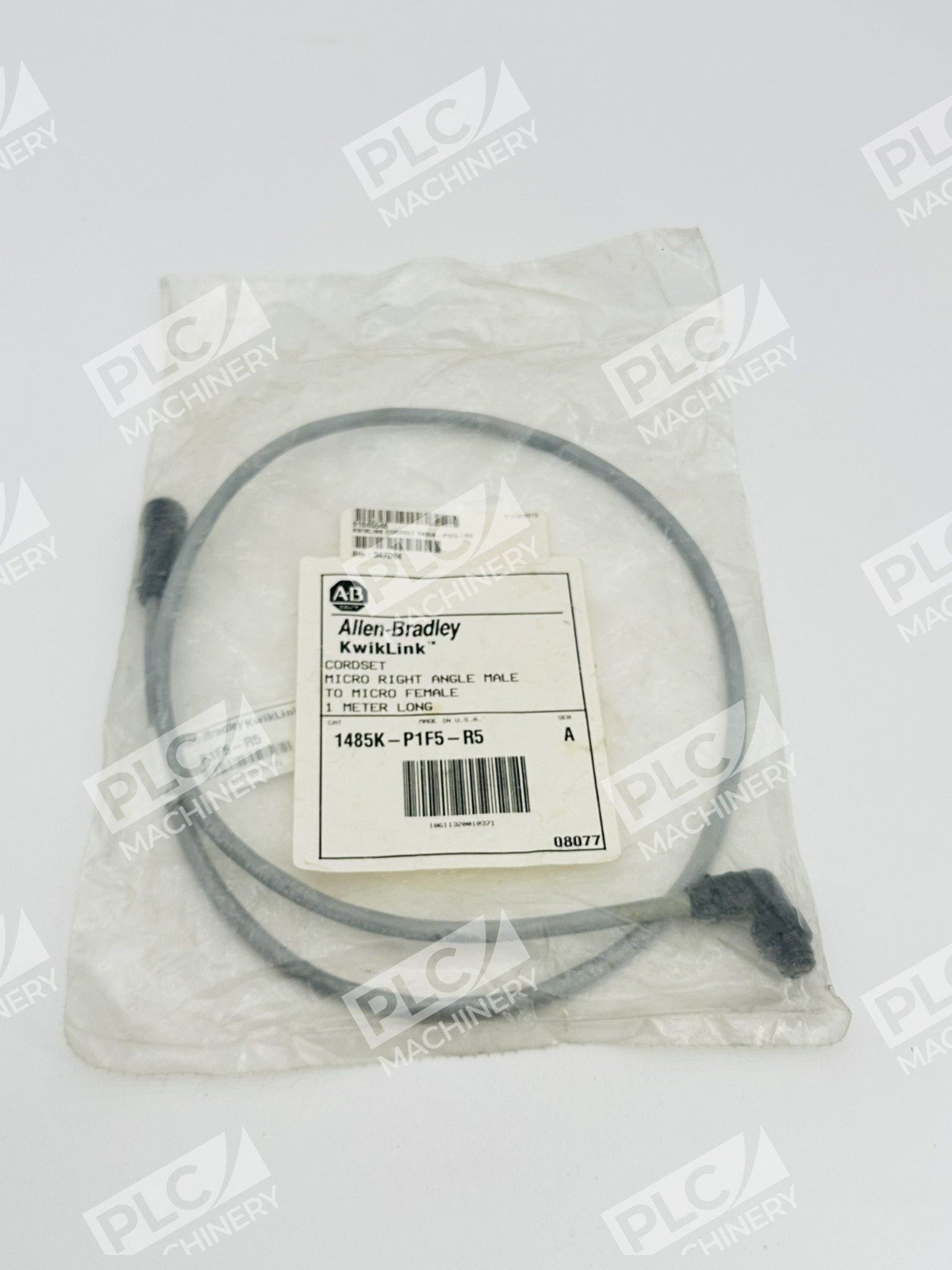

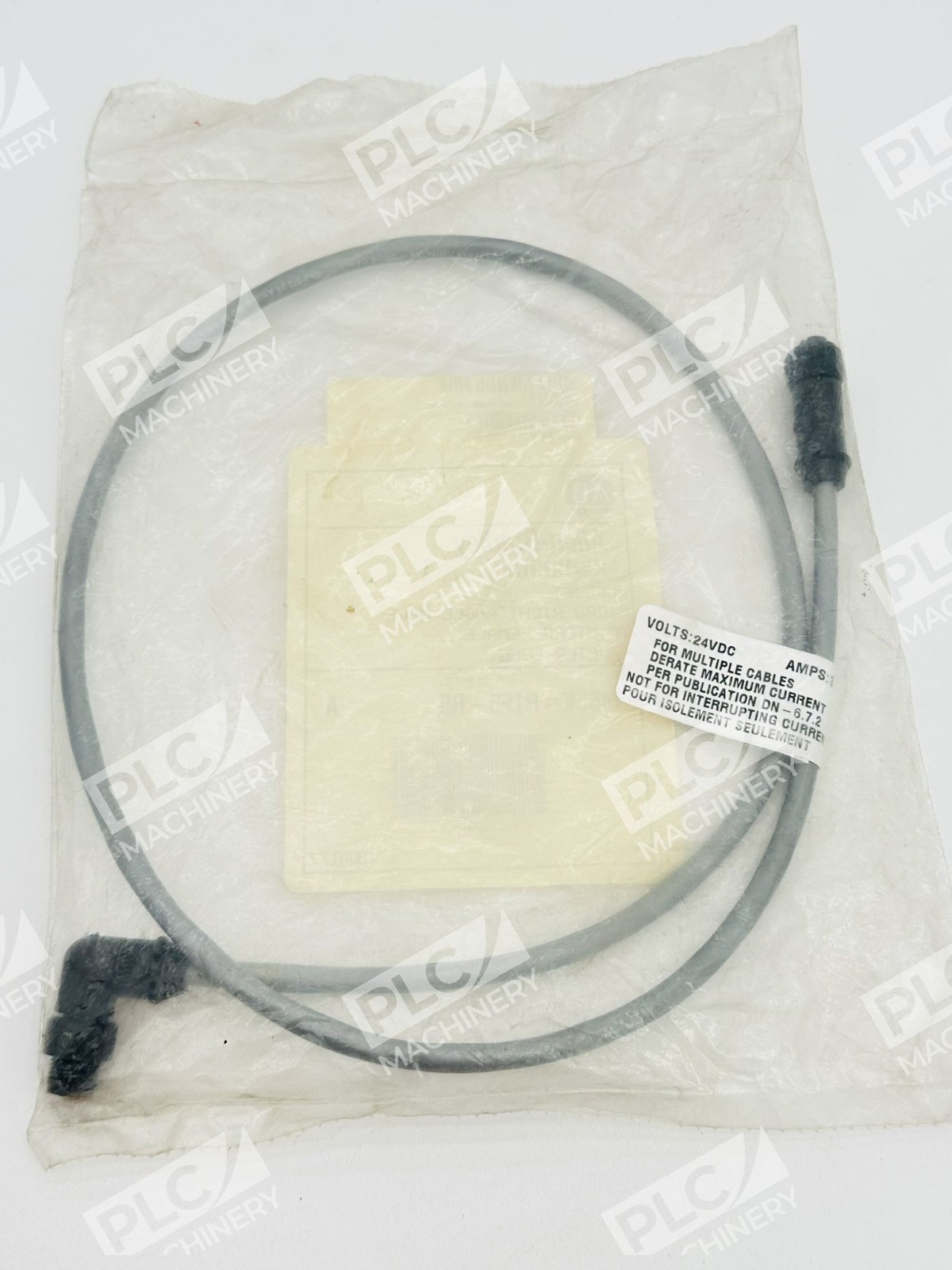

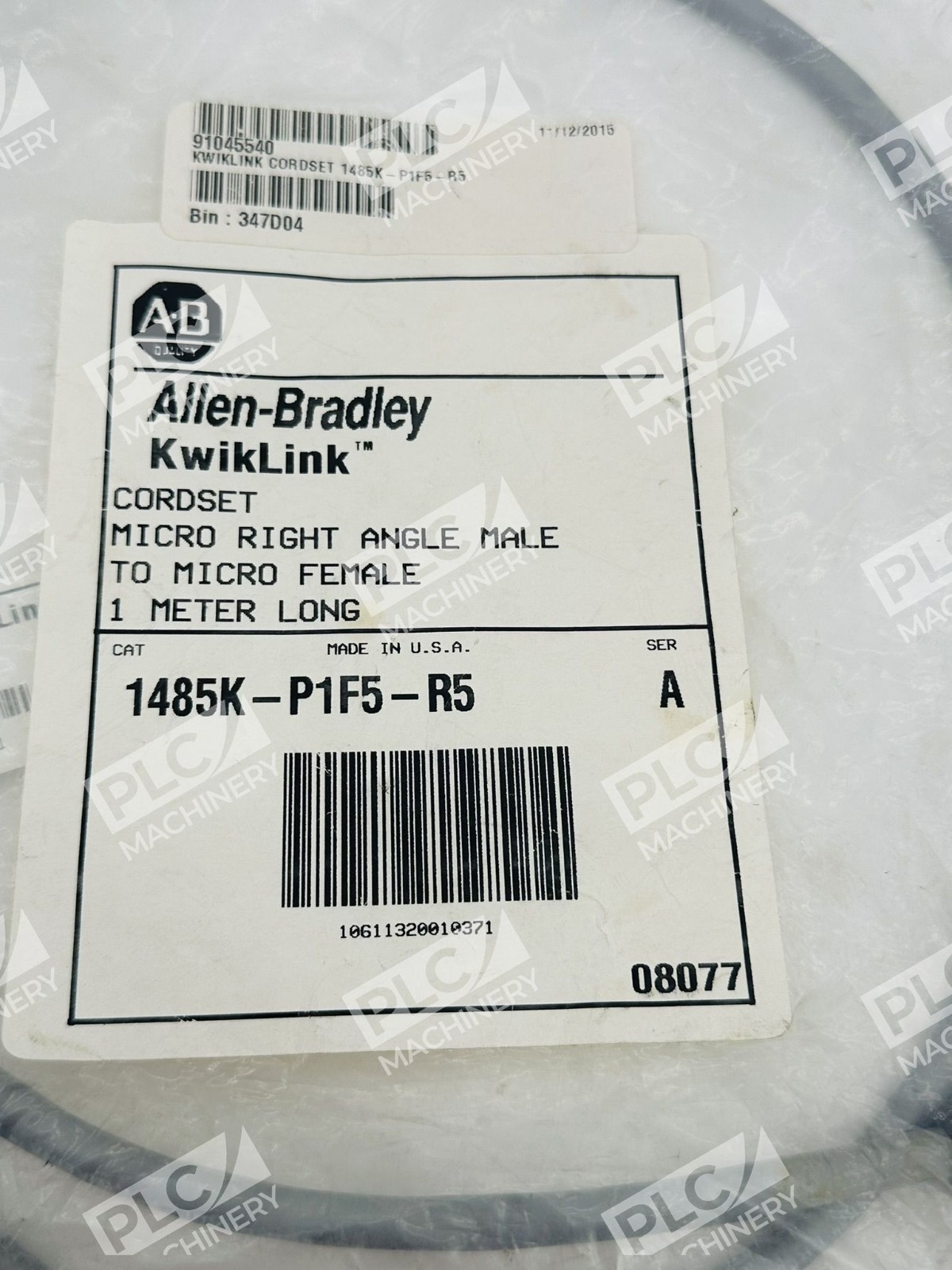

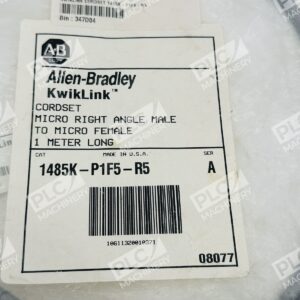

The Allen-Bradley 1485K-P1F5-R5 is a professional-grade KwikLink cordset engineered for DeviceNet physical media applications. This 1-meter cable features 5-pin micro connectors with a right-angle male end and straight female end, providing secure, keyed connections for industrial automation equipment. The cordset uses PVC-jacketed, unshielded flat cable construction with molded oil-resistant polyurethane connectors, ensuring durability in factory environments.
Key Features
- 1-meter length KwikLink cordset with integral connectors
- 5-pin micro right-angle male to micro straight female connectors
- Physically keyed connectors prevent wiring mishaps
- Oil-resistant polyurethane connector housing
- Unshielded flat cable with standard epoxy-coated zinc connections
- UL, CUL, C-TICK, and KC certified for global markets
Technical Specifications
- Cable Length: 1 meter
- Connector Type: 5-Pin Micro Right Angle Male to Straight Female
- Cable Construction: KwikLink PVC, unshielded flat cable
- Amperage Rating: 3 Amp
- Connector Material: Gold-plated, molded oil-resistant polyurethane
- Operating Temperature Range: −20 to +80 °C
- Cable Color: Gray
- Connection Standard: Standard epoxy-coated zinc
- Certifications: UL, CUL, C-TICK, KC
- UPC: 611320010374
Typical Applications
This cordset is ideal for:
- DeviceNet sensor networks and I/O connections
- Proximity sensors, limit switches, and photoelectric sensors
- Industrial automation control systems requiring short field drops
- Factory floor equipment interconnections
- Machine tool and manufacturing line installations
- Quick-disconnect cable runs in production environments
Compatibility & Replacements
Compatible With
- Allen-Bradley DeviceNet networks
- 5-pin micro DeviceNet devices and connectors
- Industrial equipment with DeviceNet interface cards
- Proximity sensors and limit switches with KwikLink connectors
- Photoelectric sensors and discrete I/O modules
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering.
Works With
- DeviceNet Physical Media standard
- Allen-Bradley CompactLogix, MicroLogix, and ControlLogix networks
- Rockwell Automation control systems with DeviceNet modules
- Industrial sensor and I/O ecosystems using 5-pin micro connectors
